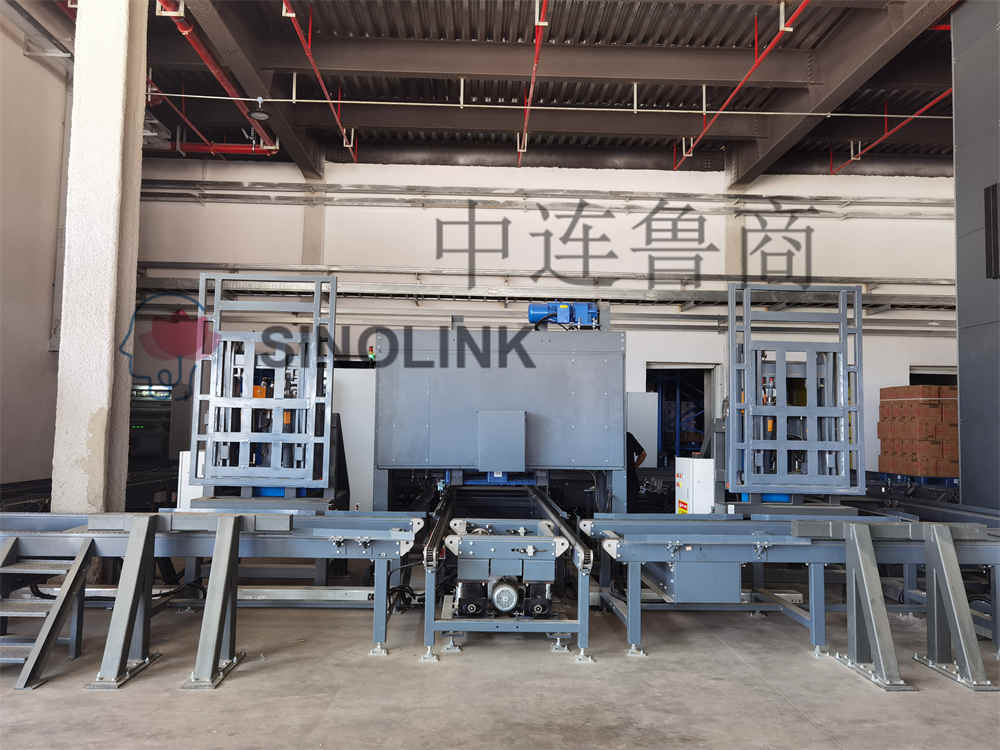

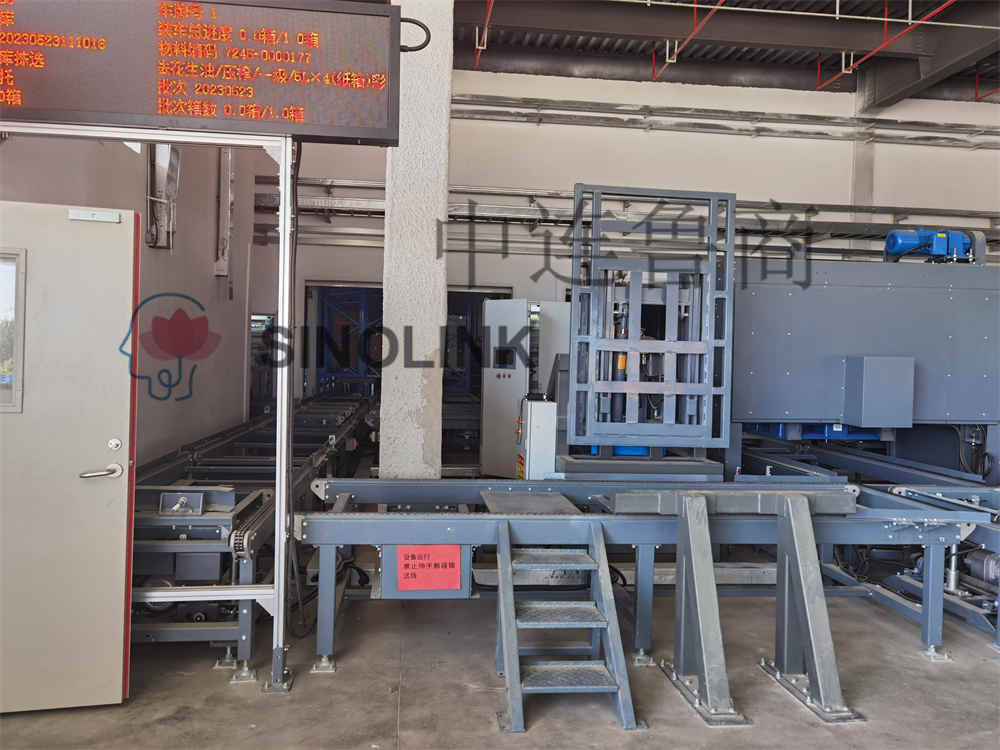

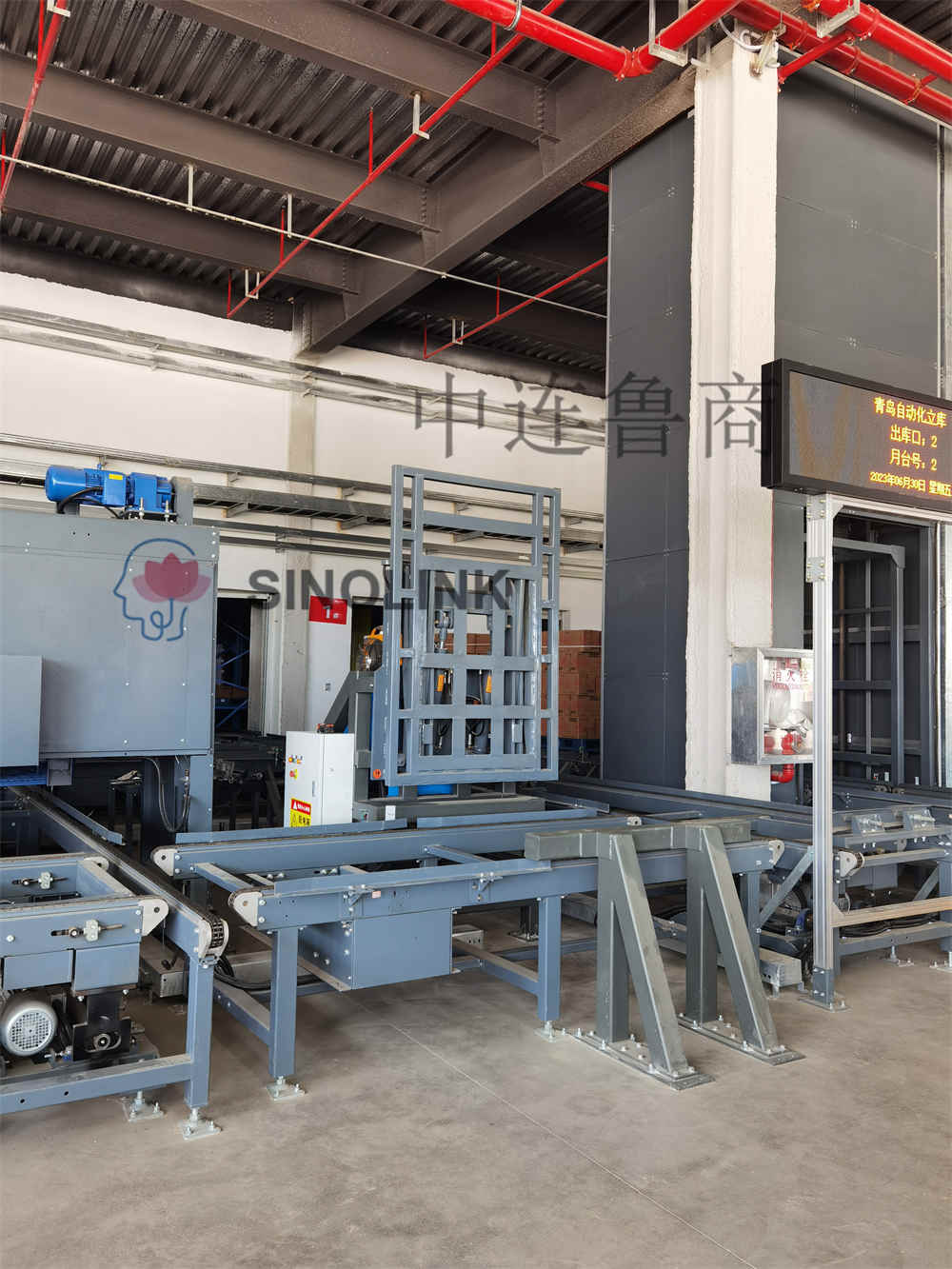

Pallet Push-pull Pproduct Line Push-puller

Scope of supply of Pallet Push-pull Pproduct Line

By adding a set of "pallet push and pull product line" to reduce outsourcing business expenses and save costs. It meets the process requirements of pallet-free stacking and onboarding, meets production efficiency, and achieves safe production. This includes, but is not limited to, the following;

A, Two sets of conveyors (the buyer provides his own)

B, Two push-pull devices

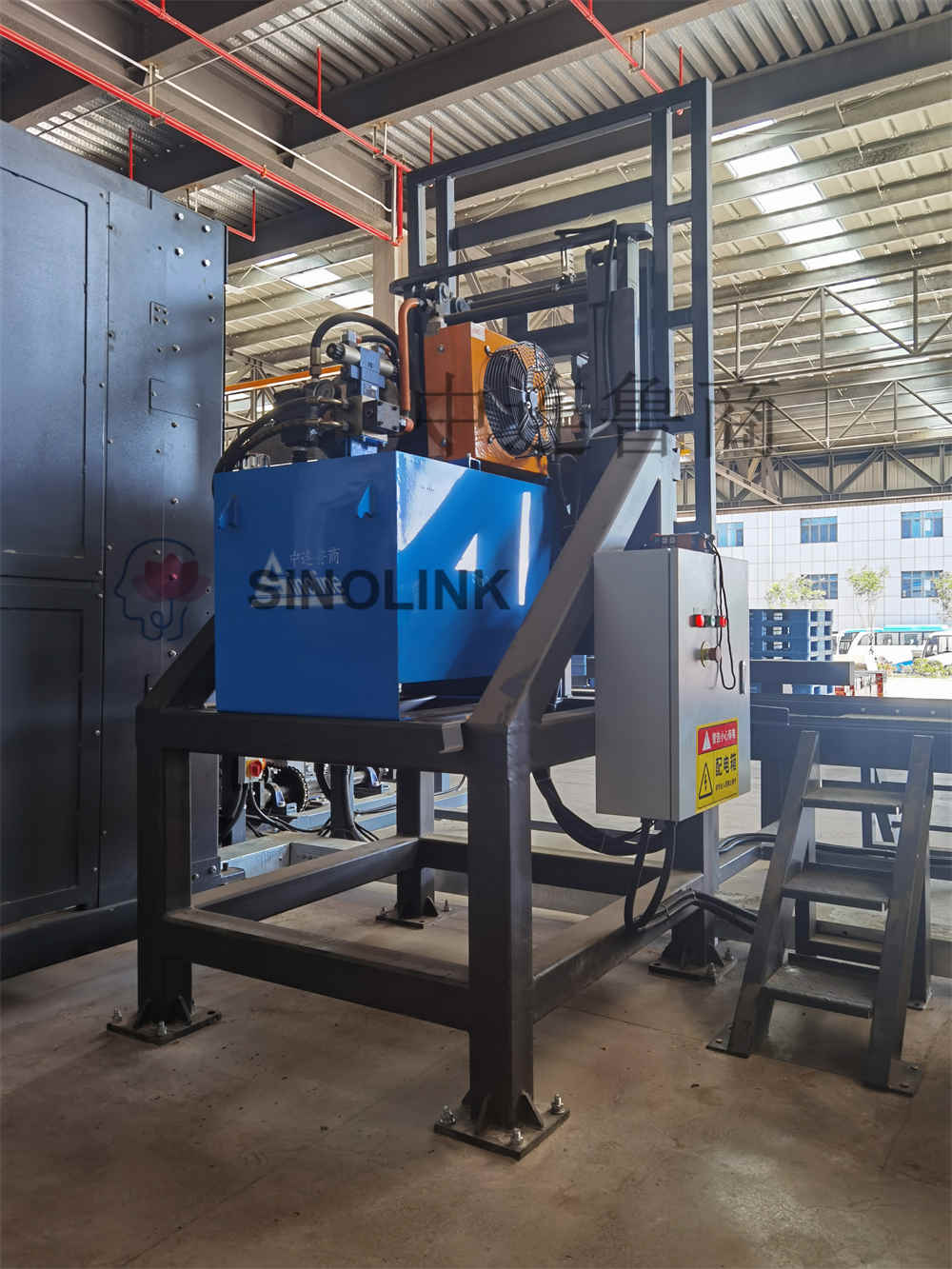

C, Two hydraulic stations

D, the forklift blocks two

E, two sets of control systems

The specific content is designed according to the site situation and the characteristics of the equipment supplier's own equipment.

Contact Now E-Mail Telephone WhatsApp

Product Details

Overall technical parameters of Pallet Push-pull Pproduct Line

1. Hydraulic pusher:Pallet retention ejector, without side shift, without forks, without pallet retention function, push-out structure is scissor structure

2. The load capacity is 1500KG, the loss distance is about 280mm, and the horizontal center of gravity is about 135mm (subject to the actual design)

3. Automatic control system: control mode: wireless control (5-10 meters), wireless operation button is assembled on the right side of the forklift, including Siemens PLC, inverter (inverter complete control panel) or equivalent quality brand products, low-voltage electrical components are selected from Schneider or equivalent quality brand products, carbon steel electric control box, P+F photoelectric sensor or OMRON and other similar quality brand proximity switches, protection level is IP67; The terminal blocks are made of Weidmüller or equivalent brands

4. Single-oil hydraulic station: mechanical connection, hydraulic oil flow rate 20-30L/min, pressure 150BAR;

5. Another forklift protection device: 6mm thick carbon steel plate (subject to actual design)

6. All power cables, control cables, bridges and threading pipes required for all equipment connection are made of flame-retardant cables, and the power cables are selected to obtain China's well-known brand products;

7. The electrical control cabinet adopts the lower inlet line, the lower outlet, and the ventilation and exhaust device is installed, and conforms to the IP65 protection level.

8. Motor power: 5.5KW (subject to actual design)

9. Push plate size: height 1700 * width 1350, push stroke: 1750

10. Push efficiency: 30 Torr/hour

11. The demander of the conveyor under the pusher shall provide its own:

1) Double row chain conveyor

2) Chain line speed: 16m/min

3) Length: 3500mm, 2800mm, width: 1320mm, conveyor elevation: 750mm.

12.Material: Plastic (Tian Zi Tuo)

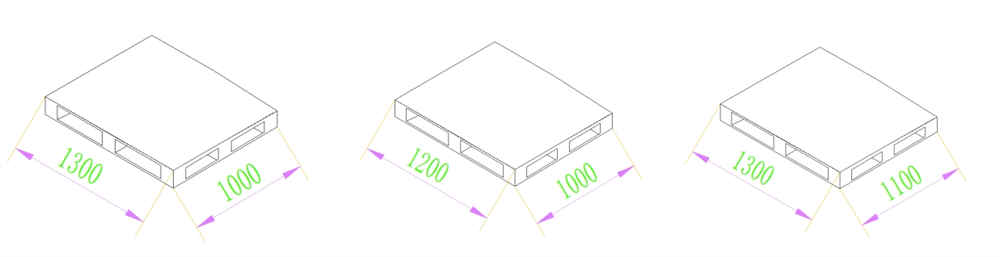

Dimensions L×W×H: 1300× 1000×150mm, 1200×1000×150mm, 1300×1100×150mm

Fork direction: 1300/1200 square (bottom fork picking, pusher push direction)

Pallet Push-pull Pproduct Line
