14m Automatic Lifting Platform
We have passed the ISO9001: 2008 international quality management system certification, the first to receive the largest tonnage of "special equipment manufacturing license", "installation of special equipment maintenance permit", "high-tech enterprises in Jinan City" and "Civilization corporate integrity"; "ladder" brand named "Shandong Province", the product was named "Shandong Famous Brand" and so on, long-term products exported to the US, Russia, North Korea and other countries. Welcome to choose the "ladder" brand hydraulic lifting platform, we will be happy to serve you!
1. Main technical parameters of Automatic Lifting Platform
No. | Item | Performance Parameters | |
1 | Working height （mm） | 13750 | |
2 | The max height of the platform （mm） | 11750 | |
3 | Minimum height platform（ mm） | 2570 | |
4 | Extend horizontally（ mm） | 910 | |
6 | Platform carrying capacity （kg） | 320 | |
9 | Grade ability | 25% | |
10 | Minimum turning radius （mm） | 2300 | |
11 | Operating speed | Down (s) | 55 |
12 | Up (s） | 70 | |
13 | Closed car length(mm) | 2470 | |
14 | Closed car width （m） | 1.18 | |
15 | Closed car height( m) | 2.57 | |
16 | Platform size (m) | 2.30*1.17*1.1 | |
17 | Ground clearance (mm) | 100 | |
18 | Driving wheel size (in) | 15X5X11 | |
19 | Weight (kg) | 2910 | |
20 | Lifting motor (V/kw) | 24/4.5 | |
21 | Maintenance-free battery （V/Ah） | 4*12/300 | |
22 | Charger （V/A） | 24/20-30 | |
2. Main configuration table of Automatic Lifting Platform
Name | Place of origin | Brand |
Power unit | Jiang Su | Guo Rui |
Brakes | USA | Wright |
Motor | USA | Wright |
Battery | USA | Trojan |
Charger | Long Sheng | |
Control handle | HuNan | ZhongDian |

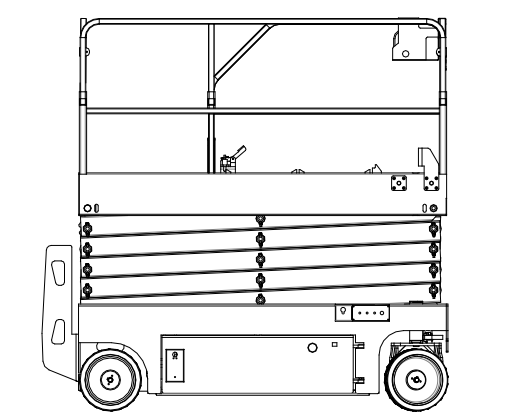

3. Schematic diagram of the vehicle

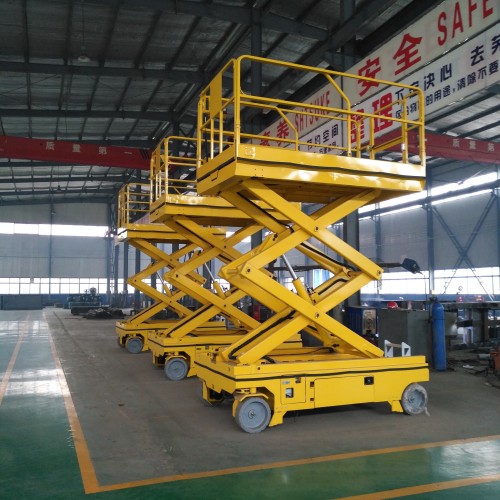

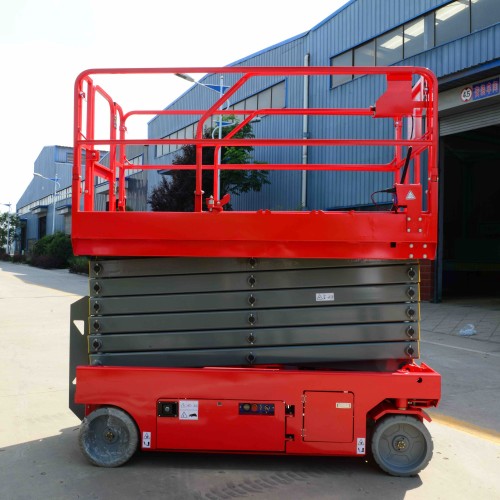

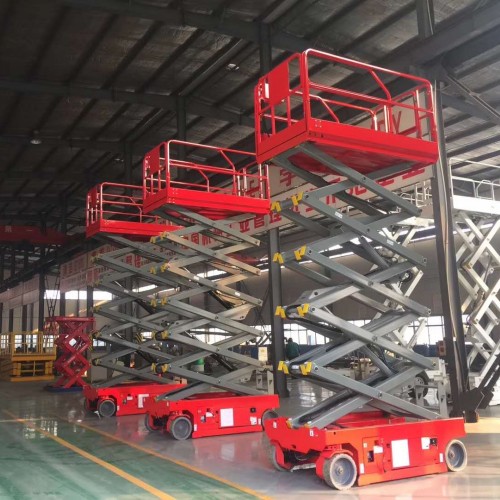

4. Pictures for reference of Automatic Lifting Platform
More information, please contact with me at any time!
