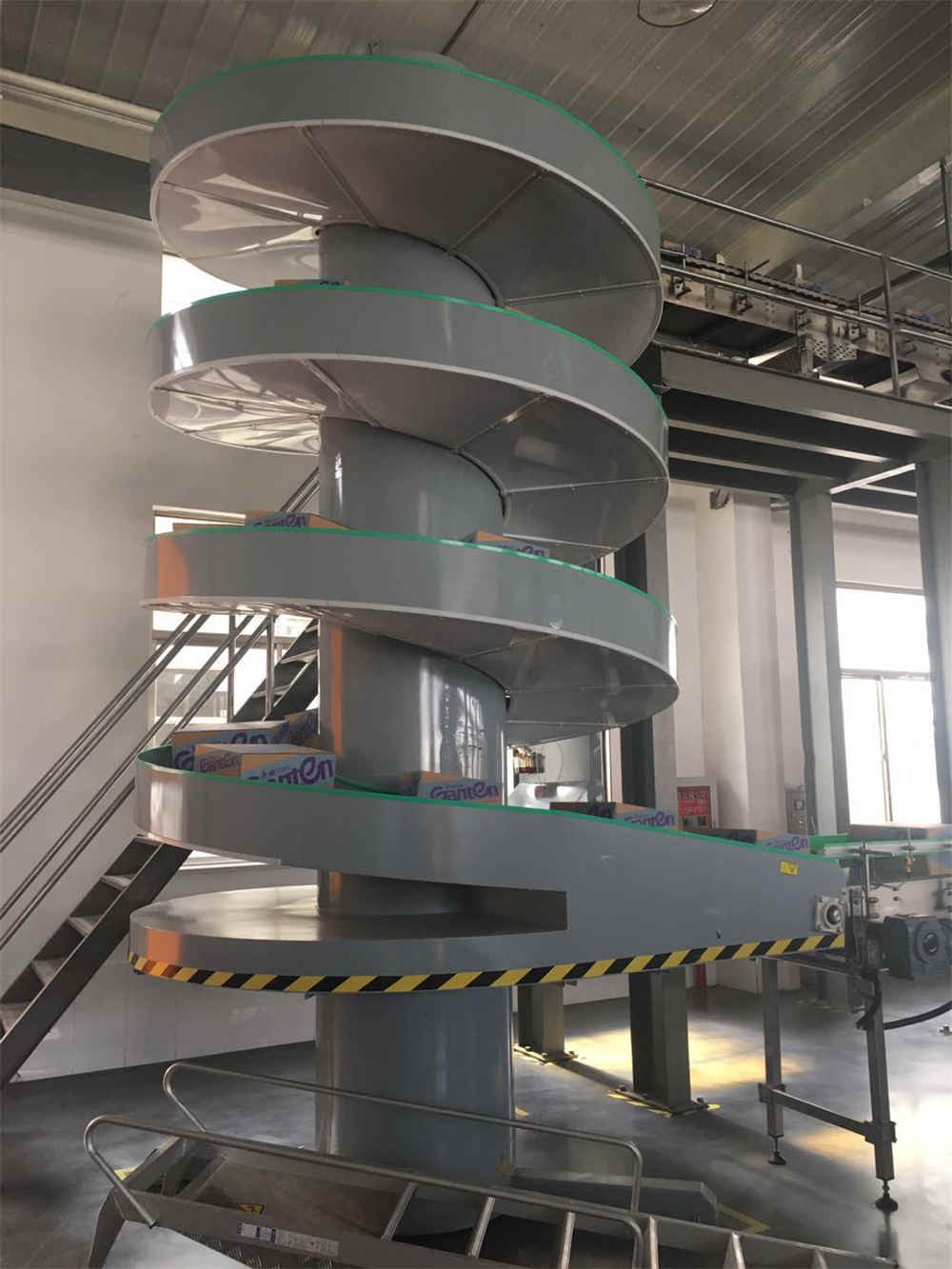

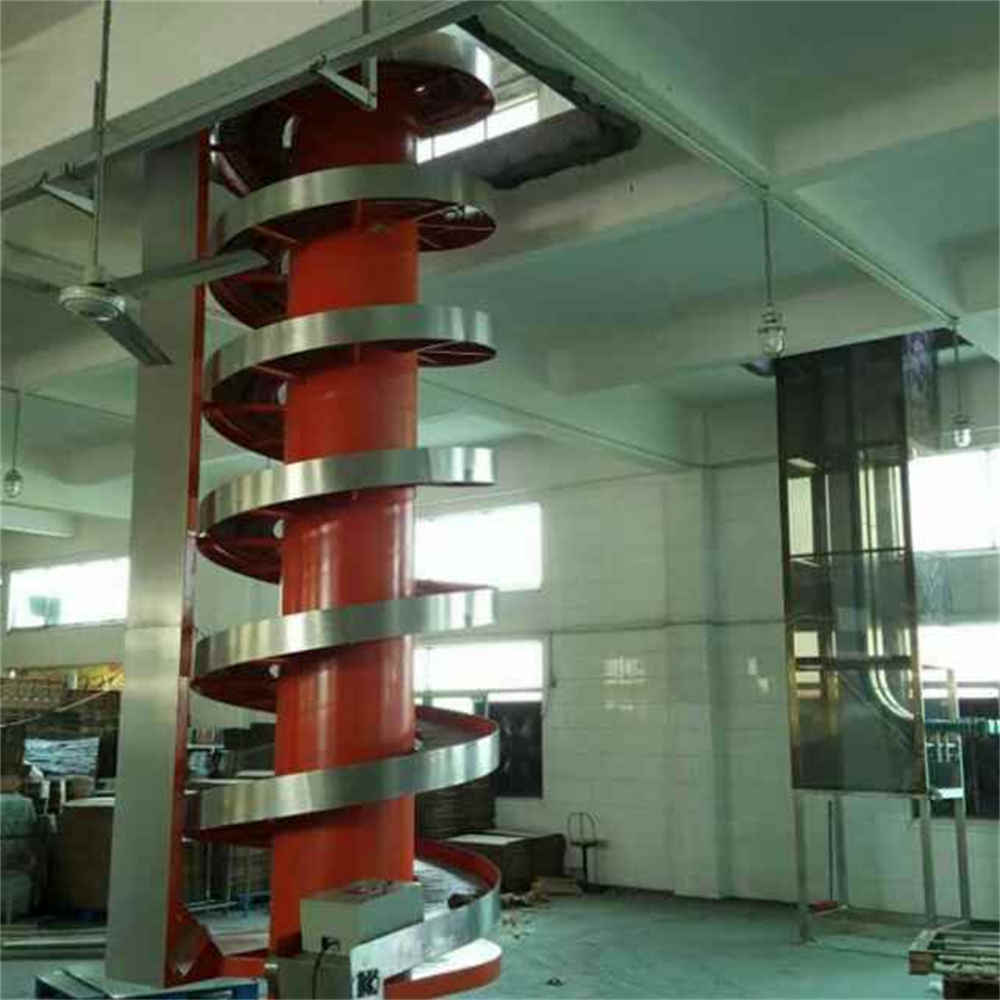

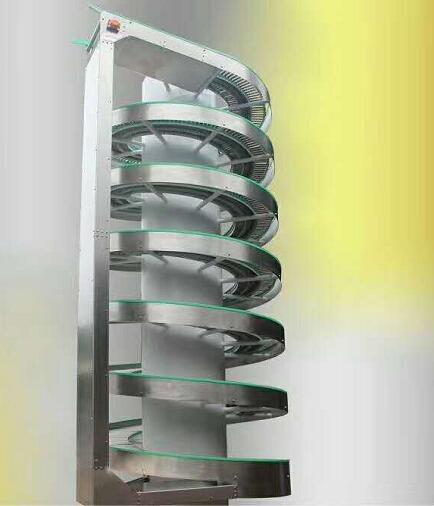

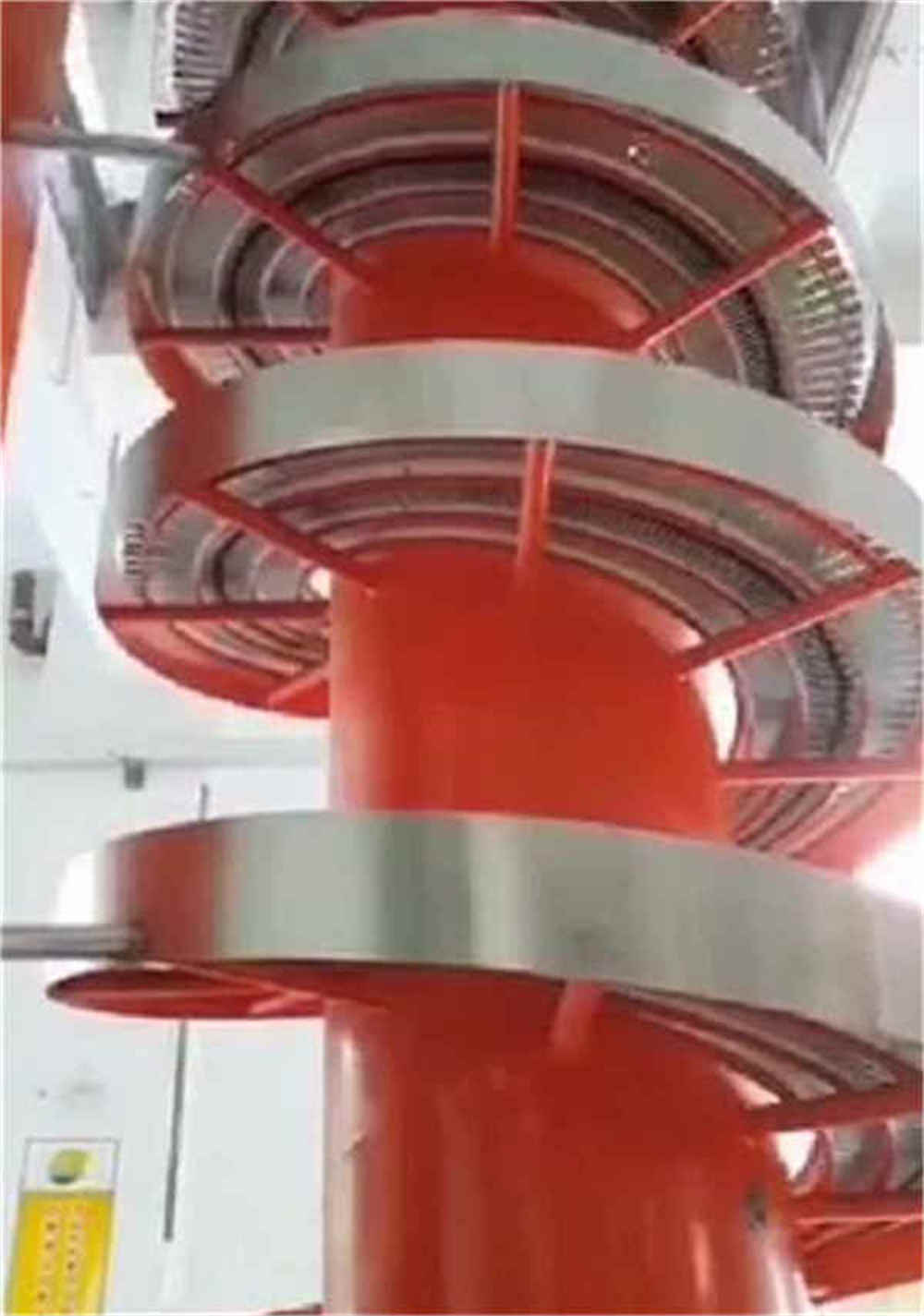

Fully Automatic Reciprocating Screw Conveyor Belt Conveyor
Fully Automatic Reciprocating Screw Conveyor Belt Conveyor: is one of the solutions for vertical lifting during conveying. It is also characterized by small land occupation and compact structure. The goods are lifted and lowered according to the spiral conveying surface to avoid excessive angle, which may cause goods dumping and damage. The overall welding structure has high reliability, simple debugging and low maintenance cost. Realize continuous lifting or lowering with the production line, simplify the production process, and improve the production efficiency.
Production Instruction of Fully Automatic Reciprocating Screw Conveyor Belt Conveyor：
1. Transmission direction: downward
2. Conveyed product: solid bag
3. Product size: subject to the customer's product size
4. Product weight: 20, 40Kg (maximum)
5. Demand capacity: 800bags/h

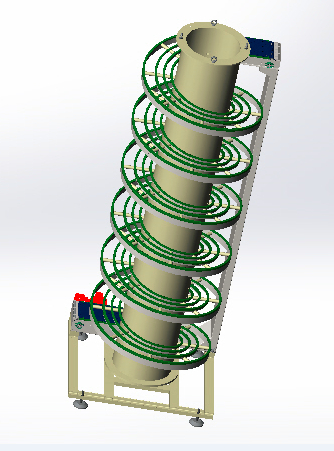

Structure of Fully Automatic Reciprocating Screw Conveyor Belt Conveyor:
1. The central frame is welded with carbon steel (5mm thickness). The external conveyor chain frame is installed from the top by the center frame to the bottom.
2. The outer conveying frame is made of 304 stainless steel with a thickness of 2.5mm.
3. High wear-resistant plastic chain plate drive: low noise, no need lubrication (406mm width), with anti-skidding rubber strip.
4. The drive bearing in the chain plate adopts imported NSK to increase the transmission efficiency.
5. The chain plate cushion strip is designed as a whole, and imported brands are selected to increase the service life of the chain plate.
6. Driving part: choosing Ometer reducer.
7. There is a lubricating device, which can effectively improve the smoothness and wear resistance of transportation.
8. Anti-break control: when the conveying chain breaks, the early warning device senses and stops in time to prevent damage to the chain plate.
9. Overload protection consists of electrical overload protection and mechanical process protection.
Technical parameters of Fully Automatic Reciprocating Screw Conveyor Belt Conveyor:
1. Equipment model: SL-YT
2. Power unit: Ometer reducer, power: 3KW
3. Frequency converter: Danfoss
4. Safety switch and optical eye: SICK
5. Transmission chain plate: imported material, high wear resistance, 406mm width
6. Equipment weight: 2500kg
7. Equipment size: Φ 2000mm × 5300mm
8. Lifting stroke: 5350mm.
