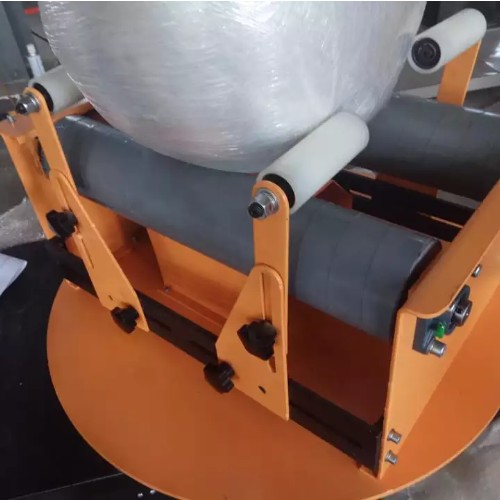

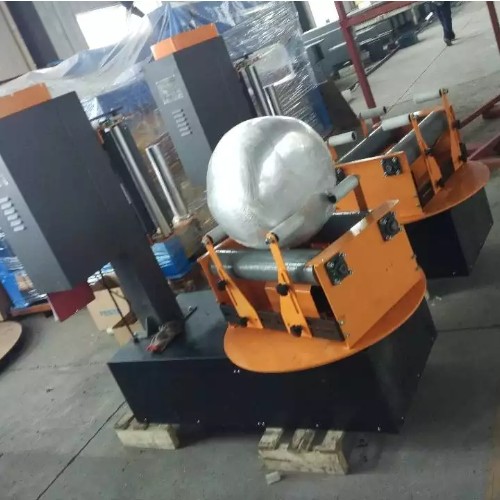

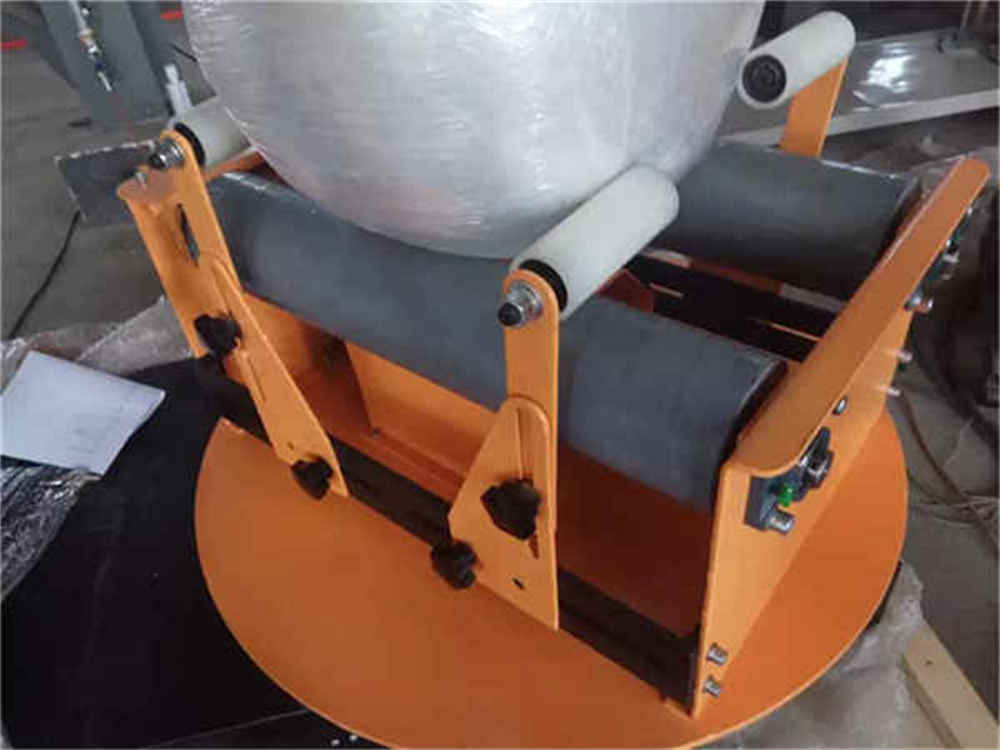

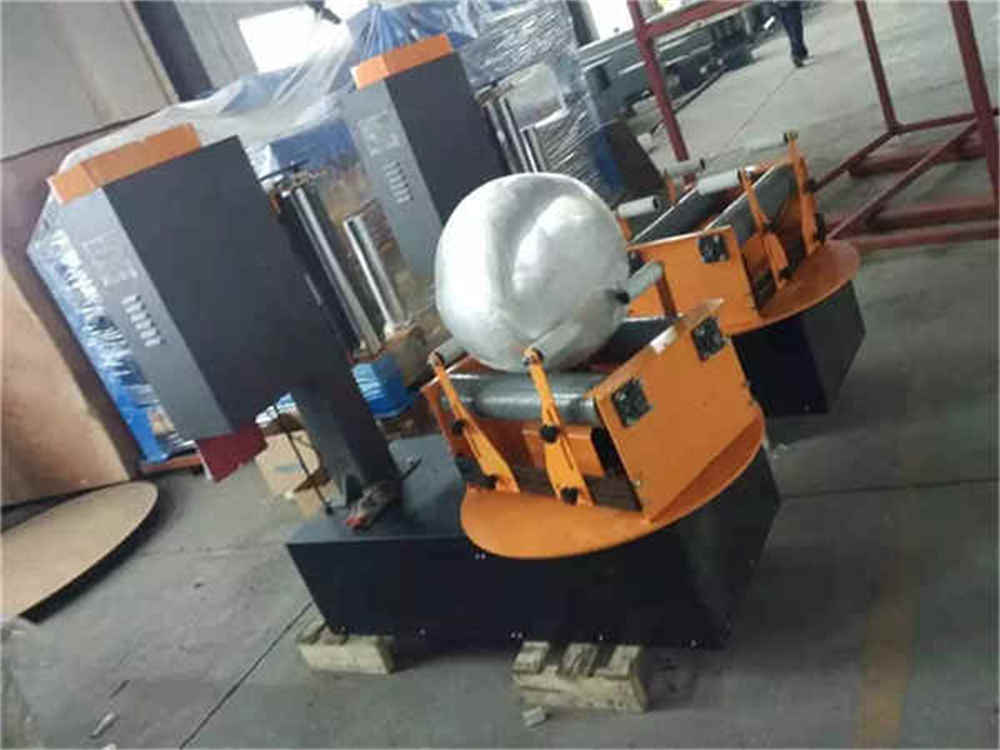

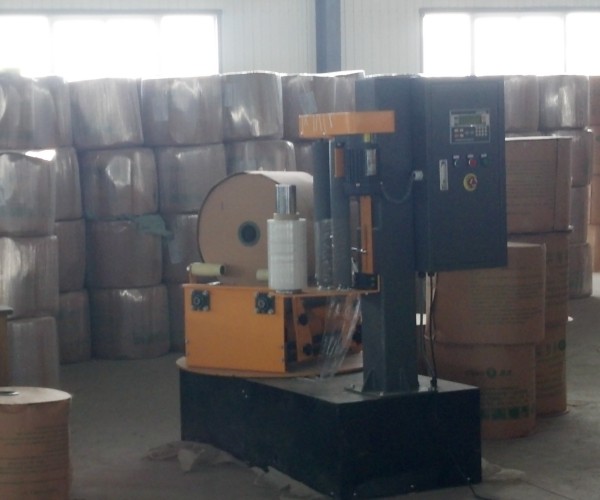

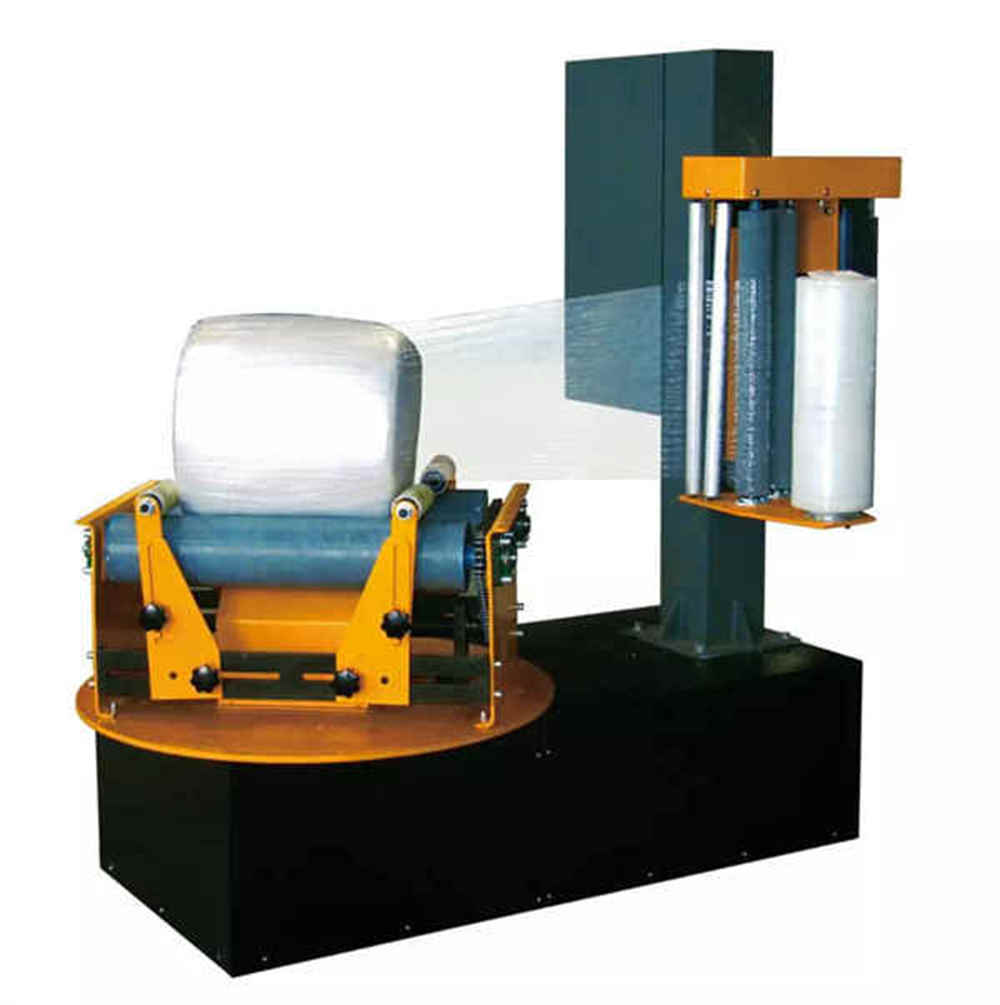

Pre-stretched Drip Tape Cylinder Type Wrapper
Pre-stretched Drip Tape Cylinder Type Wrapper
Main technical parameters
1. Wrapping specification: L (200-500) mm * (200-600) mm
2. Packing efficiency: 20-40 volumes/hour (depending on the specific goods)
3. Turntable bearing capacity; 60kg (max)
4. Turntable speed: (0-12) rpm/min
5. Power/voltage: 0.6 kw/220v
6. Whole machine weight: 150 kg
7. Packaging Material: LLDPE Tensile Film
Thickness: (15-35) um
Width: 250mm
Membrane inside: 76.2mm
Maximum outer diameter of membrane coil: 280 mm

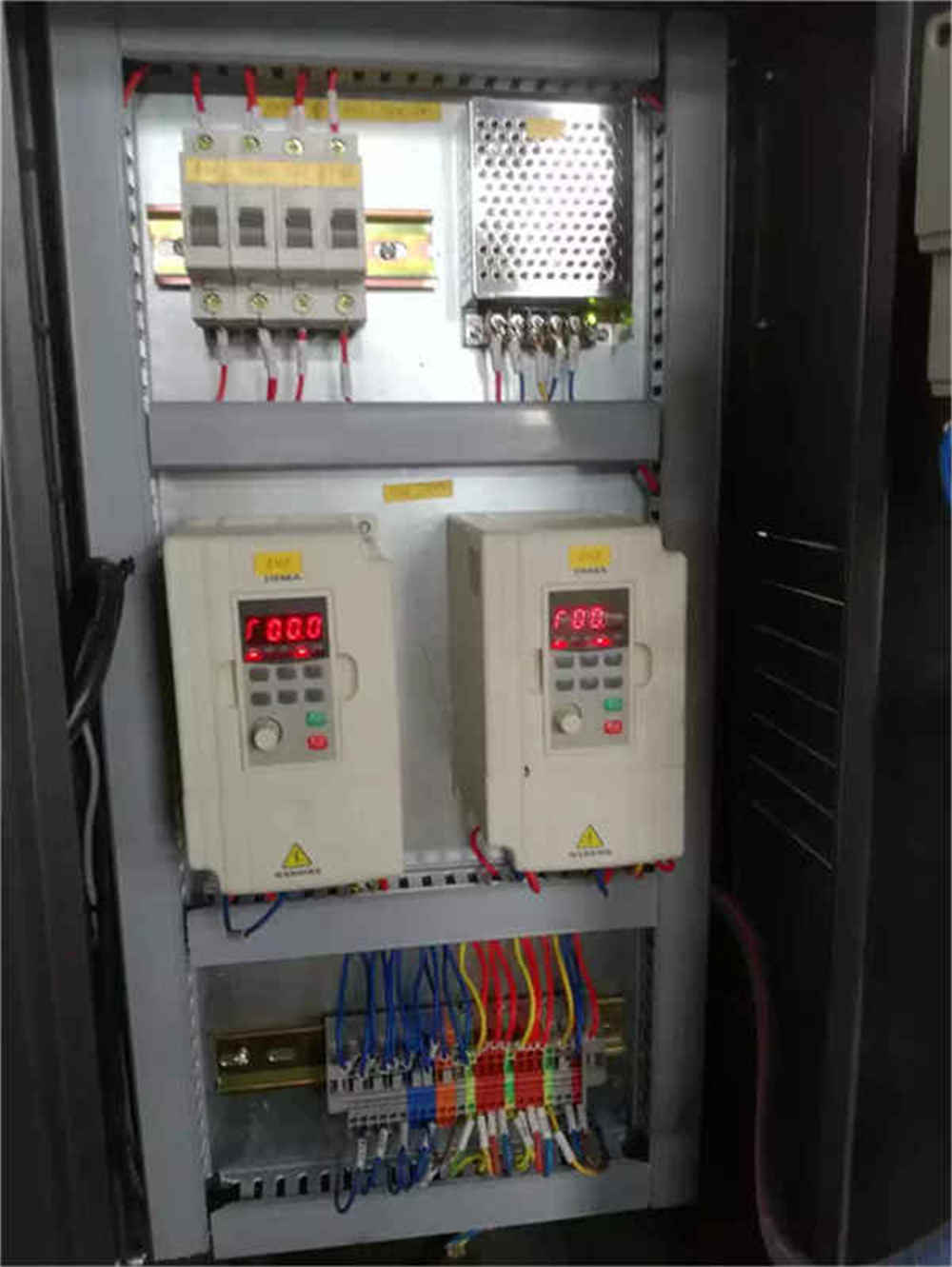

Control System of Pre-stretched Drip Tape Cylinder Type Wrapper
Program control unit integrated machine;
counts of wrapping can be set ,Separate top,bottom and up-down wrap count selectors;
Reinforcement of winding function, can give special protection to certain;

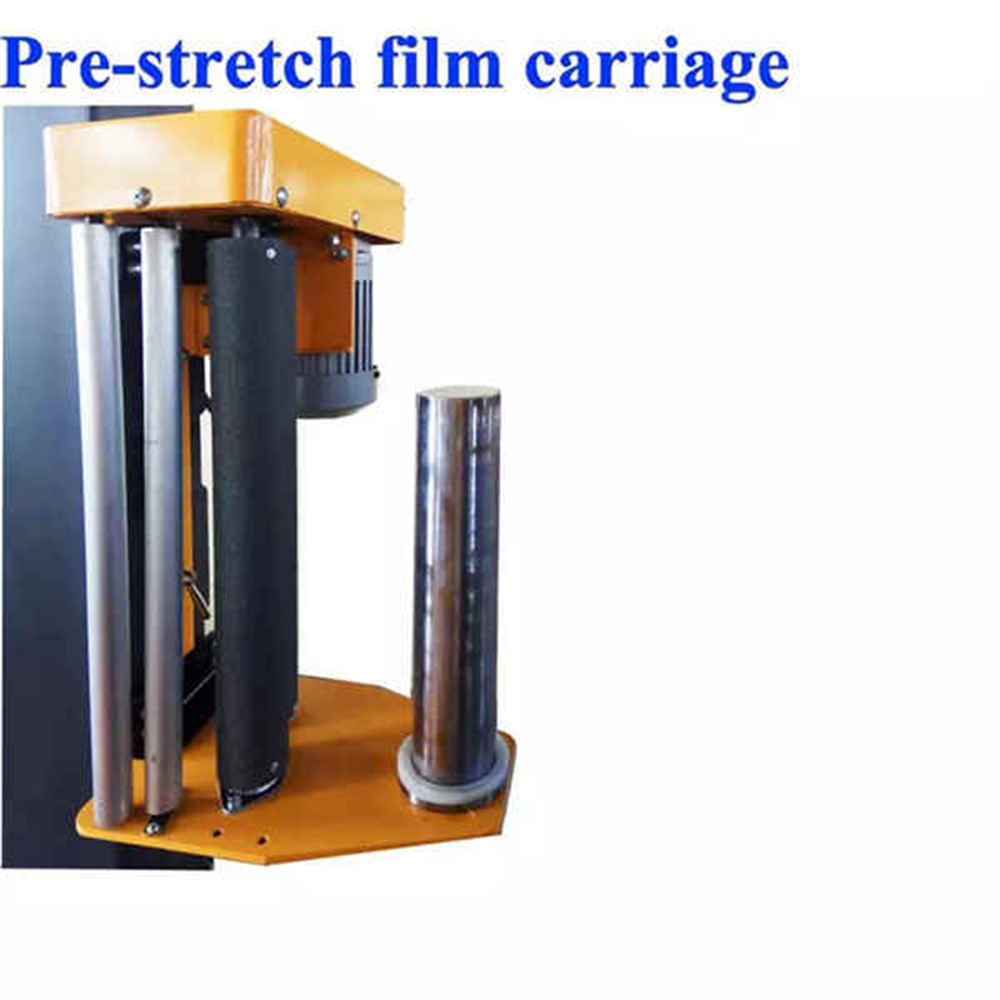

Film carriage of Pre-stretched Drip Tape Cylinder Type Wrapper
Powered pre-strech system up to 250% to min film consumption
Carriage lifting motor：
Motor power ： 0.37kw
Main configurations of Pre-stretched Drip Tape Cylinder Type Wrapper
Motor: Gale 85SZD
PLC Programming Unit Integrative Machine: Credit
Inverter: Dema
Proximity switch: OMRON
Speed box: Zemei
Low Voltage Electrical Apparatus: Schneider
Buttons and Knobs: Shanghai Second Industry
Configuration is for reference only and should be based on actual design.
More information, please contact with me at any time!
