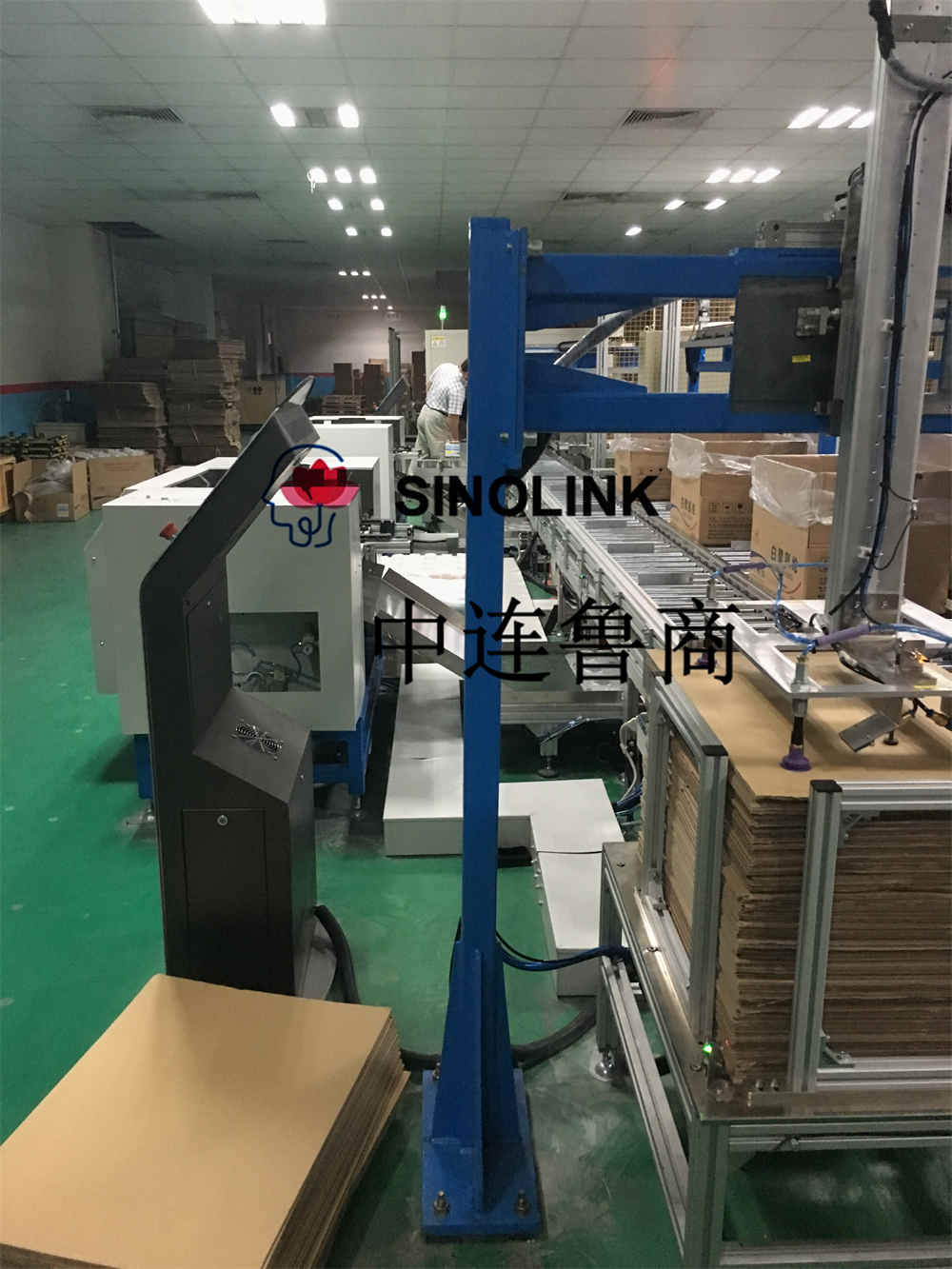

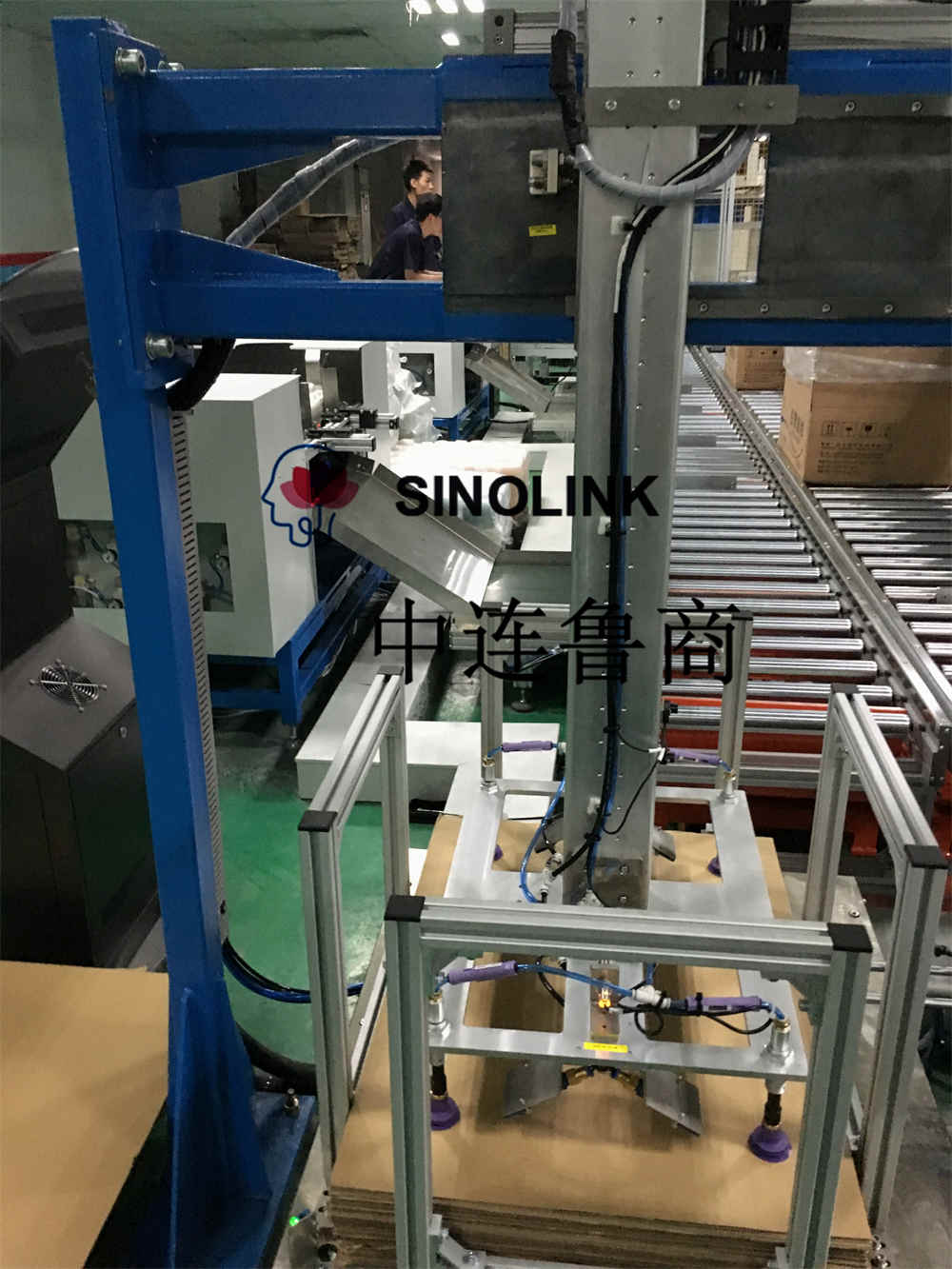

Automatic Roof Adding Rectangular Coordinate Manipulator

Automatic Roof Adding Rectangular Coordinate Manipulator

Can realize that automatic control, reprogrammable, multi-degree-of-freedom, space-space-right-angled multi-purpose manipulators for industrial applications.

Cartesian coordinate manipulator is a multi-purpose manipulator that can realize automatic control, reprogrammable and multi-functional, multi-degree-of-freedom, spatial right-angle relationship between motion degrees of freedom in industrial applications. He is able to move objects and manipulate tools to complete a variety of jobs.

Contact Now E-Mail Telephone WhatsApp

Product Details

Peculiarity of Automatic Roof Adding Rectangular Coordinate Manipulator:

1. Multi-degree of freedom movement, the spatial angle between each motion freedom is a right angle.

2. Automatic control, reprogrammable and all movements run according to the program.

3. It is generally composed of control system, drive system, mechanical system, operating tools, etc.

4. Flexible and multi-functional, due to the different functions of the operating tools.

5. High reliability, high speed and high precision.

6. It can be used in harsh environment, can work for a long time, and is easy to operate and maintain.

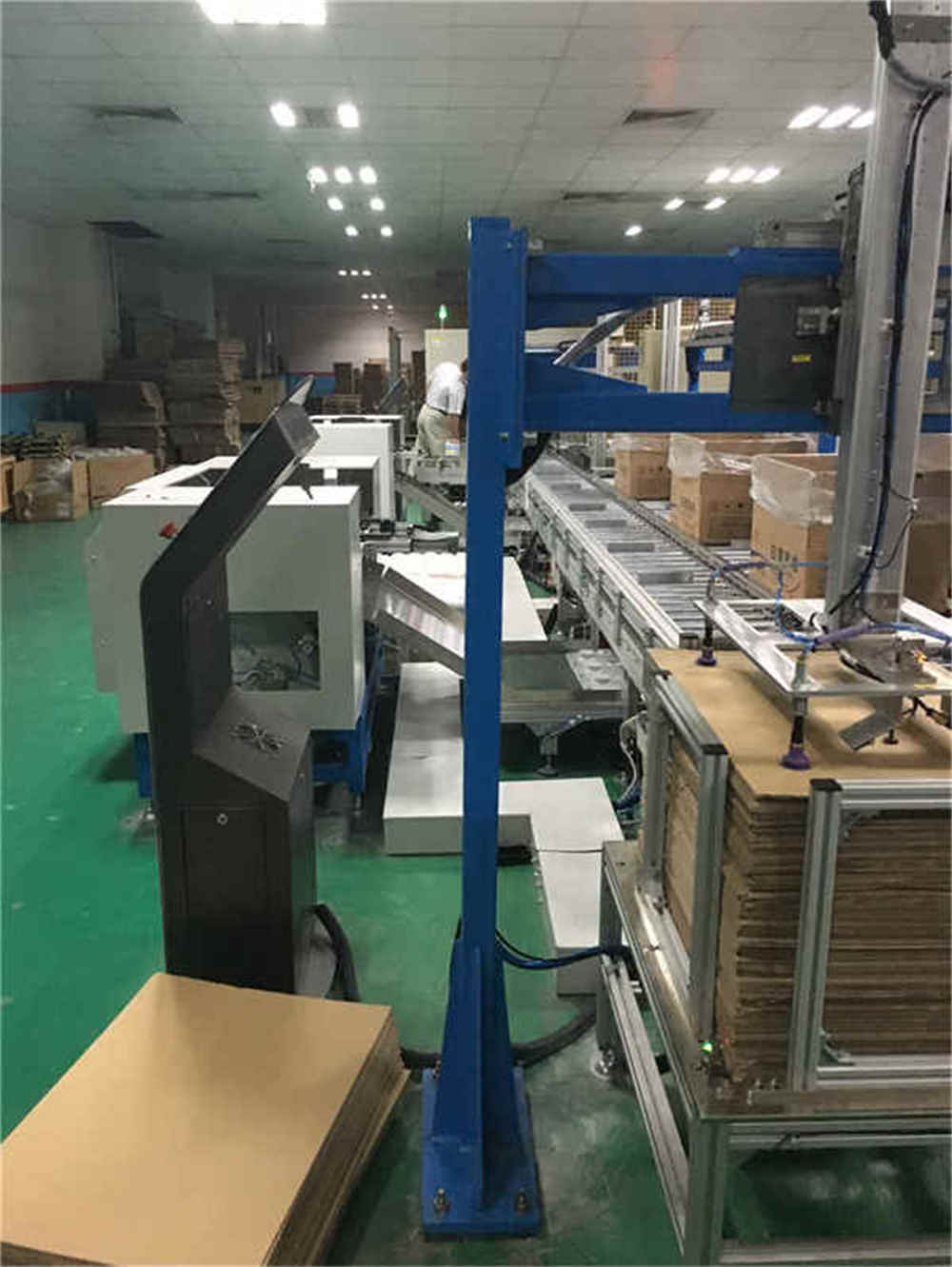

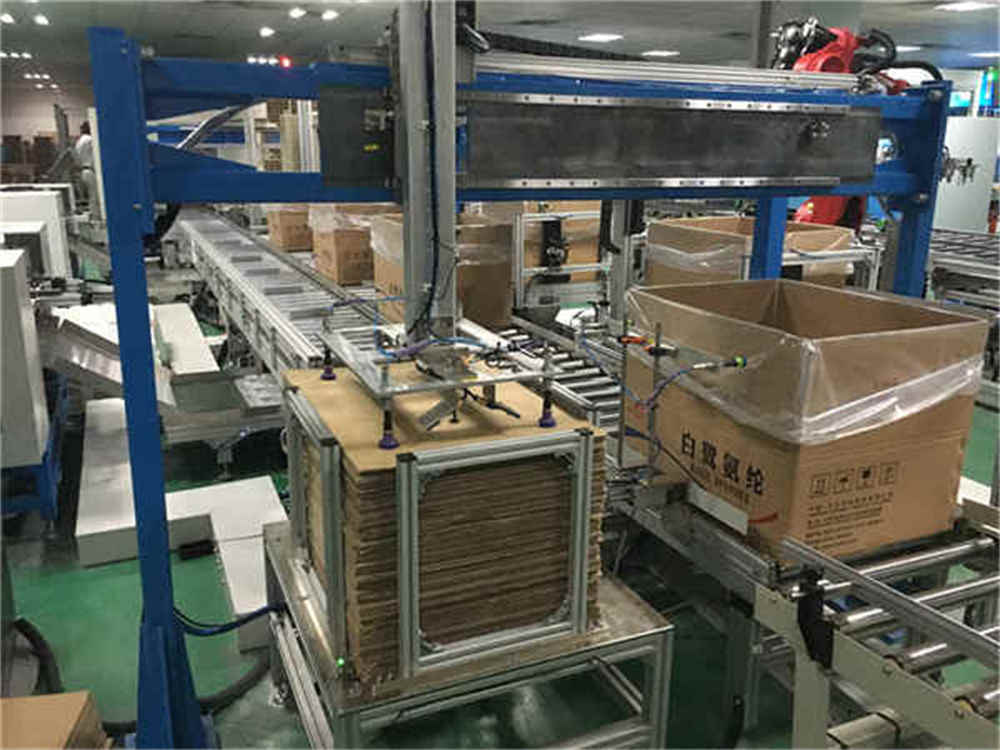

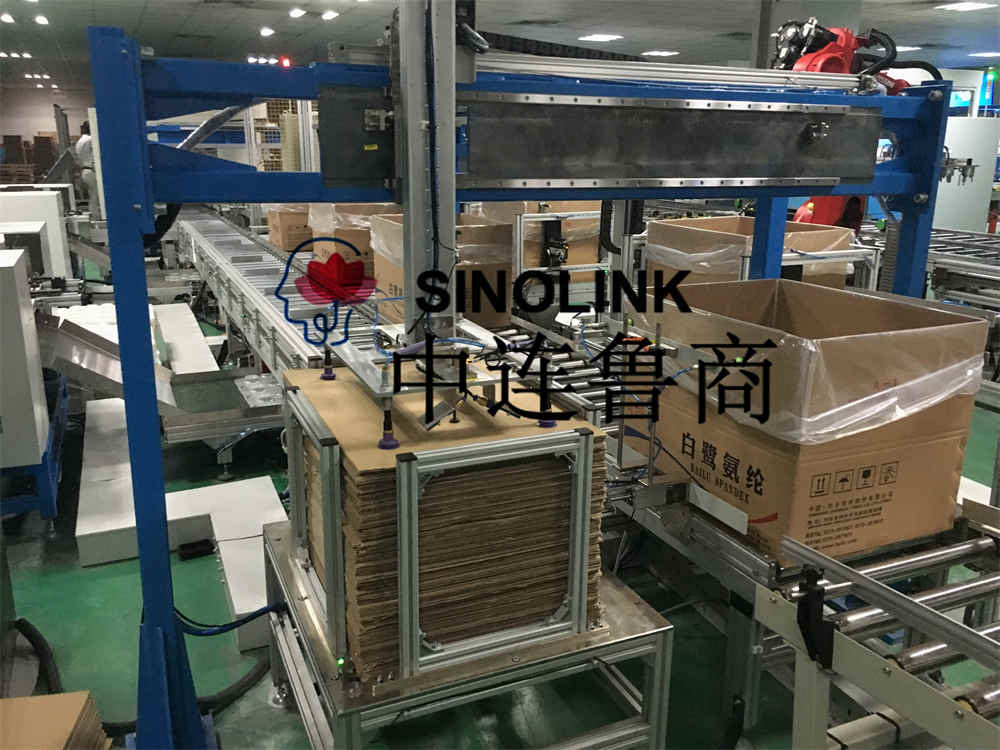

Automatic Roof Adding Rectangular Coordinate Manipulator

Automatic Roof Adding Rectangular Coordinate Manipulator

Project	Content	Description	Qty
Robotics/Automation Equipment	Two axis handling robot	To realize the loading and unloading of the workpiece	1set
	Connecting cable between robot and control cabinet	Signal connection	1set
	System control equipment	Robot control system and electric box	1set

Configurations of Automatic Roof Adding Rectangular Coordinate Manipulator

S.N	Model	Brand
1	robot	China
2	Reducer for each shaft	Taiwan
3	lubrication system	China
4	Robot control system	PLC+touch screen
5	servo motor	Panasonic
6	Low voltage electrical appliances, etc	Schneider
7	Towchain	China
8	Towline cable	High flexibility cable
9	Signal switch	Swiss company
10	Electric box	China

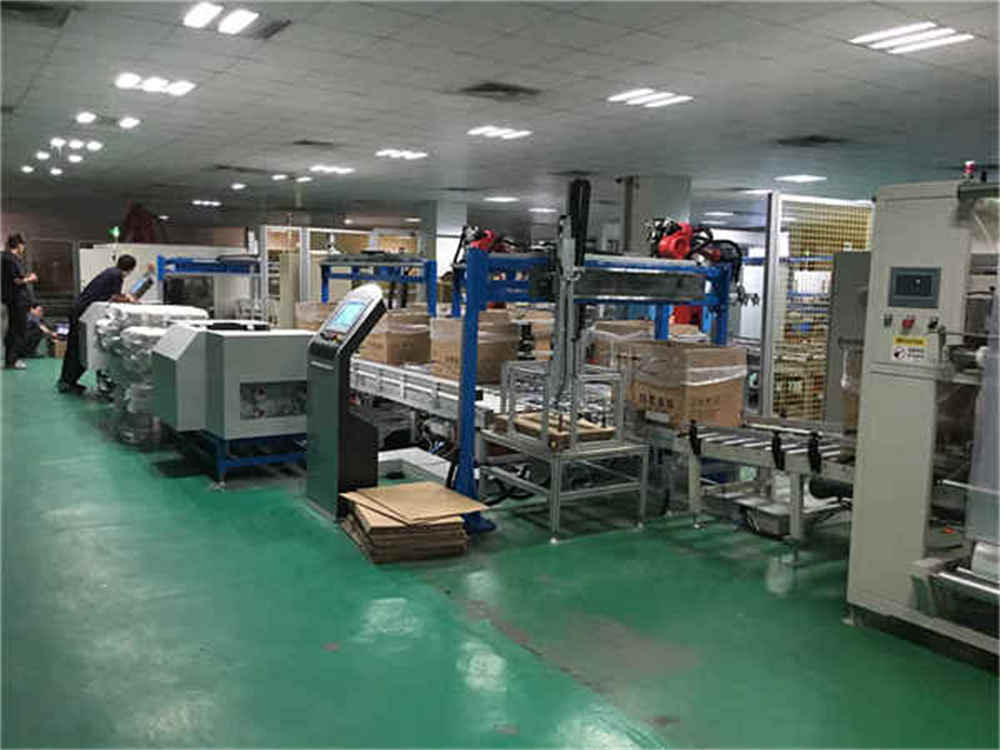

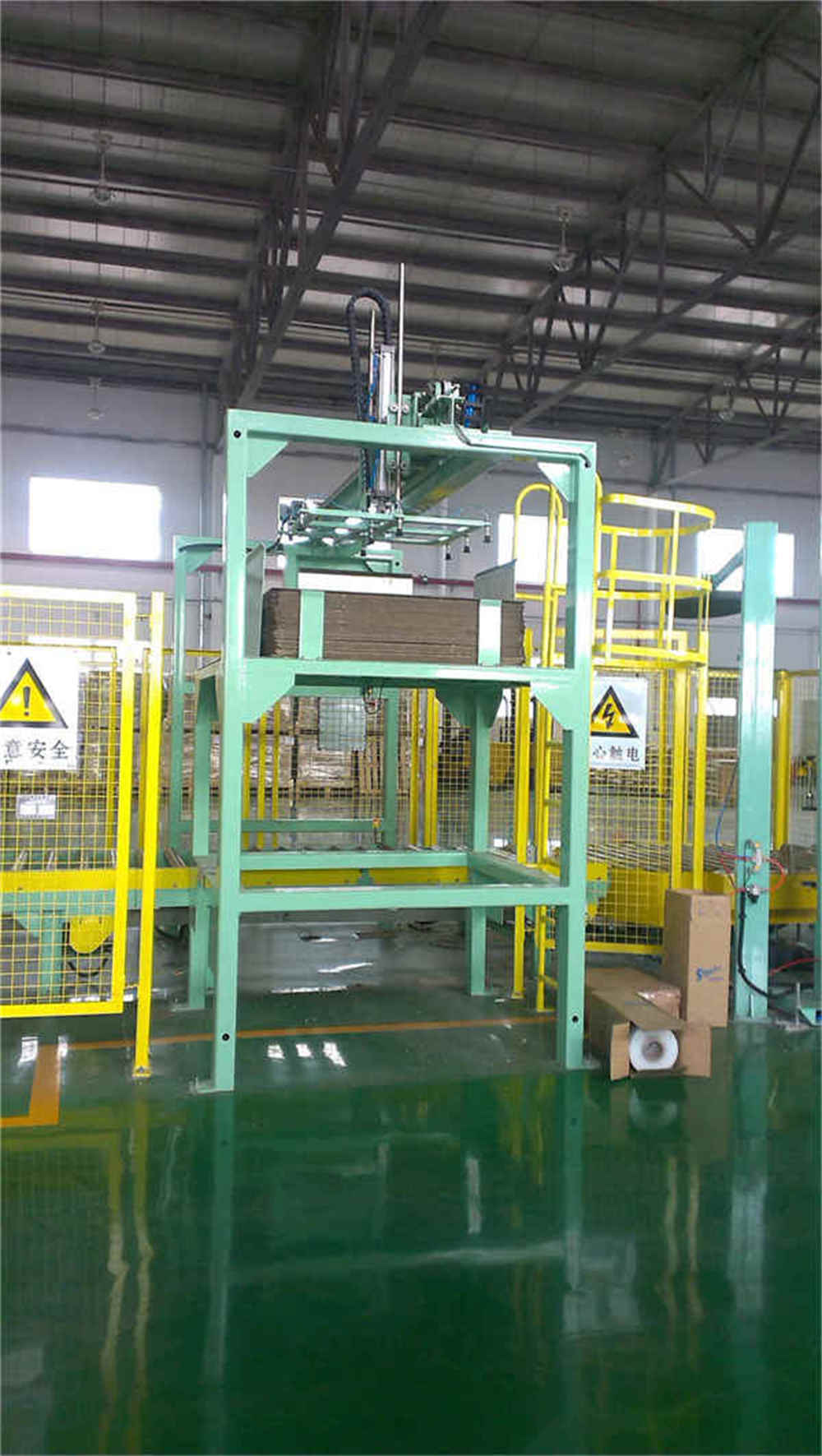

Automatic roof adding rectangular coordinate manipulator

On-site installation and use of environmental technical conditions

The robot control cabinet power supply is equipped with an independent air switch, and the robot control cabinet must be grounded separately with a grounding resistance of less than 10Ω.

1. Working temperature: 5~30°.

2. Relative humidity: 20~80%RH.

3. Power supply: two-phase 380V, 50Hz; Voltage fluctuation range: +10%~-10%, 3-phase 5-wire system.

4. Distribution capacity and technical requirements: requirements are given after detailed design.

5. There is no corrosive gas, liquid or explosive gas on site.

6. Compressed air: greater than or equal to 6kgf/cm2 (water, oil and impurities must be filtered, filtration accuracy 30), pressure fluctuation 10%;

7. Gas distribution flow and technical requirements: After the detailed design is completed, it is centrally supplied to the buyer, which is convenient for the buyer to prepare and complete the gas distribution interface.

8. The vibration acceleration is less than 0.5g

9. Conventional cement floor treatment, the installation base of conveyor line equipment is fixed with expansion bolts and the ground, and the other is fixed with the ground by chemical anchors. (If special treatment is required, Party B will provide the foundation construction requirements drawings after the contract is signed).
