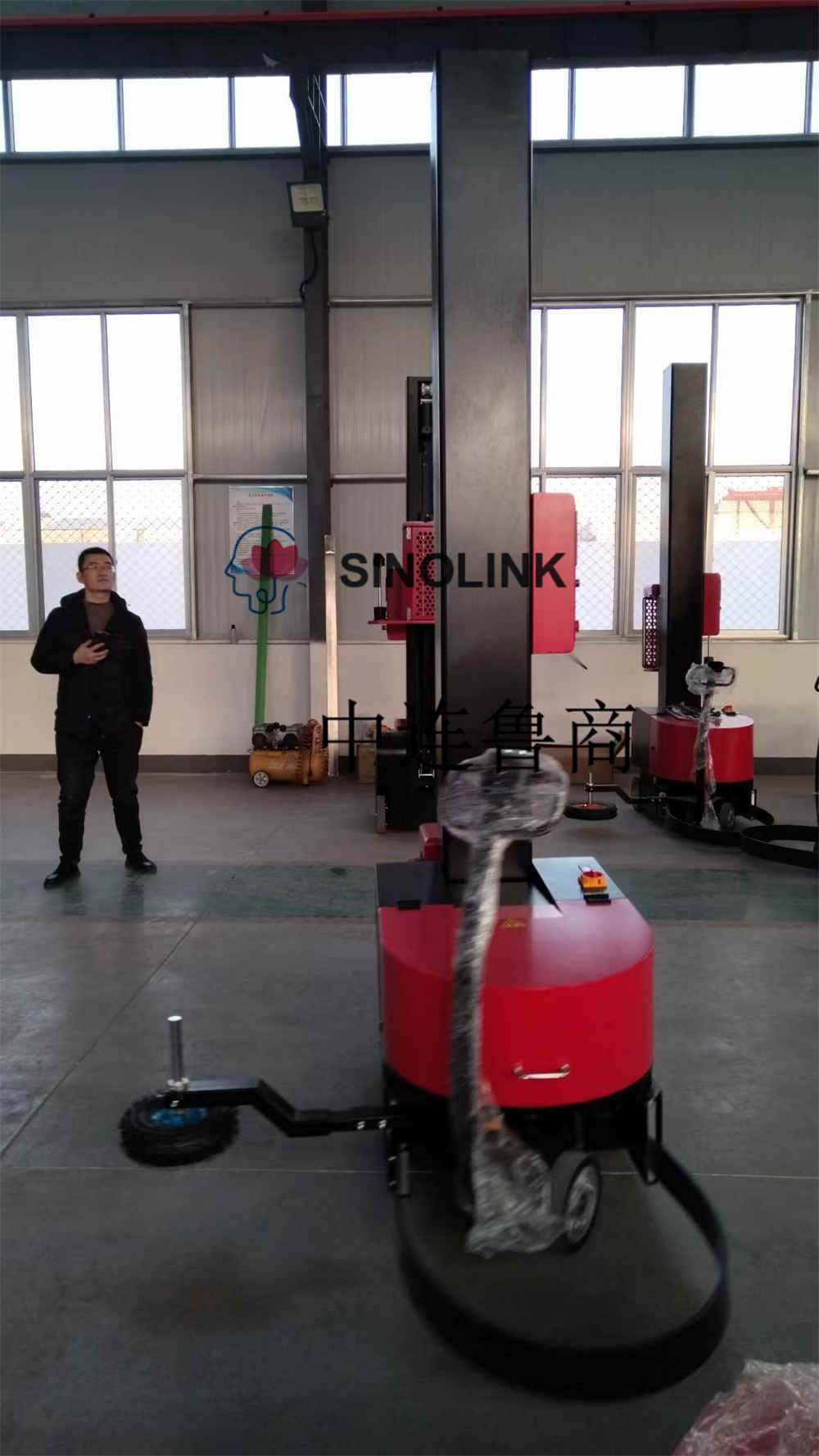

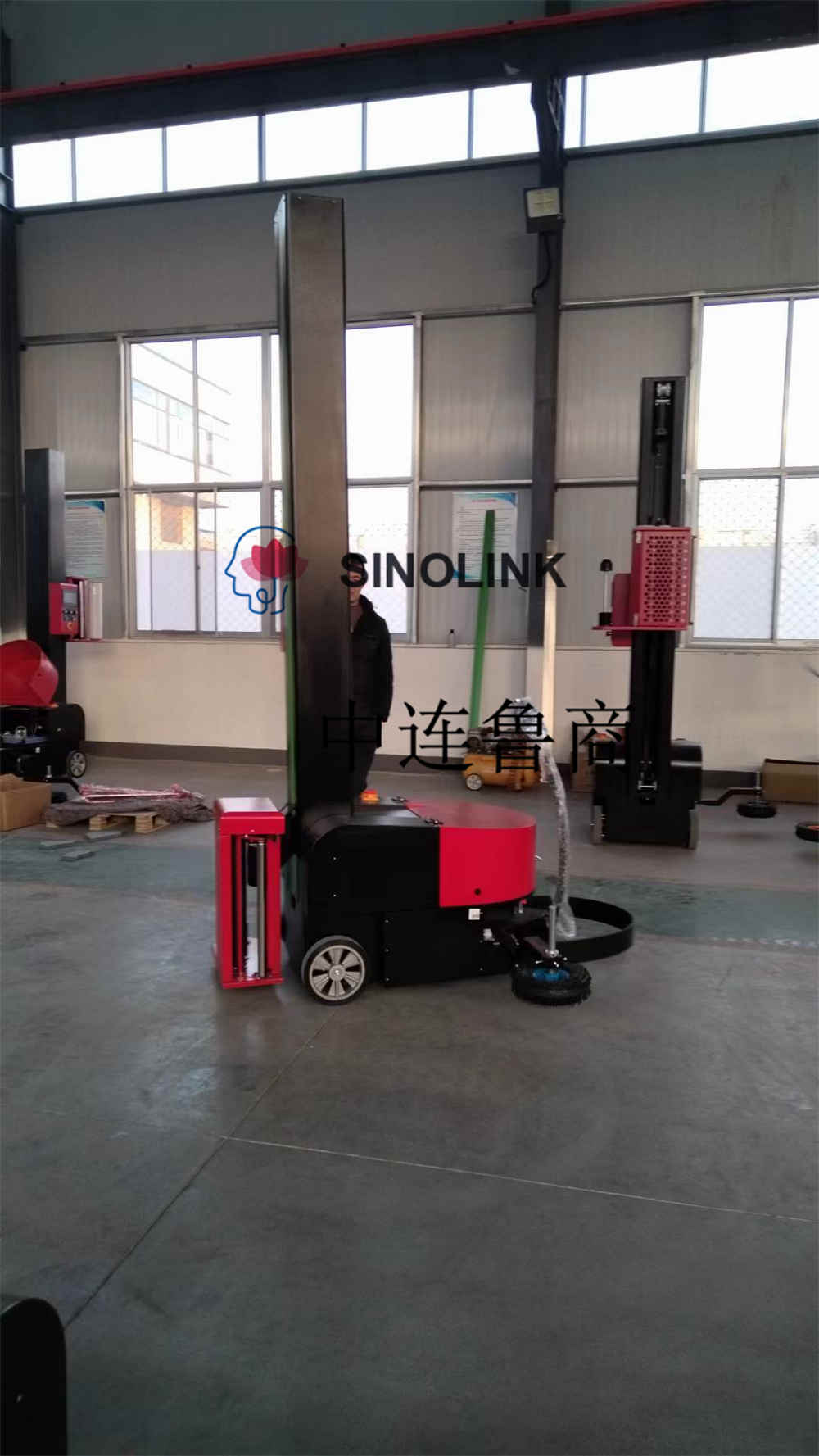

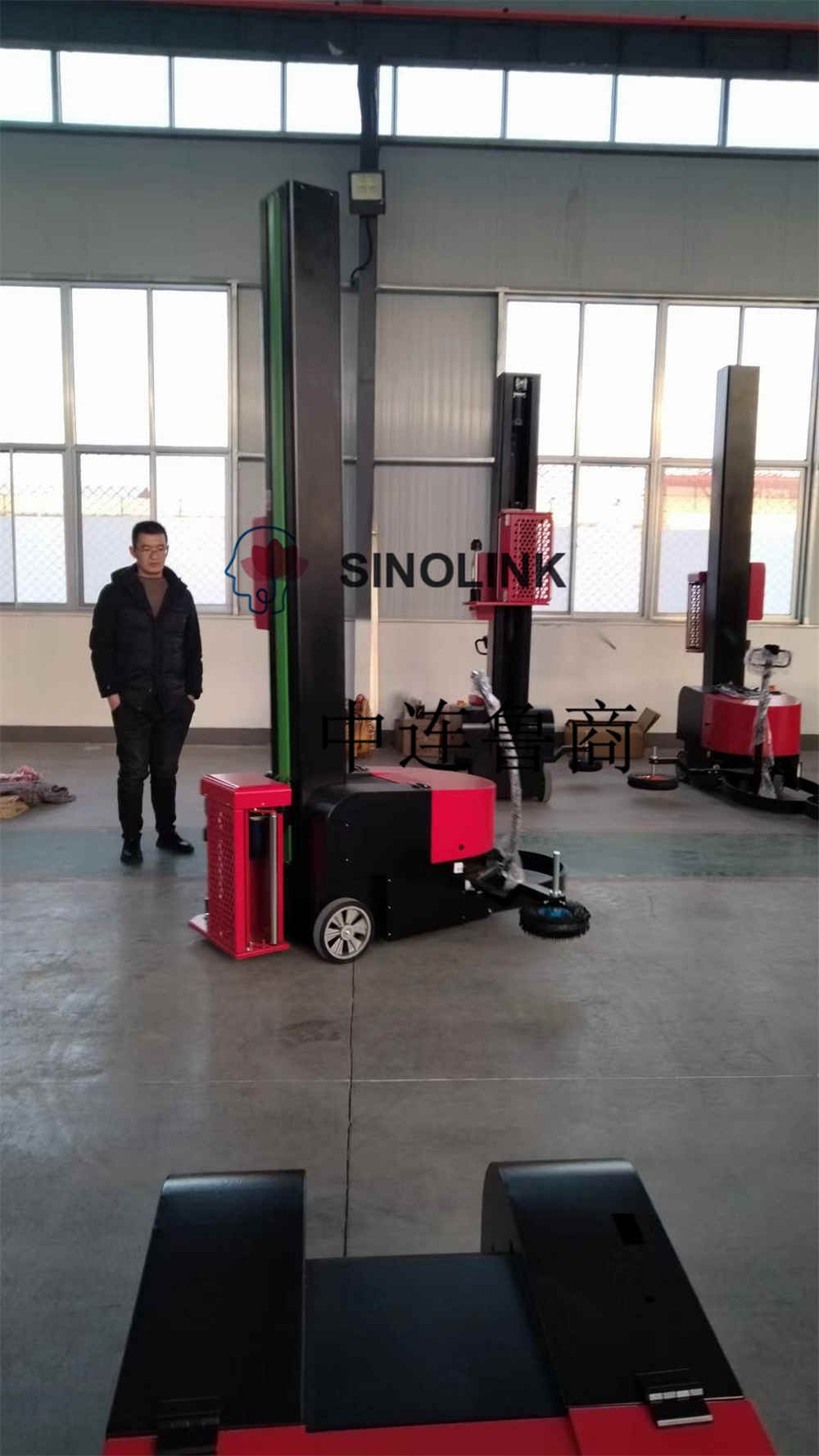

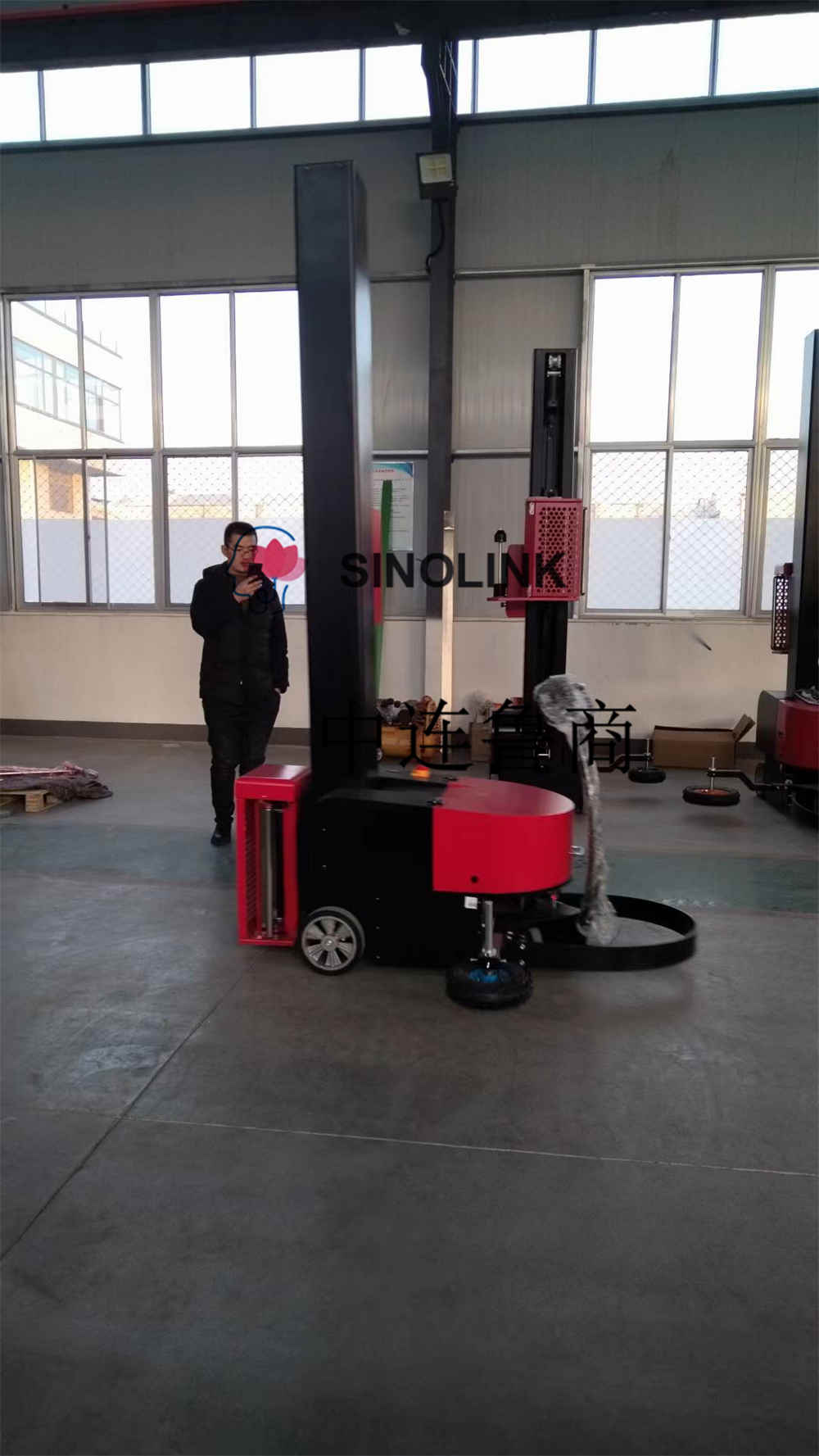

Self-propelled Pre-stretch Film Wrapping Machine
Self-propelled Pre-stretch Film Wrapping Machine
This equipment is a self-propelled pre-stretch film wrapping machine, by using stretch film to wrap and fix the cargo pallet, the product is suitable for the packaging requirements of cargo container storage, transportation and mechanized loading and unloading operations, widely used with foreign trade exports, food and beverage, making and filling, papermaking, dyes, plastic chemicals, glass ceramics, mechanical and electrical castings and other products of the container cost, improve production efficiency, and can prevent the damage of goods in the handling process, and play a dust-proof, moisture-proof and cleaning role.
The product is designed and produced with reference to foreign advanced technology, with compact structure, beautiful appearance, advanced technology, and strict safety protection measures for machine operation. At the same time, in order to facilitate non-professionals to use this equipment, measures to reduce the complexity of the operation panel are adopted, so that the operation of the equipment is simple and easy to understand, and convenient.
FEATURES of Self-propelled Pre-stretch Film Wrapping Machine：
1. Automatic walking pre-stretching and winding operation, which can work continuously for 8 hours when fully charged.
2. The control system is controlled by a special system to control the inverter to drive the motor, control the action of the mechanical transmission mechanism, and realize stepless speed regulation, the system is stable and reliable, and the equipment is easy to use and maintain
3. It can automatically detect the height of the outer packaging, the number of packaging circles of the equipment, etc., and can preset different packaging modes to meet the different packaging requirements of different types of packaging.
4. Because the machine is attached to the object rotation and winding work, this model can meet the requirements of your company's pallet 0.5-1.6 meters, so this model is the most suitable and economical. And there is no problem of overweight objects, and the packaging height can reach 2.4 meters (customizable).
The main electrical configuration of Self-propelled Pre-stretch Film Wrapping Machine:
PLC programmable control, the number of winding layers and the number of times can be set;
Photoelectric switch, automatically sensing the height of the goods;
Power supply for charging | AC220V 50HZ/60HZ 10A |
Equipped with battery capacity | 100AH（12V） 2pcs |
Battery charging time | 8-10H |
Rated duty cycle | 8H |
Travel motor | The power 0.55KW DC motor is equipped with a governor |
Lifting motors | Power 0.30KW DC motor with governor |
Packaging film stretching motor | Power 0.35KW DC motor with governor |
Minimum package size | 600×600MM |
Maximum walking speed | 75M/min |
Highest package size | 2400mm 00mm |
Maximum roll diameter of film | ￠250mm |
Inner drum diameter | ￠75mm |
Film barrel height | 500mm |
Machine weight | About 550KG |
Self-propelled drive of Self-propelled Pre-stretch Film Wrapping Machine:
1. The walking speed is adjustable
2. The machine is operated according to the time control
3. Reinforcement winding, ascending and descending height setting
Thin-film systems
1. The rising and descending speed of the film frame can be adjusted respectively, and the film feeding speed can be adjusted
2. The number of top and bottom windings is controlled separately
3. The film system is controlled by follow-up, and one pull can be done.
Safety Design of Self-propelled Pre-stretch Film Wrapping Machine:
1. The whole system is easy to operate and flexible by one person:
2. The bottom of the machine has its own wheels that can move freely, and it is also equipped with a forklift transfer position to facilitate movement
3. This machine is equipped with metal brushes, and the machine is 24V direct current. If overloaded, there is also a circuit board insurance to ensure that the machine is not damaged.
4. The machine is equipped with a charging system inside, and the operator will stop winding when he mistakenly enters the winding work area.
5. No pollution emission, can work in ultra-clean room.
More information, please contact with us at any time.
