Automatic Vertical Pallet Strapping Machine

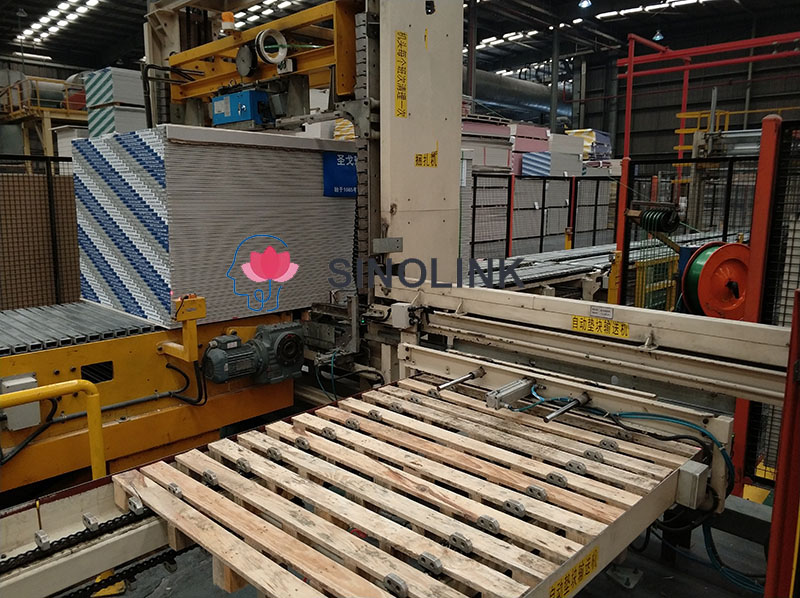

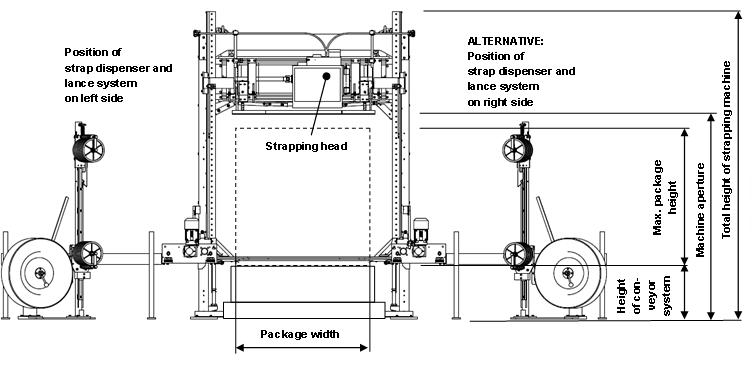

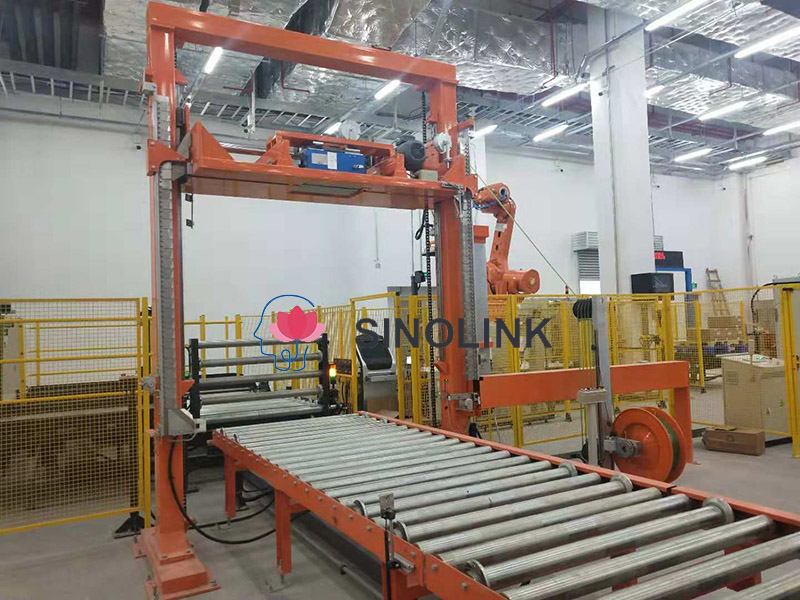

Main components of vertical strapping machine

1. Basic machine frame with two columns and cross beam, vertical carriage guides and chains

2. Rack module, movable between two columns with carriage guide system

3. Carriage drive with geared brake motor

4. Strap track (chute) frame made of grooved aluminium profiles and fixed to machine frame,

spring loaded short flaps to allow strap feed at any height

5. Lance system, to apply strap through pallet void, section height 80 mm

6. Connections to the strapping head with strap tension equalizer

7. Handling of vertical strapping machine by control panel, status of machine shown by Cyklop Touchpanel size 7“ , colour display.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical data of Automatic Vertical Pallet Strapping Machine

1. Power supply: 3/ N, PE, (Neutral wire = loading capacity)（

2. Control voltage: 24 V DC

3. Power rating: max 3.0 kW

4. Total weight of machine: approx. 800 up to 1.000 kg

5. Ambient temperature limit: + 5 °C up to + 35 °C

6. Height of conveyor system: Top edge roller / chain of conveyor system min. 180mm up to max. 800mm

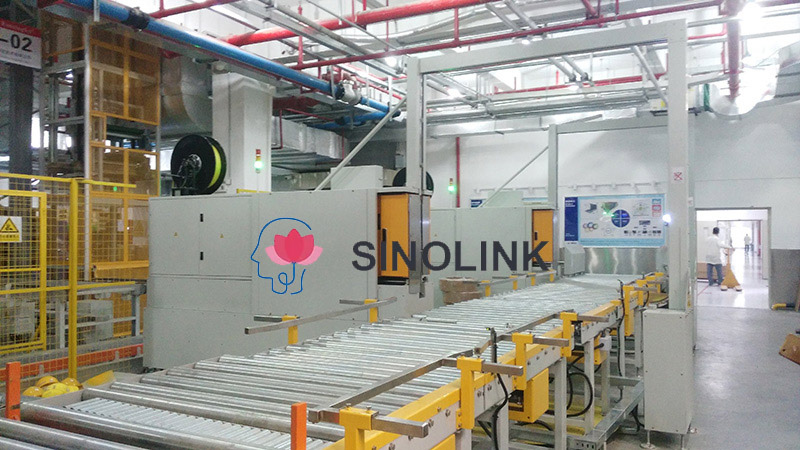

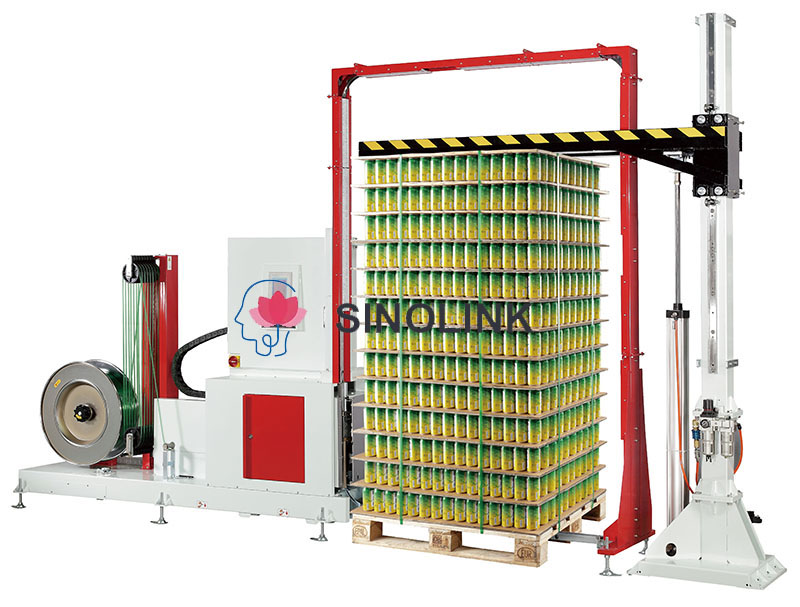

Automatic Vertical Pallet Strapping Machine

Technical Data

	KA5
Strap quality and width
PET	9,0 - 18,5 mm
PP	/
Strap coil
Core diameter	406 mm
Outer Diameter	600 mm
Width	150 mm
No. of loops	7
Strap storage	15 m
Strap take-off force	ca. 5 N

Sequence of operation:

1. The package is centralized conveyed into the strapping position.

2. A volt-free signal is given from customer’s control system to the vertical strapping machine.

3. Closing of strap track (chute) frame by moving forward lance system.

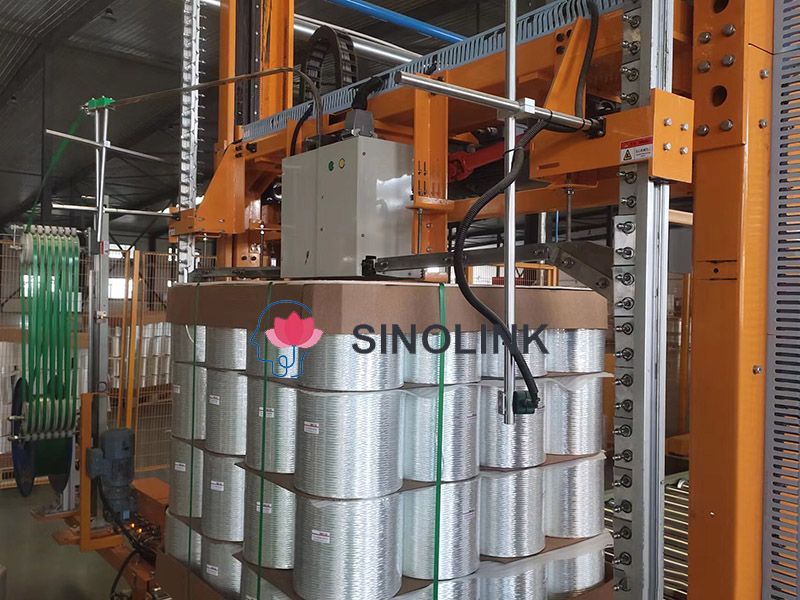

4. The rack module with the strapping head moves downwards onto the package surface. The strap is fed around the track.

5. The strapping cycle is started. The strap is pulled back, tensioned, sealed and cut off. Opening of strap track (chute) frame by moving back lance system. The rack module with strapping head moves back to the base position.

If so, transportation of package into the next strapping position and repeat strapping procedure.

After completing the programme, the machine sends a volt-free signal back to the conveyor control system to transport the load out of the machine.

General data of vertical strapping machine

Automatic Vertical Pallet Strapping Machine
