HORIZONTAL STRAPPING MACHINE:

Horizontal Strapping Machine ensures that goods, which are stacked on a pallet, stay together. Pallet strapping has positive benefits over sealing a pallet. For instance, unpacking the gadgets will take a lengthy way an awful lot much less time and the extent of packaging waste will be appreciably reduced. Furthermore, strapping as an choice of sealing ensures that glowing goods, such as vegetables, can breathe.

Contact Now E-Mail Telephone WhatsApp

Product Details

DESCRIPTION Of Horizontal strapping machine :

Pallet dimensions :1290 x 1290x150 mm.

Load dimensions: 1200 x 1200 mm.

Pallet height: Min.1049mm including pallet height

Pallet weigh: 1200kg/pallet

Conveyor height: 200mm. (chains conveyor)

Strapping pattern: horizonltal

Product strapped: Metal bucket

Production capacity :120Pallet/hour-2pcs stap in one pallet materials

Horizontal strapping machine

SOLUTION For Horizontal strapping machine :

It is a strapping laptop at one head appositively deliberate to a entire automation of the packaging lines. It is made with robust and heavy obligation columns and has been appositively studied to permit a entire automation of packaging strains for meals industries. It permits in the identical time the strapping cycle.

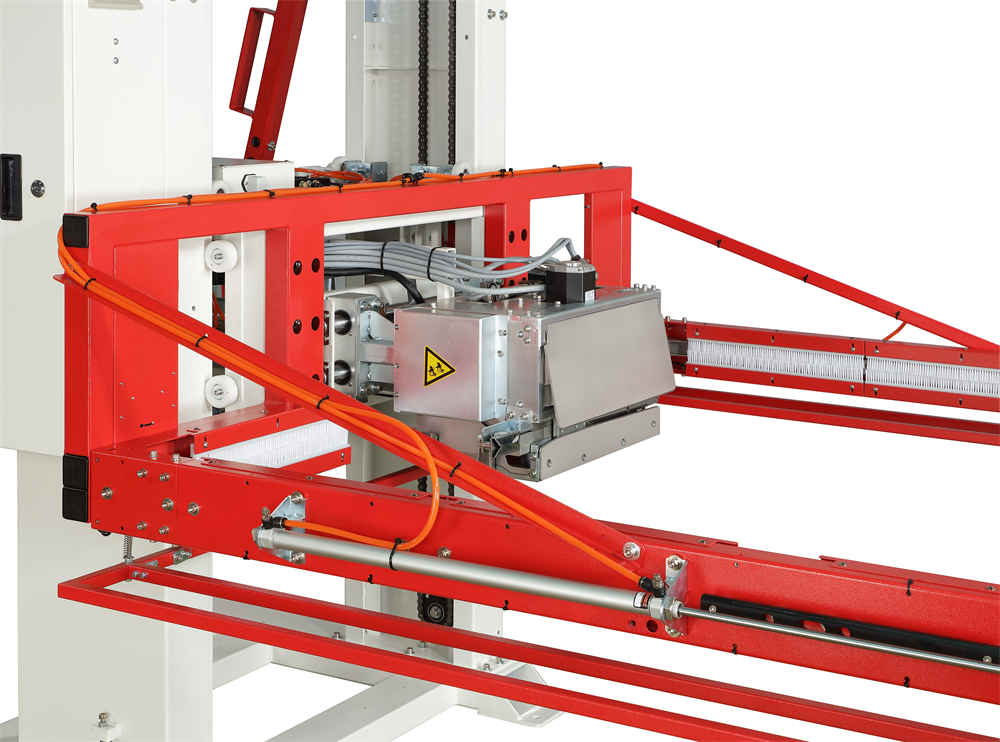

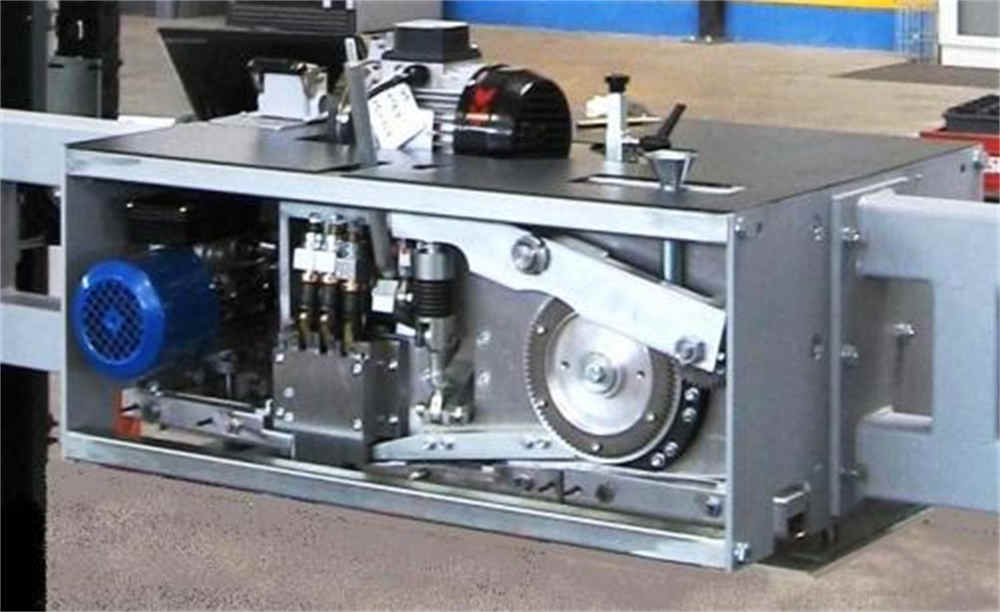

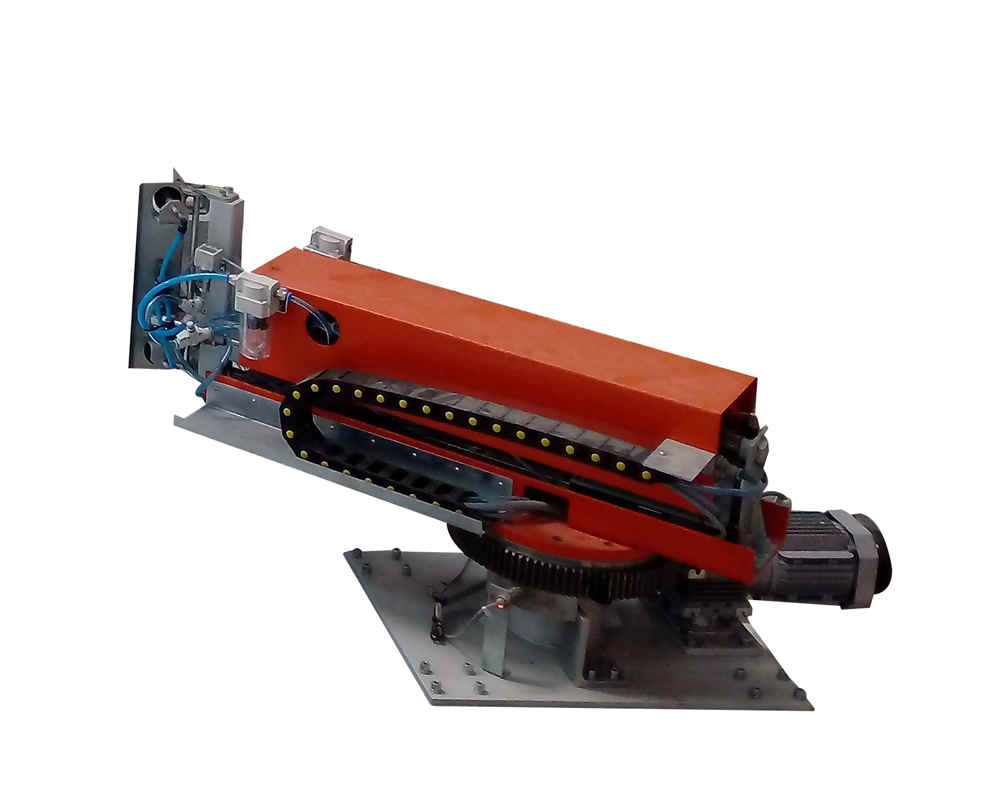

Strapping head with vibration welding system

-This head has been designed with the max simplicity to supply a very dependable functioning.
-Welding made through vibration machine for a regular and dependable joint efficiency
-Strong and compact frame
-Adjustable max anxiety from 50 to 3.500 Newton
-Possibility to work each with PET strap.

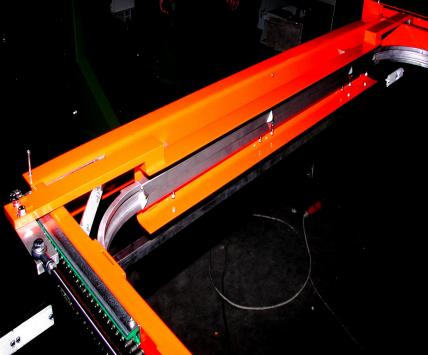

Trap guide

Picture is proven a strap information for a higher placed of the strap on the product.

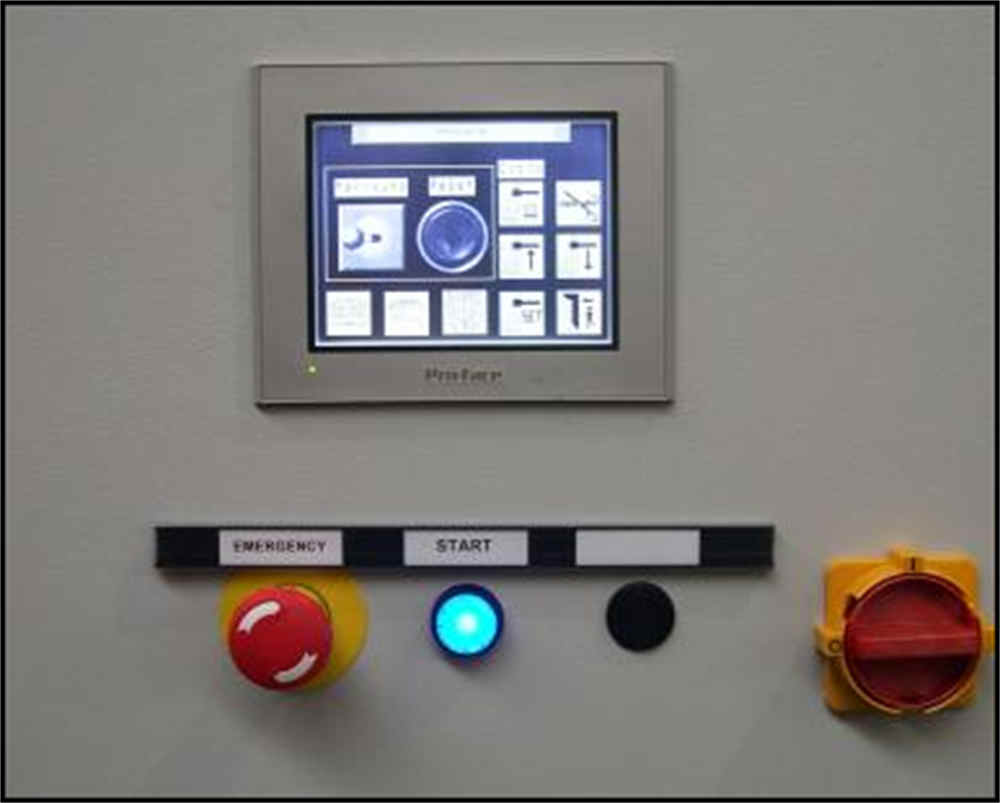

Touch screen
	-Control panel of the computing device with PLC functions -Dedicated manipulate panel with contact screen -Different strapping applications primarily based on the desires of the customer -Possibility to work in guide or automated mode -By-pass

Parameters Of Horizontal Strapping Machine heading

Strap	P.E.T.
Useful dimensions	Width:16mm., thickness:0,6 – 0.9mm.

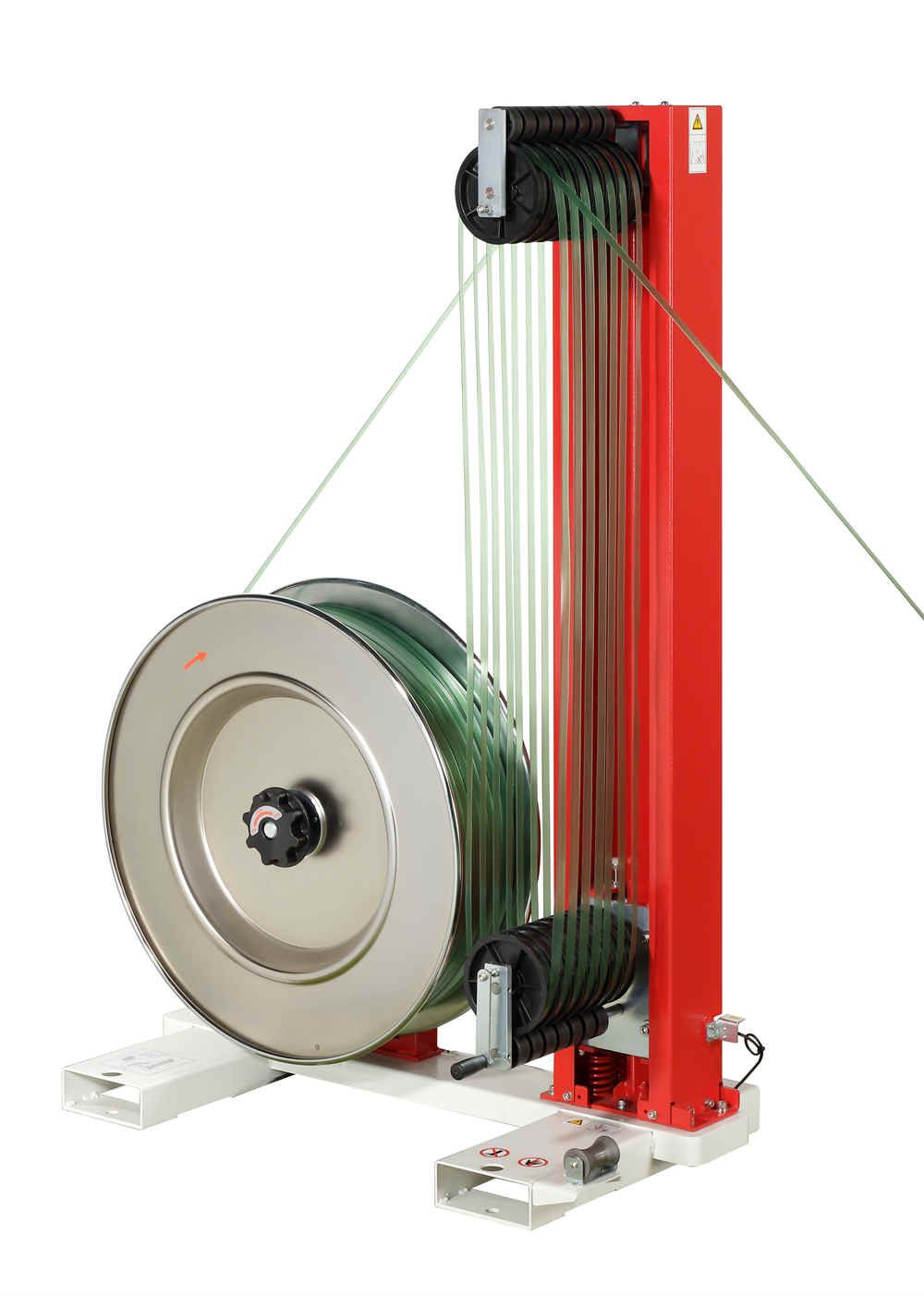

Inside coil diameter	Inner core diameter 406 mm.x w160 mm.
Functioning	Electro-mechanic pneumatic
Strap tensioning	50 – 3.500 N.
Throwing speed	2 mt./sec. adjustable by inverter
Up/down head speed	0.25 mt./sec.
Cutting and welding cycle	2.2 sec.
Power	400 V 3phase + N 50 Hz
Auxiliaries	24 V
Installed power	5 Kw
Compressed air	6 bar
