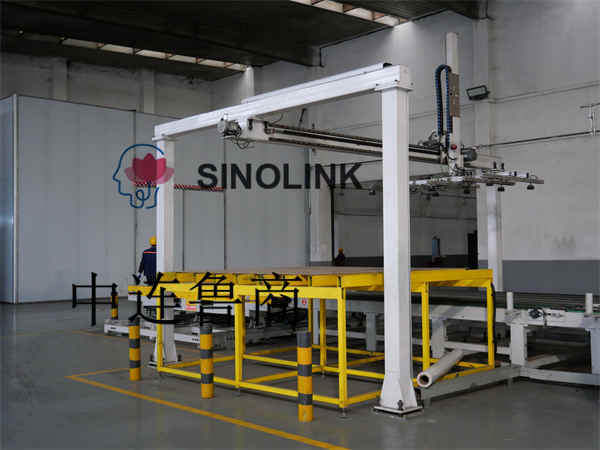

Automatic Suction Protective Cardboard (Protection Wood Board) Truss Manipulator

Name:Top protection plate manipulator

Function description: suction cover plate manipulator, suck the new cover plate from the side of the conveyor, put it on the top of the board to be packaged, the maximum size of the cover plate is 2830mm*2100mm*12mm, the thickness is 1-12mm (most of the 4-6mm), weight: 15-70kg, and the through-laminator and its conveyor are used in conjunction with the conveyor and its conveyor, and the conveying positioning is accurate

Unique control logic and mechanical mechanism: can effectively avoid suction multiple sheets at one time, need to optimize the plan in detail, first suck a corner, blow, and then the whole plate sucks pneumatic suction cup negative pressure suction, stable and reliable

Efficiency: ≮ 40 times/hour

Air consumption: 1000ml/min

Air pressure: 0.6Mpa

The entire process of placing wooden cover plates realizes unmanned operation

More information， please contact with us at any time.
