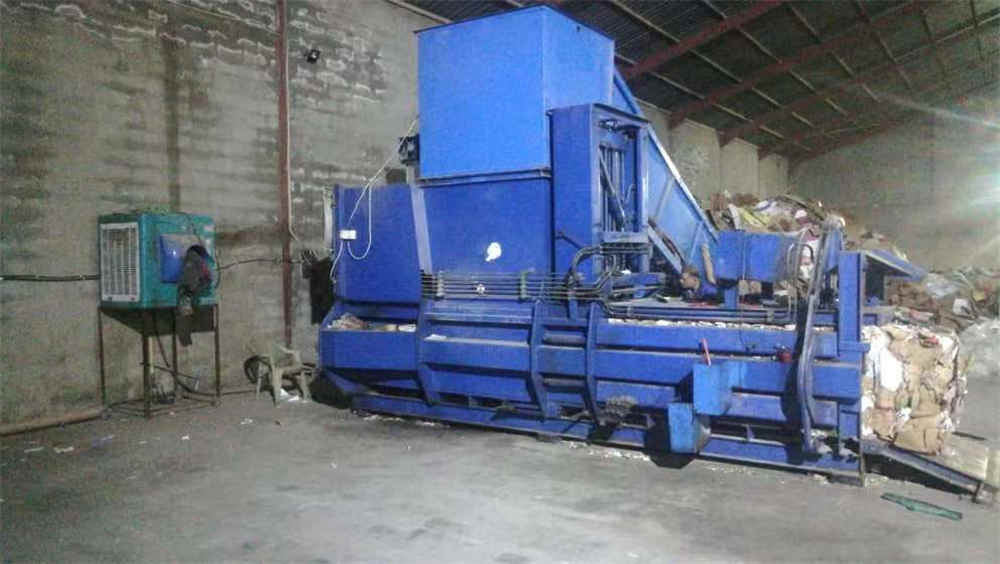

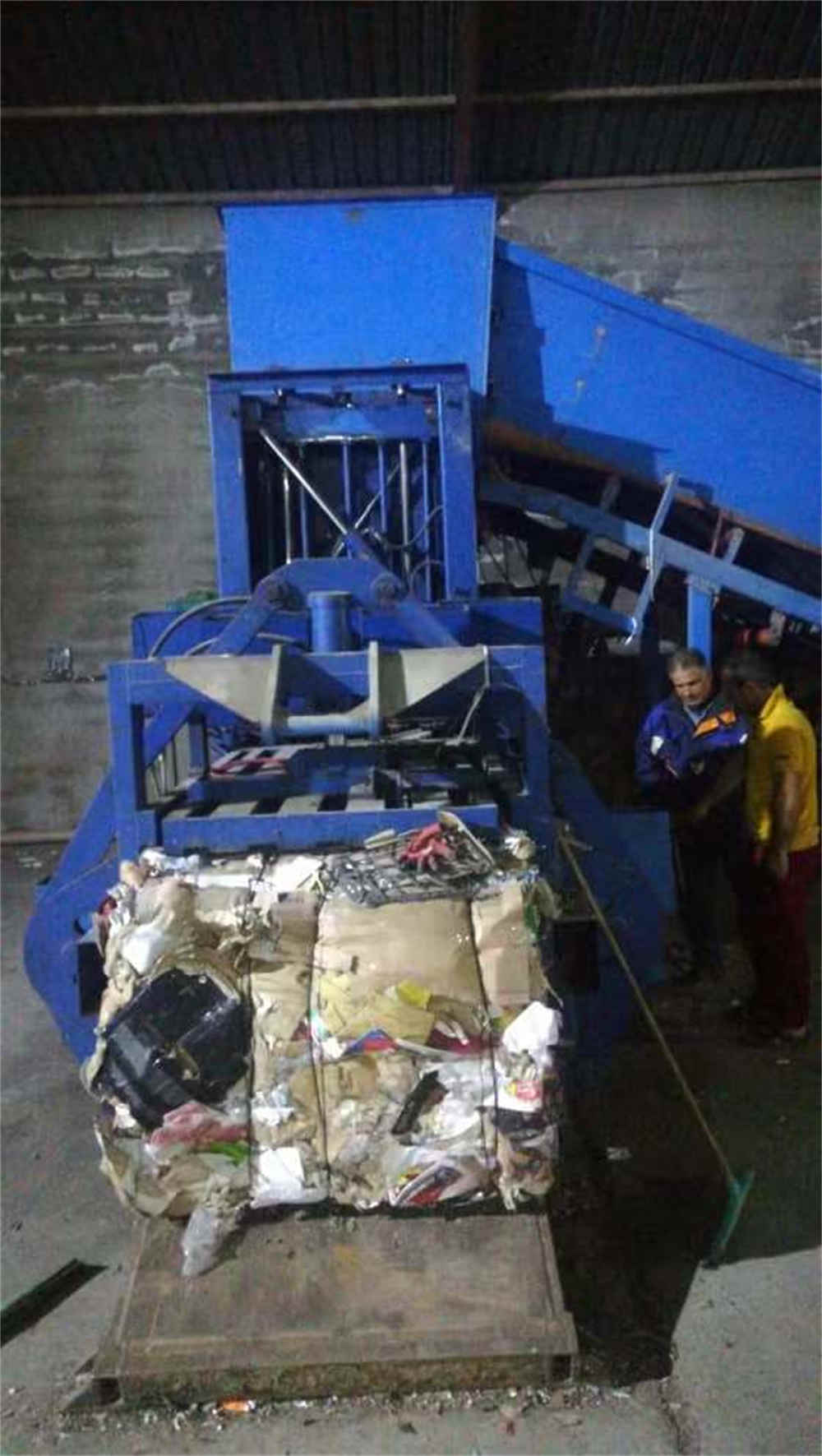

Fully Automatic Hydraulic Baler Machine

Fully Automatic Hydraulic Baler Machine for Solid waste such as waste paper or corrugated cardboard, film, beverage bottles, fibers, etc.

Reinforced horizontal hydraulic baler, suitable for corrugated cardboard, film, beverage bottles, fiber and other solid waste industries. The unique body structure makes the packing process more stable and efficient.

PLC control system, can automatically add material detection, each time can be directly compressed to the front end and manual strapping, one-time out of the package and other processes, can also be manual.

The operation completes.

Contact Now E-Mail Telephone WhatsApp

Product Details

This model of Semi-automatic Horizontal Baler is a enhanced design with stronger structure of machine body. It can have a much heavier and tightened bale.

S.N	Parameter Name&Content					Remarks
1	Main pressure cylinder	Model	220*180	itinerary	2500	Homemade oil cylinder
		Nominal thrust	1200KN	Qty	1pc
2	Hydraulic system working pressure		1000KN
3	The size of the feeding opening		11009001800（mm）			Three wires
4	Block size		1100850L(adjustment range 500-1800)
5	Paper package density		450KG/m³
6	Host device probability		37KW-4+5.5KW+5.5KW
7	Device power specifications		25 square soft copper
8	Packaging line		12# annealed wire (bundled 3 wires)
9	How it works		Manual/fully automatic
10	Production efficiency		8 packs/hour (about that)
11	PLC and touch screen		Taiwan Delta
12	Manifold block		Jinan Tiancheng hydraulic pressure (domestic forging)
13	Hydraulic valves		All use Yuci oil research
14	pipeline		Thick-walled seamless steel pipe (made in Tianjin) and high-pressure oil pipe are used together
15	Cooling system		It adopts water cooling (8 square), cooling tower, water tank, self-priming pump
16	Electrical appliances		Chintai
17	Fuel tank volume		1.5 cubic meters (hydraulic oil customer-owned, Great Wall or Kunlun brand)
18	Device weight		About 17 tons
19	Floor space (LWH)		18.53.54.2m
20	Loader size		Length 10.5 m * width 1.6 m

Fully Automatic Hydraulic Baler Machine

Technical solutions, technical configuration, performance introduction

(1) Basic equipment configuration:

The equipment adopts the built-in Mitsubishi PLC control programming system, which is mainly composed of the main frame, oil injector, fuel tank, feeding hopper, buckle machine, automatic strapping system, console, water cooler system and transport belt; The oil road is smooth and reasonable. It can automatically feed, press the pack, hook the line, cut the line, bundle and other functions, freely transfer the length and the number of bales, high safety performance, fast loading efficiency. The frequency conversion motor used in the feeding system automatically adjusts the feeding speed in the case of uneven goods and saves energy and electricity.

(2) Technical quality indicators:

01. Packing density: 400-450kg/m³;

02. Pressure package size: width 1100mm× height 900mm * length Lmm (adjustable)

03. Feed box volume: height 3.2 * width 1.1 * length 1.8 meters

04. Working mode: automatic hydraulic baler, automatic bundling machine.

05. Stranding mechanism: the gear is directly occluded. (Gear direct transmission)

06. Strapping method: hydraulic hook wire, wire cutting system, number of bundled lines 3.

07. Bottom structure: roller track, track with 20mm wear-resistant high-quality steel, reinforced main body and bottom plate.

08. Push bag system: roller device, reduce the mechanical resistance of the main hydraulic cylinder to return to the movement, and effectively improve the speed of pushing the package.

09. Fixed pressure package length: high-strength train track joint structure; and the length of the timer control package.

10. Lubrication system: fully automatic lubrication system, reduce mechanical wear, reduce mechanical noise, and make mechanical work stable.

11. Main hydraulic cylinder: bore 220mmstroke 2500mm.

12. The two sides and top of the material conveyor belt are raised, the safety fence around the equipment is protected, and the safety operation and maintenance platform is required around the equipment.

13. The level of the bag outlet is level with the ground, and the bottom is installed with a sliding plate of steel plate.

(3) Equipment configuration requirements:

1. Operation mode: fully automatic operation mode: automatic feeding, pressing bale, hooking, wire cutting, baling, packing, packing, etc.;

2. Feeding system: steel plate chain conveyor belt, thickness ≥ 4mm, conveying slope 30--35°; The transmission device adopts high-grade wear-resistant chain;

3. Hydraulic system: configure the cooling system to make the equipment work normally at a temperature below 60°C°; The seals and hydraulic pipes are imported from German Texfeng and Goodyear from the United States;

4. Packing device: the bottom structure adopts roller track, replaceable 12mm wear-resistant high-quality steel + 16mm bottom plate, reinforced main body and bottom plate; The fixed pressure package adopts high-strength train track joint structure;

5. Strapping device: the strapping method adopts automatic hydraulic packaging, automatic bundling of oil pressure threading, 3 iron wires (the diameter of the iron wire uses the range of 2.8-3.2mm); the forming cutter adopts double scissor type, replaceable blade, adopts imported blade, warranty for 7-8 years, 3 years sharpening knife; The stranding mechanism adopts gear shape and knurled type;

6. Lubrication: automatic centralized lubrication system;
