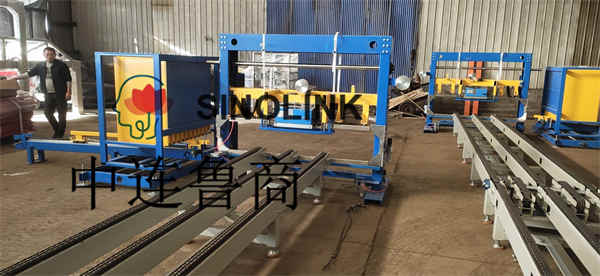

Automatic Clip Type Color Steel Tile (Profile Plate) Building Materials Wooden Blocks Strapping System

Automatic Clip Type Color Steel Tile (Profile Plate) Building Materials Wooden Blocks Strapping System For Sales

Packing Process:

The buffer conveyor docking front-end palletizing unit conveyor is automatically online; After the plate enters the conveyor before strapping, it cooperates with the wooden pad block pushing unit and the strapping unit, automatically adds the bottom foot rib strip according to the preset packaging process, automatically bundles, and enters the conveyor after the bundle after completing the preset strapping process, each stack is labeled at the designated position (above the top), and the conveyor in the stacking position conveyor uses the lifting crane for multi-layer stacking, and the forklift (the minimum load of the forklift is not less than 6000KG) comes off the line after the stacking is completed;

Contact Now E-Mail Telephone WhatsApp

Product Details

SUPPLY SCOPE:

Strapping packing unit (incl. with reeling car)

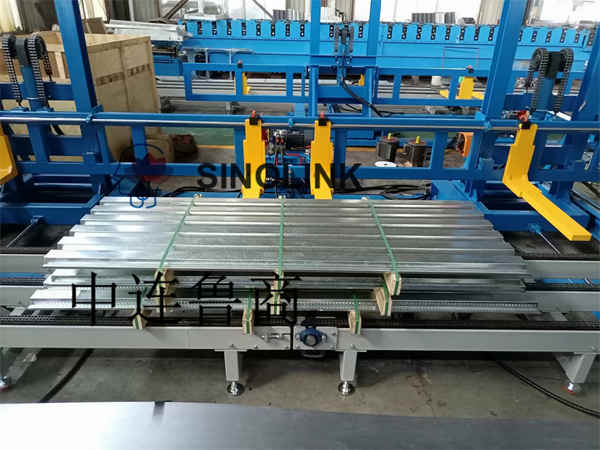

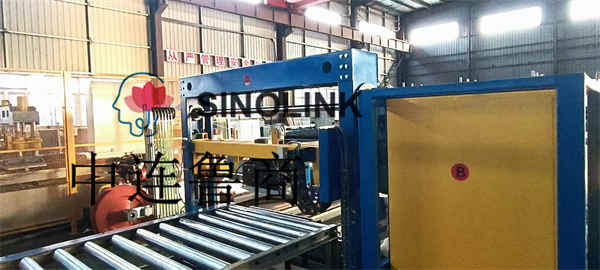

The strapping machine adopts TITAN (VK10K120-16 electric ironing type) strapping machine head imported from Germany. Strapping straps are adopted 12.5-15.5mm x 0.6-0.8mm strapping strap for PET machine. The strapping machine works with the foot bar unit to fix the wooden foot bar bar with the top plate. SEW geared motor, frequency conversion speed regulation;

Automatic Clip Type Color Steel Tile (Profile Plate) Building Materials Wooden Blocks Strapping System

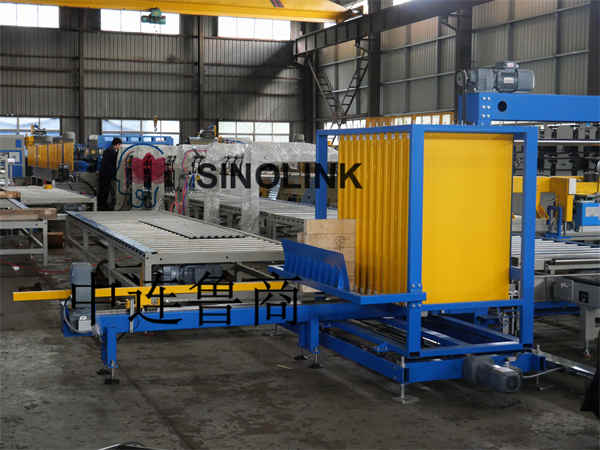

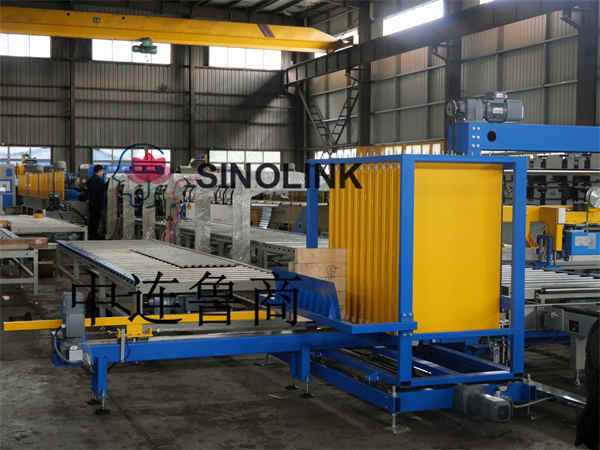

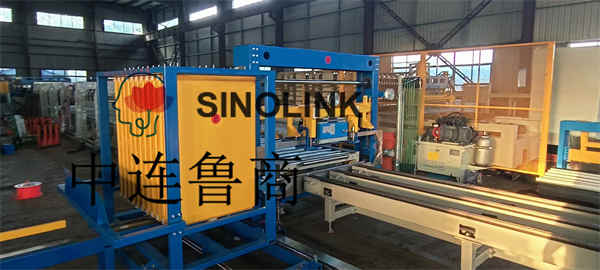

The footbar conveyor unit is the conveyor used by the footbar placement unit, which manually places the footbar strip in the gasket library, and the gasket conveyor pushes the required footbar strip from the gasket library in turn and transports it to the upper line of the footbar placement unit. The library of foot ribs is movable, and the effective number of pad blocks is 10*10. Chain conveying speed 10m/min. SEW geared motor, frequency conversion speed regulation;

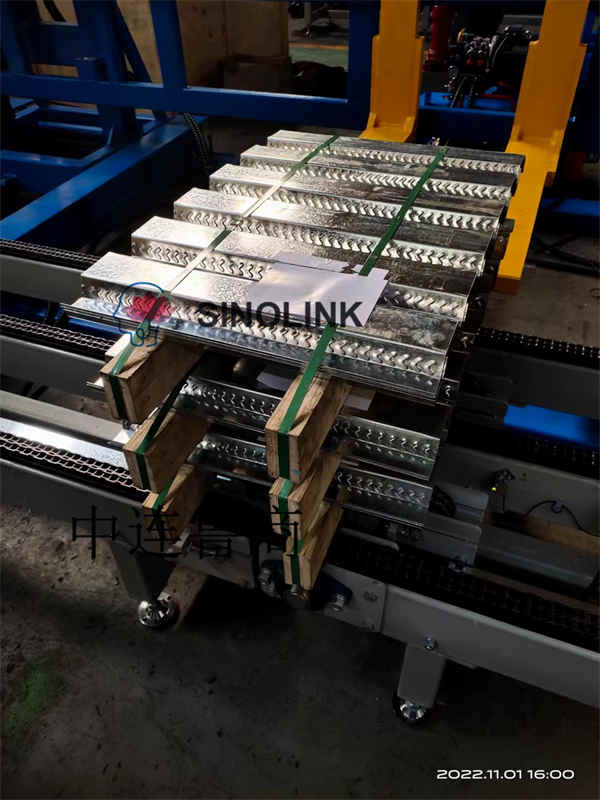

Bottom bottom middle groove (≥20mm) width 50.8mm (including 20mm wide groove), height 101.6mm, length 1100mm(A)/950mm(B).

Automatic Clip Type Color Steel Tile (Profile Plate) Building Materials Wooden Blocks Strapping System

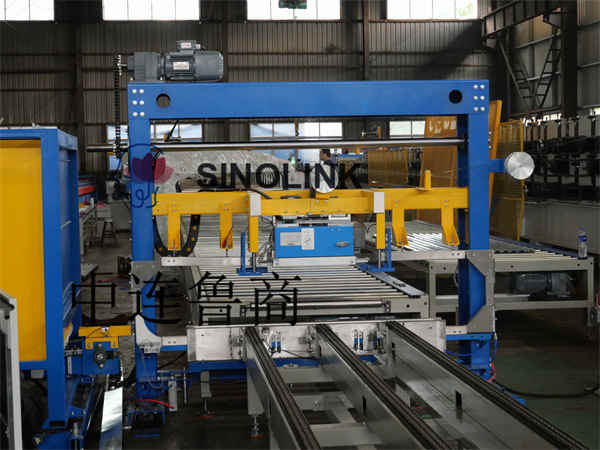

The foot bar placement unit is coordinated with the strapping machine, and the cushion block is placed in the strapping position before the strapping machine is bundled. The action part of the automatic pad placement mechanism is driven by the motor, and the speed is 10m/min. SEW gearmotor, variable frequency speed regulation, FESTO pneumatic unit;

The strapping belt uses PET 15.5mm width and 0.6mm thickness, the belt wheel uses 20-25 kg specifications, the belt wheel uses electromagnetic brakes to avoid inertia, and multiple sets of storage pulley sets to maintain the constant tension of the strapping belt and reduce the failure of the feeding belt; Packing tape roll replacement time≤ 4 minutes;

Chain conveyor set after strapping:

After strapping, the chain conveyor group is composed of 2 sets of four-row chain conveyors, the chain conveyor adopts a heavy-duty square pipe welded frame, the effective length of a single unit is 6000mm, the effective width is 1010mm, the height is about 600mm, and the speed is 10m/min,

SEW geared motor, frequency conversion speed regulation;

Major component configuration of strapping system:

Motor reducer: SEW

Frequency converters: Siemens/AB/Danfoss

Servo motors :Siemens

PLC :Siemens/AB

Low-voltage electrical appliances: Siemens

Proximity / photoelectric switch: SICK

Pneumatic components :FESTO/SMC
