Jump-on Case Packer Fully Automatic Carton Cargo Packing Machine
Jump-on Case Packer Fully Automatic Carton Cargo Packing Machine
Introduction to the specific situation of the equipment:

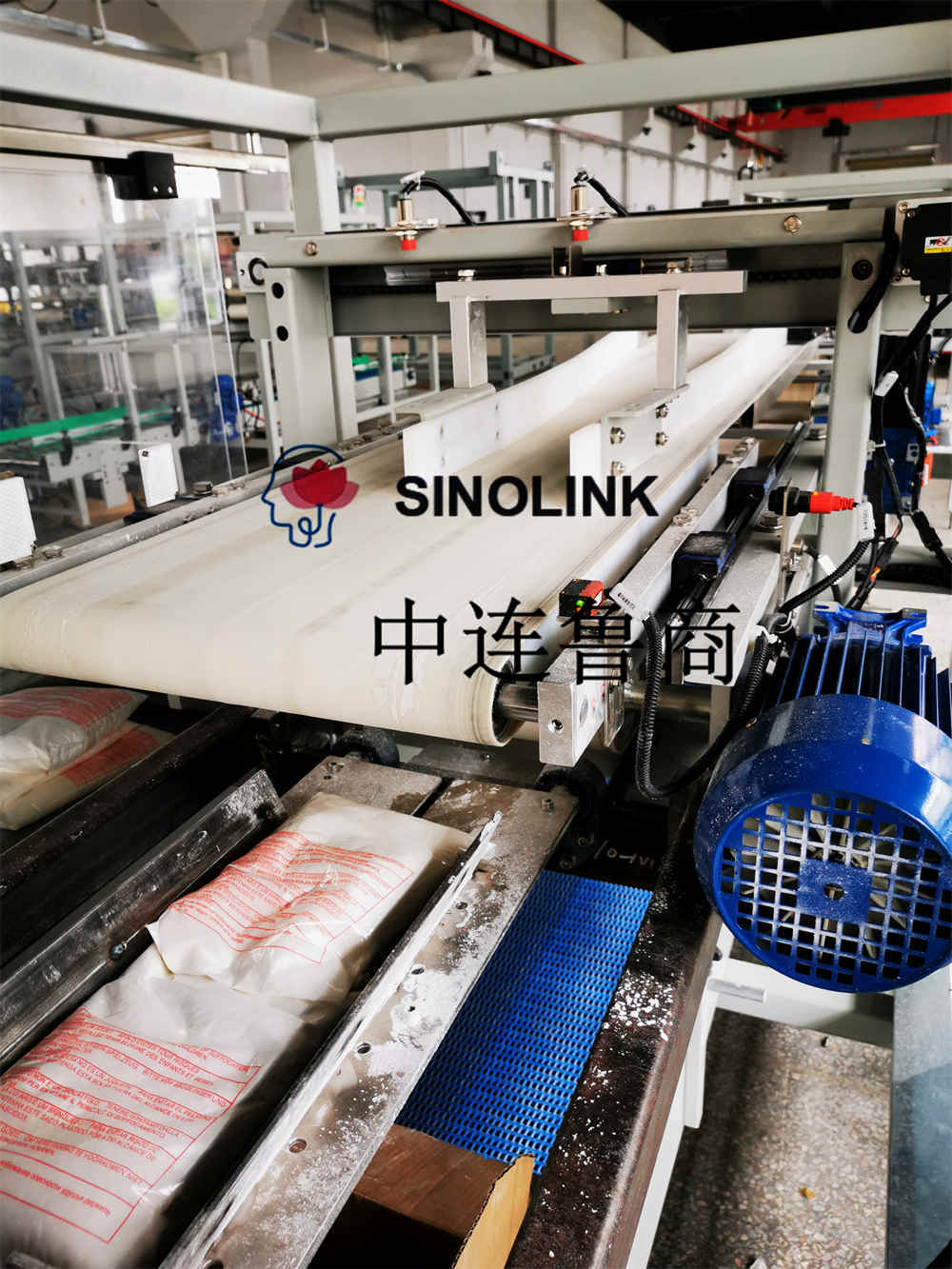

The front bread belt pulls the bag away

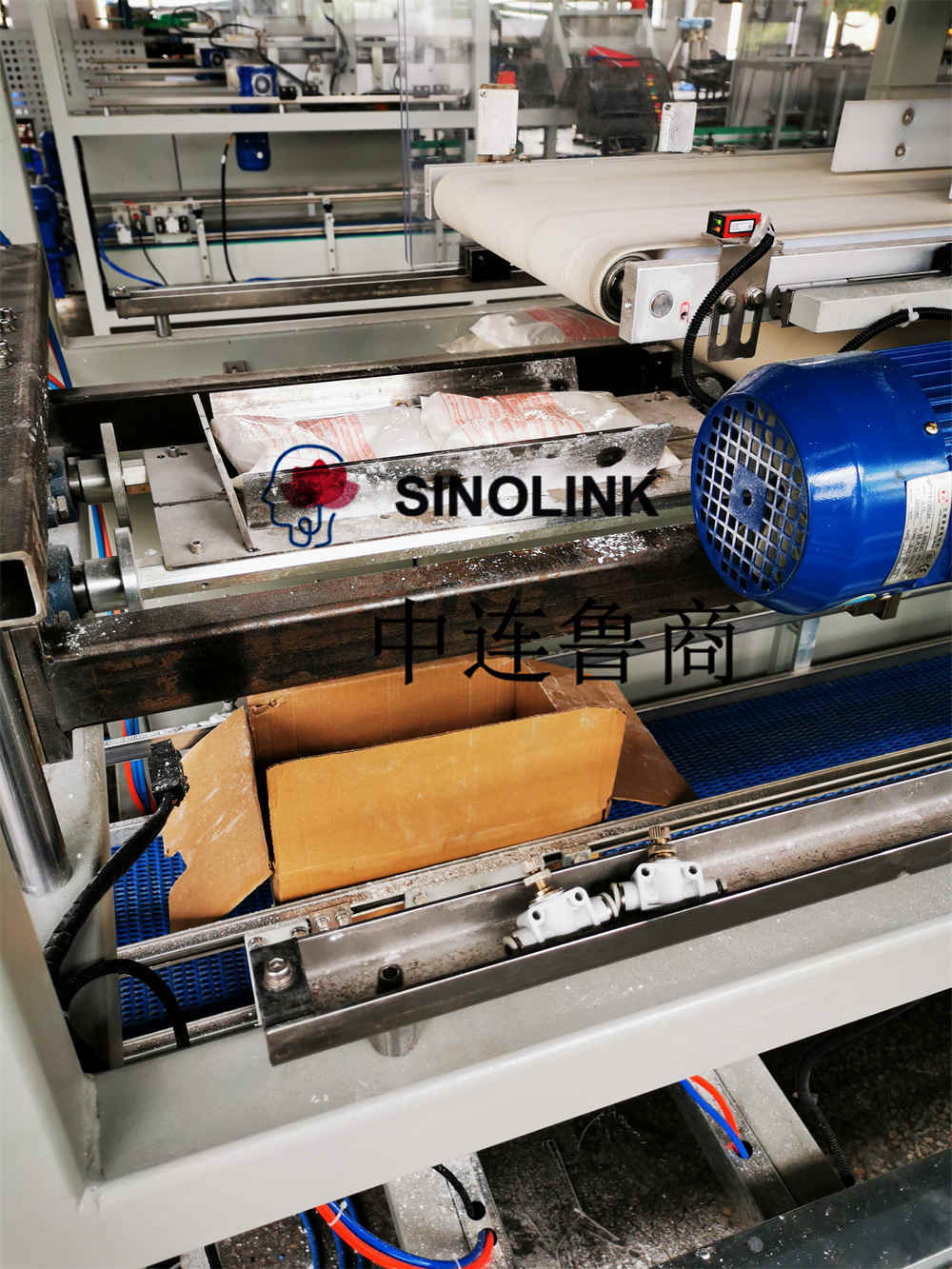

Belt telescopic bag drop device
When the bag is dropped, there is a suction cup on the suction cup to absorb the jump (increase the jump stability)
Carton conveyor
Both package conveying and carton conveying can be fed into the hoist
When the weight of the bag is not enough, the tin removal package is recycled
Main technical parameters of Jump-on Case Packer Fully Automatic Carton Cargo Packing Machine
Equipment production capacity: running speed 4 boxes per minute, jump packing method.
Packing and bag arrangement: one pack per box, lying down.
Package size: length * width * thickness = 520mm * 370mm * 190mm
Weight per pack: 10 kg
Equipment power: not more than 1.5Kw
Control power: 24V DC
Compressed air: 0.4-0.6Mpa, 30L/MIN
Main Features:
Operation panel/display: flow chart and maximum fault indication, with perfect mechanical and electrical protection functions;
Main transmission parts: 45 steel is manufactured after heat treatment and surface treatment;
Safety protection device: set with safety protection device to ensure the safety of operation;
Main configuration:
PLC system: Siemens PLC touch screen
Pneumatics: FESTO
Motor: SEW
Low-voltage electrical appliances: Siemens
Frequency converter: Danfoss
Frame: carbon steel, outer top paint (color swatch provided by Party A)
Contact with bag product: as much as possible stainless steel 304 or plastic.
Jump-on Case Packer Fully Automatic Carton Cargo Packing Machine Photos:
More details and accurate requirements, please don't hesitate to contact with me.
