Non-woven Radial Packaging Machine

Non-woven Radial Packaging Machine Notes:

Demand-side rewinder table height: 700mm (the height of the supplier's equipment drive roller from the ground needs to be designed to be 700mm);

The rewinder to the winding machine rewinder is excessive, and the transport table is excessive, and the demander is responsible.

Packaging Requirements:

The number of winding turns can be set

Automatic reciprocating is possible

After each package roll, the film holder automatically returns to the fixed position.

Other requirements:

At the request of the demand side, after winding, it is necessary to discharge the material directly in the same direction as the incoming material, as shown in the following figure:

The demander side provides the support platform required for feeding and discharging, which is used to connect the rewinder and the discharge port.

After the incoming and discharging increase the platform, the membrane frame is located under the platform outlet movement, so the platform needs to have sufficient brightness, in addition, the feeding needs to be in accordance with the principle of one end alignment, which is convenient for the control of the membrane frame (the membrane frame moves using an encoder to calculate the distance, subject to the actual design of the technology).

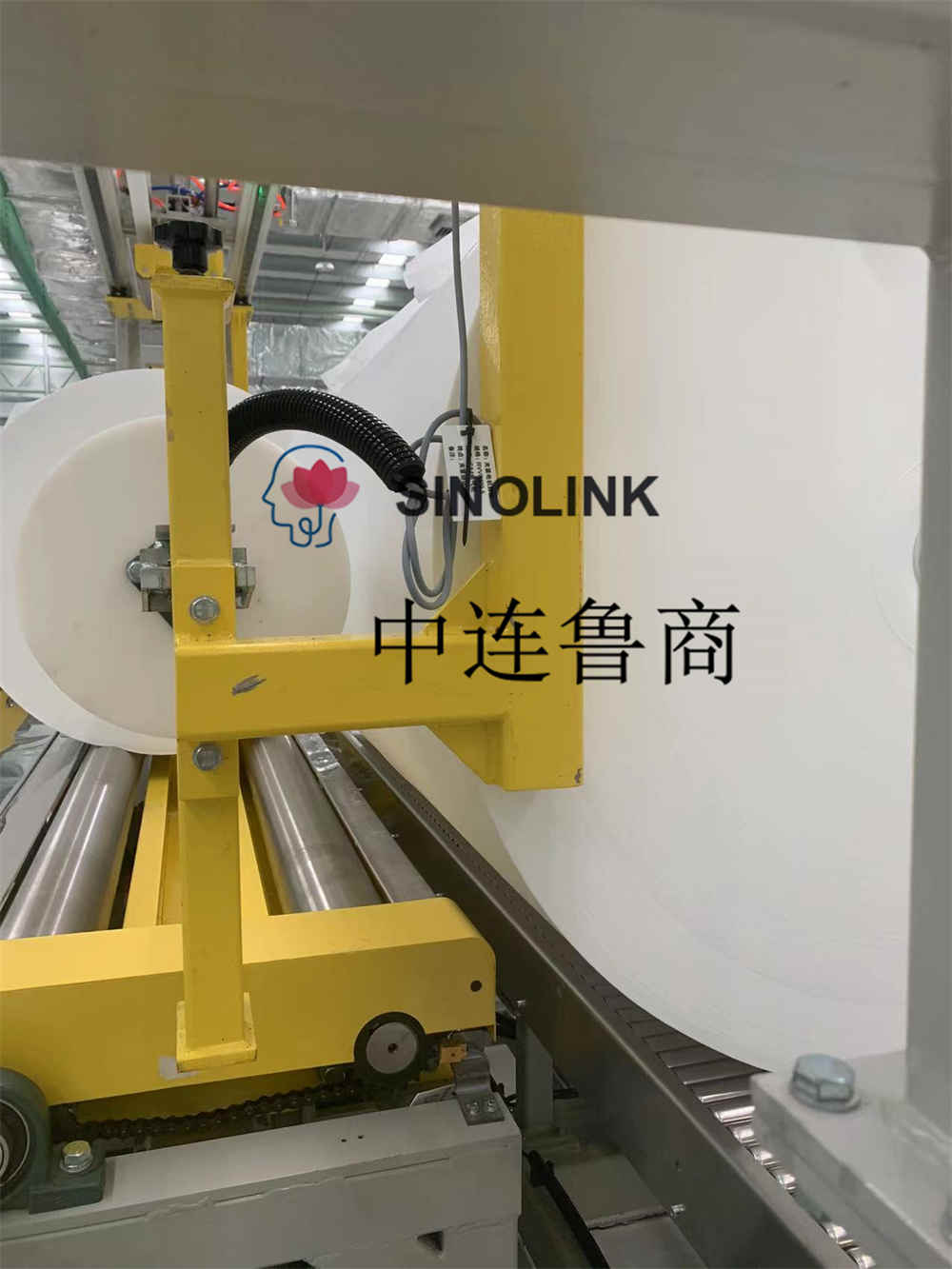

Since the winding film can only be removed from the gap between the platform (the need to bring itself) and the winding machine drive roller, so after the winding is completed, the winding film will be broken off and retracted, in order to prevent this from happening, the starting position of the membrane frame is increased (that is, at the end of the roller) to add a mechanical fixture for manually hanging the winding film (this device should avoid the cloth roll feeding and discharging position).

Packaging process of Non-woven Radial Packaging Machine:

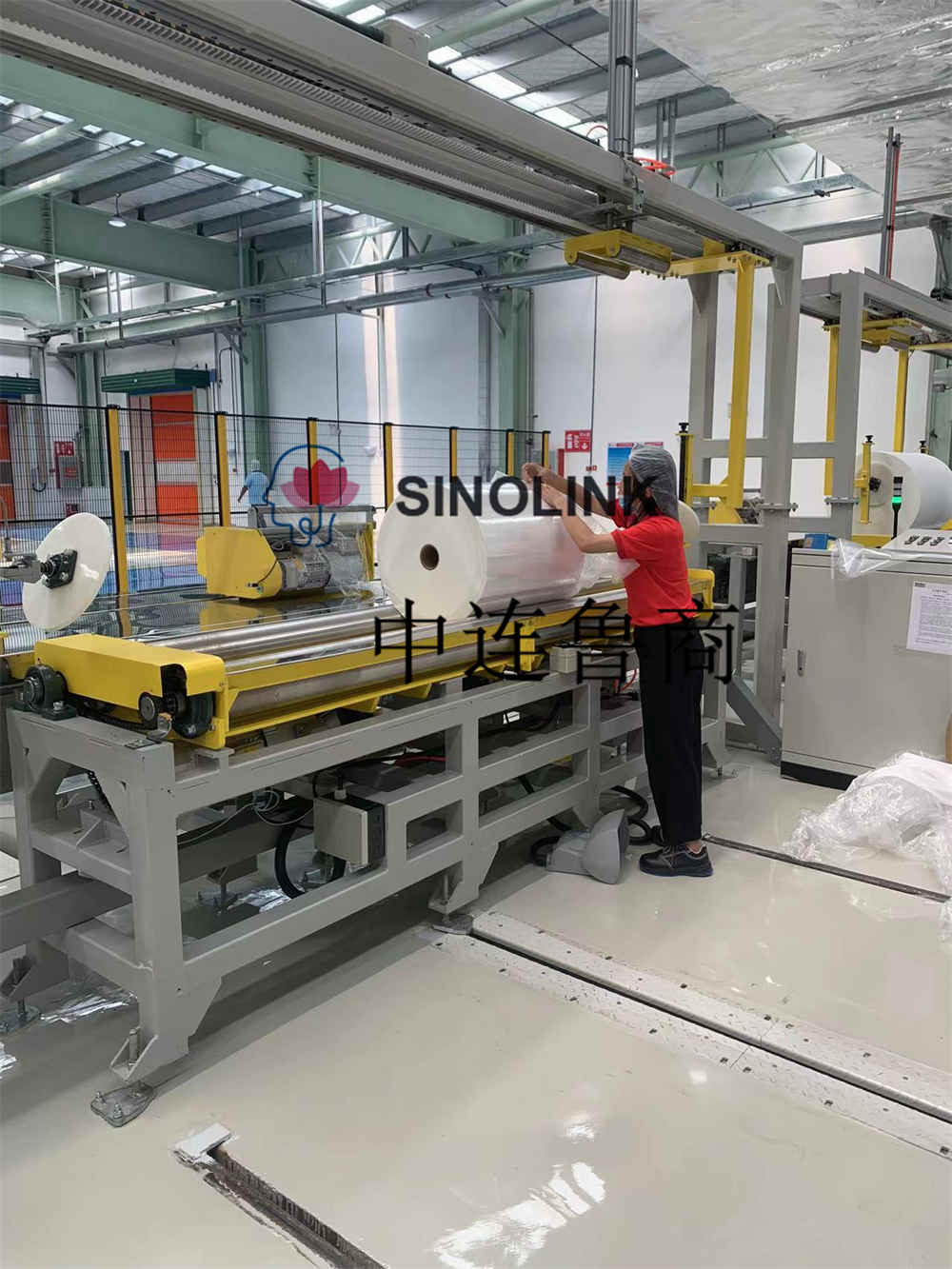

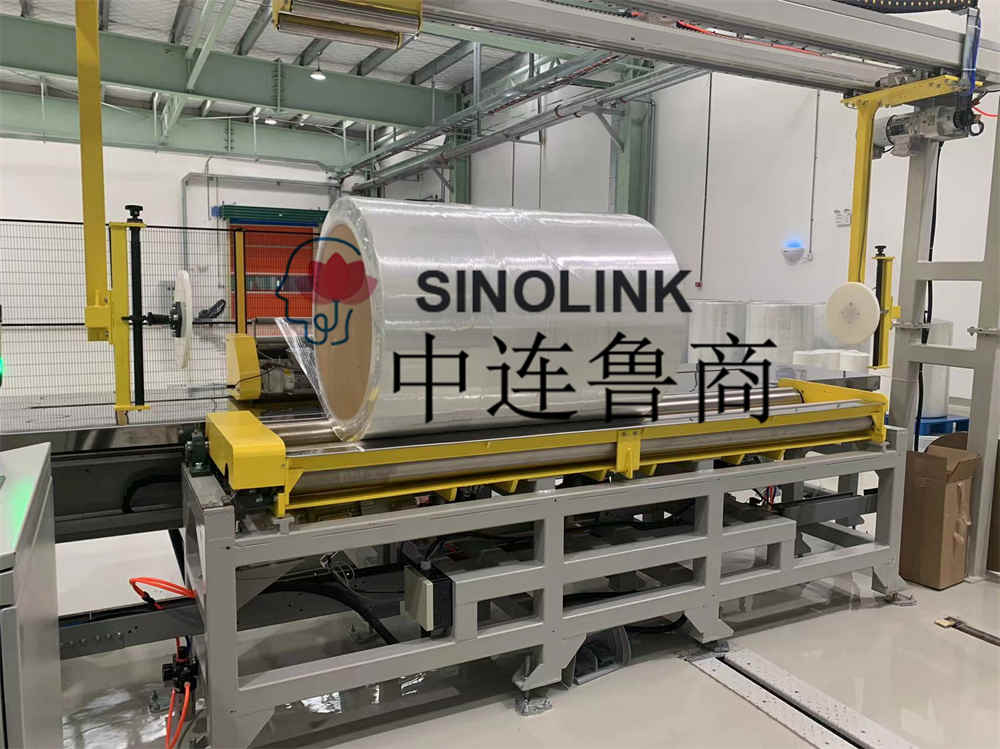

After the product is rolled off the line of the rewinder→ the conveyor platform (provided by the demander) is transported to the winding packaging machine→ the winding packaging machine packaging (manually placed the cover plate at both ends, clamped by the pneumatic device of the winding machine), and after winding→ pneumatically ejected to the conveyor platform (the demand party is self-prepared) → waiting for storage

Winding machine with weighing function, before winding and after winding need to weigh the non-woven roll, the load cell comes with a serial port and the demander computer connection, the demander obtains the weight of the cloth roll, manually enter the computer, manually print the certificate.
