Special Stretch Wrapping Film Packaging Machine

Performance Advantage:

a. Man machine interface control, operate easily;

b. 220V AC motor movie frame, equipping frequency conversion to modify tension,changed that adjusting pace through 24V DC motor with energy field in equal enterprise of China, and modified he instability of tension.

Contact Now E-Mail Telephone WhatsApp

Product Details

Special Stretch Wrapping Film Packaging Machine

Special Stretch Wrapping Film Packaging Machine

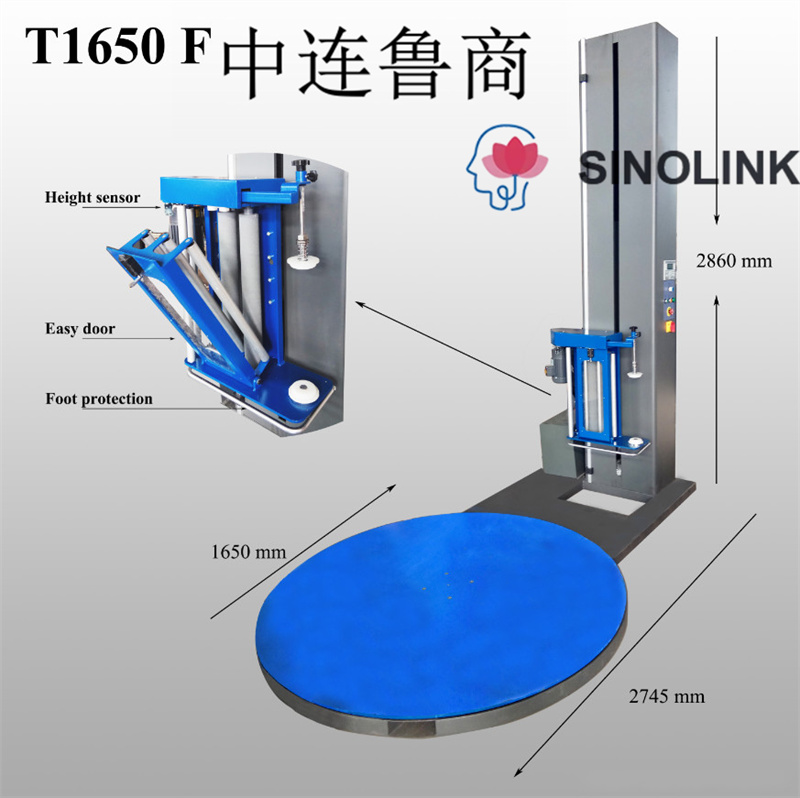

T Series Pallet Wrapping Machine--T1650F Semi-automatic Pre-Stretch Wrapping Machine --Special stretch wrapping movie packaging machine. The wrapping tools is used in a quantity of packaging areas widely. Customers: Coca Cola, Pepsi-Cola, Canon, LG, Panasonic etc.

Technical Specification of packaging machine：

Item	Specification
Turntable size	D=1650mm, H=78mm
Wrapping size	500-1200mm (L) *500-1200mm (W)
Packaging height	Max.2400mm (1800/2800mm available)
Turntable loading	Max.2000kgs
Machine weight	800kgs
Machine power	1.5kw
Turntable speed	0-14RPM (adjustable, soft start & stop)
Power supply voltage	Single-phase 220V
Packing material	LLDPE stretch film

Main performance of packaging machine：

Control system：

1. Program control unit integrated machine;

2. Wrapping layers and times can be set;

3. Photoelectric switch, automatically sensing the height of goods;

4. Reinforced wrapping function, which can protect certain parts specially;

5. Overtop time setting function.

Turntable driving：

1. Turntable frequency convension speed: 0-12rpm;

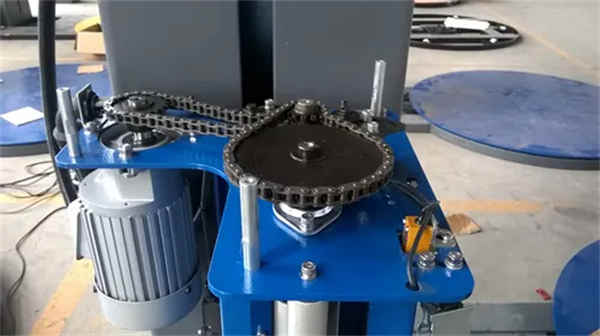

2. Turntable is driven by chain, with accurate positioning;

3. Turntable can automatic reset ;

4. Forklift slot at the bottom of turntable.

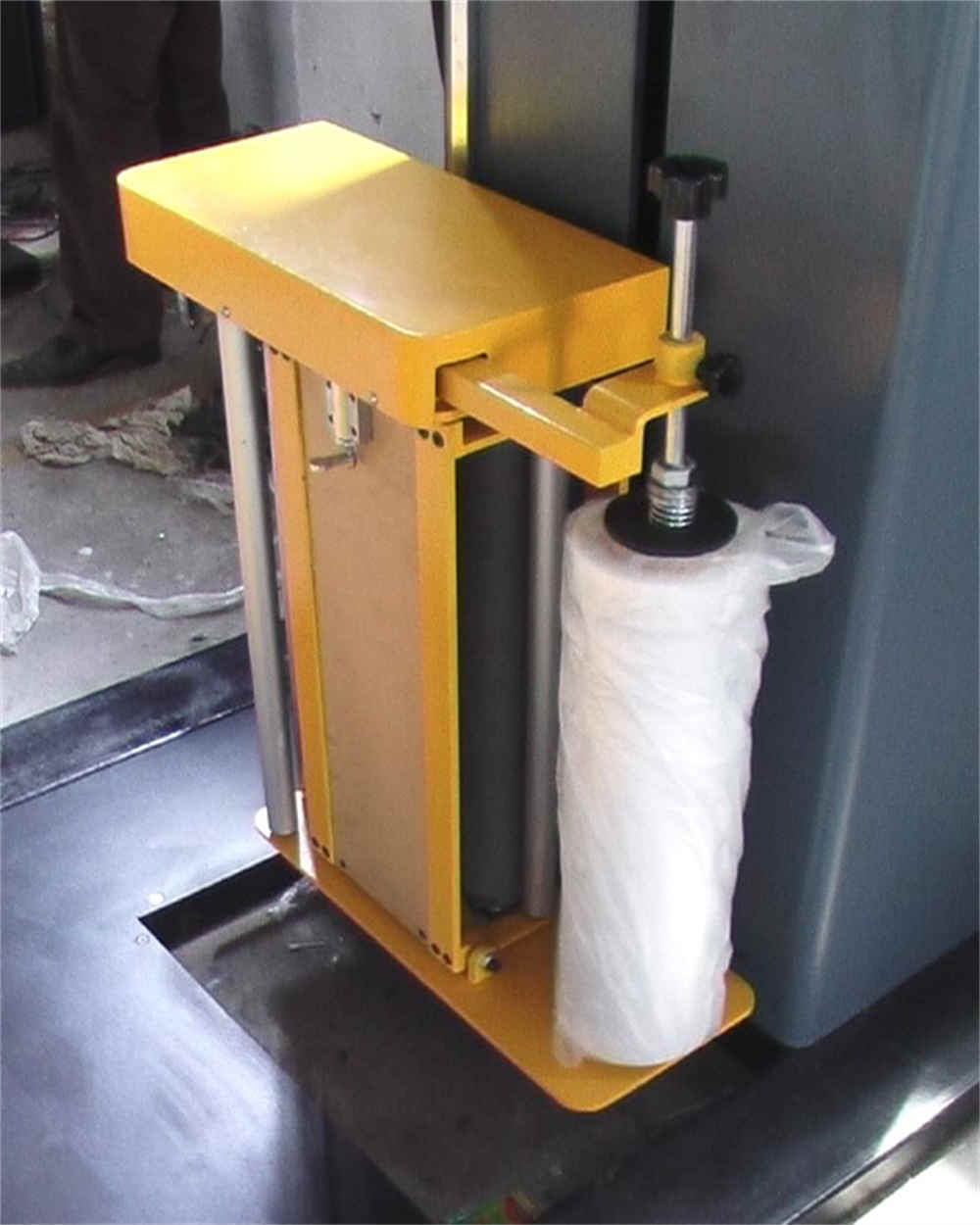

Film carriage system：

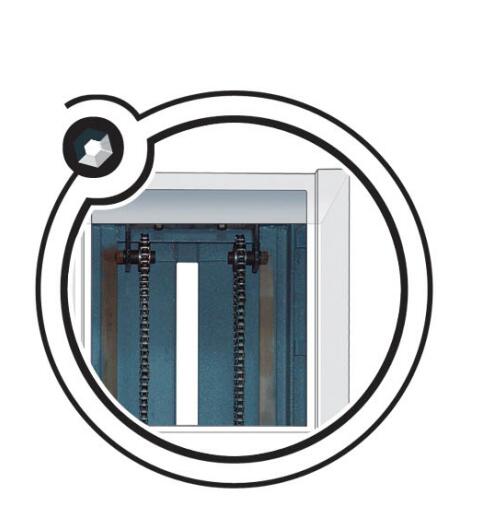

1. Drive by pre-stretch carriage, stretch ratio up to 250%, double chain design, stable and reliable.

2. The AC motor stretch the film, and the frequency converter adjusts the tension;

3. Moving up or moving down of film carriage and the speed of film speeding can be adjusted separately;

4. Top and bottom wrapping layers is controlled separately.

5. Servo mechanism of film system, which can be pulled once.

Machine configurations of packaging machine：

Name	Brand	Origin	Remarks
PLC	SEALINE	China
Ffilm carriage lifting motor converter	IVT	China	0.37KW
Turntable motor converter	IVT	China	0.75KW
Film frame film out motor inverter	IVT	China	0.37KW
Photoelectric switch	Contrinex	Switzerland
Proximity switch	Omron	Japan
Travel switch	Schmeisai	Germany
Tower reducer	Zhongda	China	0.37KW
Turntable reducer	Zhongda	China	0.75KW
Output film reducer	Zhongda	China	0.37KW
