Full Automatic Color Steel Tile(Profile Plate) Building Materials Or Pallet Goods Palletizer/Stacker
Full Automatic Color Steel Tile(Profile Plate) Building Materials Or Pallet Goods Palletizer/Stacker/Palletizer Stacking Machine
The Name Of The Packaging Line
After Stacking The Profiled Plates Online Binding Packaging Line

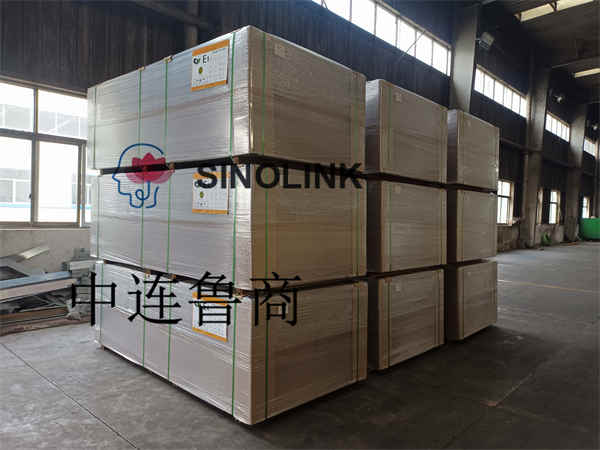

Profiled bundling packages with a design capacity of one strapping strap (including wooden feet) every 40 seconds;

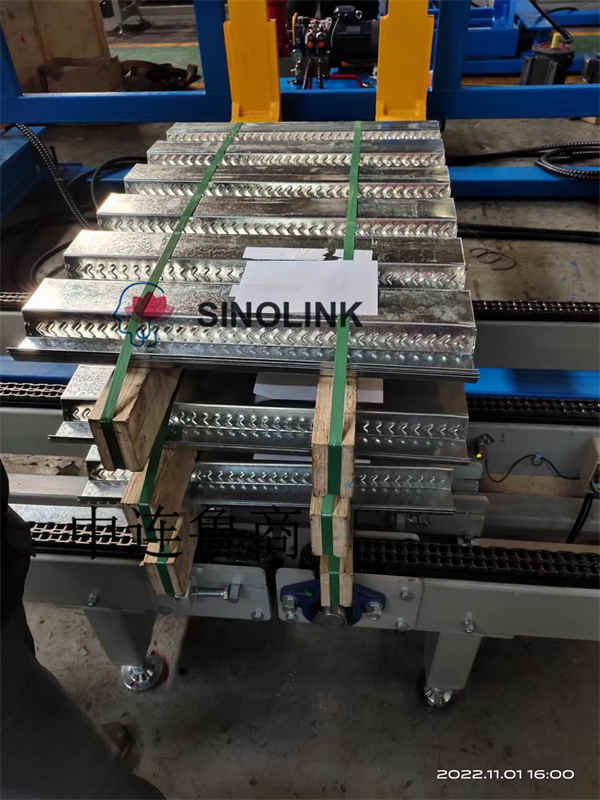

1.The online profile plate packaging process is online packaging, the packaging line docking front end palletizing unit is automatically online, the bottom wooden foot rib strip is automatically added, and the packaging is automatically bundled.
2.The calculation standard of one strapping belt every 40 seconds is: the time to complete the binding of the whole stack from the beginning of the plate's arrival at the corresponding strapping position to the completion of the strapping (including the placement of wooden mats) leaving the corresponding strapping position: N (number of strapping lanes) * 40 seconds + conveying time (10 m/min)
Package size
Line 1 corresponding specifications (excluding pad height):
MIN: | 609mm x 984mm x17mm | （L x W x H） |
MAX: | 10000mm x 984mm x 35mm | （L x W x H） |
Line 2 corresponding specifications (excluding pad height):
MIN: | 609mm x 915mm x42mm | （L x W x H） |
MAX: | 12192mm x 915mm x118mm | （L x W x H） |
Stacker Description

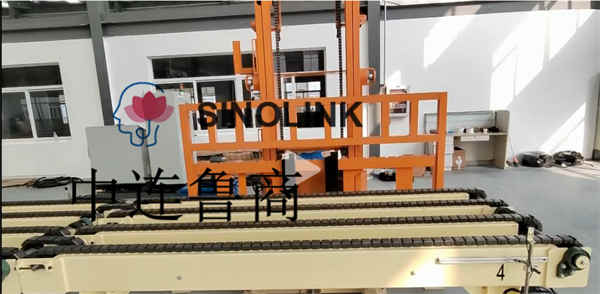

Stacking lifting chain conveyor

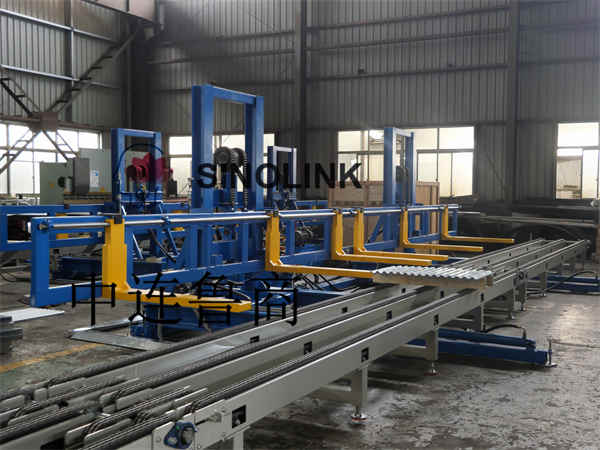

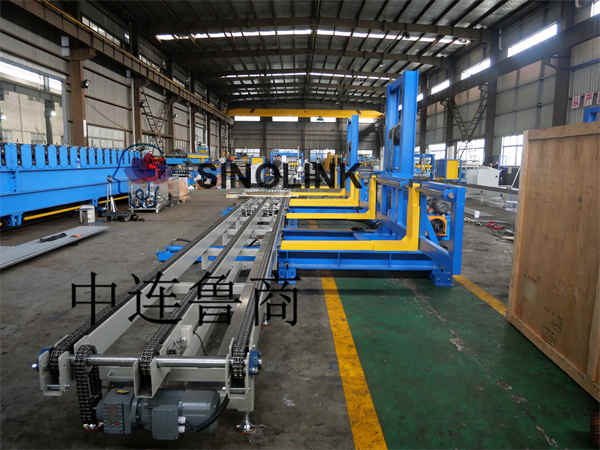

Stacking lifting position chain conveyor is composed of 1 set of 12 meters long four-row chain conveyor, the conveyor adopts heavy-duty square pipe welded frame, effective length 12000mm, effective width 1010mm, height about 600mm, speed 10m/min, SEW gearmotor, frequency conversion speed regulation;
Stacking hoist

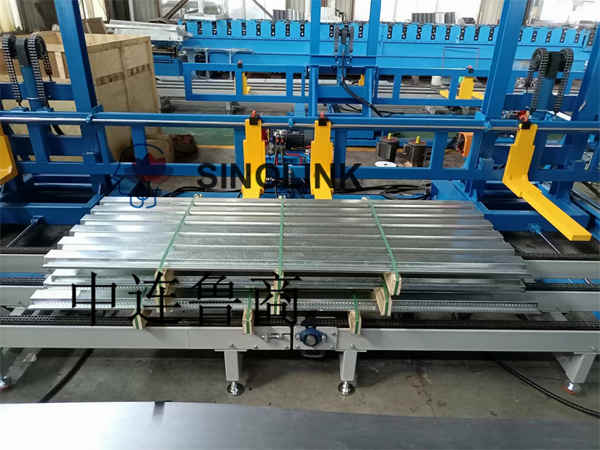

The stacking hoist cooperates with the stacking position lifting conveyor, and the profile plate that has been bundled with a single stack above the conveyor is lifted away from the conveyor, and after the subsequent profile plate is in place, the hoist descends, and the offline profile plate is placed above the subsequent plate, reciprocating until it reaches the preset number of stacking layers, sends a completion signal, and waits for the manual forklift to take the whole stack of plates off the line. At this point, the packaging process is complete.

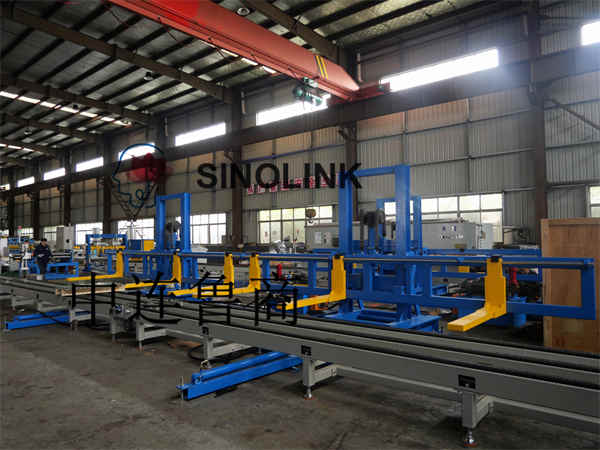

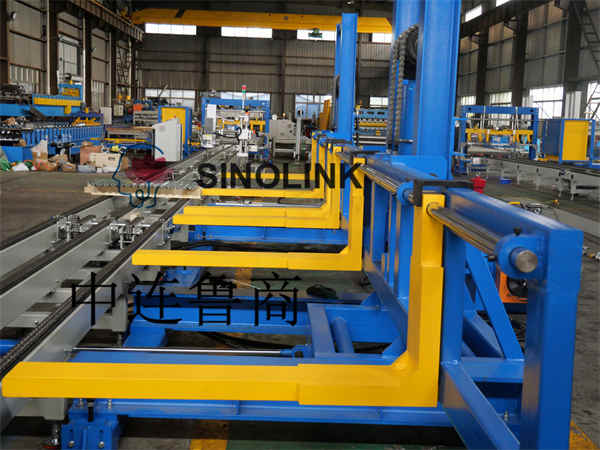

The stacking hoist is completed by two sets of stacking lifting towers, with 3 groups of 6 wishbones; The fork tooth gap can be manually adjusted according to the shape.
The maximum lifting weight of the stacker crane is 4000kg (two stacks full load weight), the maximum stacking shape is 3 layers, total weight.
We can customized and designed what you need according to your requirements.
Trust us that we are specialized team in packaing industry, can help to save cost.
Thanks a lot.
