Fully Automatic Spiral belt conveyor Machines

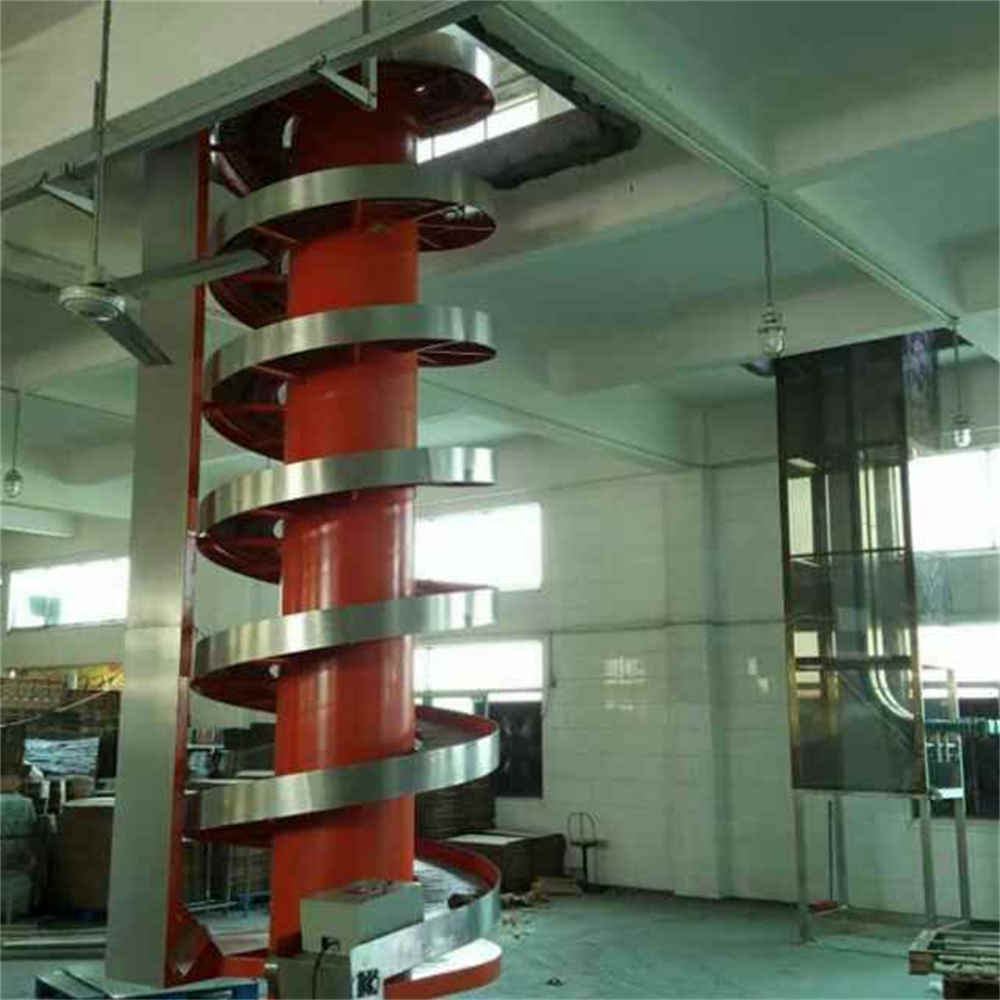

Spiral belt Conveyor is one of the solutions to the need for vertical lifting in the conveying process. It is also characterized by small land occupation, compact structure, lifting and lowering of goods according to the spiral conveying surface, avoiding excessive angle, causing dumping and damage of goods, overall welded structure, high reliability, simple debugging, and low maintenance cost. With the production line to achieve continuous lifting or falling, simple control, simplify the production process, improve production efficiency.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of spiral belt conveyor:

1. Transmission direction: downward

2. Conveyed product: solid bag

3. Product size: subject to the customer's product size

4. Product weight: 20, 40Kg (maximum)

5. Demand capacity: 800bags/h

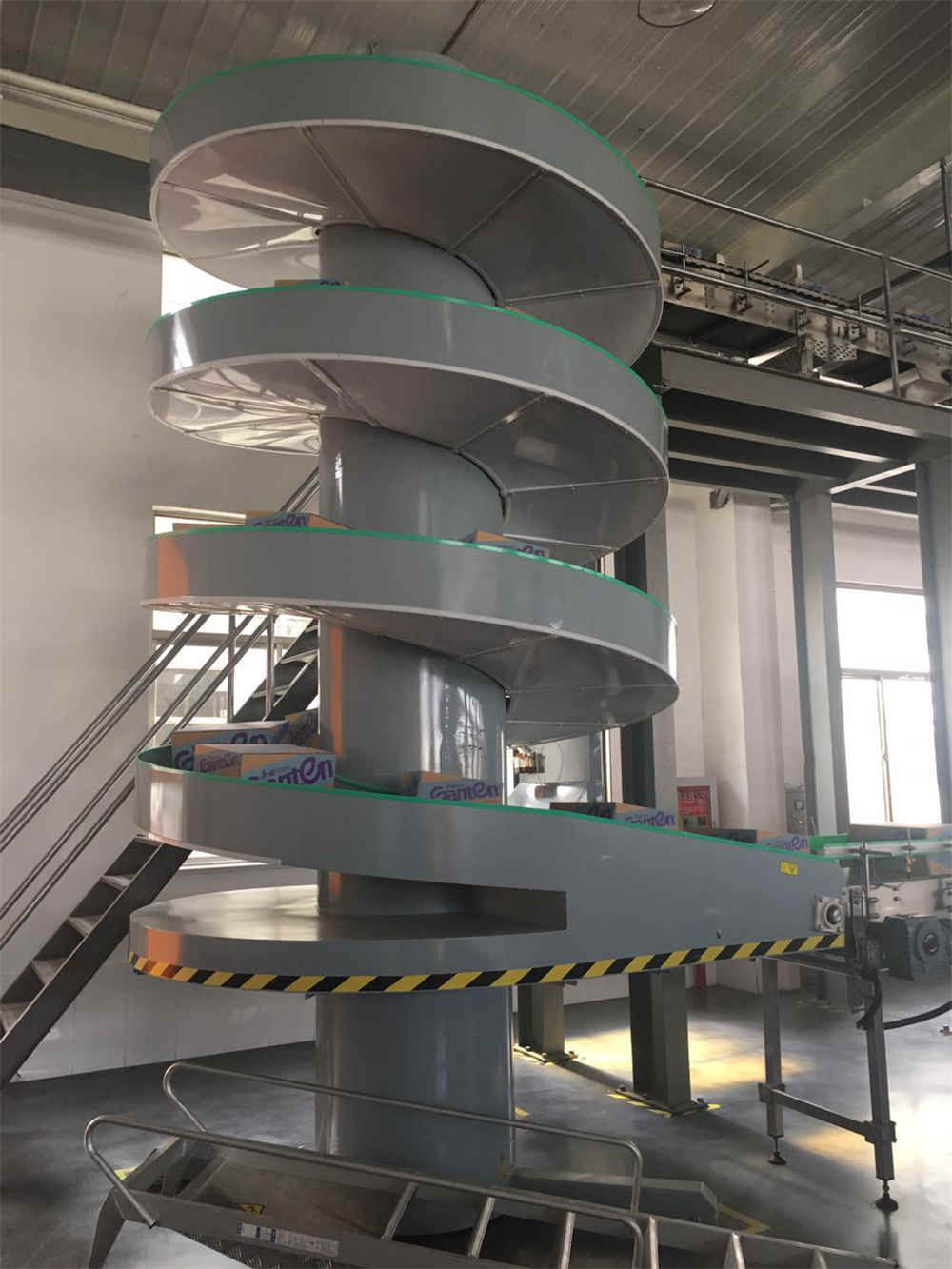

Fully Automatic Spiral Belt Conveyor Machines

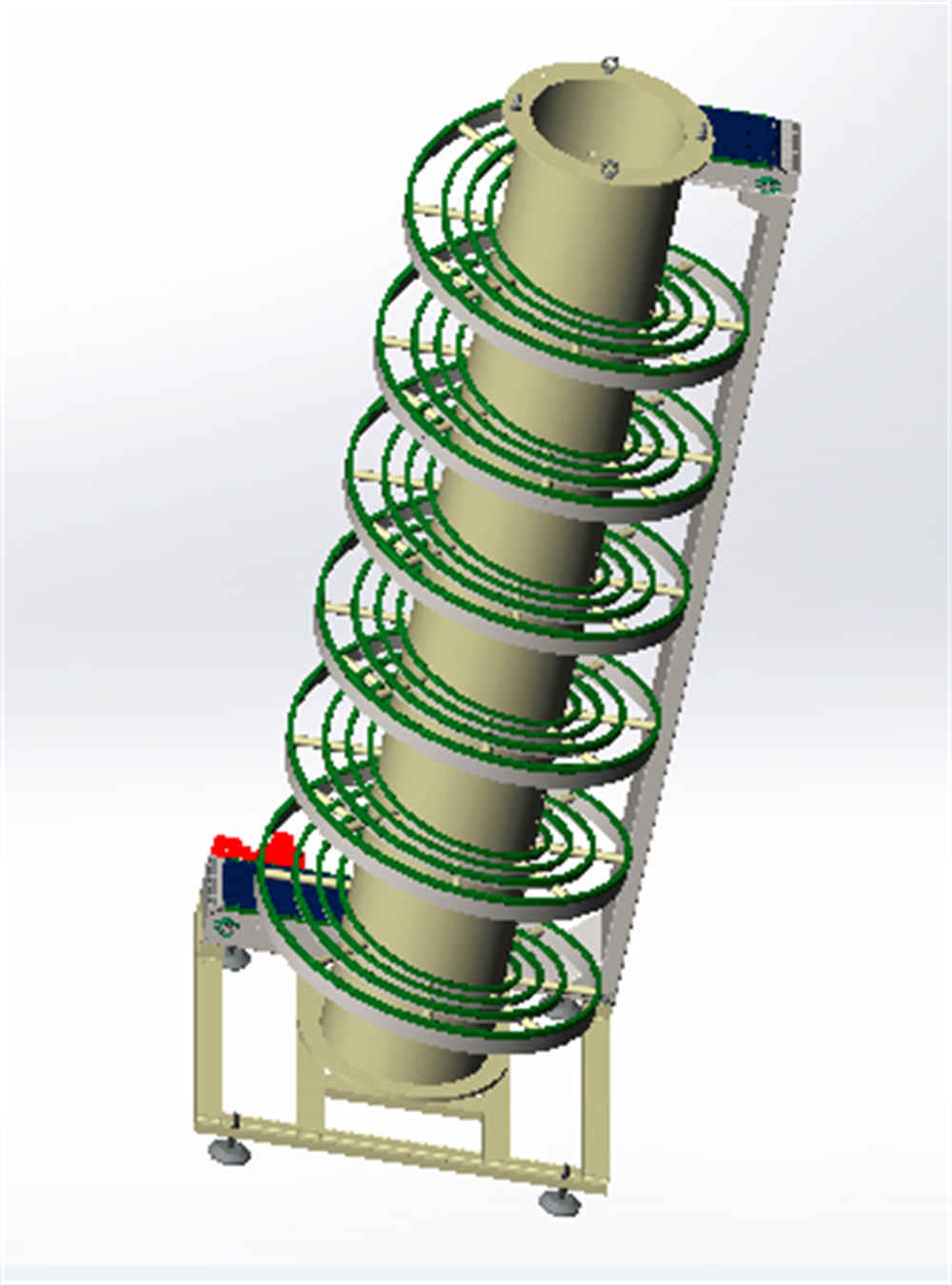

Structure of spiral belt conveyor machines:

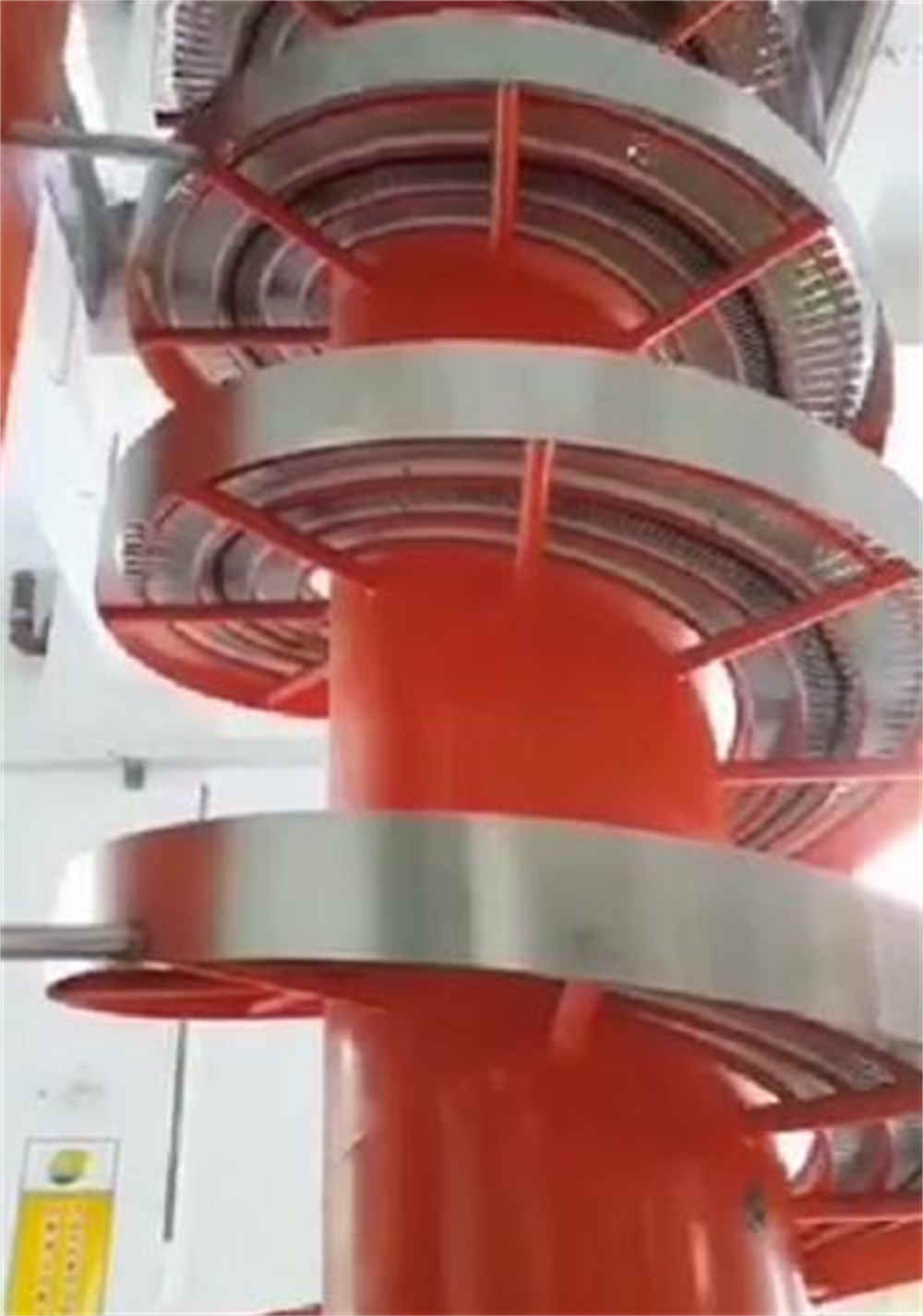

1. The central body is welded with carbon metal (5mm thickness). The exterior conveyor chain body is mounted from the pinnacle via the core body to the bottom.
2. The outer conveying body is made of 304 stainless metal with a thickness of 2.5mm.

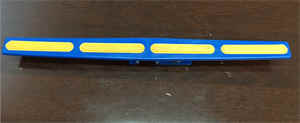

3. High wear-resistant plastic chain plate drive: low noise, no want lubrication (406mm width), with anti-skidding rubber strip.

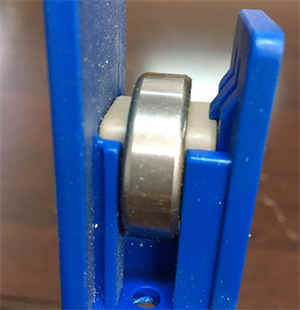

4. The force bearing in the chain plate adopts imported NSK to enlarge the transmission efficiency.

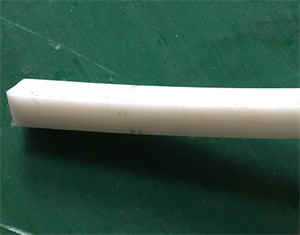

5. The chain plate cushion strip is designed as a whole, and imported manufacturers are chosen to expand the provider existence of the chain plate.
6. Driving part: deciding on Ometer reducer.
7. There is a lubricating device, which can efficiently enhance the smoothness and put on resistance of transportation.
8. Anti-break control: when the conveying chain breaks, the early warning gadget senses and stops in time to stop injury to the chain plate.

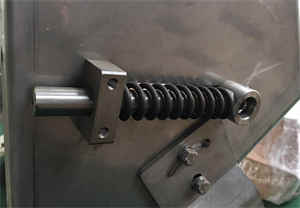

9. Overload safety consists of electrical overload safety and mechanical system protection.

Technical parameters of spiral screw belt conveyor:

1. Equipment model: SL-YT
2. Power unit: Ometer reducer, power: 3KW
3. Frequency converter: Danfoss
4. Safety change and optical eye: SICK
5. Transmission chain plate: imported material, excessive put on resistance, 406mm width
6. Equipment weight: 2500kg
7. Equipment size: Φ 2000mm × 5300mm
8. Lifting stroke: 5350mm.
