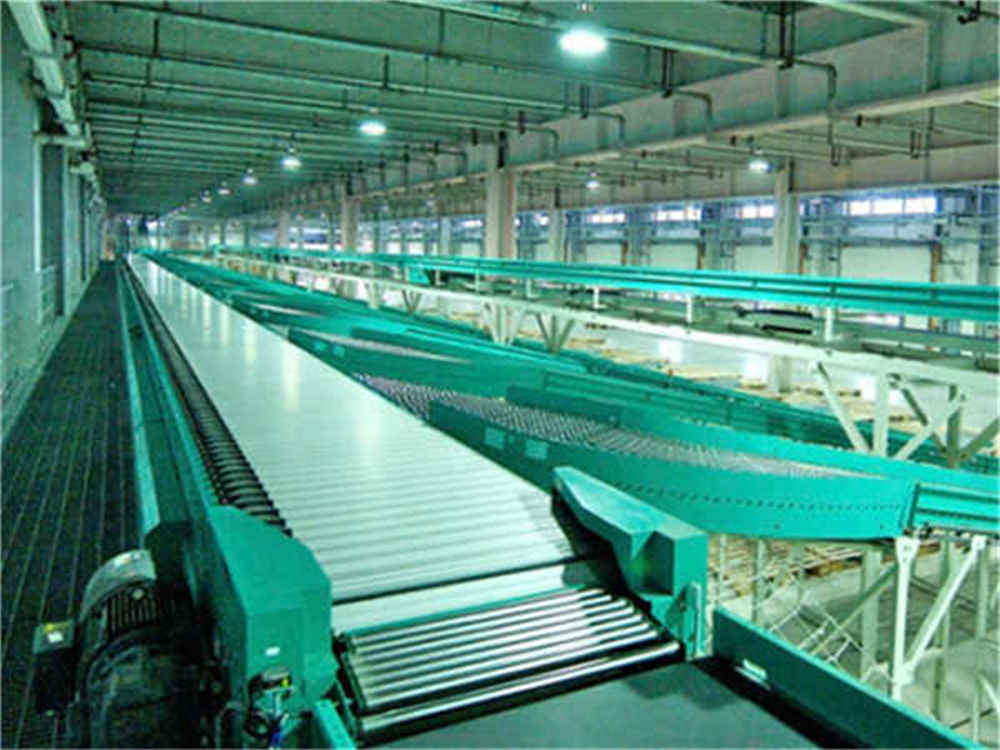

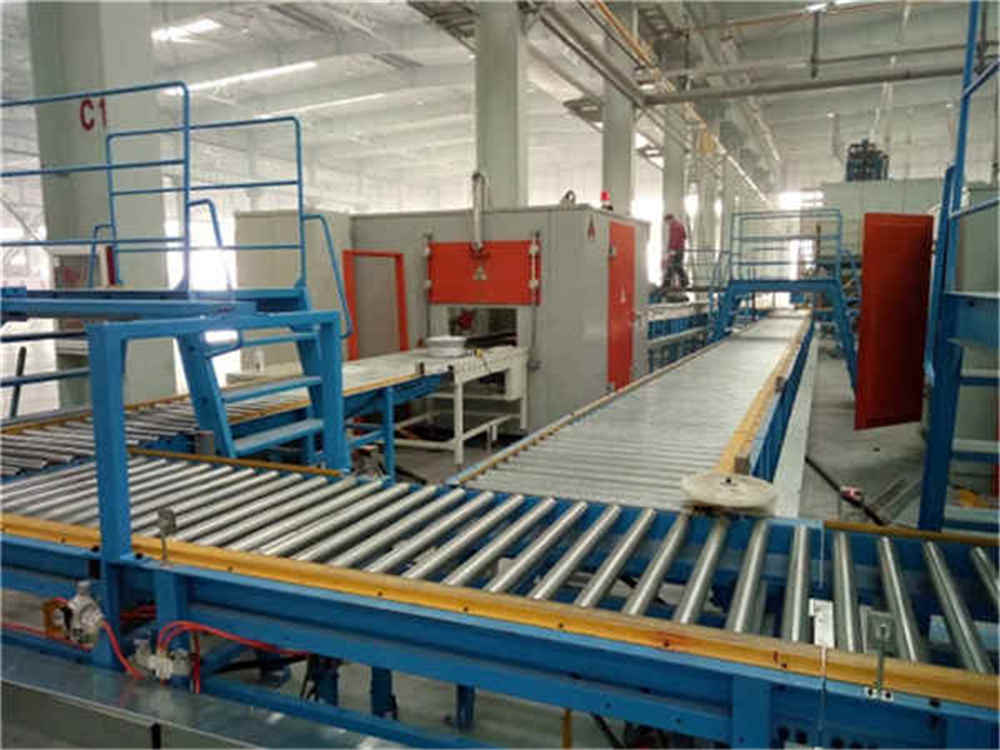

Light Load Logistics Sorting And Conveying System

Brief Introduction Of Jacking Transplanting Sorter

Jacking Transplanting Sorter Is Widely Used In Automatic Storage And Logistics System. Conduct Shunting And Merging Of Logistics Boxes Or Packing Boxes. Allocation Operation Is A Non Common Operation In A Physical System. This Equipment Can Be Used In Shunting And Distribution Operations. Diversion Refers To That The Conveying Line Is Divided Into Two Lines Along The Conveying Direction Of The Roadway. Generally, The Goods Are Transported In Categories. Distribution Refers To The Distribution Of Goods From The Main Line To A Larger Number Arranged Along The Main Line Of The Lane, Which Is Used For Outbound Review And Sorting Of Goods. This Equipment Needs To Be Used With The Roller conveyor. Its Working Process Is As Follows: The Upper Half Of The Machine Is The Conveying Mechanism And The Lower Half Is The Jacking Mechanism. The Logistics Box Or Packing Box Is On The Roller Conveyor. When It Is Transported To The Distribution Box, The Distribution Machine Corresponding To The Distribution Box Starts The Conveying Mechanism, And Then Jack Up. The Conveying Wheel Contacts The Bottom Surface Of The Logistics Box Or Packing Box, So That The Goods Are Transported Away From The Main Line To The Distribution Port.
