Intelligent Sorting And Conveying System For Manmade Board Industry

Scheme of Intelligent Sorting And Conveying System For Manmade Board Industry:

The inspection plate specifications are wide (1080-1830), long (2100-2745), working level: veneer transport 2350mm;

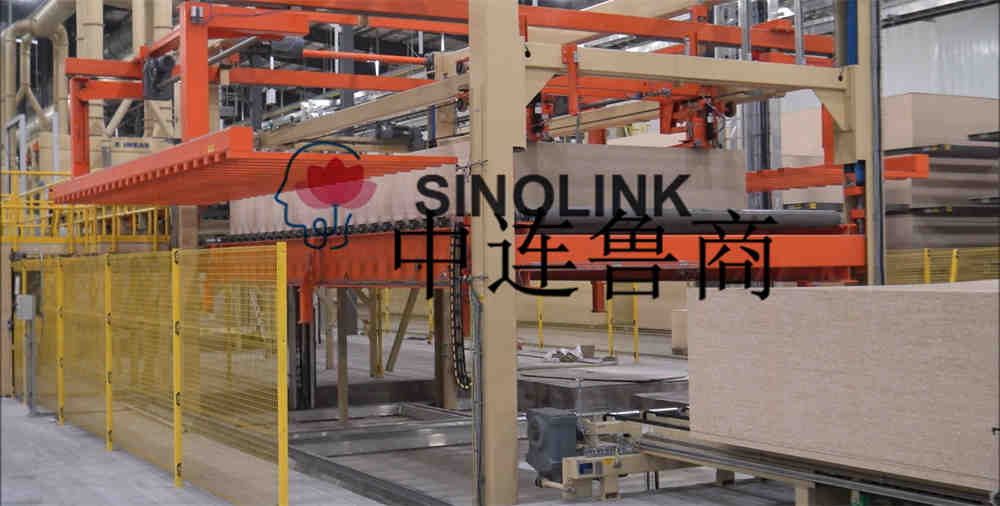

The pallet transport height is 800mm, the scheme is at the exit of the butt sand saw line The pallet is reversed through the 360 rotary roller conveyor to enter our roller chain conversion conveyor into the lifting table in turn to raise the working height to 800, so that it enters the double-line double-entry plate destacking position through the roller chain conversion conveyor in turn for plate inspection, after destacking, the veneer is successively pushed out and sent to the inclined roller table for correction, the single line is accelerated by four belt conveyors, and the stacker is stacked to the four-stack stacker according to the plate grade through visual inspection, Realize that the pallet enters the corresponding stacking position sequentially according to the setting procedure;

The protective plate suction cup conveyor is adopted, and the protective plate is transported to the protective plate mobile transport machine in the form of a suction plate and enters the stacking lifting table, and the pallet after the palletized plate is entered into the cache roller platform after the stacking mobile roller platform enters the forklift roller platform.

More requirement, please contact with us. Please believe that we are very specialed manufacturer in Intelligent Sorting And Conveying System For Manmade Board Industry. We have specialized team to installating and debugging and can do the best service.
