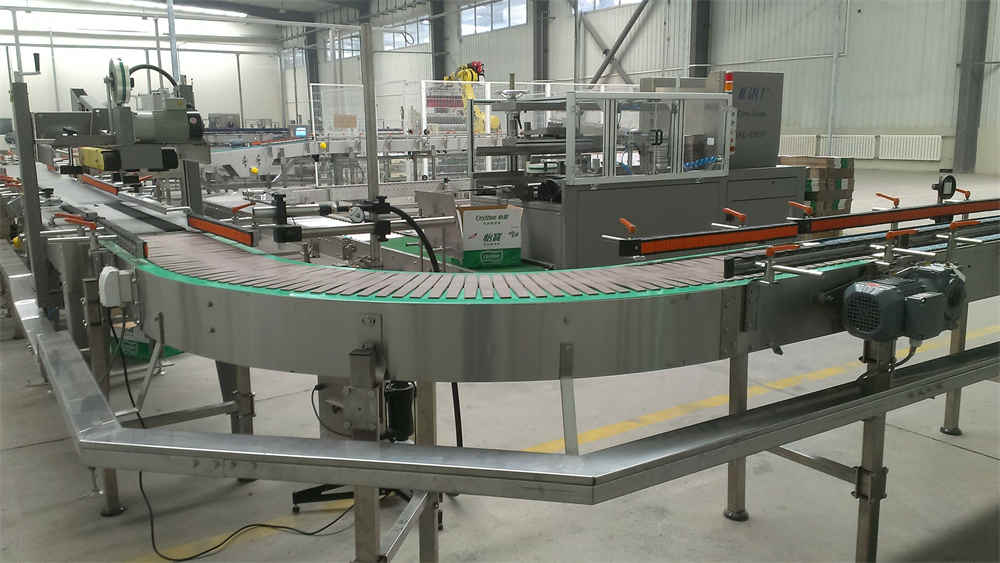

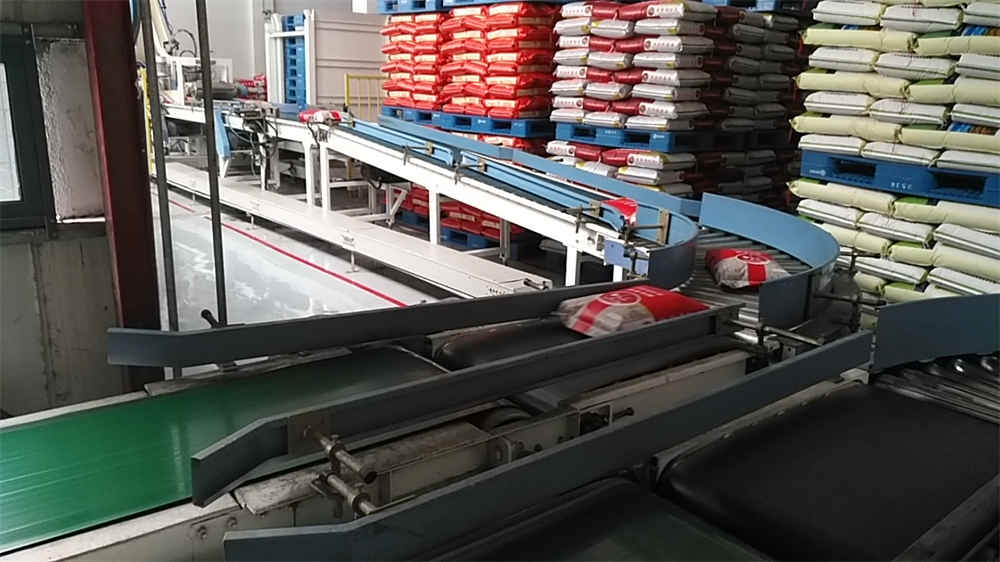

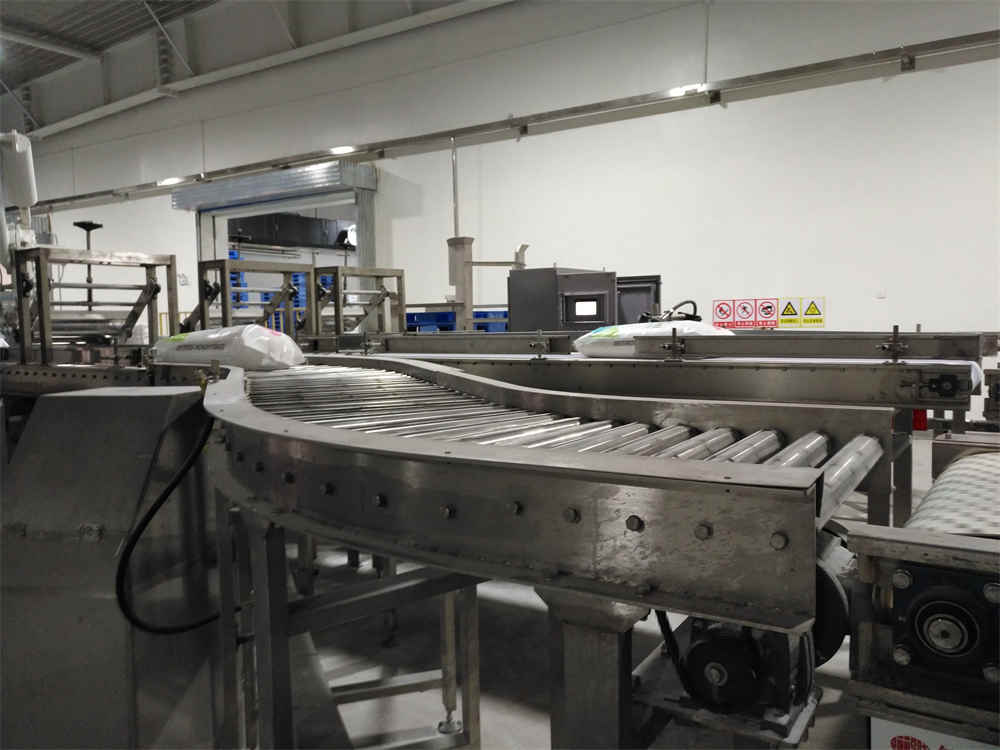

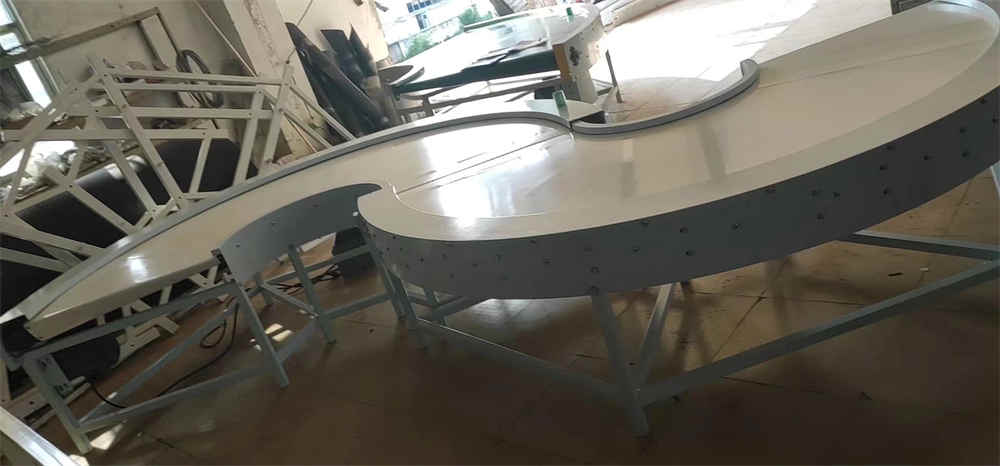

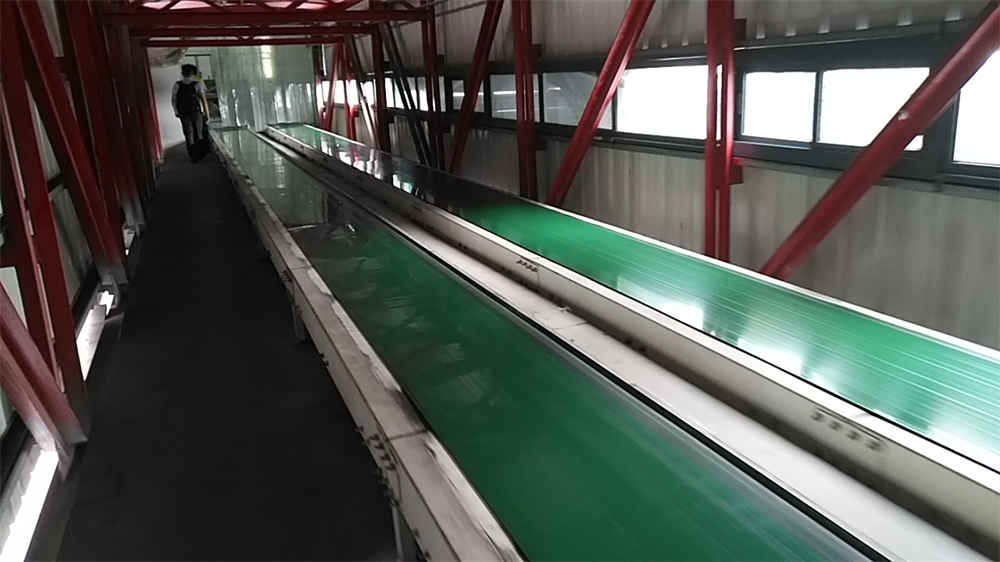

Non-standard Customized Logistics Sorting Drum Turning Machine

Basic requirements For Non-standard Customized Logistics Sorting Drum Turning Machine

Roller Conveyor Turning Conveyor with Supporting Bandwidth of 600

Table height: 750mm; Load 50kg,

Rotary diameter: 2000mm

Appearance painting: to be determined

Motor reducer: SEW

Contact Now E-Mail Telephone WhatsApp

Product Details

Processing requirements of 90 degree roller turning machine:

Cone roller carbon steel galvanized, frame rectangular pipe spraying;

Technical Note:

1.SEW motor 1.1KW, 380V, 50HZ, 3P;

2. Speed: 72m/min;

4. Quantity: 4 sets.

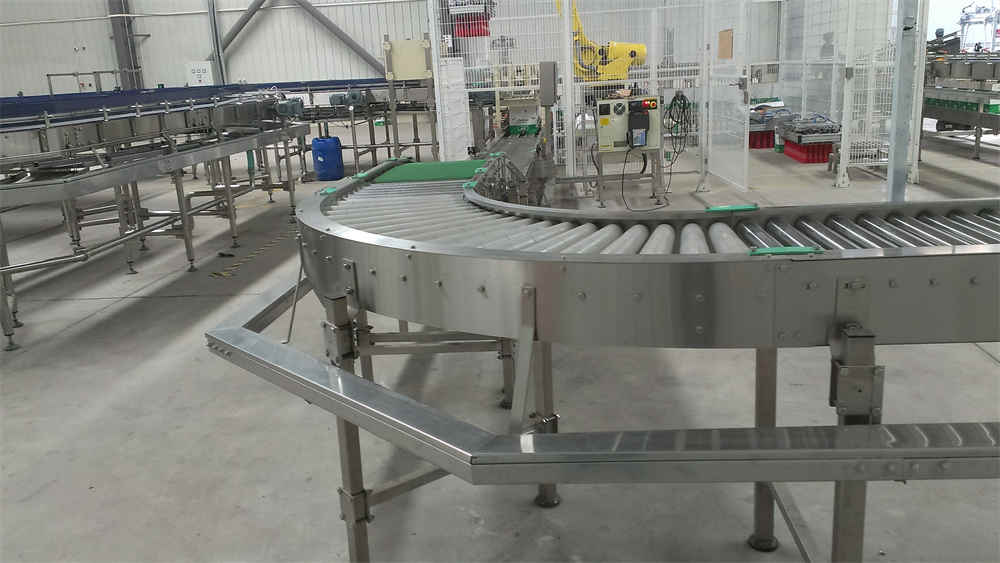

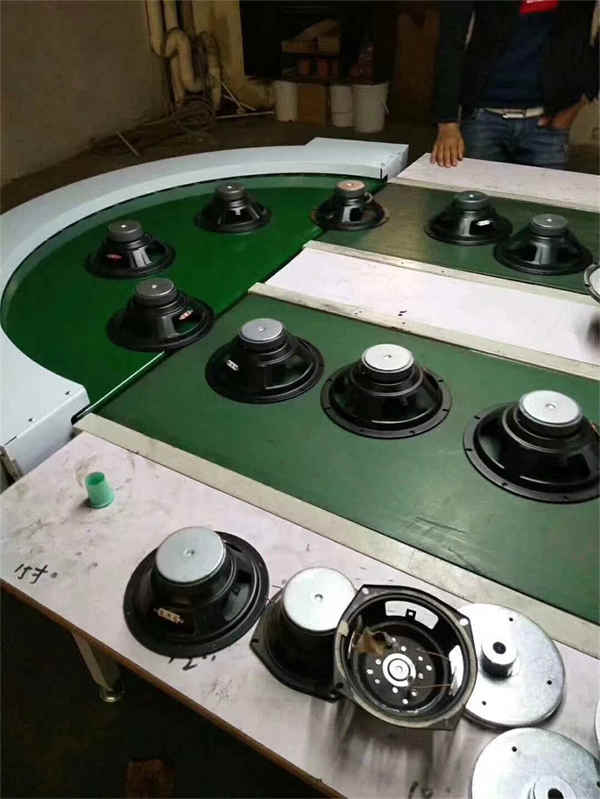

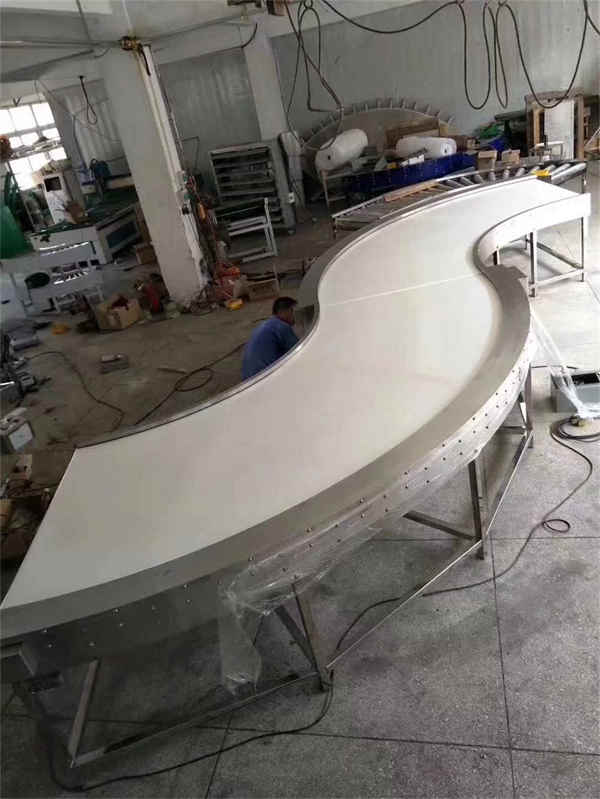

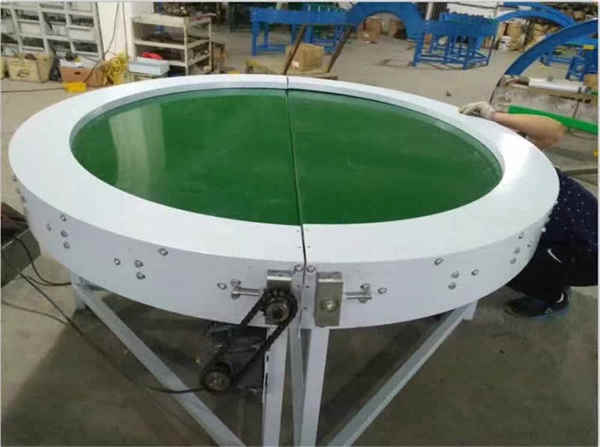

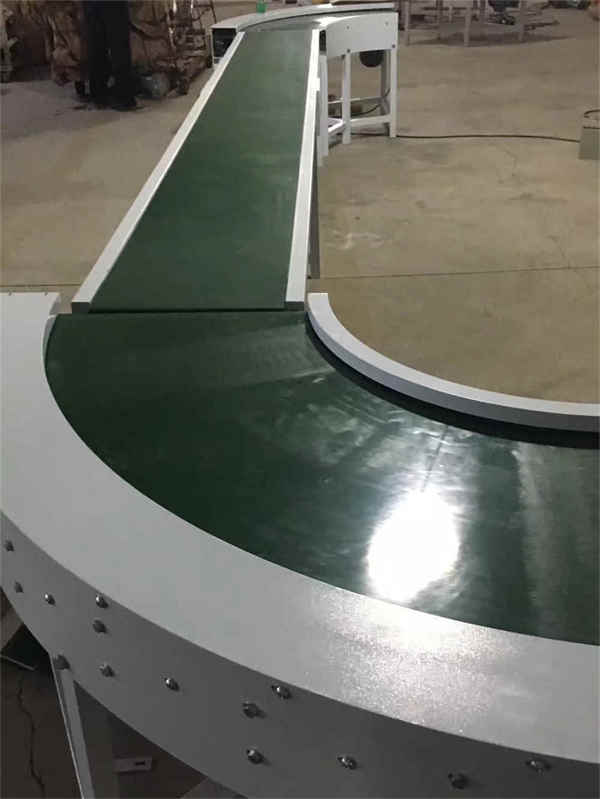

roller turning machineroller turning machine

2. Supply Range

1	90 Drum Turning Machine	Table	4
Contains the following equipment:
1	Roller	root	56
2	Inner and outer plates	set	4
3	Outrigger	branch	12
4	Pull rod	branch	8
5	Adjusting foot	individual	16
6	Chain cover	piece	4
7	Motor plate	piece	4
8	Sprocket wheel	piece	4
9	chain	piece	56
10	SEW Reduction Motor	set	4
11	parts	set	4

Working Conditions
1. Work system: three-shift production, eight hours per shift, no much less than 300 working days per year, 24 hours non-stop operation.
2. Power parameters: 380V AC50HZ voltage fluctuation vary +-10%.
3. Operating conditions: ambient temperature 10-40 C, relative humidity 10-90%.

roller turning machine
