Wheeled Type Auto Propelled Scissors Aerial Working Lifting Platform
Wheeled Type Auto Propelled Scissors Aerial Working Lifting Platform
We have handed the ISO9001: 2008 global pleasant administration device certification, the first to get hold of the greatest tonnage of "special gear manufacturing license", "installation of unique gear preservation permit", "high-tech businesses in Jinan City" and "Civilization company integrity"; "ladder" company named "Shandong Province", the product used to be named "Shandong Famous Brand" and so on, long-term merchandise exported to the US, Russia, North Korea and different countries. Welcome to pick out the "ladder" manufacturer hydraulic lifting platform, we will be completely happy to serve you!
1. Main technical parameters of Aerial work platform/Auto scissors lift:
No. | Item | Performance Parameters | |
1 | Working height （mm） | 13750 | |
2 | The max height of the platform （mm） | 11750 | |
3 | Minimum height platform（ mm） | 2570 | |
4 | Extend horizontally（ mm） | 910 | |
6 | Platform carrying capacity （kg） | 320 | |
9 | Grade ability | 25% | |
10 | Minimum turning radius （mm） | 2300 | |
11 | Operating speed | Down (s) | 55 |
12 | Up (s） | 70 | |
13 | Closed car length(mm) | 2470 | |
14 | Closed car width （m） | 1.18 | |
15 | Closed car height( m) | 2.57 | |
16 | Platform size (m) | 2.30*1.17*1.1 | |
17 | Ground clearance (mm) | 100 | |
18 | Driving wheel size (in) | 15X5X11 | |
19 | Weight (kg) | 2910 | |
20 | Lifting motor (V/kw) | 24/4.5 | |
21 | Maintenance-free battery （V/Ah） | 4*12/300 | |
22 | Charger （V/A） | 24/20-30 | |
2. Main configuration table of Aerial work platform/Auto scissors lift:
Name | Place of origin | Brand |
Power unit | Jiang Su | Guo Rui |
Brakes | USA | Wright |
Motor | USA | Wright |
Battery | USA | Trojan |
Charger | Long Sheng | |
Control handle | HuNan | ZhongDian |

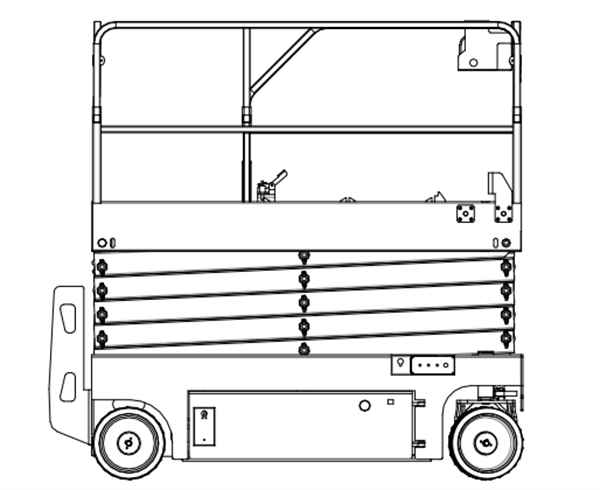

3. Schematic diagram of Aerial work platform/Auto scissors lift:

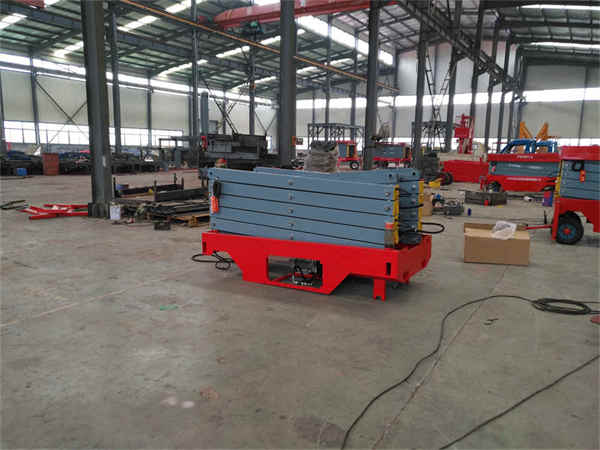

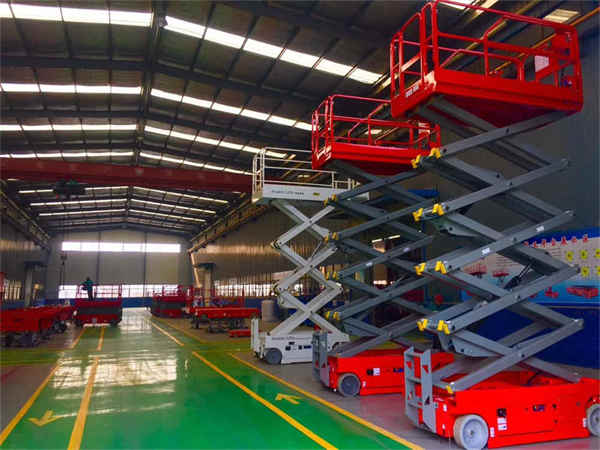

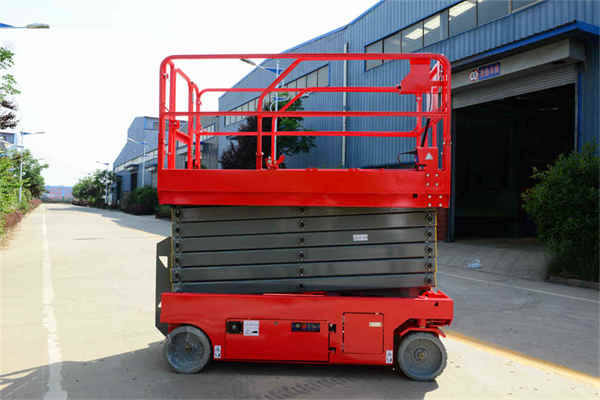

4.Aerial work platform/Auto scissors lift Pictures for reference
Welcome your inquiry at any time! We will supply optimization program for you.
