AGV Forklift Umanned Intelligent Pallet Forklift

AGV Umanned Intelligent Pallet Forklift

AGV is a piggyback lifting kind AGV with magnetic navigation, forward/backward two-way on foot and piggyback lifting platform. It is compact in size, compact in shape and bendy in handling. It is relevant to more than a few locations with small area that want to be lifted. Read the command thru magnetic stripe preparation to perceive that the intersection and station run to the distinct position. AGV can raise up to 500KG of materials. After arriving at the detailed destination, AGV routinely lifts substances to coordinate with the manufacturing rhythm of the manufacturing line and decrease the depth of guide work.mily equipment industry.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product introduction of AGV Unmanned Forklift:

AGV depends on its personal battery to furnish power, using stability, no noise, no air pollution at some stage in driving, and can be used in many locations that require a smooth working environment. Touch display human-computer interplay is adopted to facilitate the placing of parameters and stations. Obstacle avoidance sensor can scan 0-180 ° region to make certain security all through driving.

The mannequin can additionally be hooked up non-standard, and the top section can be established with belt and curler conveyor to reap computerized docking.

This mannequin has a vast vary of uses, and is often used for cloth rack traction, device and cloth distribution in the vehicle industry; Transportation of cars and jigs in the digital industry; Material body traction and fixture dealing with in family equipment industry.

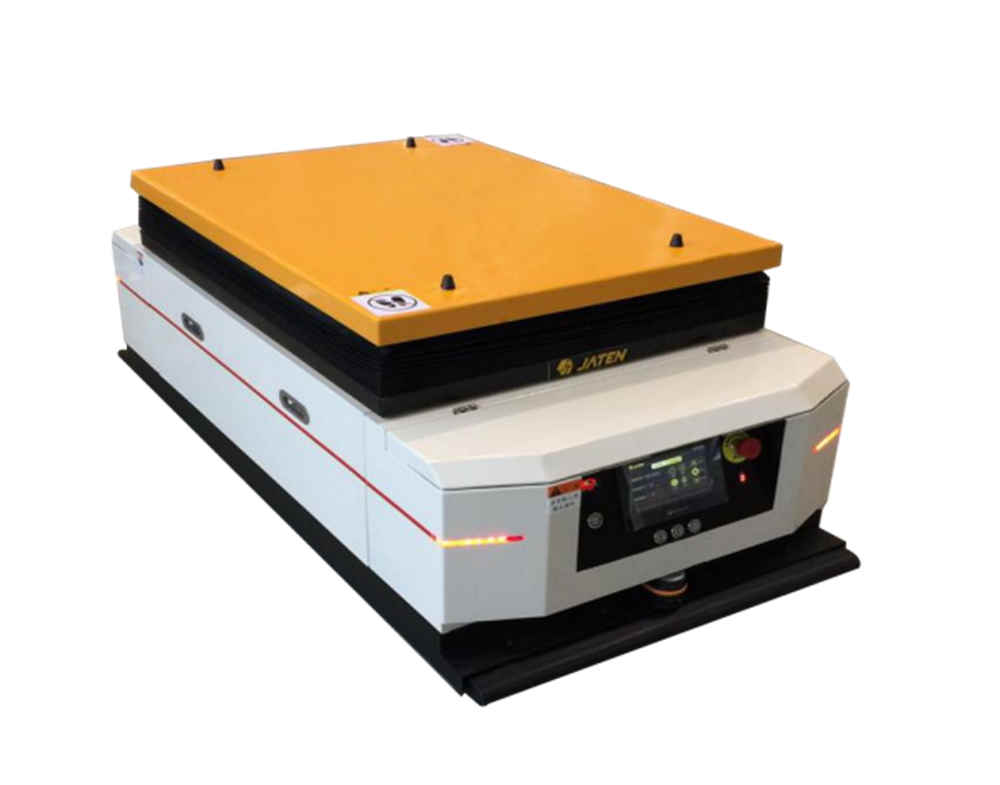

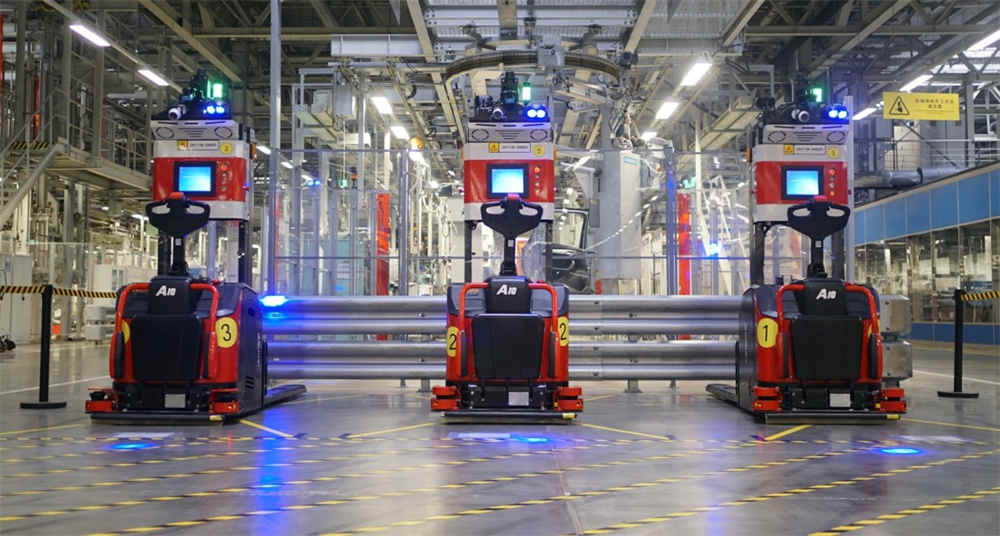

AGV Unmanned Forklift

Industrial AGV - intelligent logistics Layout

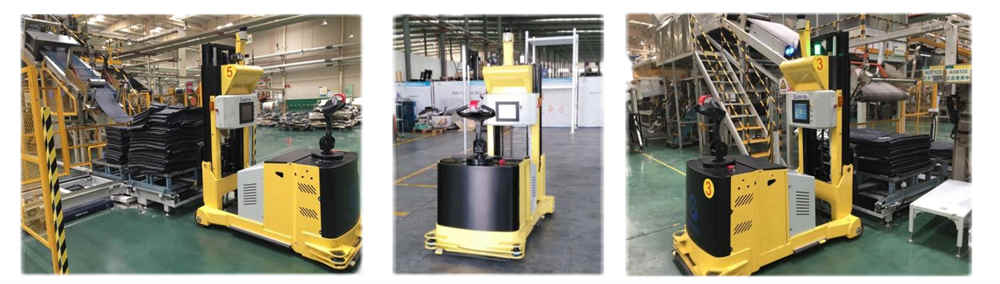

AGV Unmanned Forklift

Stacker AGV

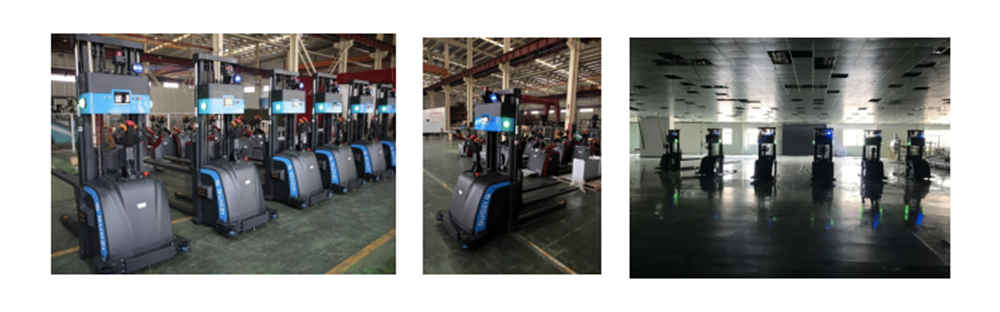

AGV Unmanned Forklift

AGV of photovoltaic industry

AGV Unmanned Forklift

AGV of tyre industry

AGV Unmanned Forklift

Main Technical Parameters of Unmanned AGV forklift

Parameter Item	Parameter index
Model	AGV
Basic function	Carrying, lifting
Deadweight	300KG
Guidance mode	Magnetic navigation
Travel direction	Forward and backward
Drive mode	4WD
Forward speed	10m/min~30m/min
Address reading mode	RFID components
Load capacity	Carrying 200KG (maximum load capacity measured under the optimal road surface)
Lifting stroke	400mm
Gradeability	≤2°
Minimum turning radius	R800mm
Linear guidance accuracy	± 10mm
Stop accuracy	± 10mm
Size	L1680mmW800mmH650mm
Motor	DC brushless motor
Motor	Brushless DC motor 100W * 4 (optional)
Control mode	NC Control
Operation mode	Touch screen operation
Driver module	Drive wheel: Ø 130 polyurethane (black)
Driver module	Transmission mode: gear
Safety protection	Obstacle detection: 0~3M sensing distance
	Safety buffer contact
	Current limiting protection, low voltage alarm
	Signal light: red, yellow and green
	Warning label: No treading, no squeezing, no operation by non full-time personnel, danger, and no getting involved
Load capacity	Buzzer: alarm in case of abnormality
