Hot Salels Banding Machine For Sales
Hot Salels Banding Machine (automatic strapping machine)For Sales

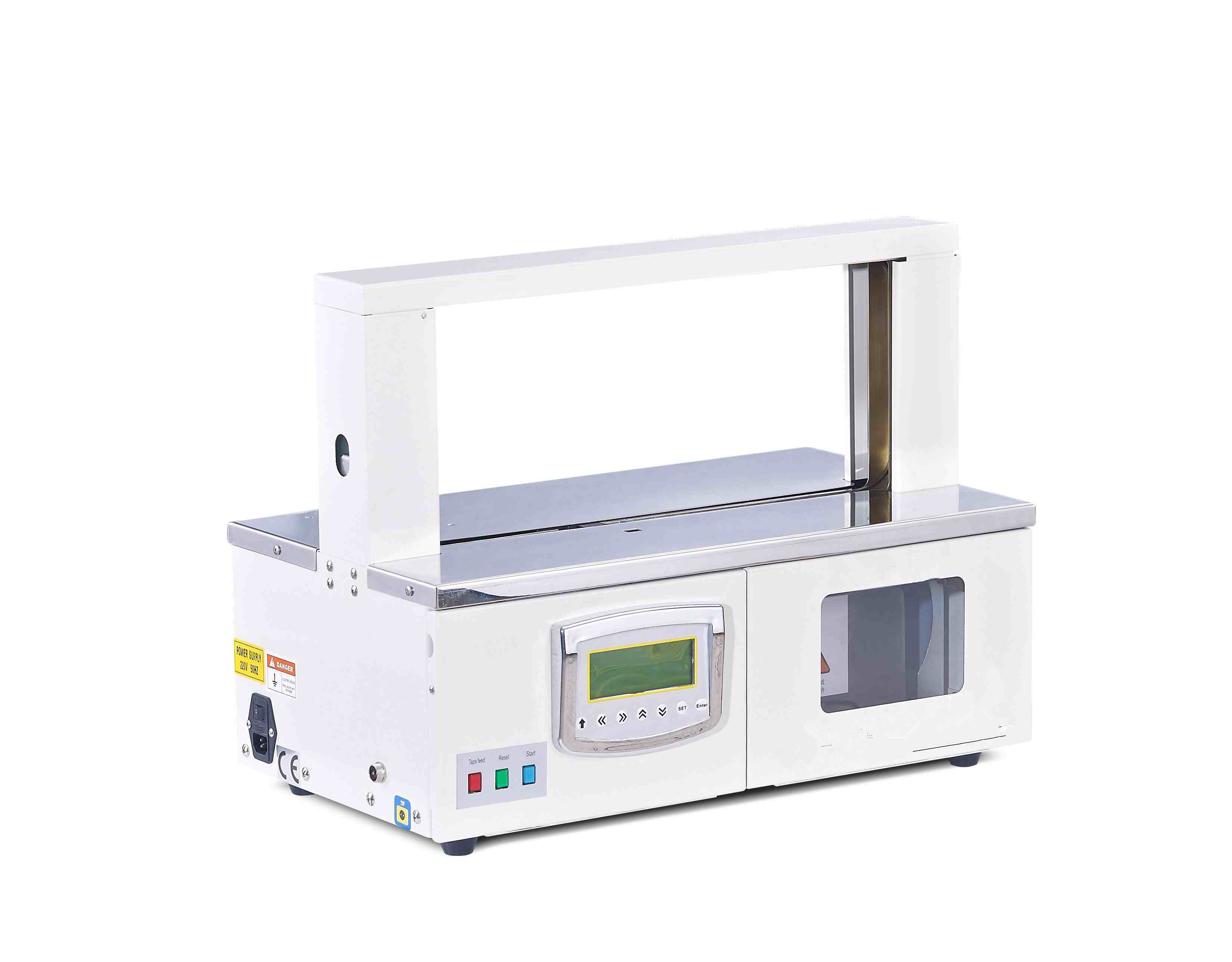

This is an automatic strapping machine specially designed for the packaging of light items, also known as the strapping machine .
"Paper tape" or "scotch tape" can be used to bundle with hot melt bonding, making product packaging simple and beautiful. Suitable for paper products, medicines, cosmetics, electronic products and general light items. It can also be combined with conveyor belts according to production needs to achieve unmanned baling. Achieve the goal of saving manpower and improving packaging quality!
Operation Guiding of Banding Machine(automatic strapping machine):
Put the tape into the set position, press the "feed" button to twist the tape will automatically be delivered to the position and enter the working state.
Manual mode Place the product to be bundled in the middle of the strapping area, press the "start" button, strap the product to be bundled, glued and cut, and then send it into place to enter the next strapping job.
The bundled product is removed and the machine can proceed to the next bundle.
Auto Mode Press the "Auto" key, and the light will turn on to indicate that you have entered automatic mode. At this time, as long as the product to be bundled is placed on the induction electric eye in the middle of the strapping area, the machine will automatically bind the product, bond and cut, and then send it into place to enter the next strapping work waiting.
The bundled product is removed and the machine can proceed to the next bundle.
Banding Machine could be used in different industries as below:
Technical date of Banding Machine (automatic strapping machine)
Model No | WK02-20/WK02-30/WK02-30B/WK02-30A |
Applicable tape | paper & OPP film |
Material | 29-29.5MM(width) x 100-130mic (thickness) |
Roller size | 40MM (core diameter) x150M(length),500-800M |
Arch size | 470 x 200mm |
Strap size | Max.450 x 200 Min.40 x 40mm |
Power supply | 220V/110V 50HZ/60HZ |
Control system | PCB |
Strapping speed | </= 2.5seconds |
Strapping tension | 5-40N |
Machine dimension | 590 x 350 x 450mm |
Net weight | 50kg |
Welding method | Heating sealing |
Option: 1. Pedal 2. Package stop
Banding material (OPP printed film ) Banding material ( One side plastic coated Paper )

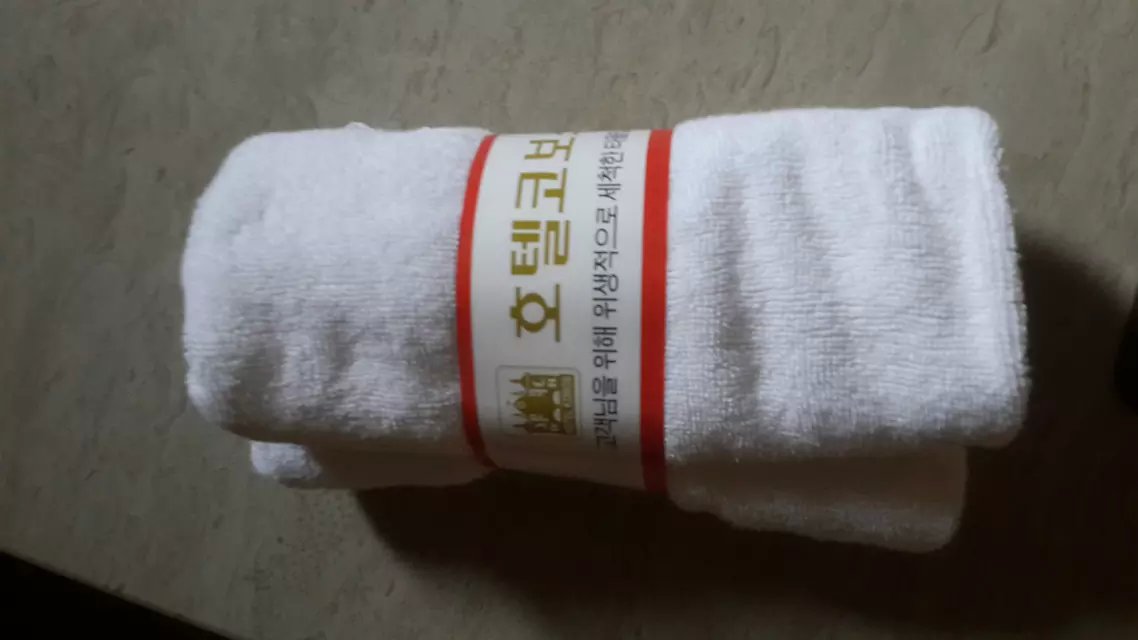

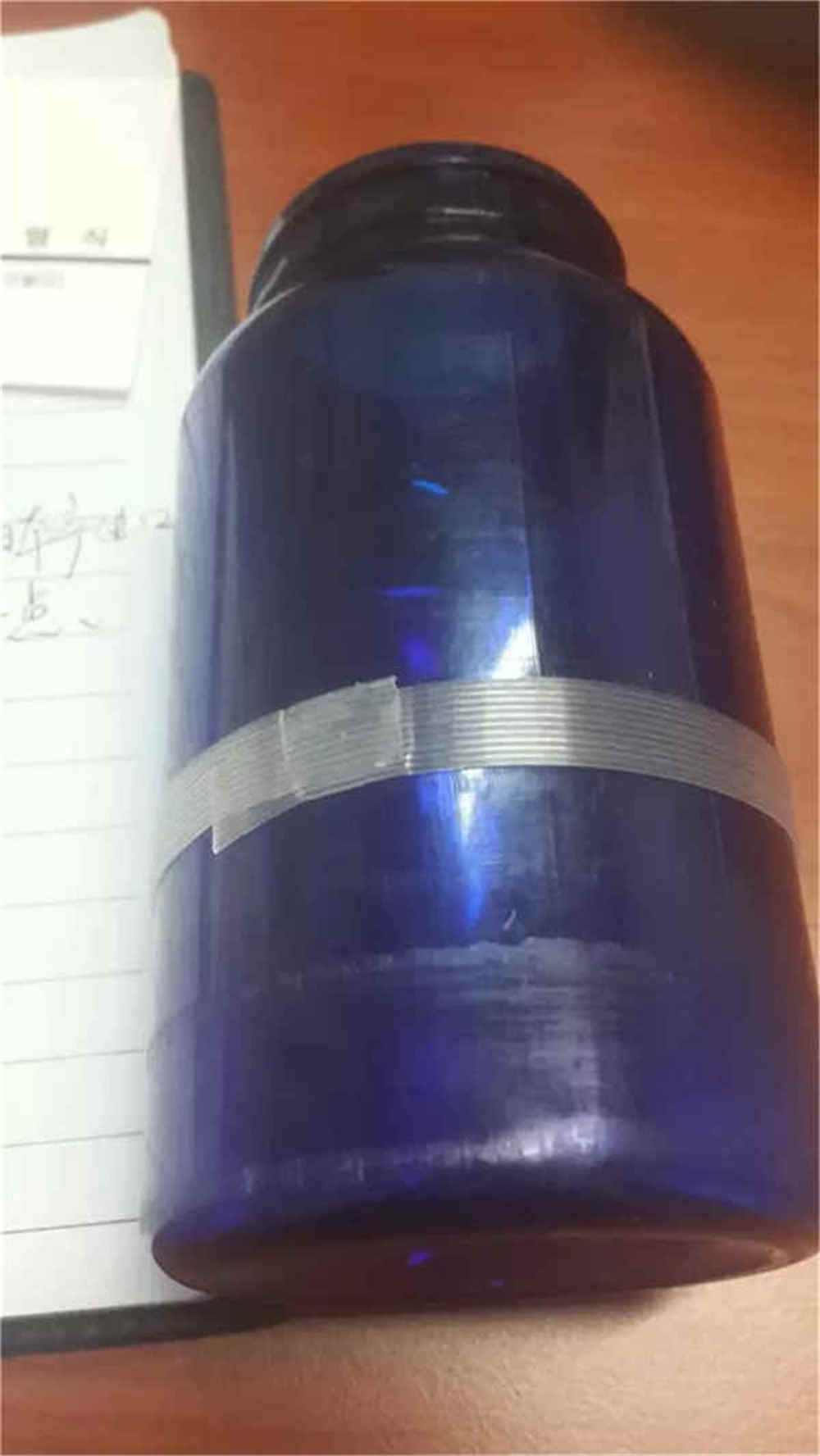

Banding Sample of Banding Machine (automatic strapping machine):
Use of security measures of Banding Machine (automatic strapping machine)：
1. Strapping machines need to be used safely by trained staff.
2. The strapping machine is suitable for its specific function.
3. After the machine is used, the power needs to be turned off to ensure unnecessary accidents.
4. Do not put any tools and other miscellaneous items on the machine.
5. Before maintaining the machine, you must cut off the power supply of the strapping machine.
