Automatic Online Turntable Stretch Film Wrapper Machine T2000FZ-PL

Main Technical Data Of Automatic Online Turntable Wrapper Machine :

1. Pallet SpecificationSize: L x W x H : 1300 x 1300 x 2000 (mm)Pallet Weight: 1000

2. Conveying machine size：height 550mm*width 1500mm(customer oriented)

3. Packing capacity：40 load/h

4. Requirement for packing：from one third of 15cm pallet to the overtop of the load but not exceed 15cm。

5. Site ：indoor and proper temperature zoon.

Packing Material Of Automatic Online Turntable Wrapper Machine :

Stretch film：3 inched diameter of core，500mm in width，the diameter of film is 260mm，film thickness:20－35μm

Site Preparation Of Automatic Online Turntable Wrapper Machine :

Compressed air source:

1. pressure:      0.5-0.7 MPa

2. Air consumption:       no oil and water power supply

3. Main power:    380v(+/- 10%)/3 phase/50Hz(+/- 1Hz)

4. Power capacity：      ≈3kw

Supply Range Of Automatic Online Turntable Wrapper Machine :

Automatic online turntable film wrapping machine（1 set）

Turntable arm driving system（1set ）

1. Motor & inverter ,speed adjusted and brake 。

2. Turntable speed motor：SEW

3. Power ：P=1.1KW

4. Turntable speed：n=10-15rpm（speed adjusted and brake）

Film carriage parts(1set)

1. Film carriage adopts chain drive for lifting, which is stable and reliable;

2. Film carriage lifting driving reducer motor：turbine worm reducer;

3. Motor power: 0.37kw;

4. Film carriage stretching ratio ：1 : 2.5

5. Lifting reducer motor brand：SEW

Safety guard fixture（1set）:

1. The feeding and cutting film mechanism are equipped with safety protection devices and protective nets, and the door locks of the protective nets are interlocked with the equipment. When the safety doors are opened, the equipment stops running;

2. Size of protective nets（ Subject to drawings）

3. After the equipment runs, the stop position is at the left bottom end, and the protective net door is at the right bottom end;

4. The door protector uses a plug type switch.

Film carriage (1 set):

1. Photoelectric switch is installed on film carriage to automatically detect the height of goods;

2. AC motor power capacity：0.37KW;

3. Stretch ratio：1:2.5，film feeding speed adjusted;

4. Approaching switch will work for motor driving if there is no film break;

5. Membrane rack follow-up mechanism;

6. The film carriage’s film feeding arm rotates, and the proximity switch controls the start and stop of the film feeding motor to achieve the follow-up of film feeding.

Auto film attached and cut(1 set):

Pneumatic system：FESTO

Conveying roller (1 set):

1. Bearing capacity: 2000Kg

2. Conveying speed: 140mm/s

3. Width of conveyor line: 1500mm

5. Height of conveyor line: 550mm

6. Reduction motor: 0.75KW

7. Material of roller conveying frame: galvanized and passivated carbon steel

8. The conveyor can be operated in reverse manually.

Pneumatic system:

Air supply : user provide。

Parts: festo。

Electrical system:

1. PLC programmable control;

2. Touch screen operation, winding layers and times can be set;

3. Photoelectric switch can automatically sense the height of goods;

4. Slewing ring drive, accurate positioning;

5. Digital parameter setting: cantilever rotation speed, membrane rack lifting speed, membrane rack out speed;

6. The machine is equipped with automatic, manual and side switch functions to better ensure the operation of the packaging system;

7. Warning light is set for machine operation.

Main Electrical Parts and Spare Parts Of Wrapper:

Technical Service:

Installation(in China)：

We can send our field engineers to your factory for installation and test running, you should make good site preparation.

Training(in China)

We will train your guy to operate and repair machine and can reach to a high lever, usually solve the problems in an hour.

Guarantee:

1 year guarantee.

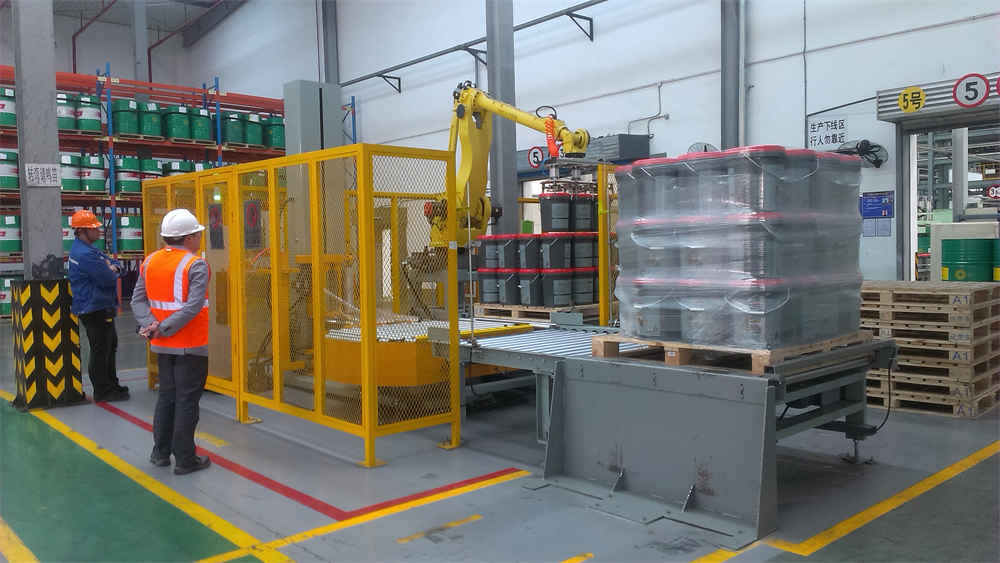

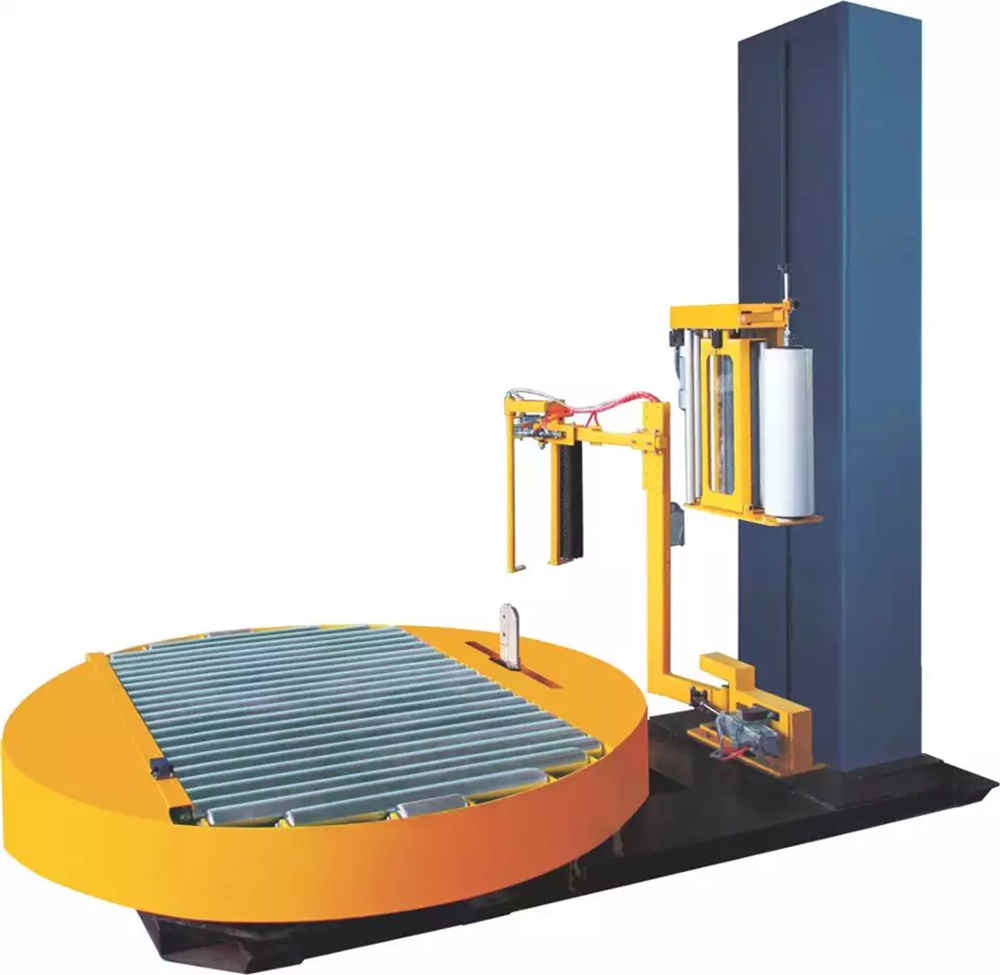

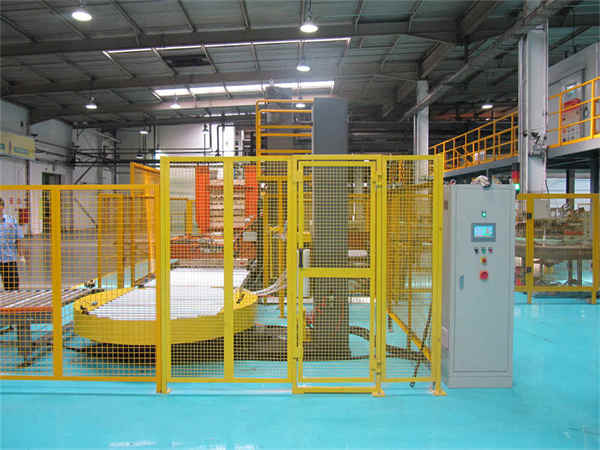

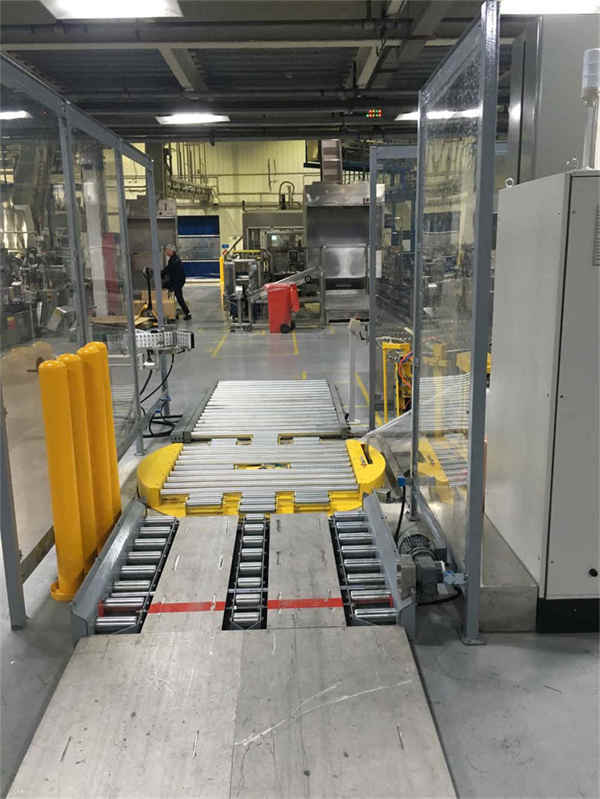

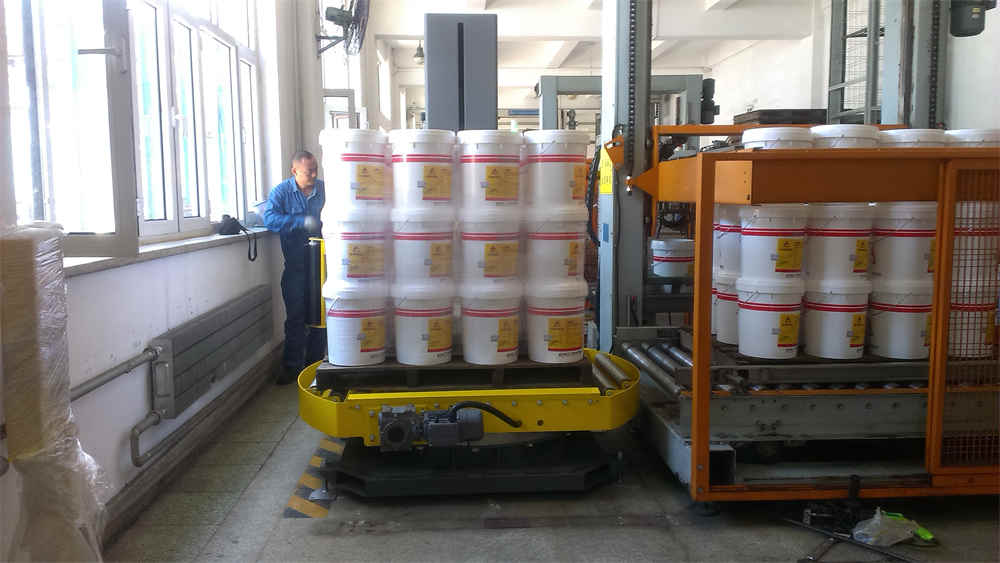

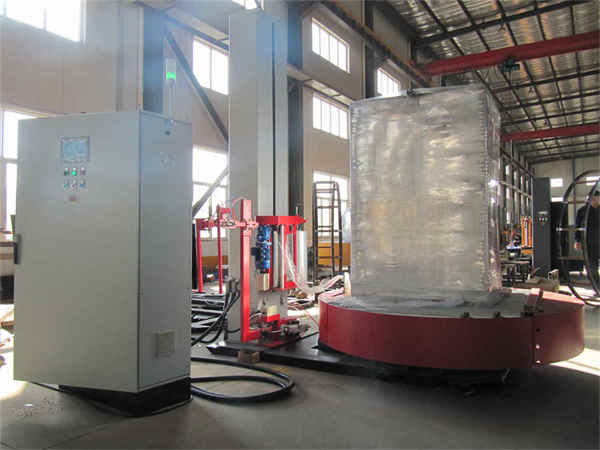

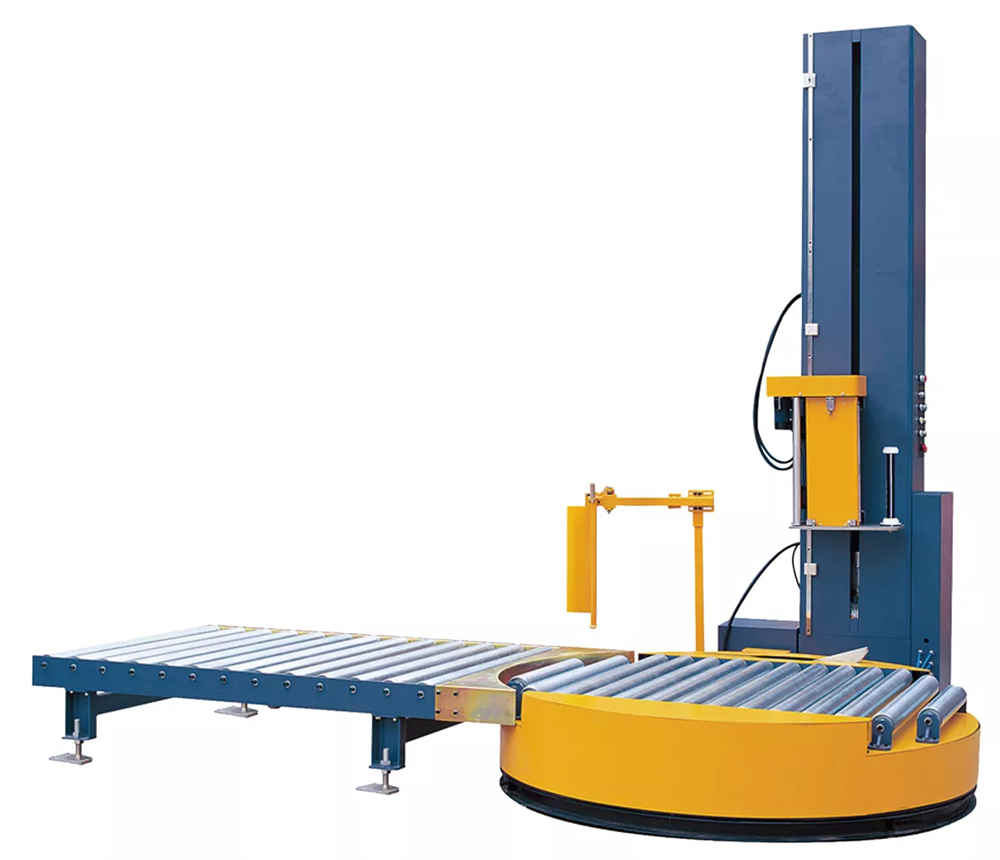

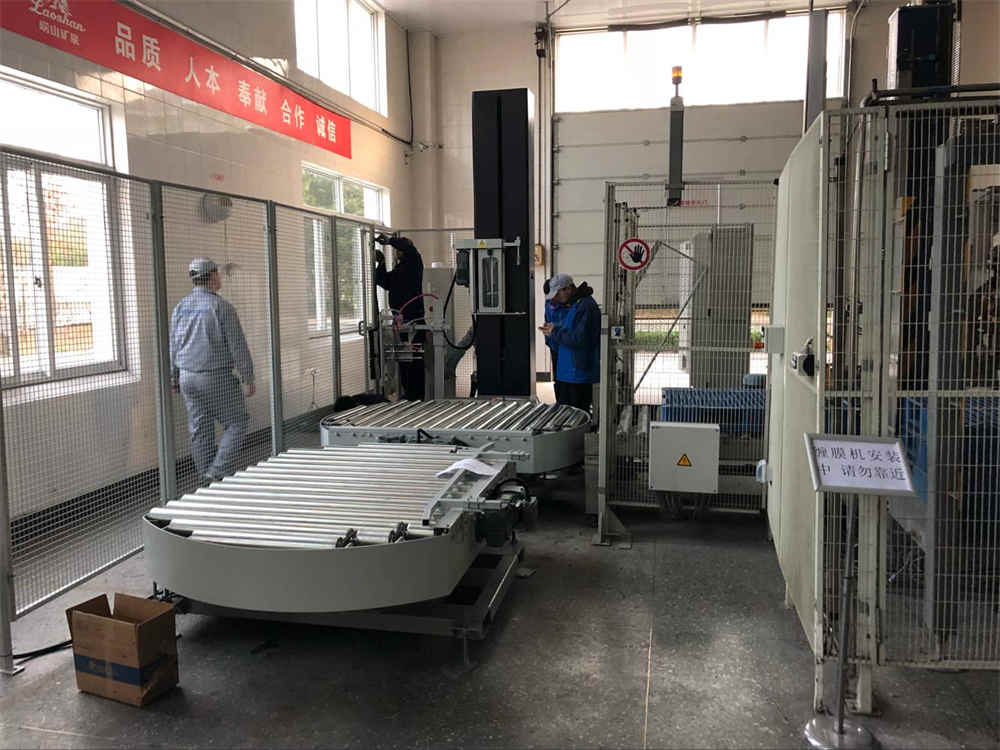

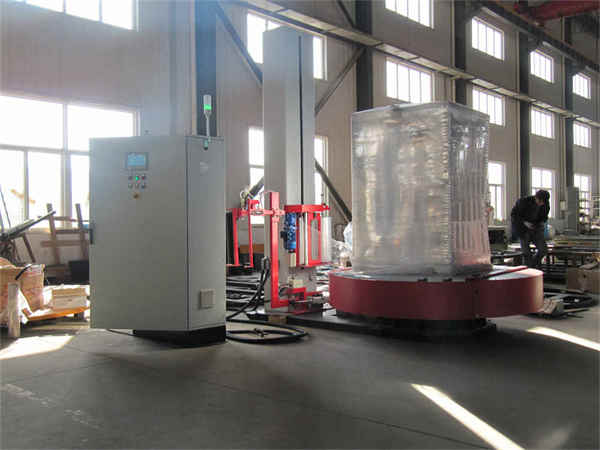

Machine picture (for reference only):

More information, please contact with us at any time.
