Full Automatic Online Lenthen Paper Corner Pallet Wrapping Machine

SUPPLY SCOPE OF Wrappers Machine:

1. Automatic pallet online wrapping packaging machine (1 set)

Control system

Independent electric control cabinet, external electric control cabinet, tray online winding machine and automatic corner protection machine the same electric control cabinet;

Touch screen operation interface, realize man-machine dialogue, display screen display equipment operation and fault alarm, convenient inspection.

Repair personnel to troubleshoot faults;

Photoelectric switch, automatic sensing of the height of the goods, overhead time setting function;

Reinforced winding function, which can provide special protection for a certain part;

This equipment has PLC control, and the operation mode has automatic and manual conversion;

Rotary table conveyor

The conveying adopts chain conveying

Conveying surface height: 750mm

Conveying parameters: three rows of 3 strands chain, chain model 10A straight plate chain

Chain center spacing on both sides of the winding machine No. 1: 950 mm

Chain center spacing on both sides of the winding machine No. 2: 765 mm

The baffles on both sides of the conveyor are made of stainless steel

Conveying speed: 8-12m/m (frequency conversion speed regulation)

Conveyor chain: 10A

Rated load: 2000kg

Automatic upper membrane breaking mechanism

After the wrappers is completed, the film is automatically cut off and clamped the membrane head

The specially designed membrane clamp device ensures that the equipment is wound without leaving a membrane tail

The wrapping machine has the functions of automatic film loading, film breaking and welding film, and the welding film plate is a telescopic cylinder style

The welding film is welded by the heating sheet, and the broken film is cut off by the heating element

The Wrapping machine turntable conveyor belt is added with the upstream and downstream conveying centering mechanism

Wrapping machine conveyor with automatic corner protection to keep the fixing mechanism

The number and number of wrapping layers can be directly set by the display;

Reinforced winding function for special protection of certain parts.

Turntable drive

Turntable frequency conversion speed regulation 0~15 rpm, speed frequency conversion adjustable;

Motor power: 1.1kw;

Slewing bearing transmission, high precision and strong stability;

Easy maintenance and overhaul;

The turntable is automatically reset.

Membrane rack system

The membrane frame is a dynamic pre-stretching mechanism, the pre-stretching can reach 250%, and the film output speed is adjustable for frequency conversion;

The lifting is double chain structure, which is stable and reliable;

The diaphragm frame can be adjusted for frequency conversion and lowering speed;

The number of top and bottom windings is controlled separately;

Membrane system follow-up mechanism, one pull;

220V AC motor, with frequency conversion to adjust the tension, change the application of 24V DC motor in the same industry in China

Add the power box to adjust the speed to change the instability of the tension.

Pneumatically controlled automatic upper membrane breaking mechanism to effectively improve work efficiency.

2. Automatic paper release corner protection mechanism (4 sets):

The mechanism automatically detects and adjusts the installation position (the center of the workpiece basically coincides with the center of rotation of the winding machine).

It can detect the margin of paper corner protection and realize automatic warning, so as to manually replenish the paper corner protection.

After the paper corner is placed, the two faces adjacent to the workpiece edge are aligned without gaps, and there is no skew phenomenon.

4 paper corner protectors are installed and installed vertically, subject to the schematic diagram provided by the demander.

The entire paper corner protection process is unmanned, and the equipment is in operation.

The specifications of the paper corner are provided by the demander for confirmation, and the paper corner is placed with the bottom surface as the reference.

Servo motor control, more accurate.

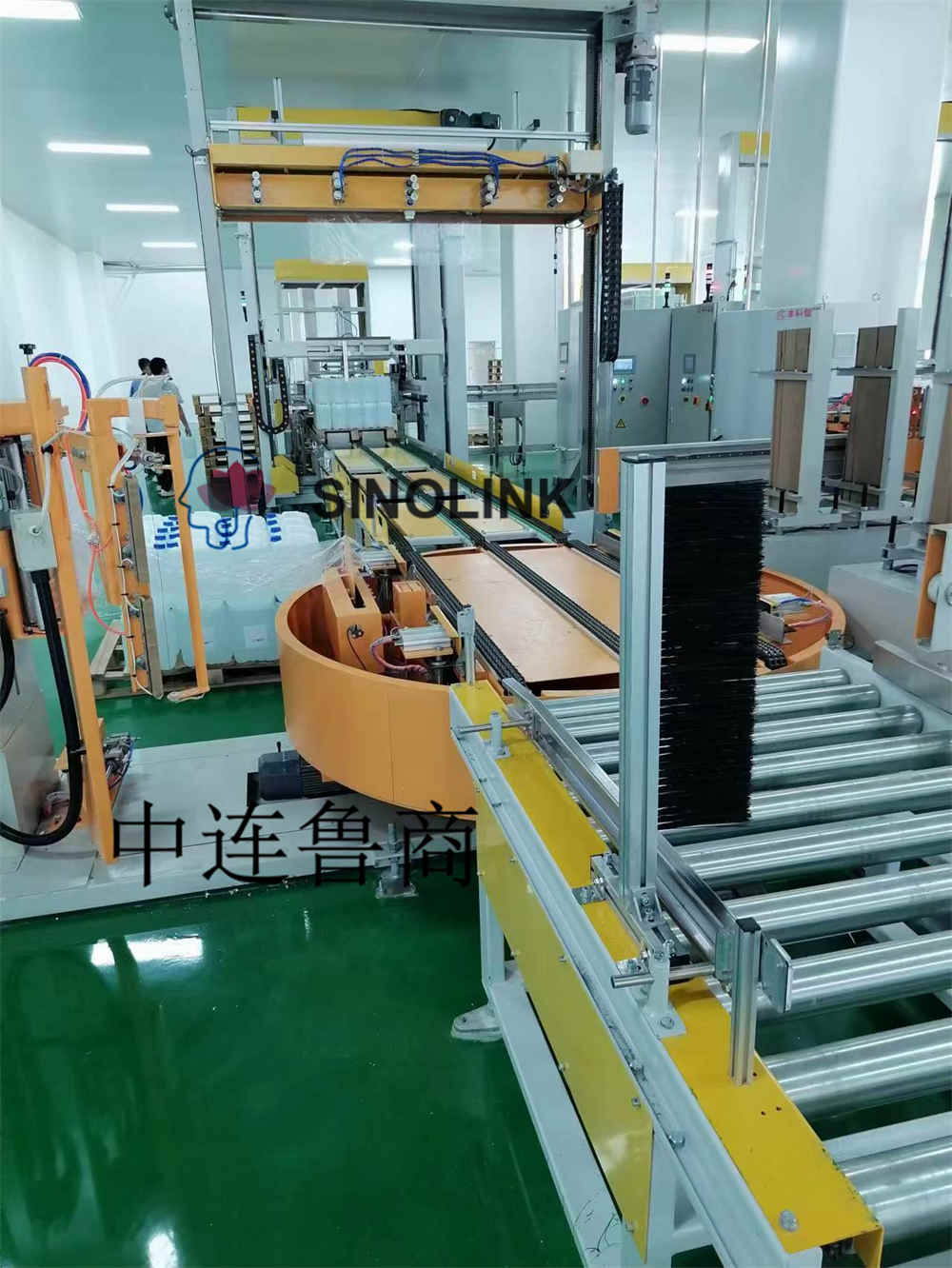

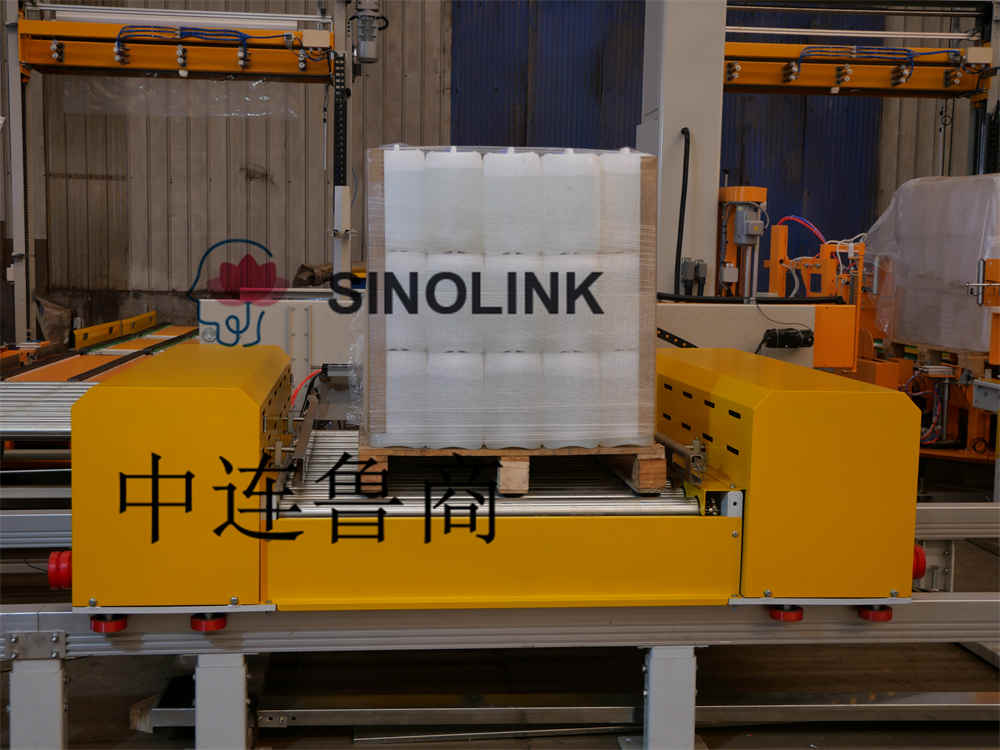

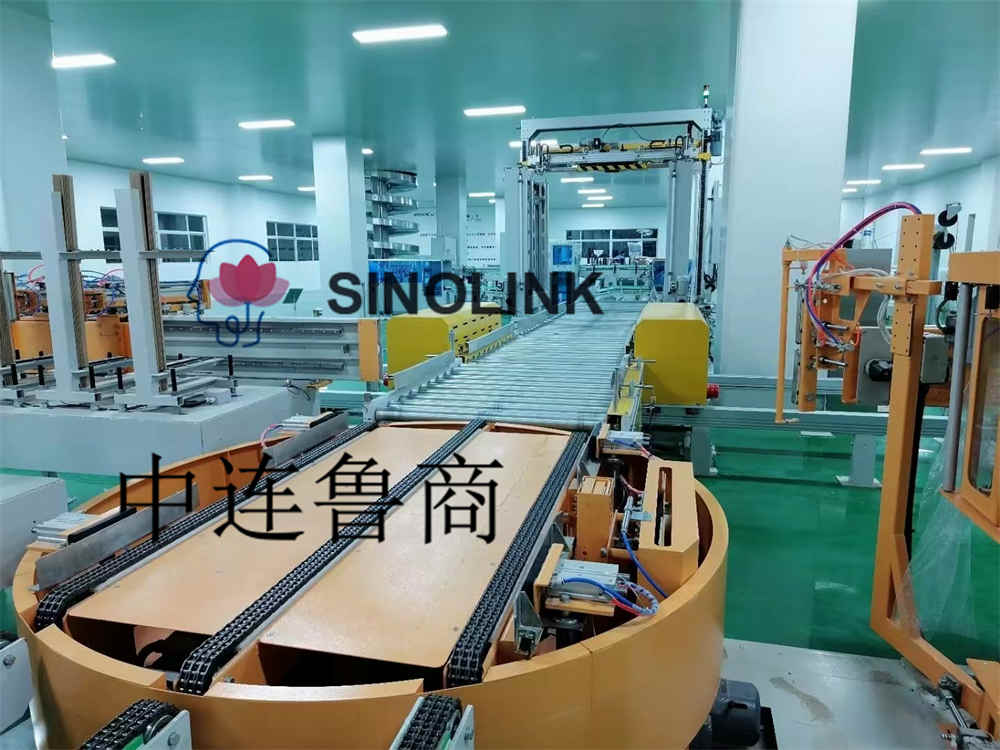

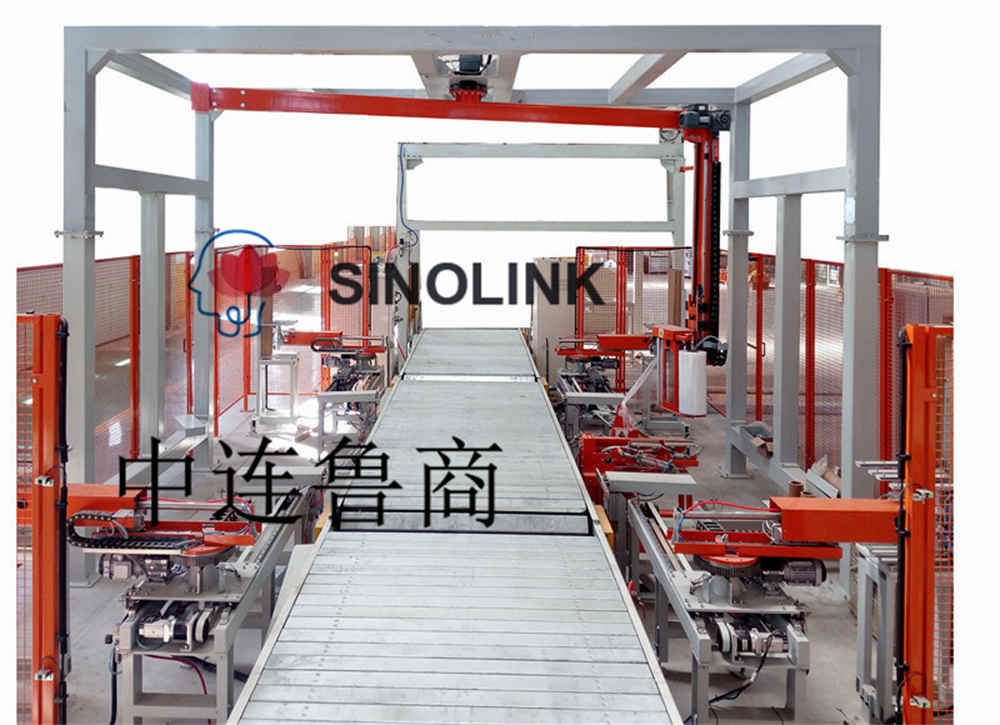

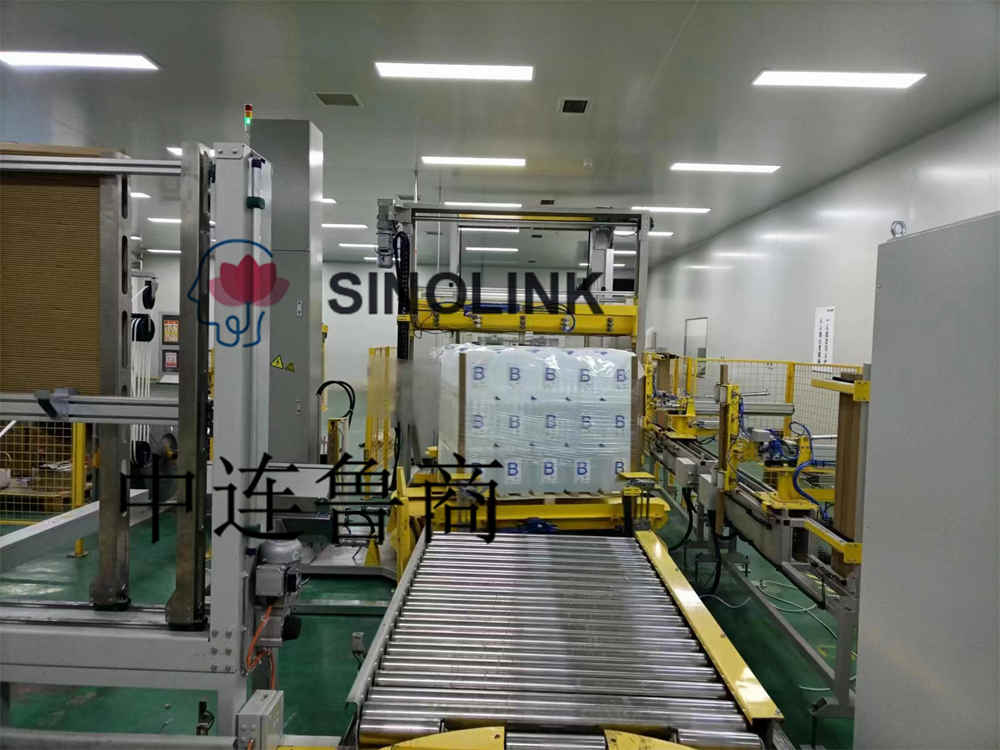

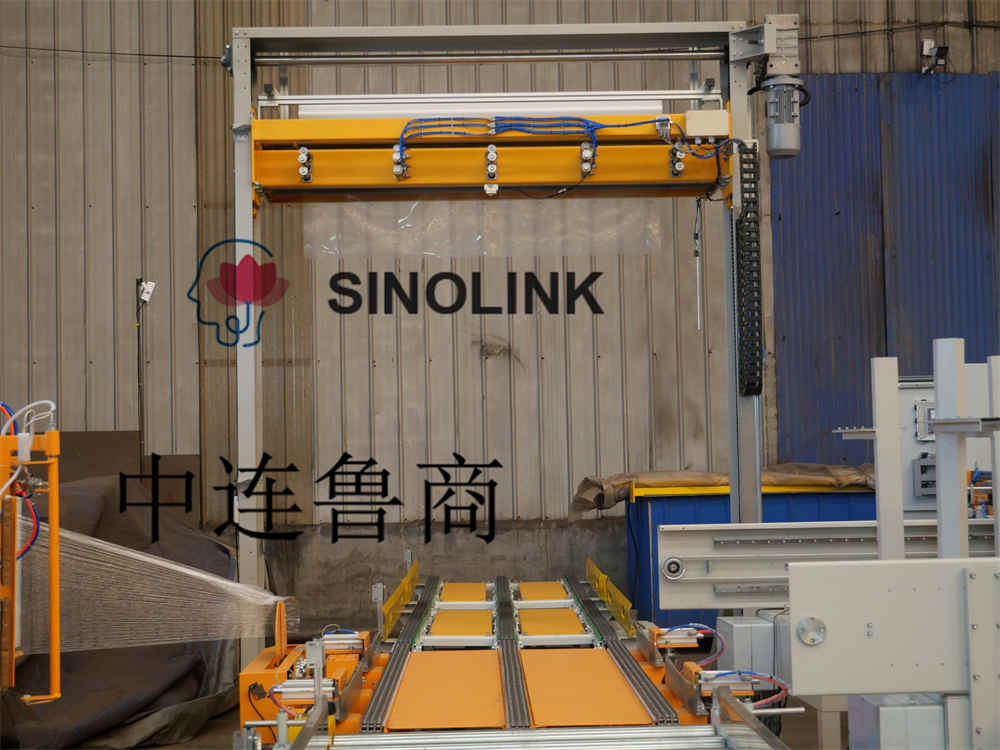

Exhibition Pictures:
