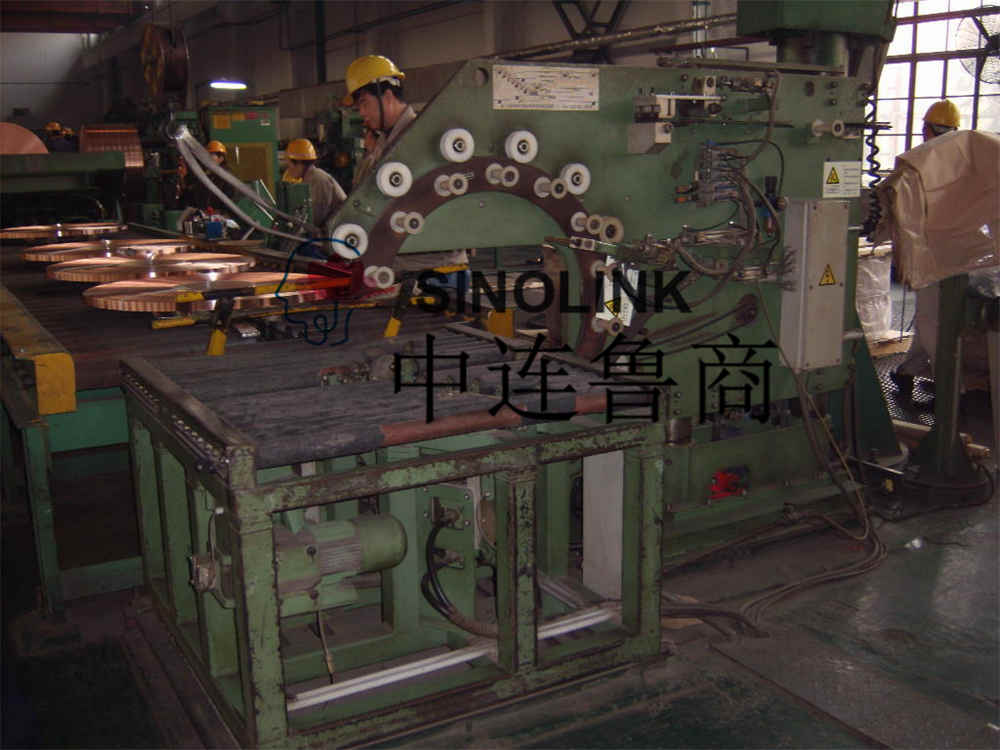

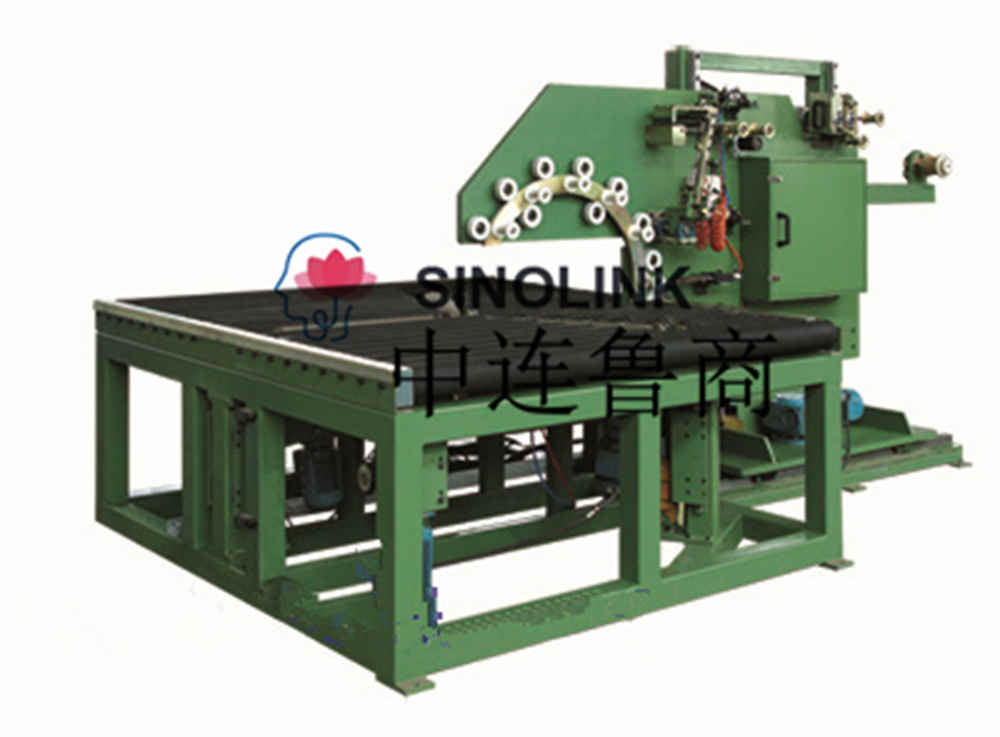

In-line Horizontal Ring Winding Packaging Machine

Packaging process:

The steel coil is conveyed through the power conveyor (customer's own equipment), and before entering the ring machine, the upper machine transmits the steel coil specifications (including the inner diameter, outer diameter, width, weight, etc.) of the steel coil to the ring machine control system.

The steel coil enters the ring machine through the power conveyor (customer-owned), and the ring machine automatically switches the packaging program according to the steel coil specifications provided by the upper machine, and the ring machine automatically packs the steel coil according to the action set by the program.

All steel strips can automatically wind the paper tape, the paper loading and paper breaking are all automatically completed by the equipment itself, automatic winding packaging, the number of head and tail winding can be set, the amount of winding overlay in the middle part can be adjusted, after the paper break, the broken head of the paper tape needs to be manually bonded with adhesive tape.

The winding is complete.

Continue the next coil packaging cycle.

Main technical parameters:

Packaging steel belt specifications:

Inner diameter: Φ250, Φ300, Φ400, Φ500

Minimum outer diameter: Φ600

Maximum outer diameter: Φ1500

Strip width: 20-200mm

Roll weight: maximum 2000kg per roll .

Packaging paper roll specifications:

Material: Paper tape

Outside diameter; φ600mm（max）

Width: 80mm

Paper core inner diameter: φ75mm

The maximum weight of the whole roll is 5000kg

Scope of delivery of In-line Horizontal Ring Winding Packaging Machine:

Power Conveying Roller: (1 set)

The ring body machine has its own conveyor, which is used to transport the steel coil into the winding station and transport the winding steel coil out of the ring body

Roller diameter: 86mm

Pitch: 127mm

Conveying effective surface width: 1500mm

Customer conveying surface elevation: 800mm

Conveying height: 900mm (need to coordinate the owner to carry out equipment sinking construction, sinking 100mm, supplier to provide equipment foundation drawings)

Conveying length: 1886mm (this size is for reference, the equipment size drawing will be provided by the supplier within 1 week after the contract is signed)

Power conveying roller conveying speed: 15m/min (frequency conversion adjustable)

There is a forward and reverse working function

Power: 1.1kw

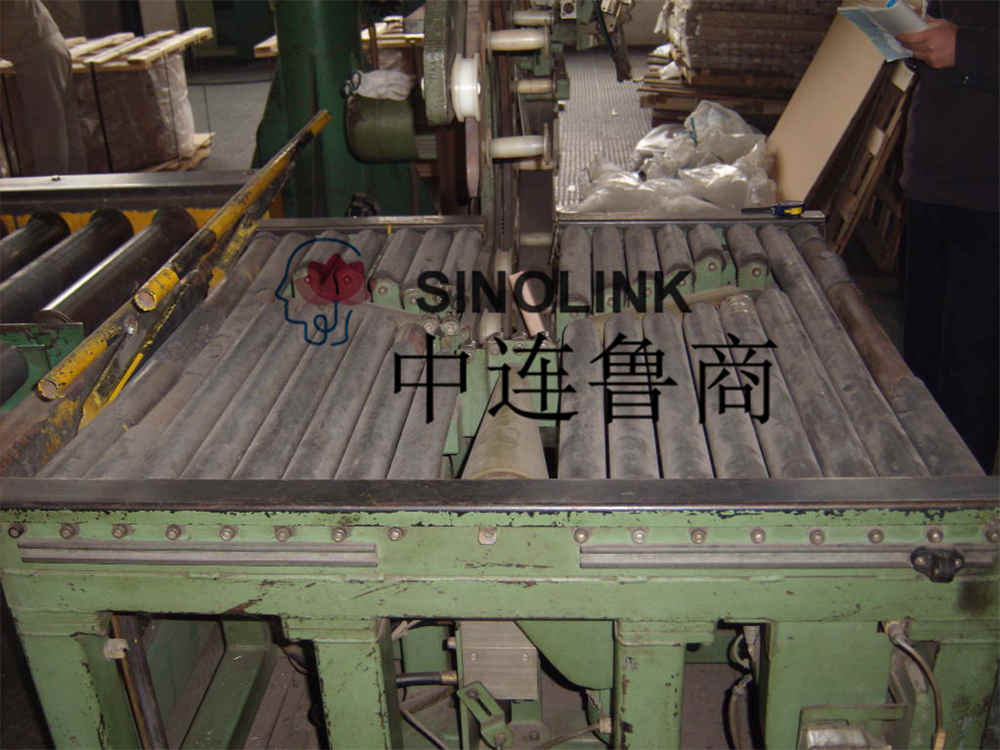

Conical drive idler: (1 set)

The steel coil used to convey to the packing station is automatically jacked and waits for the ring body machine to pack

Number of conical rollers: 3

Cone roller drive motor power: 3×0.25kw

The conical roller drives the motor to convert frequency and speed regulation.

Diameter of conical roller head: 260mm

With automatic ejection function.

Lifting drive mode: hydraulic ejection

Hydraulic station motor power: 3kw (determined after detailed design, hydraulic system provided by the supplier)

Lifting stroke: 20mm

Ensure that the supporting stiffness of the tapered idler meets customer requirements.

The surface of the cone roller is made of 90 degree polyurethane, which increases friction and prevents slippage on metal materials.

Auxiliary roller device: (1 set)

It is used to assist the smooth passage of steel coils through the packing station

The auxiliary roller swing amplitude is 90°

Pneumatic drive

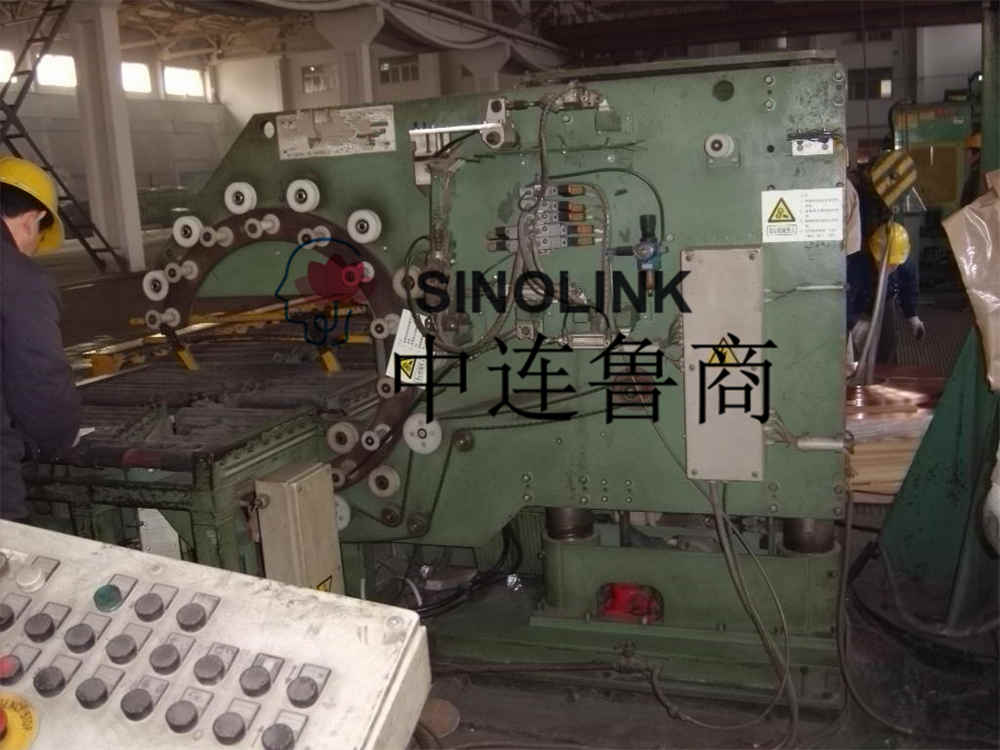

Rotating ring mechanism: (1 set)

It is used to drive the rotation of the packaging material and wind the packaging material to the surface of the steel strip

Rotary ring speed: 80rpm(max)

Swivel lifting stroke: 300mm

Forward and backward travel stroke: 80mm

Device power:

Rotary ring motor: 1.5Kw

Lifting motor: 1.1Kw

Horizontal mobile motor: 0.37Kw

The packing ring has the function of frequency conversion speed regulation, which can change the superposition and speed of packaging materials according to the packaging requirements, and the rotating ring can be lifted and moved horizontally.

Storage belt mechanism: (1 set)

For pre-storing paper tapes;

Can wrap two packaging materials;

It has the function of pre-storage of wrapping paper tape, and is equipped with a storage belt box to ensure the tightening of the coil packaging;

The paper tape holder is mechanically damped and tensioned.

Automatic upper belt breaking device: (1 set)

It is used for automatic loading and breaking of the belt to realize the automation of the packaging process;

The loose tension of the paper belt can be adjusted, and the tension force can be adjusted through the belt, spring and screw;

Automatic belt breaking in pneumatic mode;

After the winding is completed, the paper tape is automatically cut off and clamped the paper tape;

The special belt clamping device and the upper and breaking program control can greatly improve the packaging efficiency of the equipment.

Control system: (1 set)

Control the automatic operation of the entire set of equipment;

PLC control of the whole machine, motor frequency conversion speed regulation;

It adopts Siemens Omron series PLC programmable controller control, adopts independent electric control cabinet, control and operation are integrated, and has powerful functions;

Touch screen control, powerful, able to store different packaging programs of various specifications of goods, automatically switch according to the steel belt specifications provided by the host computer, and automatically wind;

The power conveyor roller encoder counts and positions to ensure that the steel belt conveying positioning is accurate, and the error ± 10mm (max);

It can display the working status in real time, and has the function of automatic fault prompt and alarm, and has a safety chain protection device;

It can set the outer diameter, inner diameter, width, packaging speed and other parameters of the winding packaging steel belt;

The swivel can be automatically centered relative to the packaged steel belt according to the size of the steel belt;

It has the function of adjusting the overlap degree and tension of the packaging paper tape, and the tension is constant during the winding process, and it can ensure that the packaging paper remains flat after winding without pulling and wrinkling.

Other requirements:

1. Energy medium:

Power supply: AC380V/5Kw/50Hz

Air supply requirements:

Compressed air pressure: 0.4-0.6Mpa

Air consumption: 0.06Nm³/h

The air source is connected by the buyer to the shut-off valve outside the pneumatic control box.

2. Information Provided:

The equipment installation size drawing is provided within one week after the contract is signed (including the installation location of the air control box, electric control cabinet, hydraulic station).

Instruction manual (including electrical schematic diagram, maintenance instructions).

Main Electrical Configurations of :

Comes with a list of wearing parts:

After-sales technical services:

All machines implement one-year free warranty responsibility from the date of installation and commissioning test receipt, and provide lifelong technical and maintenance services. The after-sales service hotline provides technical support 24 hours a day, and troubleshoots common problems in 15 minutes. After-sales service specialists all over the country provide customers with timely and convenient on-site technical service support.

More detailed requirements, please contact with us at any time.
