Full Automatic Unmanned Bag Folding Machine

Full Automatic Unmanned Bag Folding Machine

Simple description of action:

The action structure of the automatic bag folding machine is mainly divided into two working areas, namely bag lifting, bag folding and bag pressing.

The box is automatically input into the machine through the conveyor line to complete the following station process.

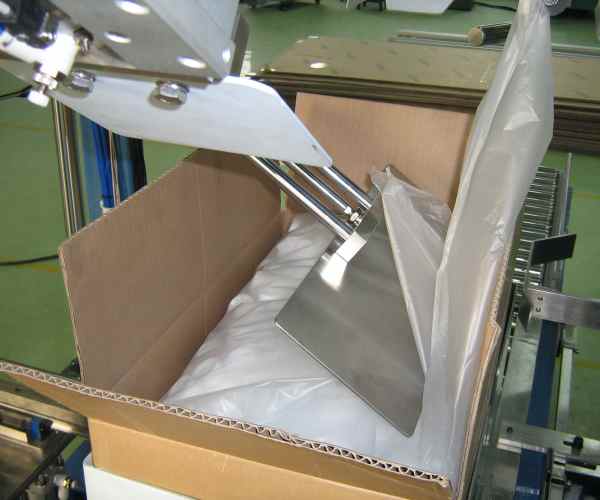

1. Enter the bag carrying station and start the bag carrying action.

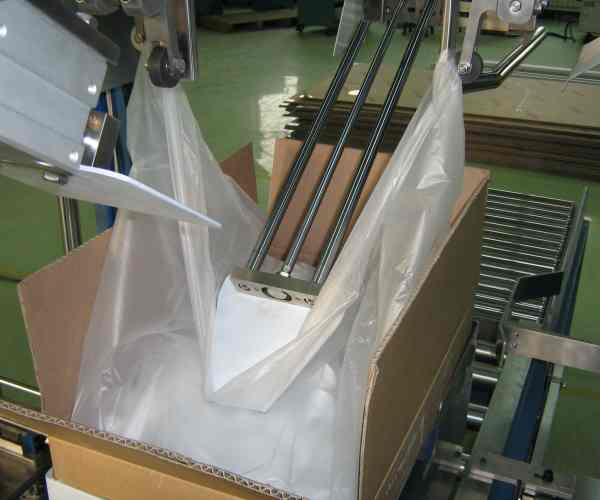

2. After entering the bag folding station, fold and level the bags from both sides, and press the folded bags into the box.

Automatic positioning of product cartons. Automatically turn the cartons outward and lift the inner bags after packing, automatically double fold down and press them into the cartons, realizing automatic output and convenient sealing, realizing unmanned assembly line equipment, improving work efficiency, reducing labor, and improving customer production process and automation. This machine is controlled by P.L.C+display screen, which is greatly convenient for operation, management, and reduction of production personnel and labor intensity. It is an essential equipment for automatic large-scale production. Easy to operate and reduce packaging cost.

Main mechanism: servo motor control system, accurate and fast.

Contact Now E-Mail Telephone WhatsApp

Product Details

Properties of Full Automatic Unmanned Bag Folding Machine:

This machine should be used with the automatic bagging machine:

Table height: 600mm

Applicable power supply: 220v 4.5KW

Supply of air pressure source: 6KG/cm2

Bag Folding Machine

Main Parameters of Full Automatic Unmanned Bag Folding Machine：

Machine Size	2700×2190×2100mm
Box Size	L690W520H248mm L640W450H300mm
Source power	220V 50/60HZ
Air pressure source	5Kg/cm2

Main configurations of Full Automatic Unmanned Bag Folding Machine：

Configurations	Instruction	Brand/Origin
Control system	The latest special PLC controller for stepping motor is adopted, which can keep stable operation under overload and unstable power supply for 24 hours.	Siemens
Operation panel	Using the "VILON" human-machine interface, it can be displayed in Chinese. Just follow the instructions on the display screen and you can easily go online. The electrostatic touch keyboard, large LCD screen, no electromagnetic radiation, no copper foil oxidation problems, low failure rate, long service life, adjustable backlight design, and enhanced display clarity.	Siemens
Photoelectric switch	Whole line photoelectric: "OMRON" "Panasonic"	Japan
Proximity switch	(The investigation scope is up to 10 circles, oil and water proof, CE certification, and no dead corner on the measurement label).	Japan
Drive controller	"OMRON" brand.	Taiwan
Servo motor	Dongyuan brand: stable quality, easy adjustment.	Taiwan
Servo driver	"Mitsubishi" brand.	Japan
Relay	"Mitsubishi": stable quality and accurate positioning.	Taiwan
Cylinder	"Omron" brand.	Siemens
Motor/reducer	"SMC" brand.	Siemens
Base (machine)	"Shengbang" and "Liming" brands have stable quality, low noise, durability and low power consumption.
Frame	Designed by "AUTOCAD", the center of gravity is stable, and fixed foot seats and movable wheels are installed.
Roller	Q235 carbon steel, sprayed with high-strength plastic steel powder and baked at 220 degrees, has a beautiful appearance, and is solid, wear-resistant and corrosion resistant.
Conveying guardrail	Stainless steel, durable, beautiful appearance.
