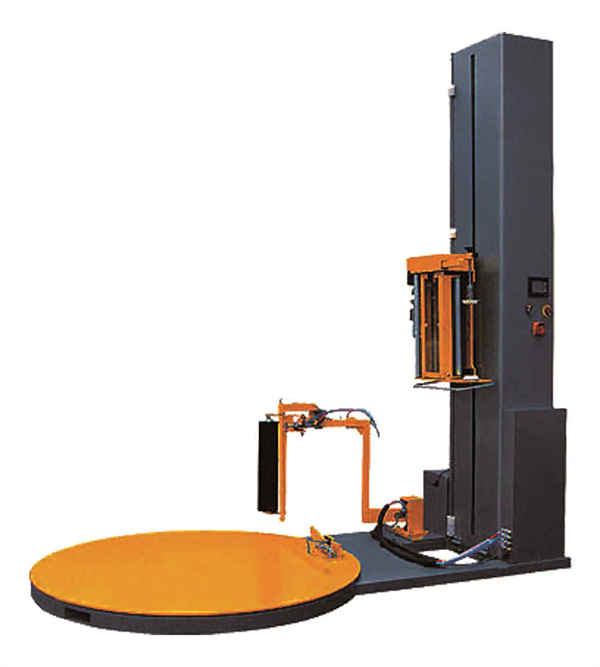

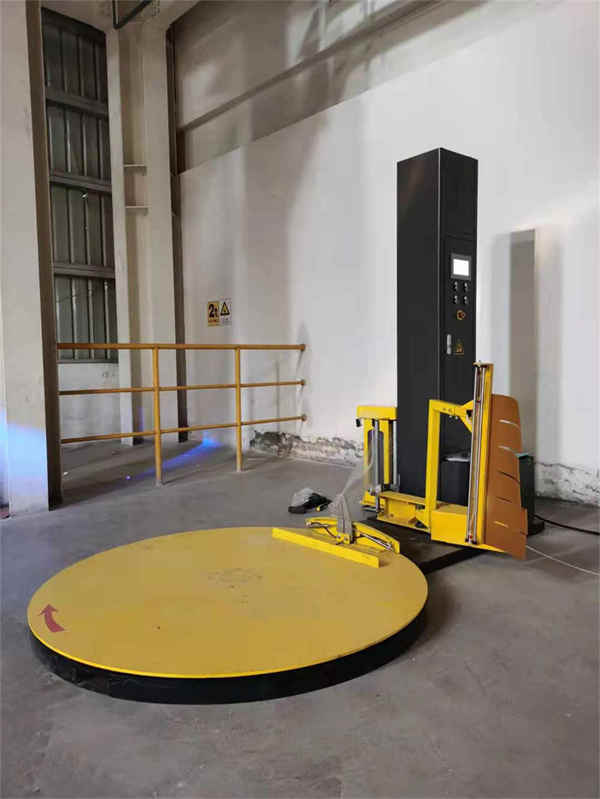

Full Automatic Pallet Wrapping Machine

Advantages of Full Automatic Pallet Wrapping Machine

1. Humanized and intelligent parameter setting;

2. The interface display screen directly sets;

3. Operation is easier and more convenient;

4. Realize man-machine dialogue, and the display screen displays the equipment operation at any time;

5. Integrated communication mode is adopted, and frequency conversion speed regulation is more significant;

6. Fewer wiring modes, with the lowest failure rate;

7.The fault text is directly displayed on the operation screen for equipment fault, replacing the old ICON indicator light alarm, and troubleshooting is more convenient and intuitive;

8. With the counting function of on duty output and total output, also can clear to 0 for on duty output and total output;

9. Troubleshooting is more convenient and intuitive.

Contact Now E-Mail Telephone WhatsApp

Product Details

Pallet Wrapping Machine Feature:

1. Fully enclosed electrical cabinet to avoid dust entry and prolong the service life of components;

2. The protection grade is IP54, meeting CE standards;

3. With the function of starting at the origin and starting at the same time, it can more flexibly adapt to the customer's packaging needs;

4. The combination of the new film carriage’s design and the unique adhesive coating technology, which makes the stretching effect of the wound membrane more uniform;

5. The unique design of balance adjustment wheel,which reduces the rotary table noise to a lower level, makes maintenance easier, and enhances the service life of the tugboat.

Main Technical Parameters of Full Automatic Pallet Wrapping Machine

Turntable size	D=1800mm, H=78mm
Wrapping size	(500-1200)×（500-1200）mm（L×W）
Packaging height	2400mm
Turntable loading	2000kgs
Machine weight	800kgs
Machine power	1.5kw
Turntable speed	0-12RPM
Power supply voltage	Single-phase 220V
Packing material	LLDPE stretch film

Main Function of Full Automatic Pallet Wrapping Machine

1. PLC+touch screen control, stretching layers and times can be set;

2. Photoelectric switch, automatically sensing the height of goods;

3. Film breaking detection function, which automatically detects film breaking and makes the wrapping machine stop;

4. Reinforced wrapping function, which can protect certain parts specially;

5. Overtop time setting function.

6. With switch protection device and emergency stop switch device.

Main Configurations of Full Automatic Pallet Wrapping Machine

Component Name

Manufacturer

Programmable controller

Siemens

Frequency converter

Schneider

Touch screen

Siemens

Photoelectric switch

Panasonic

Master device

Tianzheng

Limit switch

Tianzheng

Inductive proximity switch

Sodilon

Turntable reduction motor

Domestic good quality

Film carriage lifting reduction motor

Film outlet reduction motor

Domestic good quality

Turntable driving of pallet wrapping machine：

1. Turntable frequency convension speed: 0-12rpm;

2.Turntable is driven by chain, with accurate positioning;

3. Turntable can automatic reset ;

Full Automatic Pallet Wrapping Machine

Film carriage system of pallet wrapping machine：

1. Drive by pre-stretch carriage, stretch ratio up to 250%, double chain design, stable and reliable.

2. The film carriage structure adopts the overall welding technology and laser positioning cutting processing technology. The strength and processing accuracy of the film carriage are higher and its stability is better, and the noise is lower;

3. Moving up or moving down of film carriage and the speed of film speeding can be adjusted separately;

4. Top and bottom wrapping layers is controlled separately.

5. Servo mechanism of film system, which can be pulled once.

6. Renew film carriage design, the stretch effect is more uniformity and flat;

7. Conveniently transport and move.

Tower mechanism of pallet goods wrapping machine：

1. Adopting sealed type structure, anti-dust’s efficiency is better,more durable;

2. Easier installation mode,side mounted film carriage, hinged connection, it can be used immediately as long as film carriage is stood up,without debugging.

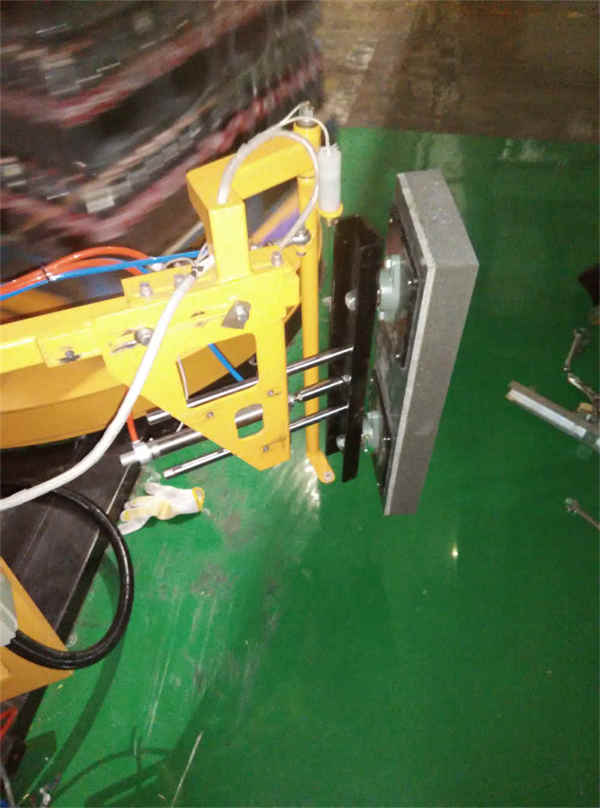

Automatic feeding and cutting film mechanism ：

Pneumatic control, automatic feeding film, cutting film, smoothing film.

Full Automatic Pallet Wrapping Machine
