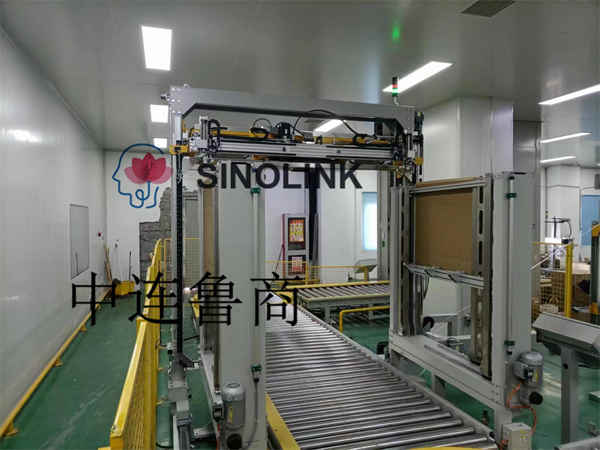

Full Automatic Extended Paper Corner Protection Vertical Sword Strapping Machine

Full Automatic Extended Paper Corner Protection Vertical Sword Strapping Machine

Strapping mode:

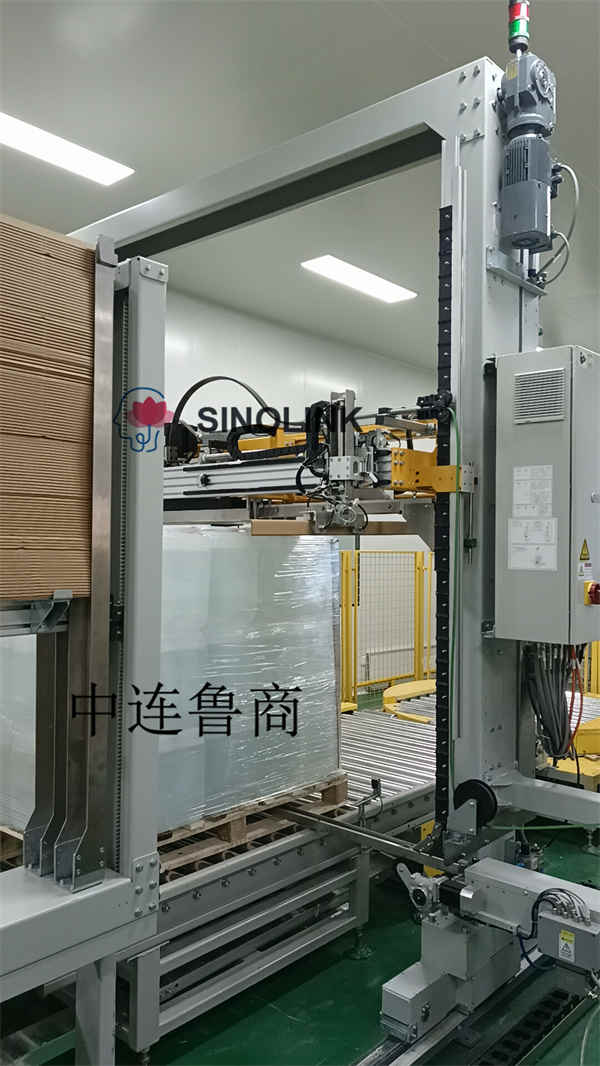

The equipment is equipped in the conveying system of the packaging line, which can provide vertical bundling after automatically placing the long corner protection on the top of the goods, and automatically complete a series of strapping processes such as extending the corner protection, feeding the belt, retracting the belt, tensioning, buckling and cutting the belt, and the interface position is at the top of the goods.

Contact Now E-Mail Telephone WhatsApp

Product Details

The strapping head is on top with an automatic extension of the corner guards with a strapping machine for piercing arrows.

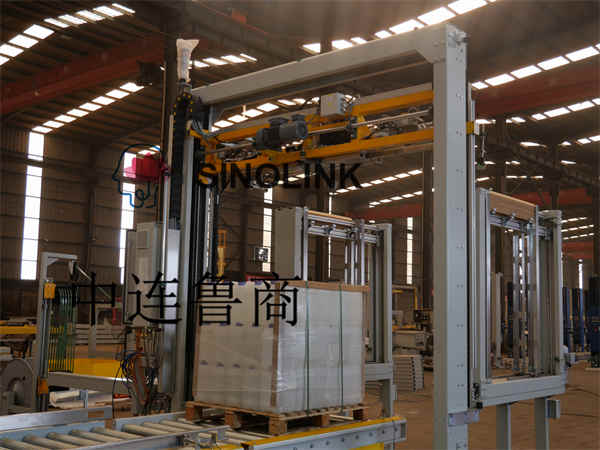

Strapping Machine

The strapping machine consists of the following parts:

1. Strong and durable structural frame

2. The strapping machine head can provide reliable tensile force and stable interface strength, modular and quick replacement

3. Through the structure of braking motor + rack and pinion, drive the pressure plate frame to move up and down

4. The machine head is firmly placed in the head seat, and follows the lifting frame to do vertical movement

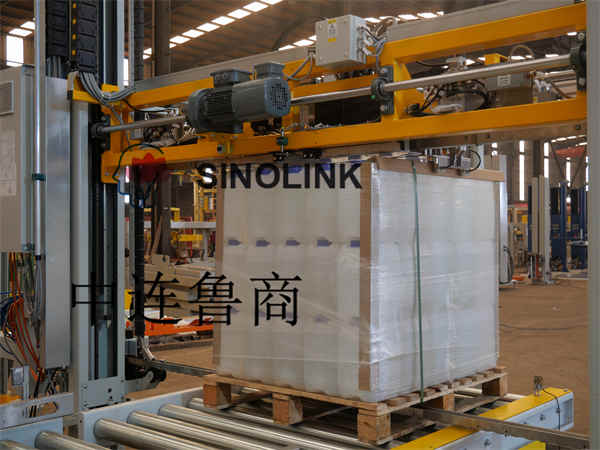

5. On the nose lifting frame, there is a movable long corner protective pneumatic gripper on each side of the nose

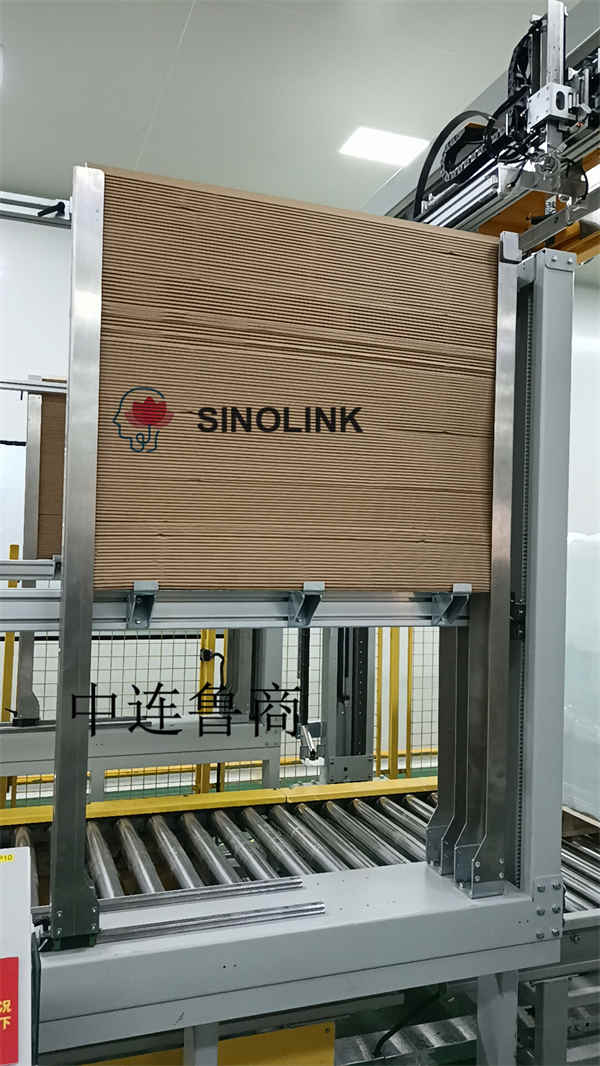

6. The long corner silo is placed on the ground and has the function of lifting and lifting

7. Strapping head maintenance can be carried out offline or on-site, and it is very convenient to replace wear parts and spare parts

8. The strapping belt provides a balanced pull around the cargo along the cargo through the floating device of the strapping machine head

9. The retractable strap groove system with segmented traps guarantees smooth strapping and fast strapping

10. With an arrow mechanism to pass through the gap of the pallet

11. The arrow has a double-sided photoelectric detection of whether there is a blockage in the gap of the pallet

12. It can be automatically detected according to the different heights of the incoming goods

13. The main control system is placed on the frame column of the fuselage

14. The operation box with man-machine interface touch screen can be placed independently according to the requirements of the site

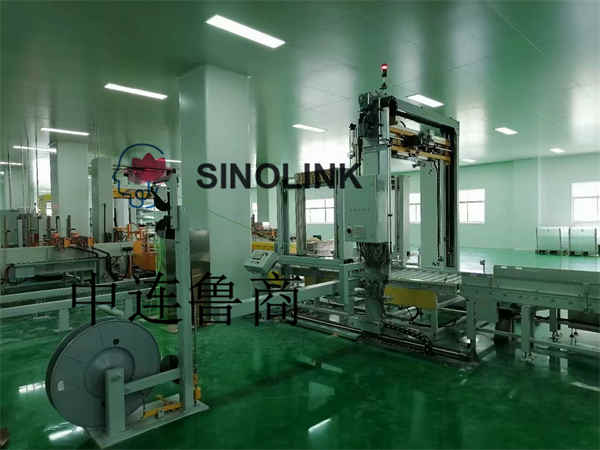

15. Pure mechanical belt coil with storage belt can store excess strapping when tightening, can install 20-75 kg strapping belt.

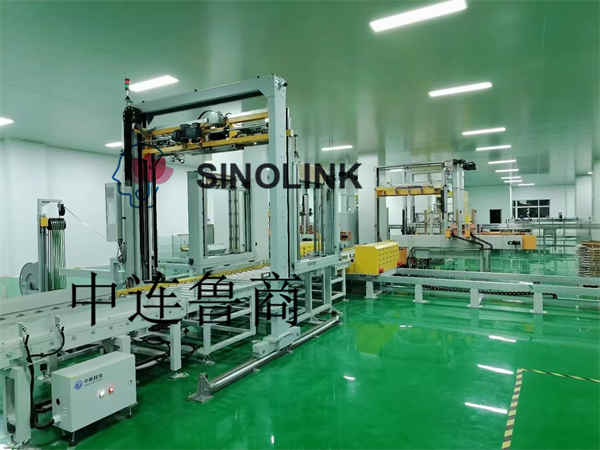

Strapping Machine

Technical data of strapping machine:

Strapping belt width: 12 or 16 mm (confirmed at order);

Strapping belt thickness: 0.6-1.0 mm (confirmed when ordering);

Strapping belt material: PET (polyester);

Strapping tape winding size: inner diameter .406 mm outer diameter .600-760 mm roll width.150-190 mm;

Strapping tension: 200-3500 N (adjustable);

Interface: high-strength friction bonding;

Corner protection: 45W*45W*900L*4t (200pcs silo);

Weight of feed/tensioning module: 21 kg;

Weight of buckle module: 20 kg;

Headframe moving speed: 160 mm/s.

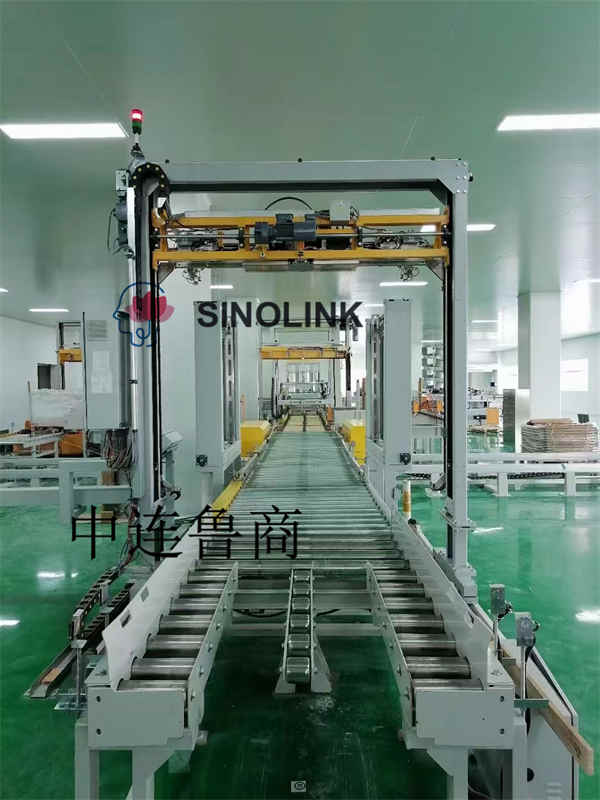

Strapping Machine

Standard configuration elements of strapping machine:

S.N	Name	Brand	The part to which it belongs
1	Regulated power supply	Mingwei	Electronic control system
2	PLC	Siemens	Electronic control system
3	Contactors	Schneider	Electronic control system
4	Thin sheet relays	Hongfa	Electronic control system
5	Relays	Omron	Electronic control system
6	breakers	Schneider	Electronic control system
7	button	Schneider	Electronic control system
8	Proximity switch	Omron	Electronic control system
9	Photoelectric switch	Omron	Electronic control system
10	touch screen	Siemens	Electronic control system
11	Reducer	Dongtuo	Mechanical systems
12	bearing	NSK	Mechanical systems
13	cylinder	QILIKE	Mechanical systems
