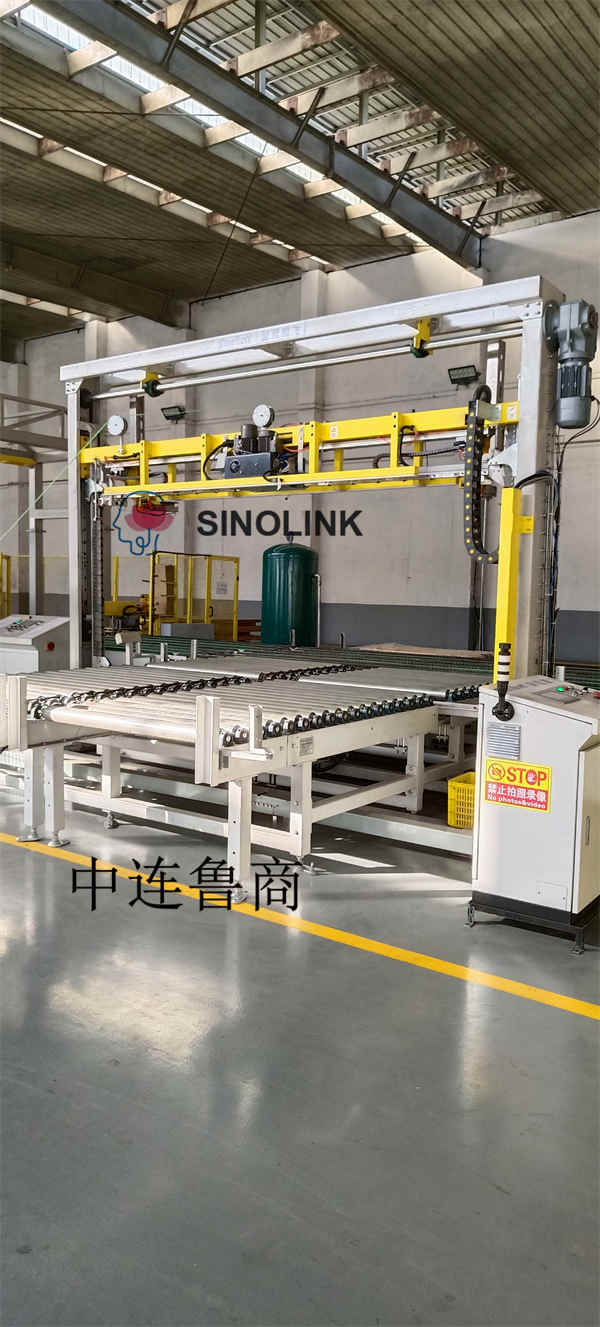

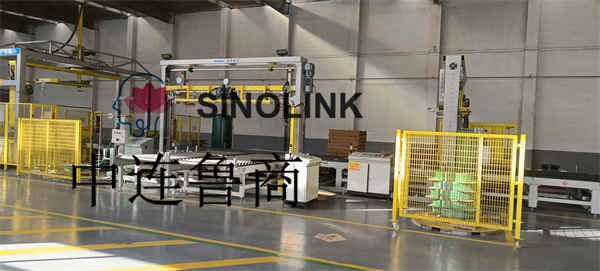

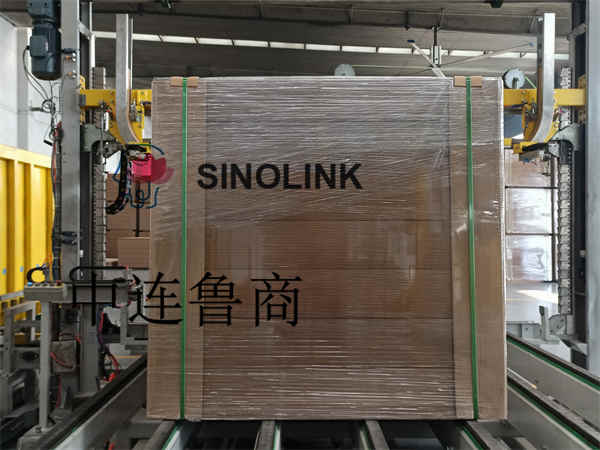

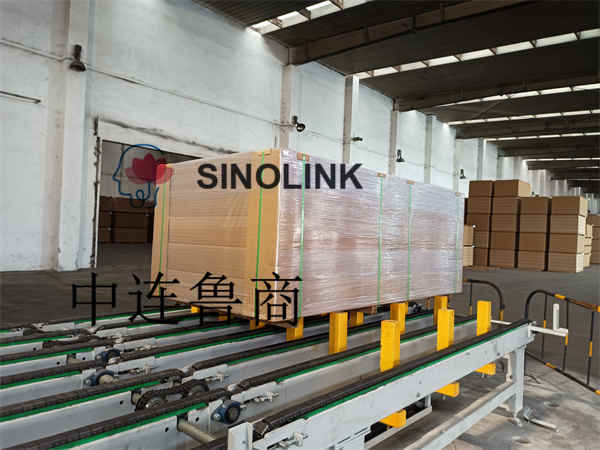

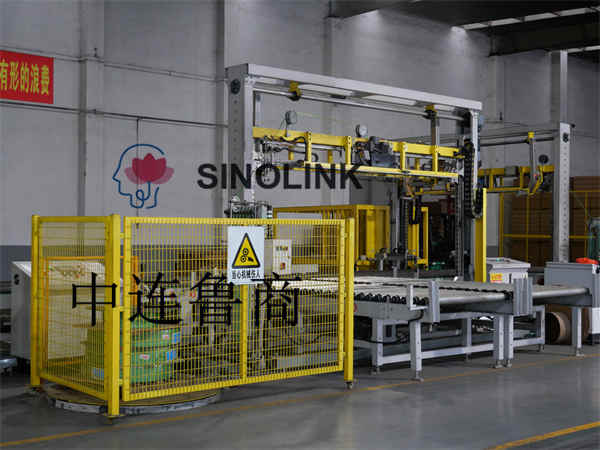

Long Side Automatic Corner Protecor Strapping Machine

Equipment technical requirements and component formulation

Equipment requirements:

The conveyor transfers the whole rack of wood-based panels to be packaged to the automatic baler for longitudinal "Sichuan" packaging

Table height: subject to negotiation between the two parties

Applicable power supply: 380V

Production speed: 2 bundles not less than 25 torr/h

Load capacity: 4000kg

Device requirements

The strapping tightness is adjustable, PET strapping is used, and the movement is positioned at the top.

The strapping speed ≥ 25 tors/hour, and the strapping pass rate ≥99%.

After packing, the strapping strapping slope is ≤ 30mm, and the strapping belt is straight and without ripple after packing.

The maximum adhesion force of PET tape after packaging is not less than 80% of the tensile breaking force of PET strapping.

After packing, the center offset of the upper and lower strapping belt joints is not more than 1mm; The length of the strapping belt must not exceed 20mm if the end of the strapping joint is not attached.

The automatic baler also has a "manual" mode, and the manual and automatic switching is simple and smooth.

The automatic packaging machine has a counting function, the system can record the packaging situation of not less than one month, and can query the number of packages according to the time period; Pack counts can be read using a storage device for later storage.

Automatic shutdown function of conveyor line: electric eye starts the conveyor line, and after the stack body is sent, the conveyor line automatically stops, saving the cost of use and improving the life of the machine.

The equipment has a "pass" function, when the whole wheel hub does not need to be packed, the equipment is put into the "pass" function state, the whole wheel hub is directly and automatically output directly to the next station through the packing station, and the turntable and strapping machine have no action.

Equipment description: (including: for the realization of vertical packaging, packaging process control system control mode, specific packaging cycle time, etc.)

Matching: Automatic small corner protection machine (2 sets):

1. The mechanism can automatically detect and adjust the installation position (the center of the workpiece and the rotation center of the winding machine basically coincide).

2. It can detect the margin of paper corner protection and realize automatic warning, and then manually supplement the paper corner protection.

3. After the paper corner protection is placed, the two surfaces adjacent to the workpiece edge are aligned without gaps, and there is no skew phenomenon.

4. 2 paper corner protectors are installed and installed vertically, subject to the schematic diagram provided by the demander.

5. The whole process of placing paper corner protection realizes unmanned operation, and the equipment is in operation.

6. The demander provides the specifications of the paper corner protection for confirmation, and the bottom surface is used as the reference when placing the paper corner protection.

7. Servo motor control, more accurate

8. Corner protection machine corner protection specifications: 80mm×80mm×5mm small cardboard (cost saving)

More Horizoltal automated corner strapping machine, please contact with us at any time.

Looking forward to your inquiry.
