Luggage Packing Machine
Features of Luggage Packing Machine
PLC control screen
Powered Pre-stretch film carriage up to 1:3 to reduce film consumption
Operator adjusts vertical rods to secure bag
Film Tension Control adjustment on the panel
Wrap layer adjuster
Platform speed 20RPM
Machine easy to be moved by one person

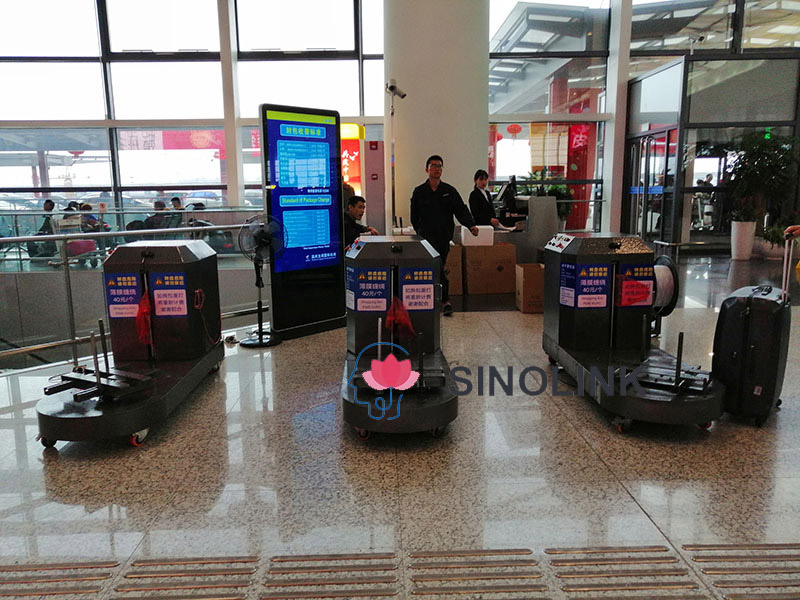

Luggage Wrapper is designed to wrap luggage and related items for security purpose in airport.
Film provides extra support while the luggage is being transport to protect from being damaged.
The operator places the luggage on the platform and adjusts vertical rods to secure bag according the luggage's size.
Specification of Luggage Packing Machine
No. | Item | Brand | Brand Original |
(1) | Inverter | Dema/ Omron (CE) | China/Japan |
(2) | PLC & screen | Sinoblue display(CE) | China |
(3) | Button | Schneider | France |
(5) | Motors | Chinese brand(CE) | China |
(6) | Breaker | Schneider | France |
Technical parameter of Luggage Packing Machine
Max. Packing size (mm) 180-400mm (W) × 400-800mm (L) ×300-600mm (H)
Rotating speed: 0-23 RPM
Power supply 230V/50Hz/1 Phase: 0.5kw
Weight Capacity 100kg
Packing Materials Stretch film width 500mm
Dimension(mm) 650(W)×1570(L)×1200(H)
Machine Weight 200kg
Control system of Luggage Packing Machine
Program control unit integrated machine;
Wrapping layers and times can be set;
Photoelectric switch, automatically sensing the height of goods;
Reinforced wrapping function, which can protect certain parts specially;
Overtop time setting function.

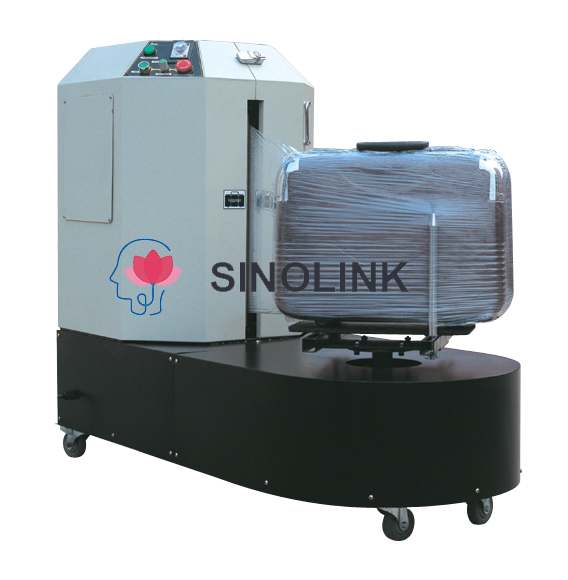

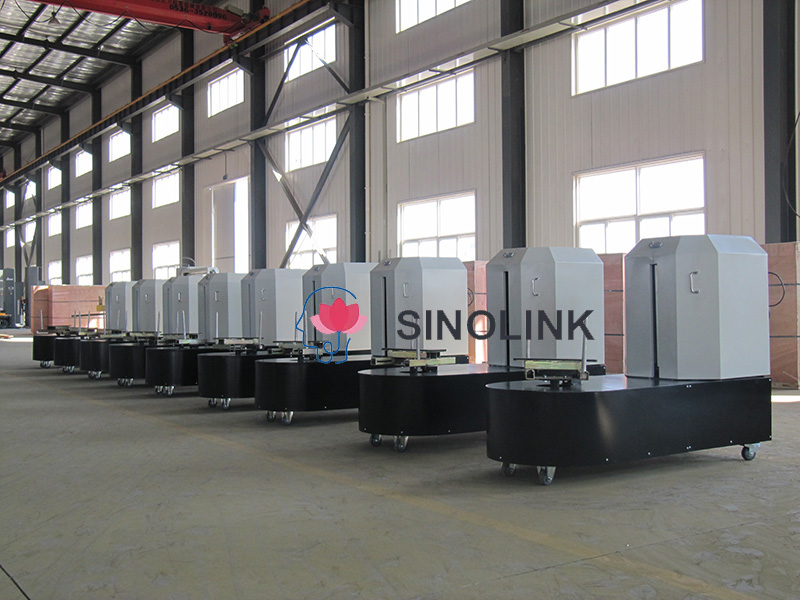

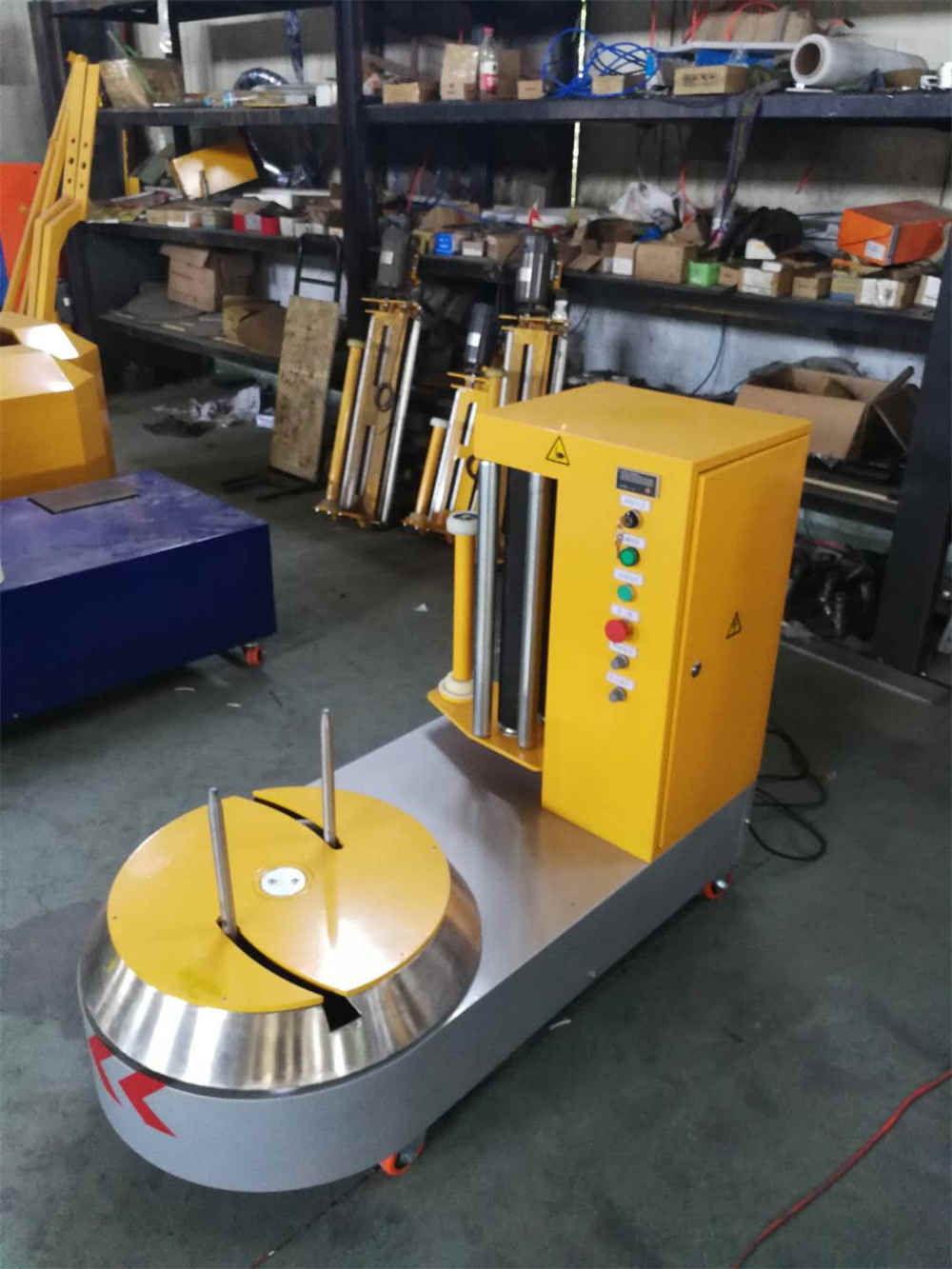

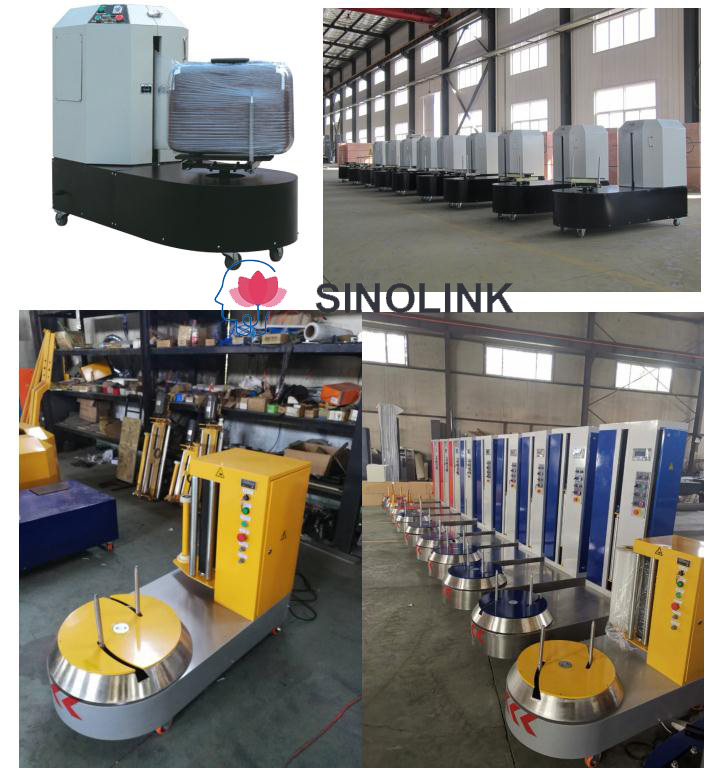

Pictures for Luggage Packing Machine
More Information or special requirement, can contact with us at any time!
