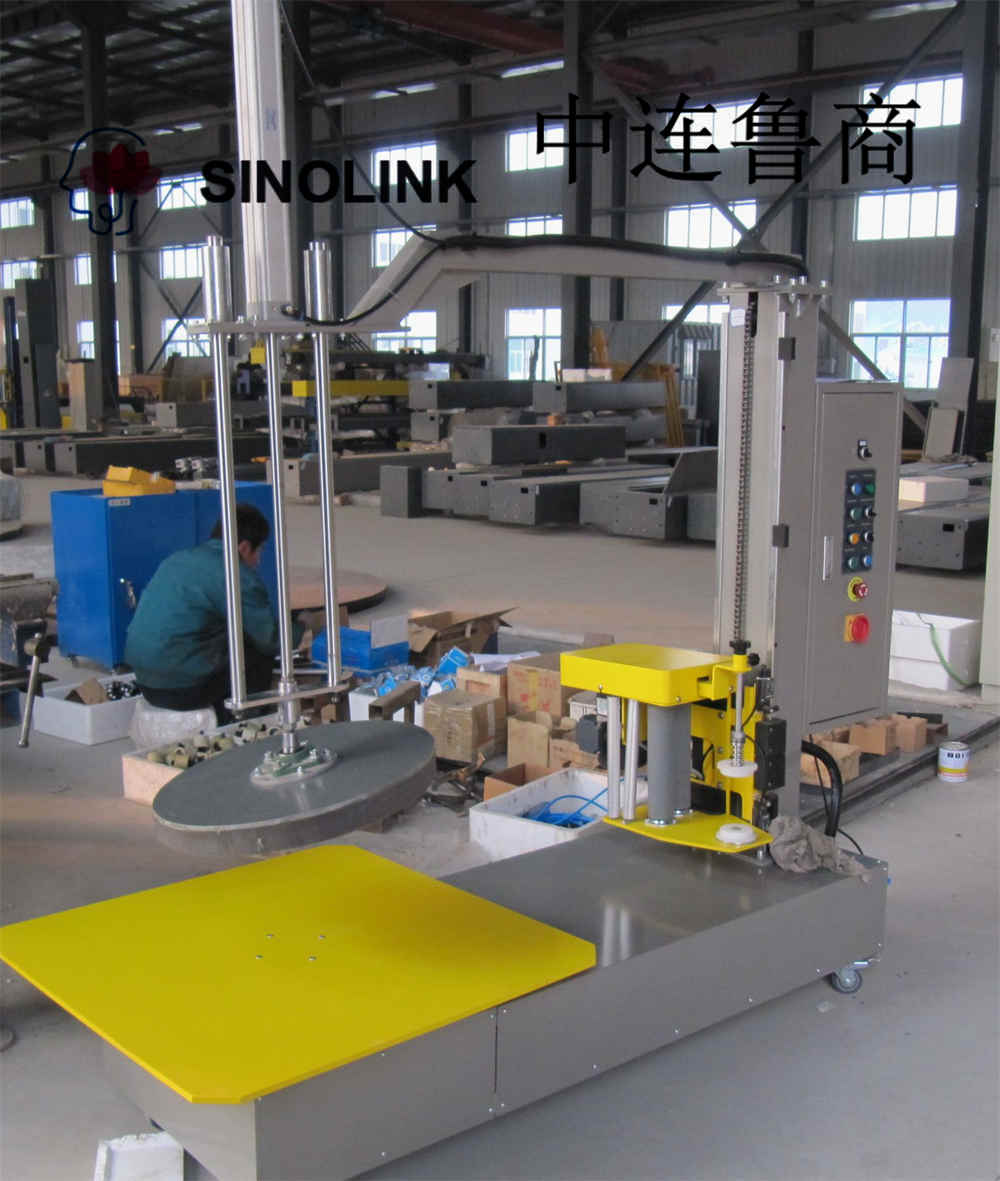

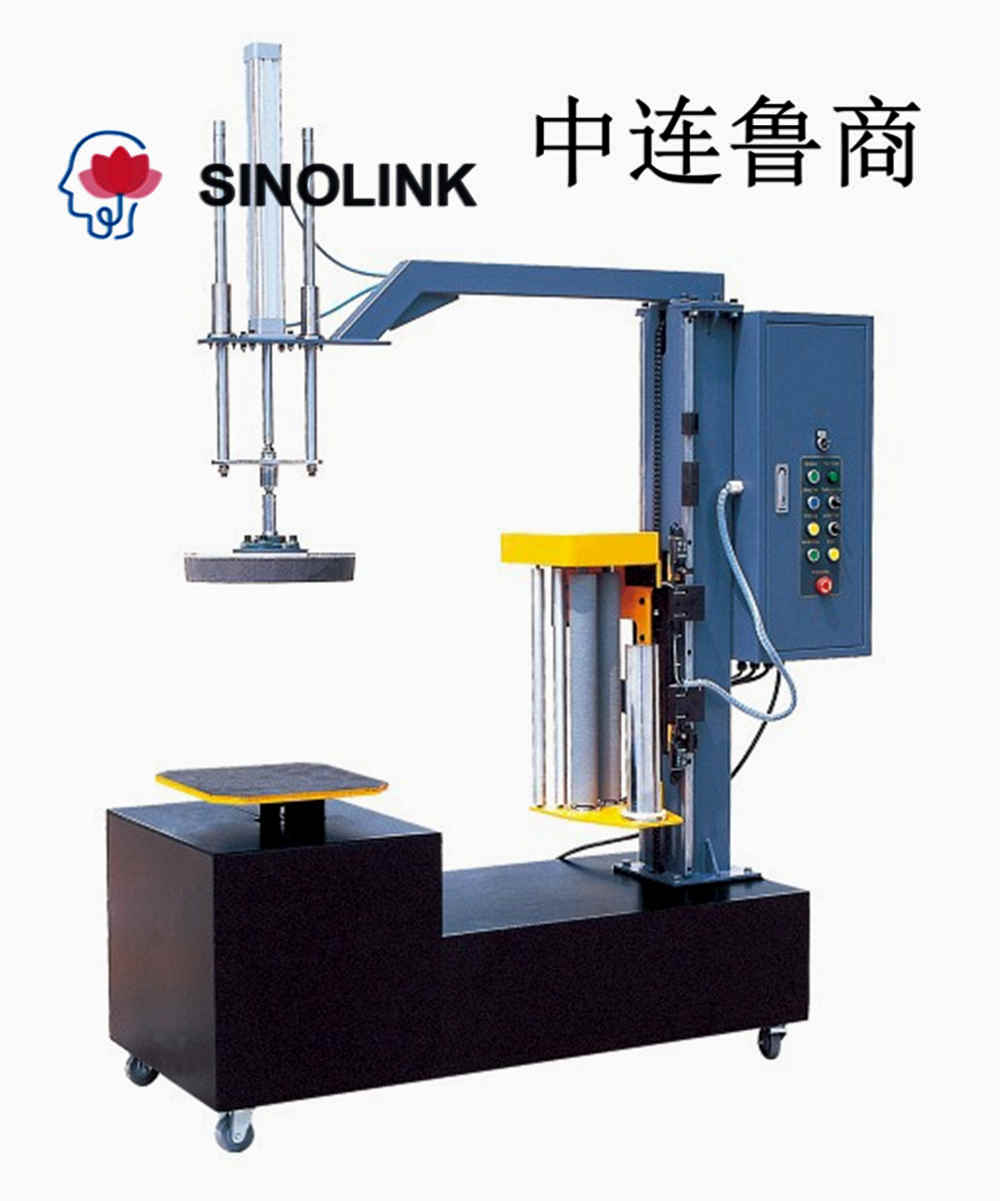

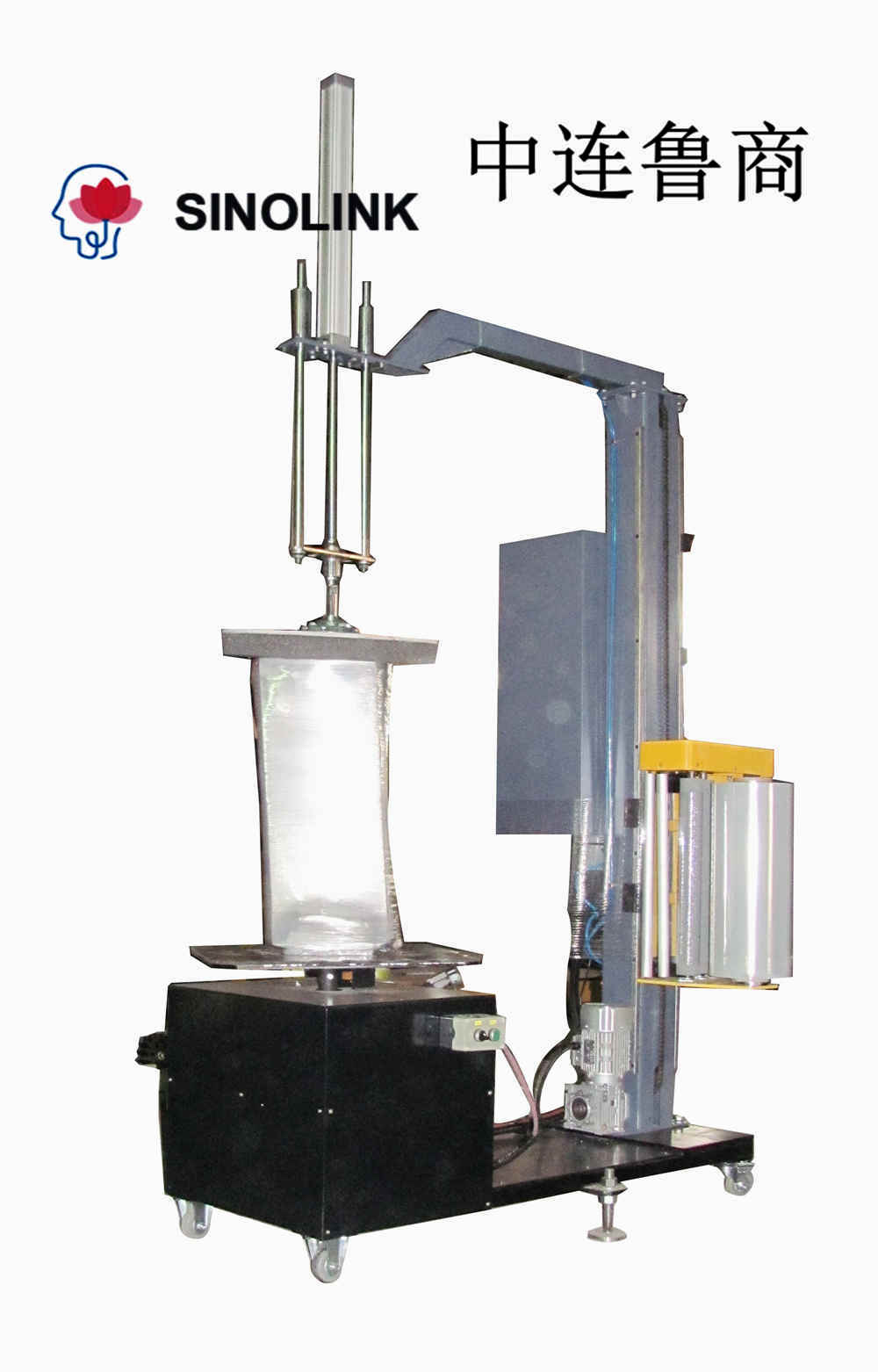

Trayless Winding Packaging Machine Wrapping Packing Machines

Trayless Winding Packaging Machine Wrapping Packing Machines

Technical parameters

1. Wrapping specifications: minimum: 400mm*600mm*500mm, maximum: 1200mm*800mm*800mm

2. Packing efficiency: 20-40 pieces/h

3. Turntable speed: 0-20rpm speed frequency conversion adjustable

4. Turntable height: 690mm (subject to actual design)

5. Turntable load-bearing: 100kg

6. Total weight: 260kg

7. Dimensions: TBD

8. Voltage: AC220V

9. Motor power: turntable 0.37kw, column 0.37kw

10. Power: 1.0kw

11. Air consumption: 1000ml/min

12. Packaging material: LLDPE stretch film

Thickness: 17~35μm Width: 500mm

Inner part of the roll: 76.2mm Maximum outer diameter of the roll: 240mm

Contact Now E-Mail Telephone WhatsApp

Product Details

Main Performance of Trayless Winding Packaging Machine Wrapping Packing Machines:

Control system:

1. Human-machine interface control, the number and number of winding layers can be set;

2. Program-controlled unit all-in-one machine;

3. Photoelectric switch, automatically sense the height of the goods;

4. Reinforced winding function, which can carry out special protection for a certain part;

5. Top-over time setting function.

Advantages of man-machine interface:

1. Humanized intelligent parameter setting;

2. The interface display screen is directly set, which is more simple and convenient to operate;

3. Realize man-machine dialogue, and the display screen shows the operation of the equipment at any time;

4. Using integrated communication mode, frequency conversion speed regulation is more significant;

5. Less wiring methods, the failure rate is minimized;

6. Troubleshooting is more convenient and intuitive;

Membrane frame system:

1. The membrane frame is an AC motor pre-stretching mechanism, equipped with frequency conversion speed regulation, adjusting the film tension, and the pre-stretching can reach 250%;

2. Double chain structure, stable and reliable;

3. The frequency conversion speed of the membrane frame rising, lowering speed and film feeding speed are adjustable;

4. The number of top and bottom winding is controlled separately;

5. Membrane system follow-up mechanism, one pull;

6. Membrane frame motor power 0.37kw

Topping system:

1. Pressing size: 200mm*230mm (subject to actual design)

2. Stroke height: 250~940mm

Trayless Winding Packaging Machine Wrapping Packing Machines

Mode of operation:

Manually set the number of lifts, rotate the number of turns, connect the winding film to the rotating animal, press the start button, and the turntable will automatically stop after turning the setting program.

Trayless Winding Packaging Machine Wrapping Packing Machines

Service Commitment:

1. The supplier installs, debugs, trains operators free of charge, and repairs the equipment caused by non-human factors free of charge during the warranty period;

2. Equipment warranty for one year, maintenance for life; Supplier service commitment: After receiving the call from the demander to provide service, ensure that the technical personnel are in place within 24 hours.
