Fully Automatic Unmanned Extended Paper Corner Protection Machine
Fully Automatic Unmanned Extended Paper Corner Protection Machine

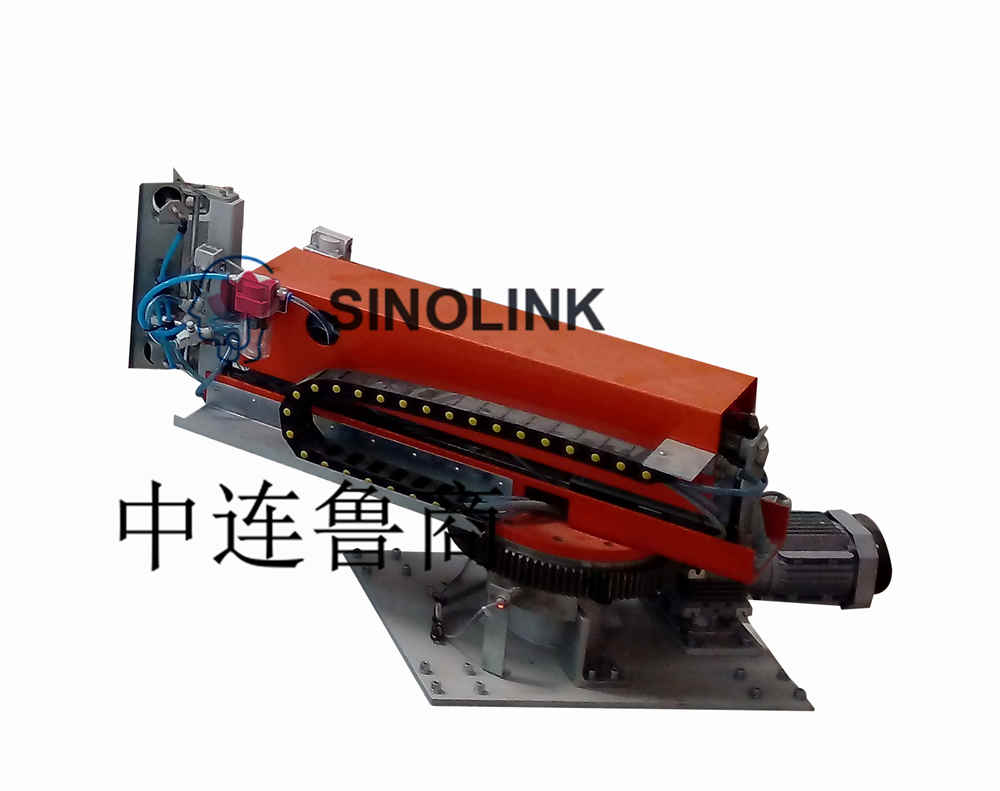

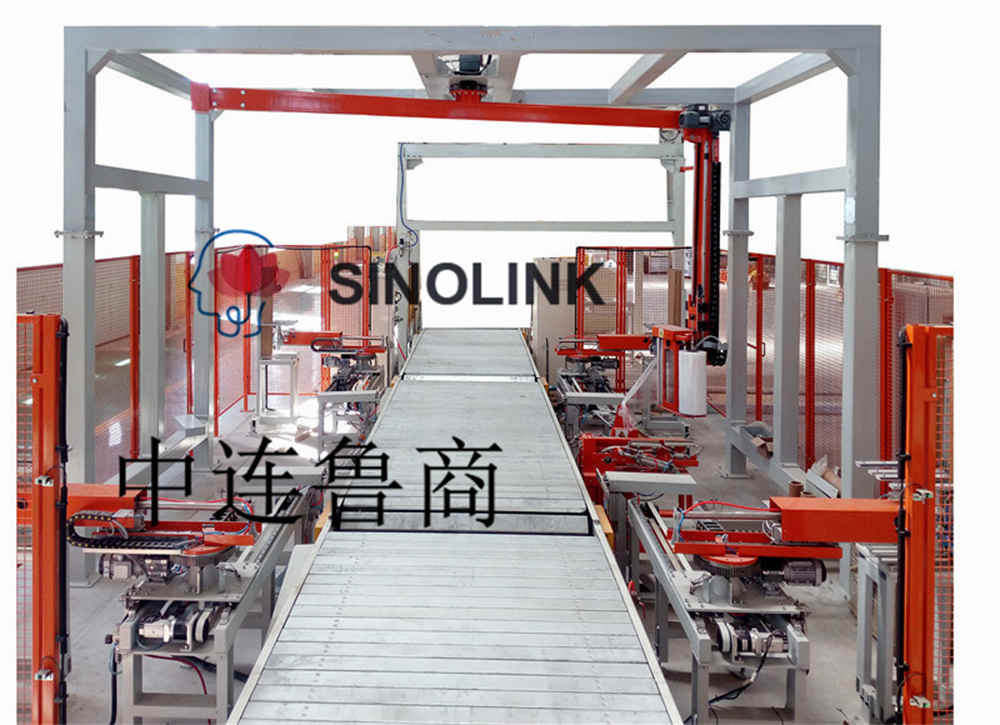

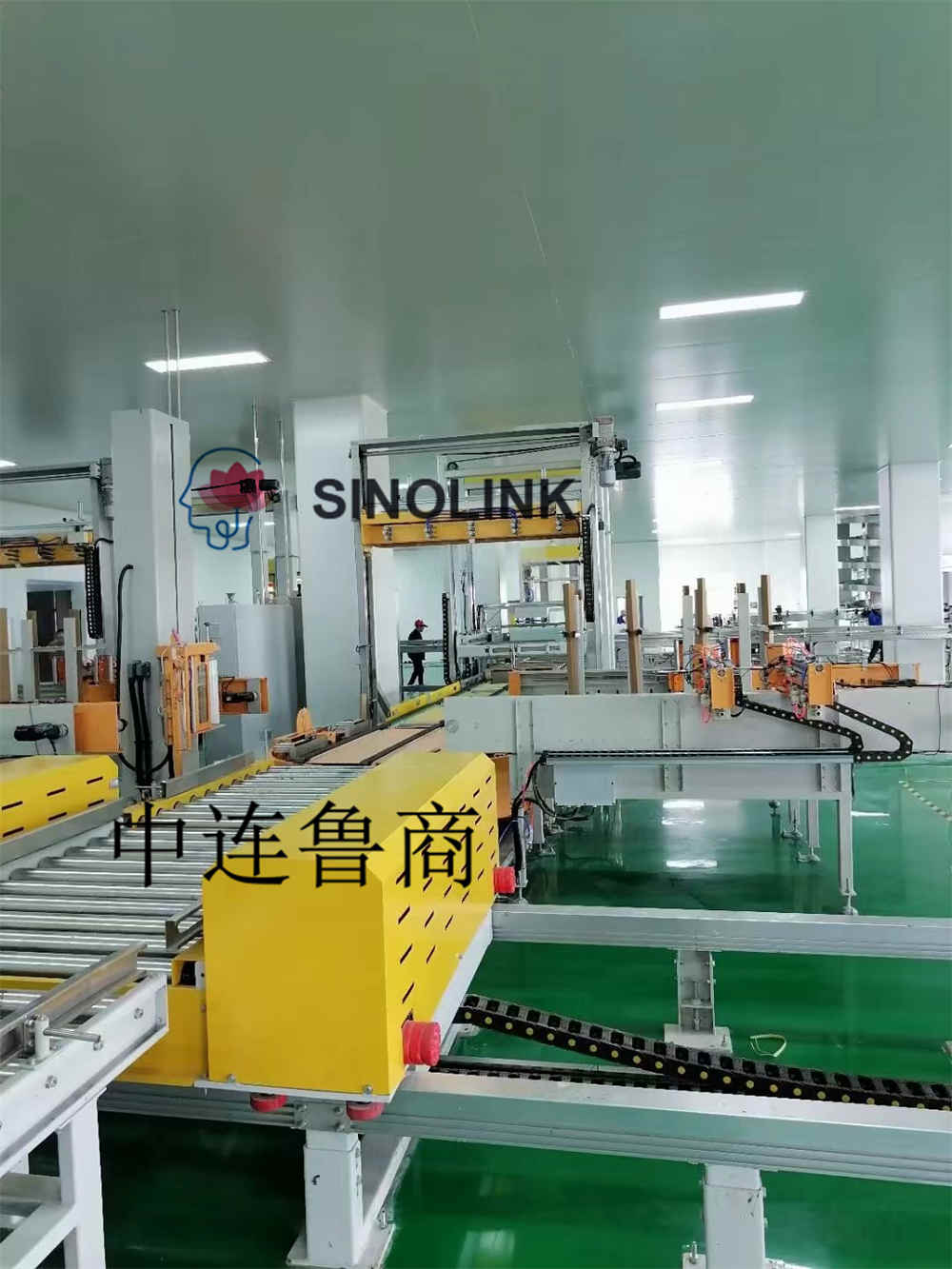

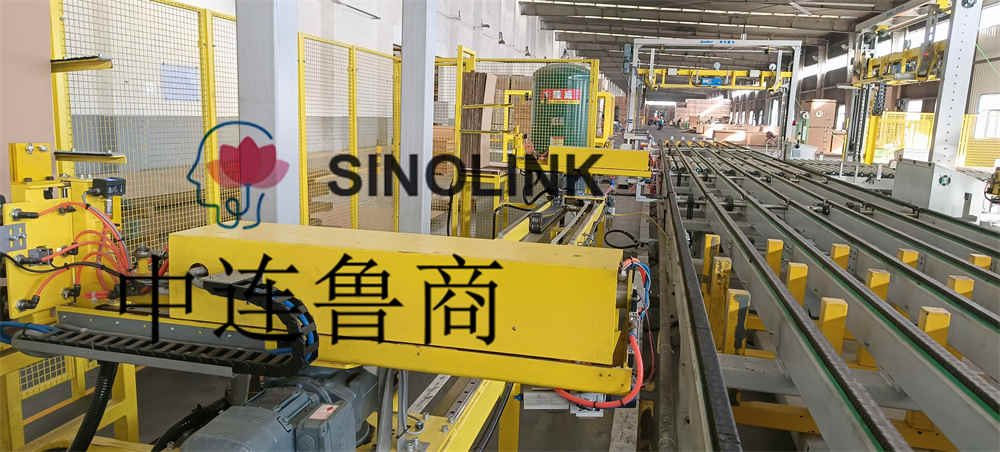

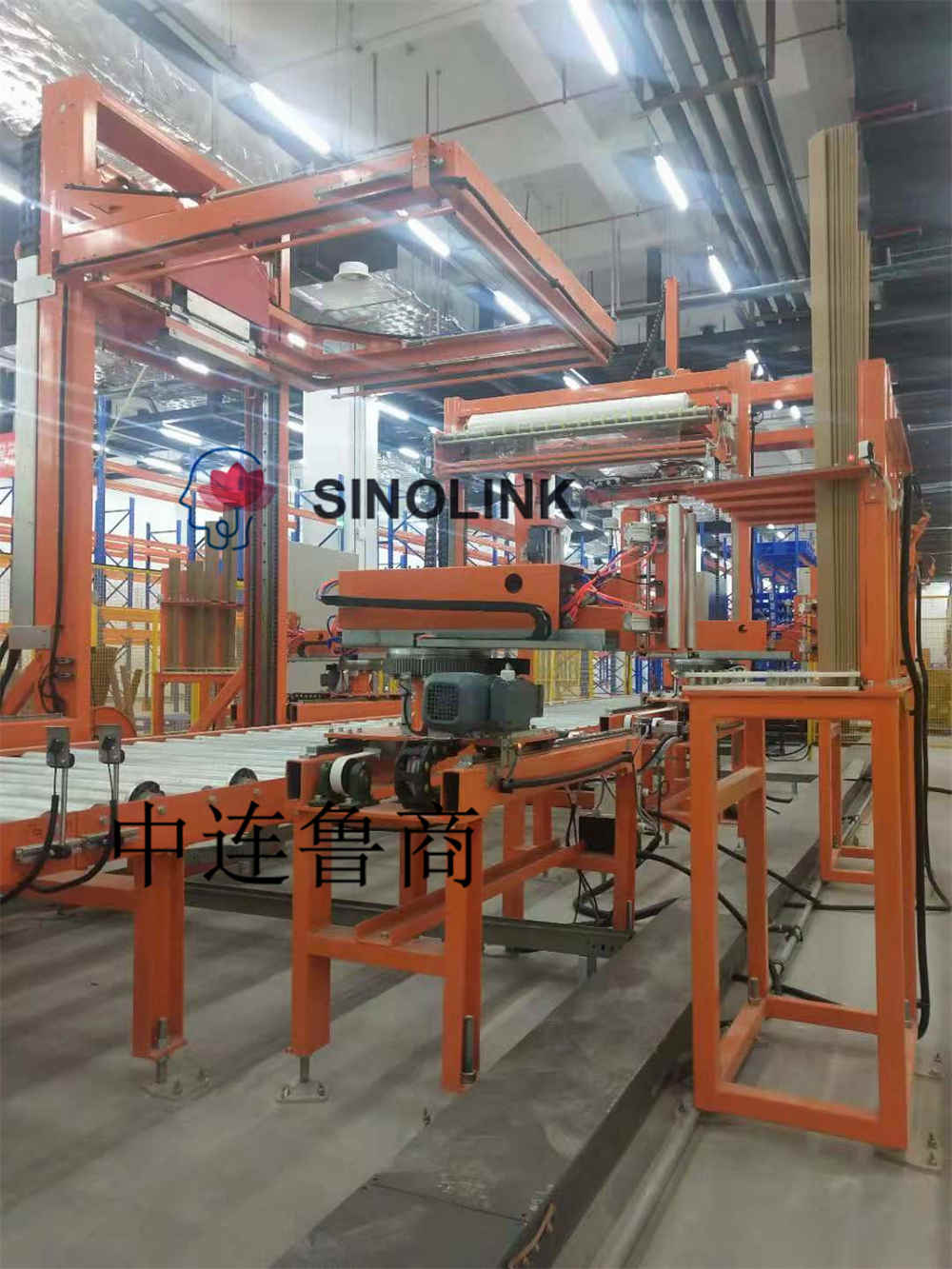

The automatic unmanned automatic extended paper corner protection machine is used with the rocker arm online wrapping machine, pallet online wrapping machine, horizontal or vertical strapping machine, and is used for usage of automatically adding long paper corner of palletized goods protection for the four corners.
Technical parameters:
Paper corner protection specifications: 50×50×5mm
Each corner guard bank is placed in an amount of not less than 80 corner protectors
Wrapped objects:
Packing size: 1200×1100×130mm (pallet) (length * width * height)
Paper Corner Protection Machine parameters
1. Machine load: 2000Kg(max)
2. Packaging efficiency: complete a package within 3 minutes (calculated according to the maximum external size, and including the time of paper corner protection)
3. Winding conveyor line (self-provided by the demander)
5. Rocker speed: 15rpm (max)
6. Power: ~3.5KW
7. Machine weight: 2000Kg
8. Working voltage: 380VAC/3-phase 5-wire/50Hz
9. Air consumption: 1000ml/min
10. Pneumatic working pressure: 0.5~0.7MPa
11. Winding conveyor line height: 700mm (±25mm)
12. Equipment color: color card or color number production provided by the on-demand party.
Scope of supply:
Automatic paper release corner protection mechanism (4 sets):
1. The mechanism can automatically detect and adjust the installation position (the center of the workpiece and the rotation center of the winding machine basically coincide)
2. It can detect the margin of paper corner protection and realize automatic warning, and then manually supplement the paper corner protection
3. After the paper corner protection is placed, the two surfaces adjacent to the workpiece edge are aligned without gaps, and there is no skew phenomenon
4. 4 paper corner protectors are installed and installed vertically, subject to the schematic diagram provided by the demander
5. The whole process of placing paper corner protection realizes unmanned operation, and the equipment is in operation
6. The demander provides the specifications of the paper corner protection for confirmation, and the bottom surface is used as the reference when placing the paper corner protection
7. Servo motor control, more accurate
Electrical & Control System (1 set)
1. PLC programmable control;
2. Independent electric control cabinet, alarm light, and with sound, installed on the electric control cabinet, winding machine electric control cabinet needs to open the door and power off function.
3. Touch screen operation, the number and number of winding layers can be set;
3. Photoelectric switch, automatically sense the height of the goods;
4. Control all equipment in the control system;
5. Digital parameter setting: cantilever speed, membrane frame lifting speed, membrane frame film release speed;
6. The machine is equipped with automatic, manual and side conversion functions, which better ensures the operation of the packaging system.
Main configurations of coner protection machine:
S.N | Name | Brand |
1 | PLC | Siemens (Germany) CUP 1214C DC/DC/RLY (WITH Ethernet communication port) |
2 | Frequency converters | Siemens (Germany) |
3 | touch screen | Siemens (Germany) |
4 | Photoelectric switch | Schneider or P+F or European, American and Japanese equivalent quality brands |
5 | Proximity switch | Schneider or P+F or European, American and Japanese equivalent quality brands |
6 | Low-voltage appliances | Schneider (Germany) or Europe, America and Japan equivalent quality brand |
7 | Solenoid valve | FESTO or European, American and Japanese equivalent quality brands |
8 | cylinder | FESTO or European, American and Japanese equivalent quality brands |
9 | Limit switch | Schmersal or European, American and Japanese equivalent quality brands |
10 | Master device | Schmersal or European, American and Japanese equivalent quality brands |
11 | Open door power off switch | Schmersal or European, American and Japanese equivalent quality brands |
12 | Geared motor | SEW |
13 | Housings or bearings | NSK or equivalent |
14 | DC24V-3A power supply needs to be provided separately, and the DC power supply is selected as MINGWEI brand | |
Working Conditions：
1. Work system: three-shift production, 8 hours per shift, no less than 300 working days per year, 24-hour continuous operation;
2. Power parameters 380V AC50HZ voltage fluctuation range +/-10%;
3 .Operating conditions ambient temperature 0-40°C relative humidity 10-90%.
More requirement or details, please contact with us at any time.
Ady
WhatsApp:+86 15634865861
