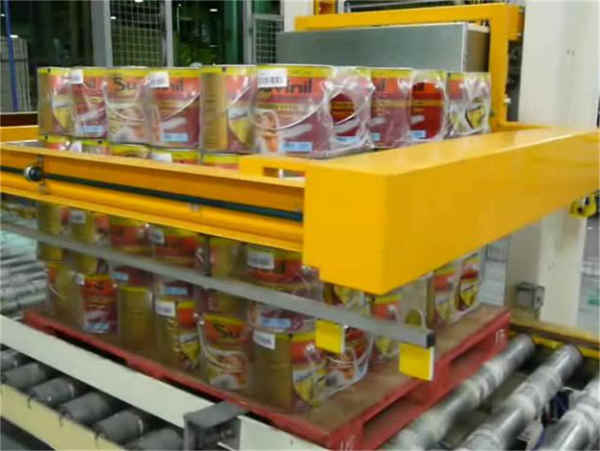

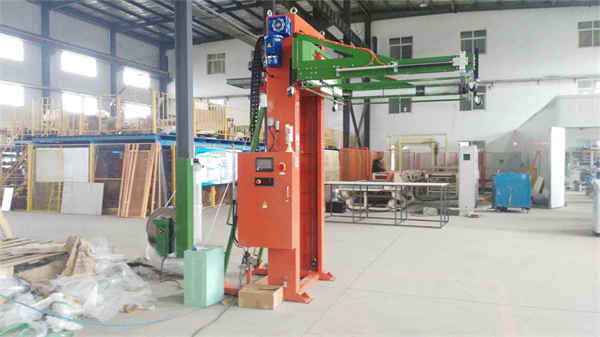

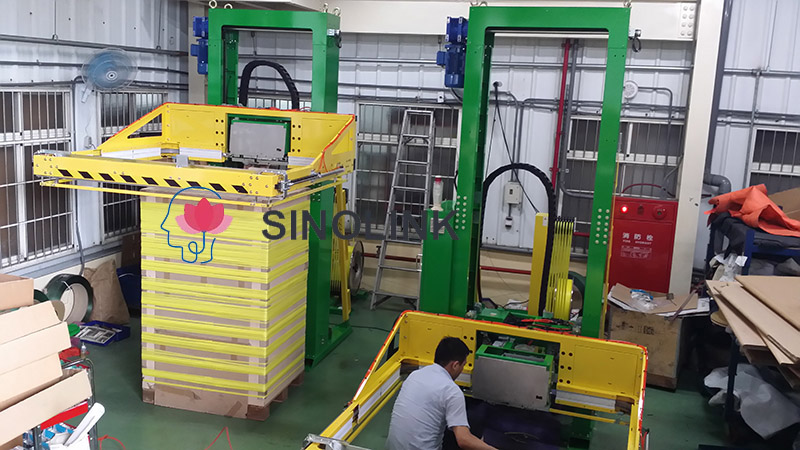

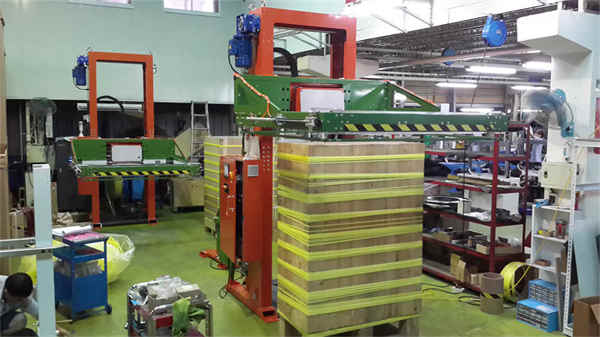

Horizontal Pallet Full Automatic Strapping Machine
Parameters of Horizontal Pallet Full Automatic Strapping Machine
Pallet dimensions :1290 x 1290x150 mm.
Load dimensions: 1200 x 1200 mm.
Pallet height: Min.1049mm including pallet height
Pallet weigh: 1200kg/pallet
Conveyor height: 200mm. (chains conveyor)
Strapping pattern: horizonltal
Product strapped: Metal bucket
Production capacity :120Pallet/hour-2pcs stap in one pallet materials
Horizontal Full Automatic Strapping Machine for Pallet is a strapping machine at one head appositively planned to a complete automation of the packaging lines. It is made with strong and heavy duty columns and has been appositively studied to allow a complete automation of packaging lines for food industries. It allows in the same time the strapping cycle.
Horizontal Pallet Full Automatic Strapping Machine
Strap | P.E.T. |
Useful dimensions | Width:16mm., thickness:0,6 – 0.9mm. |
Inside coil diameter | Inner core diameter 406 mm. x w160 mm. |
Functioning | Electro-mechanic pneumatic |
Strap tensioning | 50 – 3.500 N. |
Throwing speed | 2 mt./sec. adjustable by inverter |
Up/down head speed | 0.25 mt./sec. |
Cutting and welding cycle | 2.2 sec. |
Power | 400 V 3phase + N 50 Hz |
Auxiliaries | 24 V |
Installed power | 5 Kw |
Compressed air | 6 bar |
Details of Horizontal Pallet Full Automatic Strapping Machine :

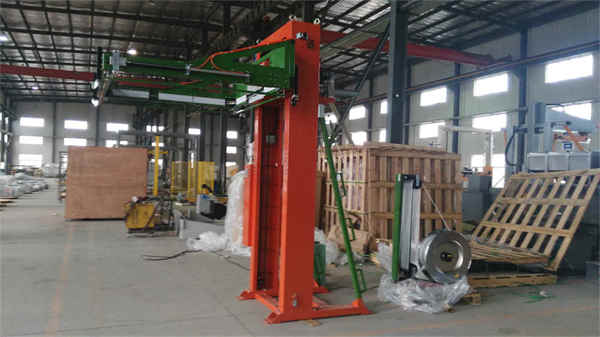

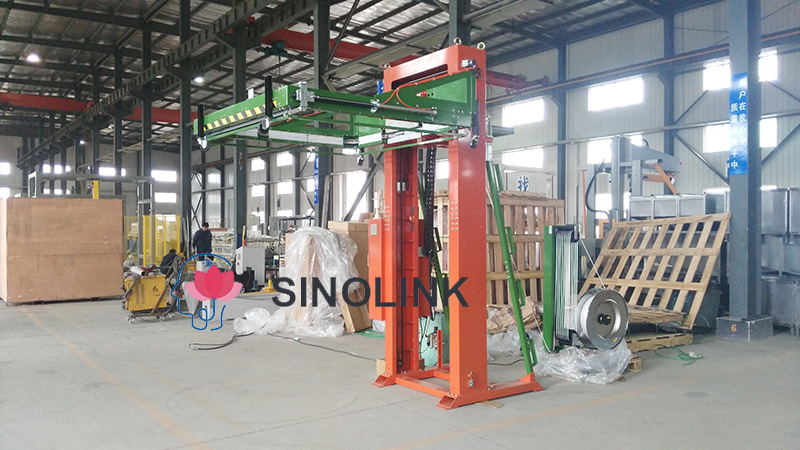

Automatic Horizontal strapping machine mod. as follows:
Hardy machine support frame
Nr.01 strapping heads with vibration welding gadget, especially suitable for pet use.
Approach of the strapping head to the pallet
Strap frame driven by gear motor with rack and pinion.
Head equipped with good device design ensure four-sides PET strapping quality and strong
Automated strapping peak studies device.
Adjustable dynamometrical strap tensioning device.five to 350kg
Nr. 01 motorized reel holders to recover the exceeding strapping band and keep away from surplus of cloth.
Nr. 01 strap guide arches in aluminium.
Possibility to use both polyester and polypropylene strap.width16mm
Powered strap dispenser for use with coils I.D. 405 mm. width 160mm complete with accumulator.
Control console with programmable logic SIEMENS S7-300 (PLC) with manual and automatic commands
By-pass
Self-checking breakdown
The machine is supplied in line with the current CE rules, following the 89/392 regulation, ex appendix 2B.

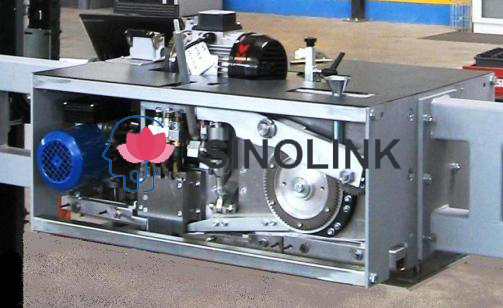

 | Strapping head with vibration welding system -this head has been designed with the max simplicity to supply a very dependable functioning. -welding made by using vibration machine for a consistent and dependable joint performance -strong and compact frame -adjustable max tension from 50 to three.500 newton -possibility to paintings both with puppy strap. |

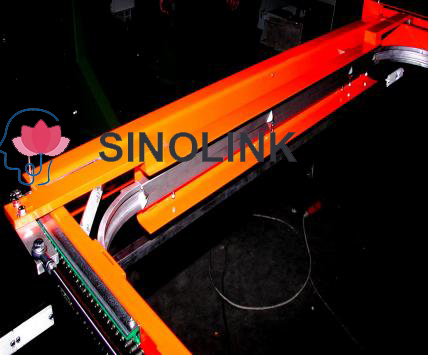

 | Trap guide Picture is shown a strap guide for a better positioned of the strap on the product. |

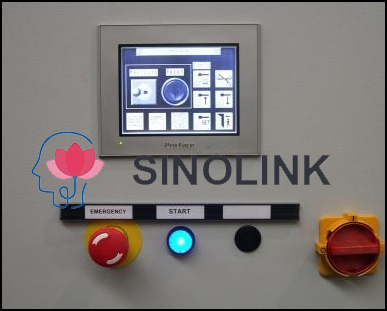

 | Touch screen -Control panel of the machine with PLC functions -Dedicated control panel with touch screen -Different strapping programs based on the needs of the customer -Possibility to work in manual or automatic mode -By-pass |
Full automatic horizontal strapping machine+full automatic vertical corner protector reference:
Detailed requirement, please contact with us.
We will supply the most optimized program for your reference.
