Baggage Packaging Machine Using In Airport
Baggage Packaging Machine Using In Airport

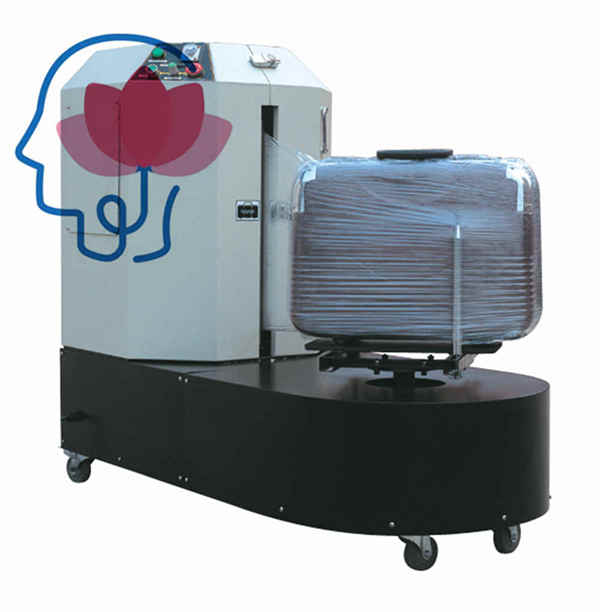

When passengers take planes, trains, ships and cars, luggage is easy to cause damage, scattering and loss during the process of moving, checking and carrying, and the baggage packaging machine uses LLDPE winding film or mesh film as the main raw material, and the luggage is fully enclosed six-sided wrapping. The baggage winding packaging machine can be moved, and the operation process of the baggage packing machine is relatively simple: the operator puts the luggage on the turntable, and adjusts the position of the vertical bar according to the size of the baggage, so that the luggage can be placed smoothly on the turntable; Then the operator presses the start button on the operation panel, and the baggage winding machine automatically packs, and the general luggage bag can be 3-5 layers. After packing, the operator manually cuts the film and then removes the luggage. The packed suitcase is safe, beautiful and neat, which effectively solves the inconvenience and trouble of the transportation department and passengers. The use of this winding packaging machine can reduce packaging costs, facilitate storage and transportation, easy to recycle packaging materials, and reduce environmental pollution. This is one of the more popular green transport packaging methods today.
Main technology parameters
1. Baggage Packaging Machine introduction
Buggage Packaging is designed to wrap bags and associated objects for protection motive in airport.
Film gives greater guide whilst the bags is being transport to shield from being damaged.
The operator locations the bags on the platform and adjusts vertical rods to invulnerable bag in accordance the luggage's size.
2. Technical parameter of Baggage Packaging Machine
Max. Packing size (mm) 180-400mm (W) × 400-800mm (L) ×300-600mm (H)
Rotating speed: 0-23 RPM
Power supply 230V/50Hz/1 Phase: 0.5kw
Weight Capacity 100kg
Packing Materials Stretch film width 500mm
Dimension(mm) 650(W)×1570(L)×1200(H)
Machine Weight 200kg
3. Features of Baggage Packaging Machine
PLC control screen
Powered Pre-stretch film carriage up to 1:3 to reduce film consumption
Operator adjusts vertical rods to secure bag
Film Tension Control adjustment on the panel
Wrap layer adjuster
Platform speed 20RPM
Machine easy to be moved by one person
4. Parts list
No. | Item | Brand | Brand Original |
(1) | Inverter | Dema/ Omron (CE) | China/Japan |
(2) | PLC & screen | Sinoblue display(CE) | China |
(3) | Button | Schneider | France |
(5) | Motors | Chinese brand(CE) | China |
(6) | Breaker | Schneider | France |
5. Film carriage system of Baggage Packaging Machine：
Drive by pre-stretch carriage, stretch ratio up to 250%, double chain design, stable and reliable.
The AC motor stretch the film, and the frequency converter adjusts the tension;
Moving up or moving down of film carriage and the speed of film speeding can be adjusted separately;
Servo mechanism of film system, which can be pulled once.
6. Control system of Baggage Packaging Machine Using In Airport：
Program control unit integrated machine;
Wrapping layers and times can be set;
Photoelectric switch, automatically sensing the height of goods;
Reinforced wrapping function, which can protect certain parts specially;
Overtop time setting function.
Packaging & Delivery of Baggage Packaging Machine Using In Airport
More information, please contact with me.
