Paper Roll Conveying And Packaging System
Paper roll conveying and packaging system
According to the characteristic of paper roll conveying and packaging, we provide the following equipments:

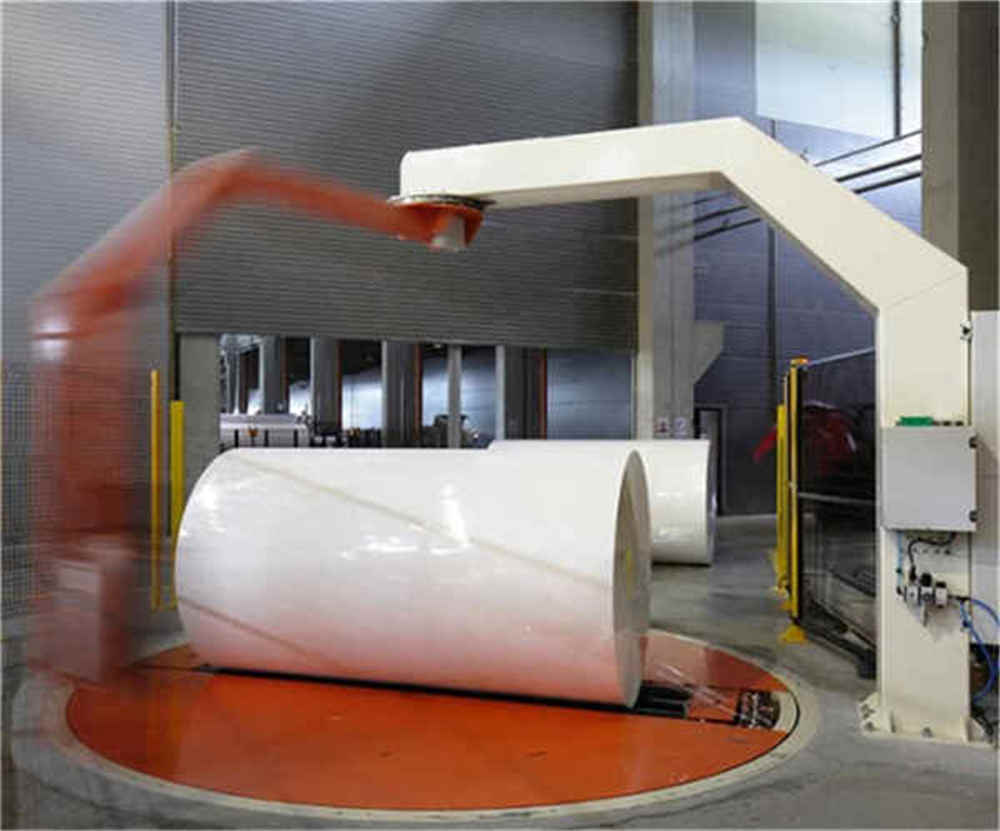

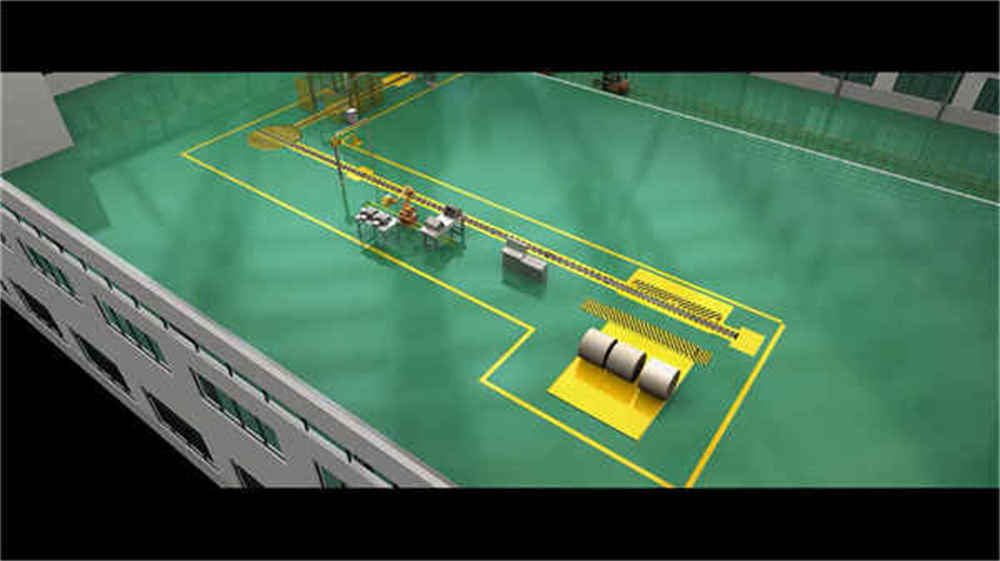

Paper roll packaging and handing system: The finishing rolls coming from the rewinder. handled by the sorting deck. V-type slat conveyor, weighing machine, code spray machine strapping machine or stretch wrapping machine, kraft paper wrapping machine, contol & data management system, roll elevator to the automatic roll storage.
Sheet paper packaging system: The sheet paper will he placed on the pallet, handling by conveyor , centering machine, PE film banding machine, top sheet dispenser, top sheet film sealing, transported to shrinking machine, cooling system after shrink strapping machine, elevator, then to the automatic roll storage.
Technical specifications of Paper Roll Conveying And Packaging System
Chain pitch: | P = 63.5 mm |
Driving speed: | 24 m/min the slat conveyor is designed with high driving speed to meet the production requirement and is frequency-controlled |
Slat width: | B = 55 mm |
Slat length: | L = 250 mm |
Thickness: | S = 8 mm Stainless steel 304 |
Features:

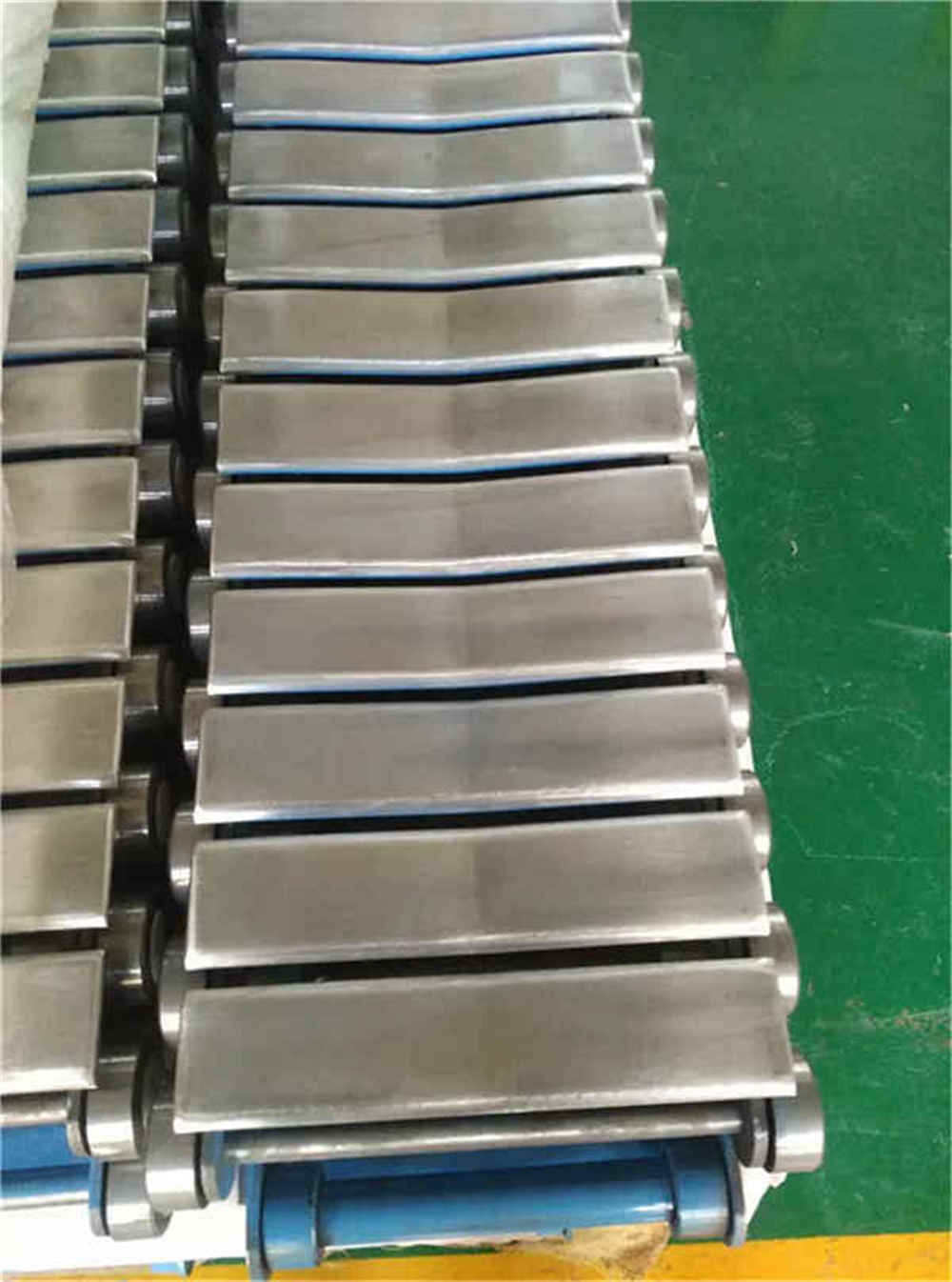

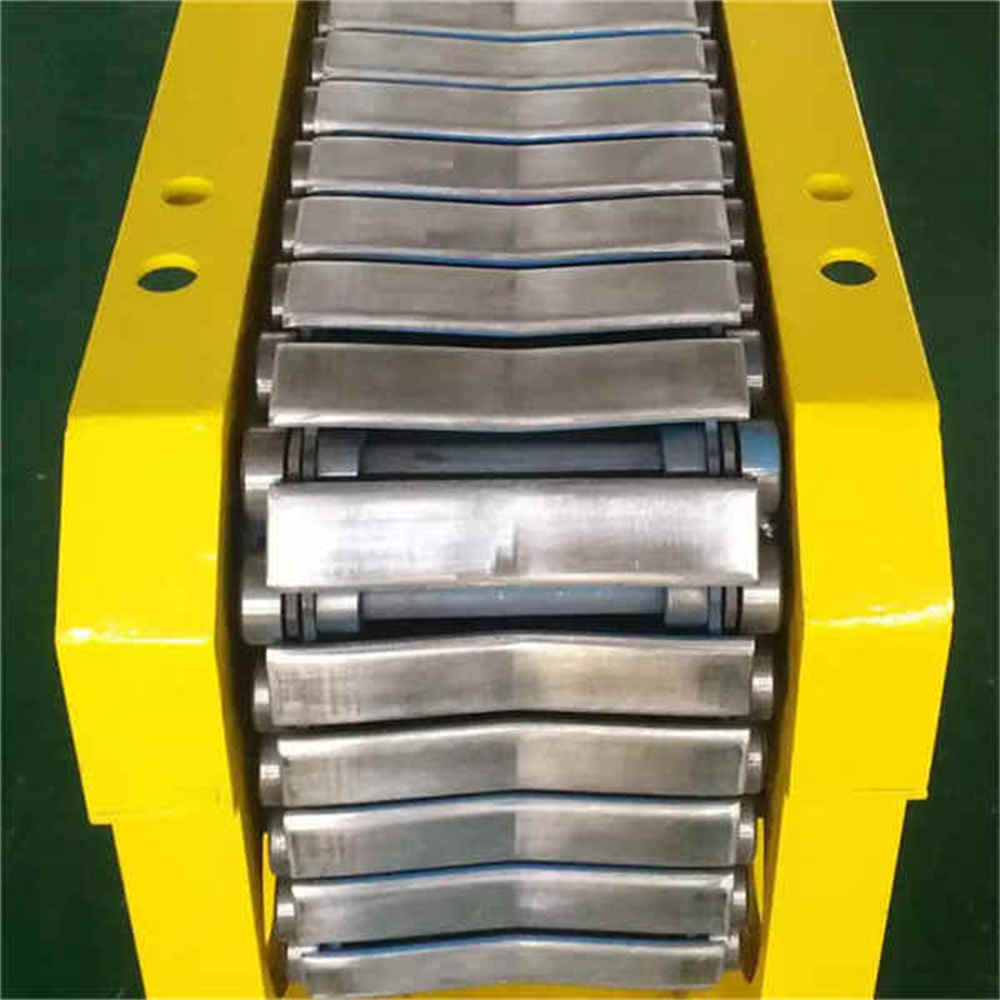

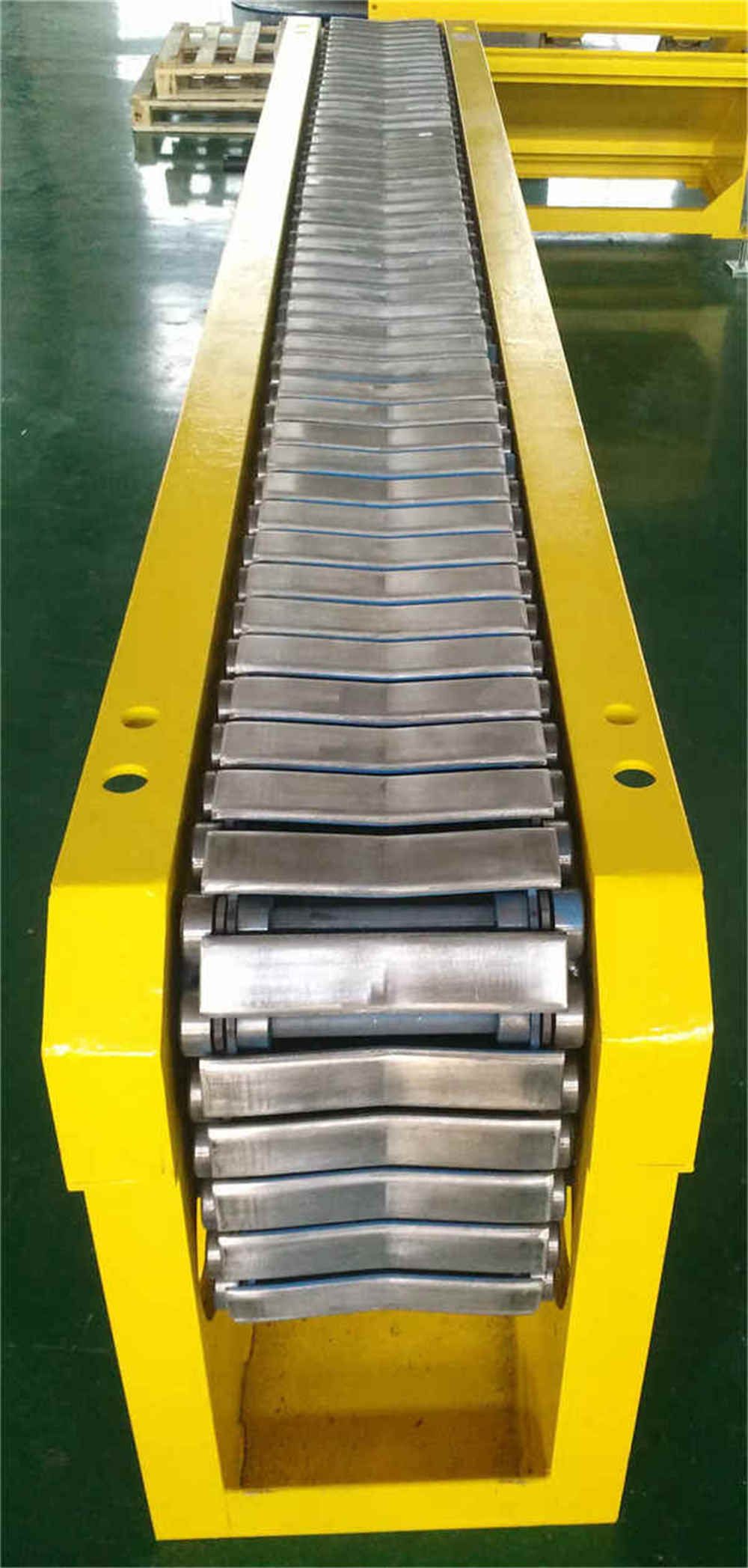

The conveyor slat is made in V-Shaped, Angle: 170°.
Loading capacity of slat conveyor: 4000 kg/m (>500 mm distance interval between paper roll).
Chain rollers installed with bearing inside, No oil and No contamination on paper rolls.
Heavy duty steel structures, modular design.
Equipped with vertical shaft driving gear reducer.
Tensioner adjusting device & lubrication can be operated on floor level, easy for maintenance.
Equipped with automatic control components and mounting bracket.
Slat conveyor installed in floor level, convenient for the production operation.
Equipped with cover plates at the head and end of transmission units easy to dismantle.

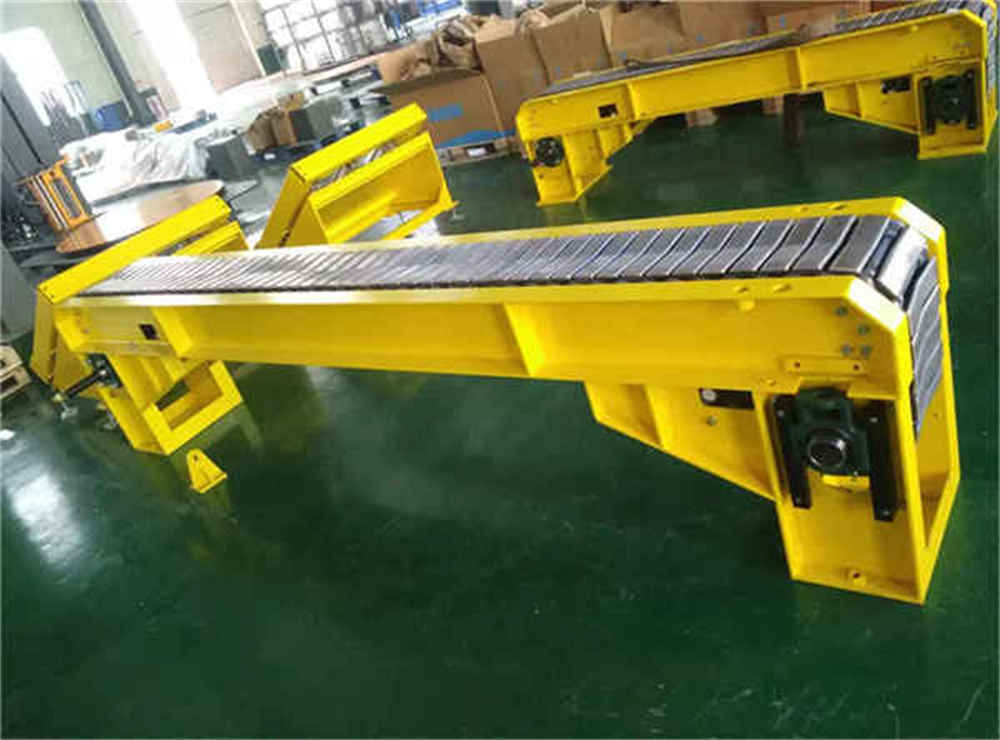

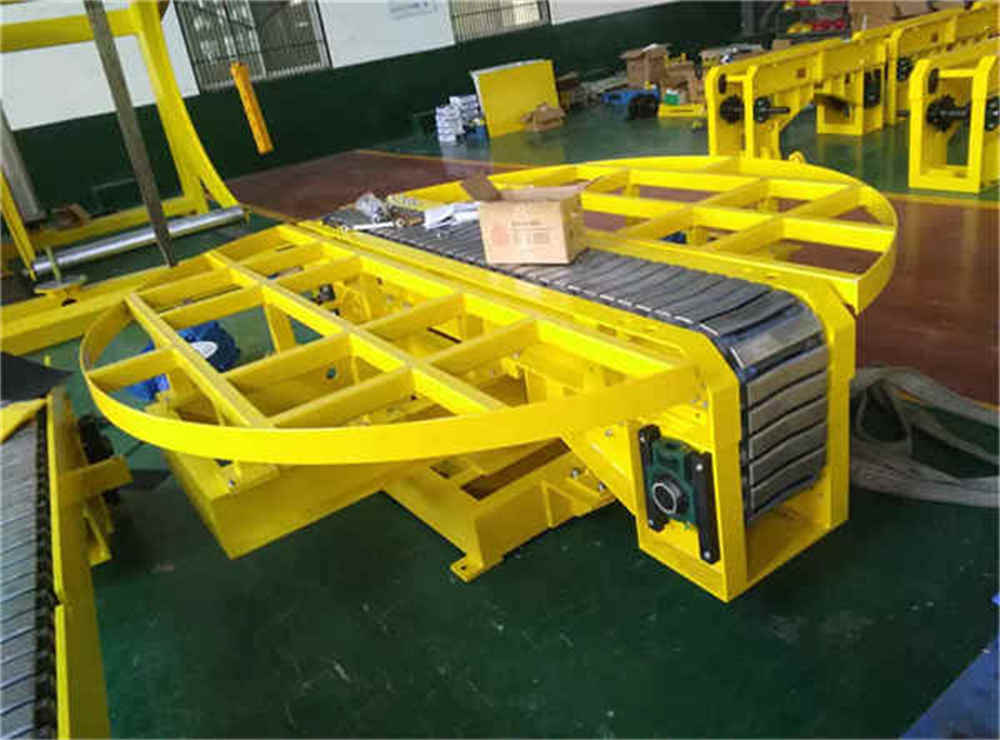

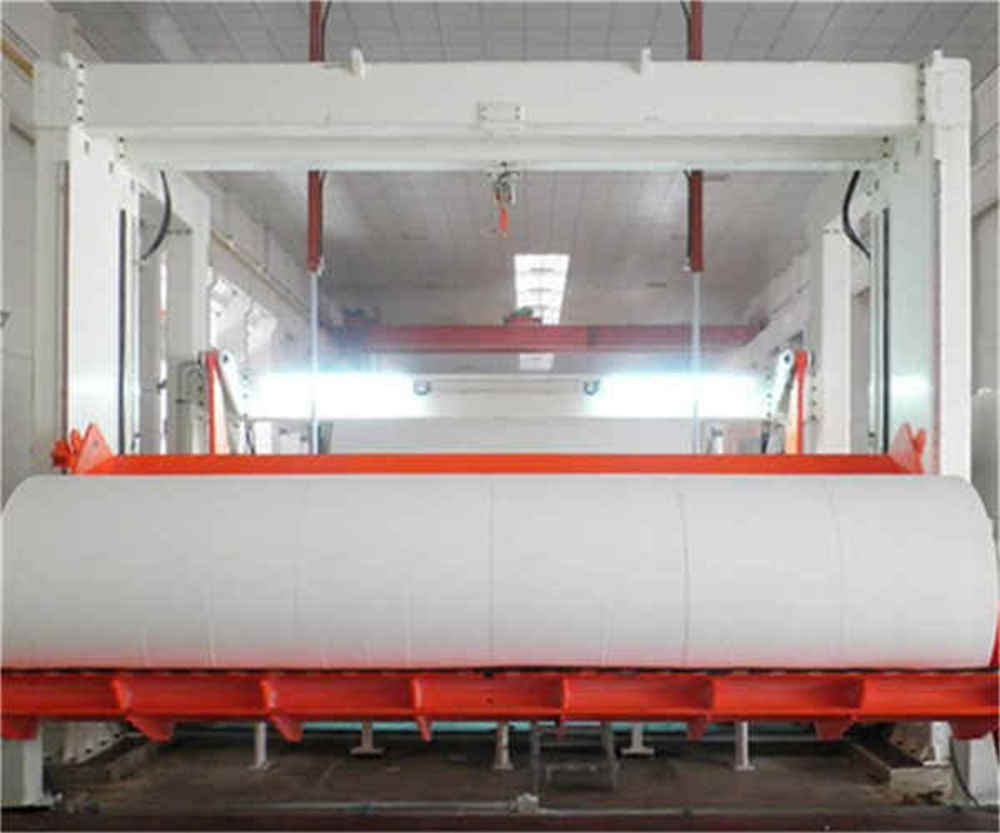

Full Pictures for reference:
If you have any requirement, please contact me at any time.
We can help you design what you need and the best for you.
More information, please contact with me at any time!
