Automatic Ring Horizontal Wrapper Packing Machine

Technical parameters of Automatic Ring Horizontal Wrapper Packing Machine

1. Product specifications and packaging requirements

Product Name: Door Cover

Product weight: 100kg(max)

Door set length: 800mm-4000mm

Packing width 140-400mm

Packing height 90-300mm

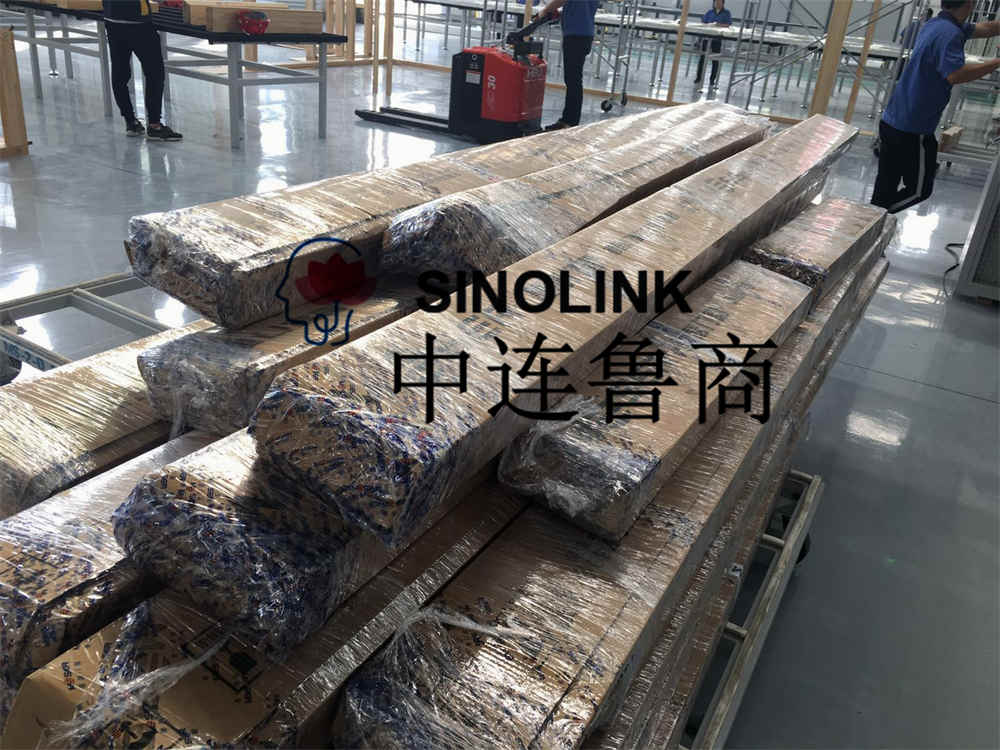

The horizontal sleeve and vertical sleeve of the door sleeve are stacked neatly before winding, and since the cross sleeve is shorter than the vertical sleeve, the horizontal sleeve and the head end of the vertical sleeve must be aligned before winding (refer to the customer's site photo).

2. Packaging materials

Use a fixed size wrapping film

LLDPE stretch film

Thickness: 20-30μm Film width: 250mm (fixed size)

Paper tube inner diameter: 76.2mm The maximum outer diameter of the film roll: 240mm

SUPPLY SCOPE of Packing Machine, Wrapper Packing Machine,Wrappers Machine

1. Main unit (1 set)

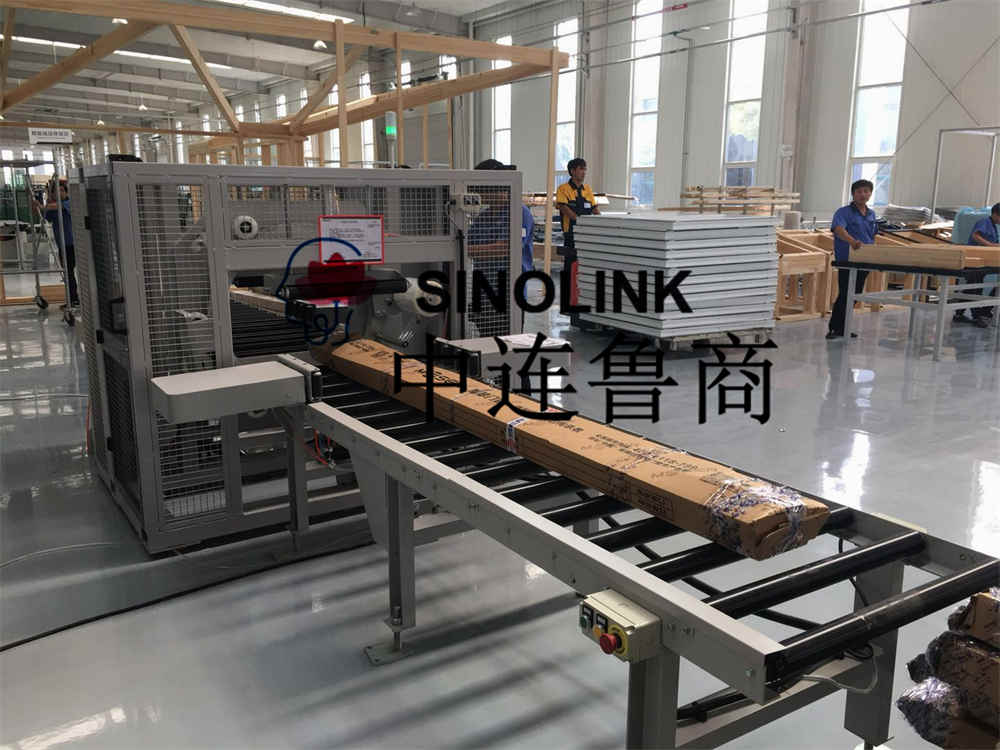

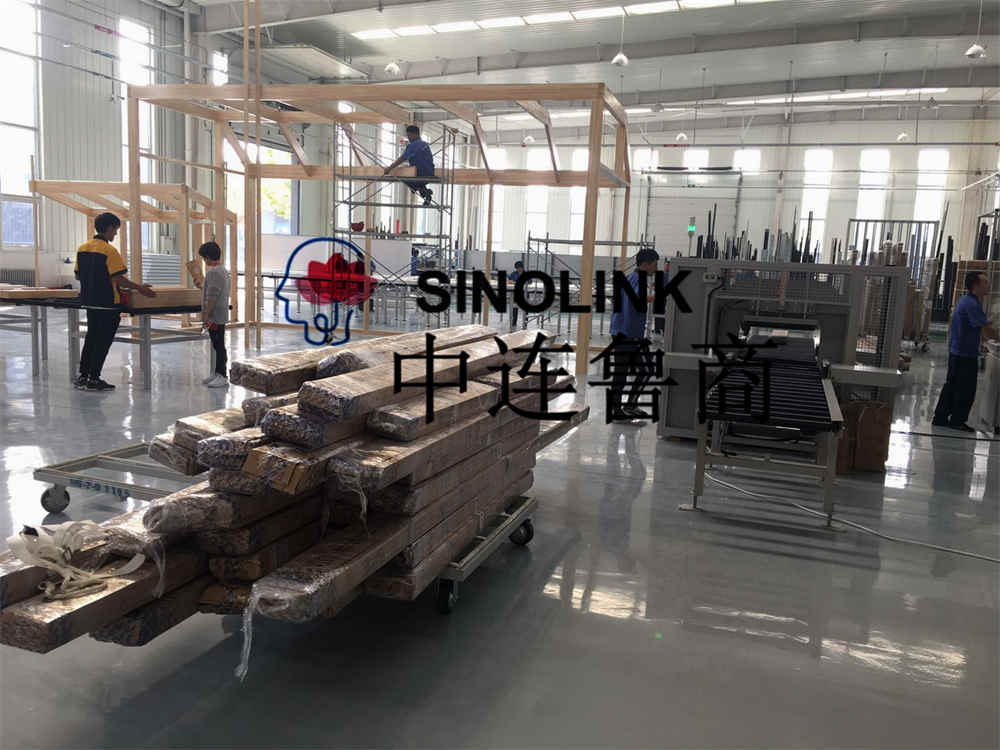

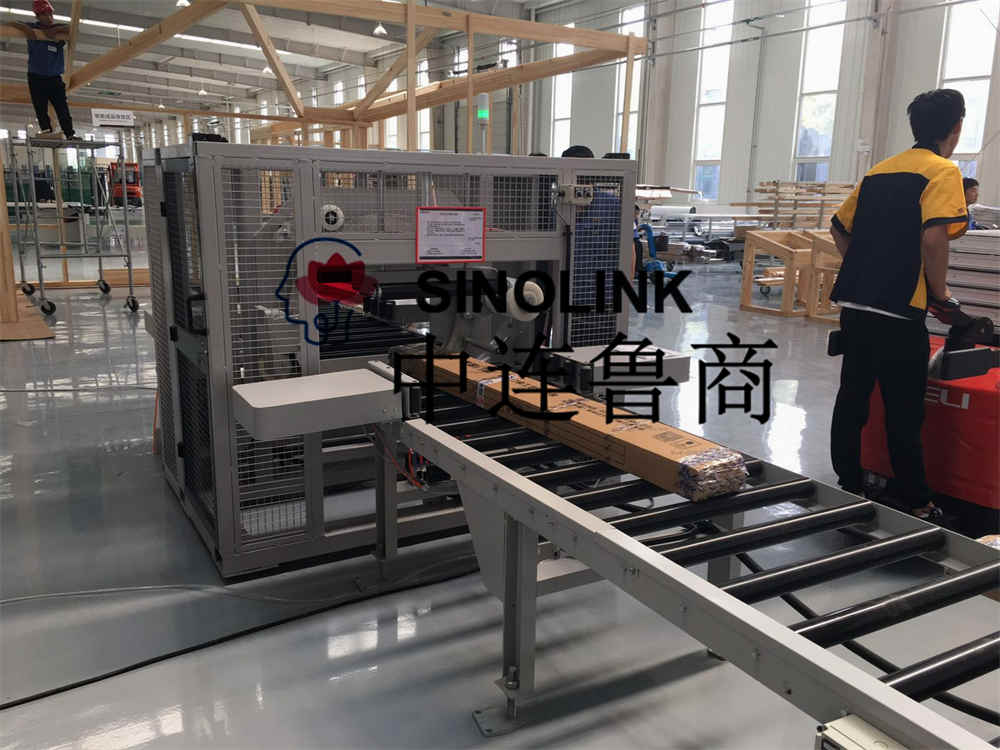

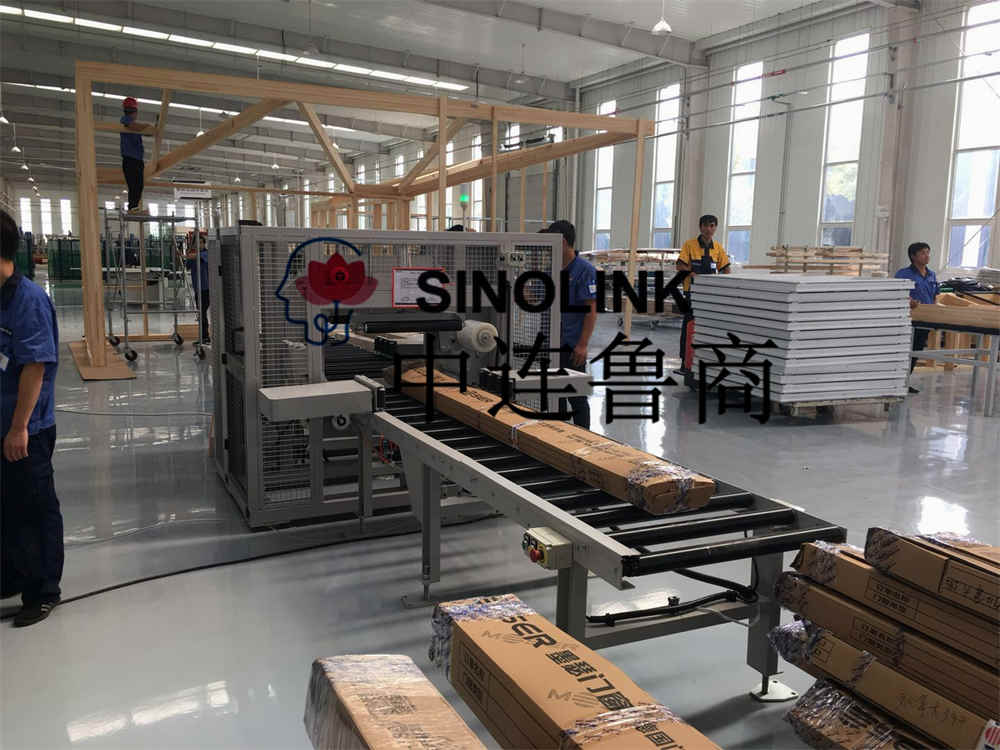

Equipment: Automatic horizontal winding packaging machine

Main manufacturing material: Q235 profile

Swivel Specifications:

Swivel ring inner diameter: 800mm

Rotation speed: 25-35 rpm (frequency conversion speed regulation)

Power supply: 380V/50HZ

Rotary ring drive geared motor: Tongyu transmission

Pneumatic downward and side pressure devices:

It is used for the lower pressure and side pressure fixing of incoming goods, which is convenient for stable transportation of goods

Pneumatic top cylinder: FESTO or SMC

Downward pressure and side pressure stroke: subject to the design of the technical department

Top-down pressure and side pressure use double-row driven rollers to import and exit the goods in one set in order to fix the material and allow the material to be transported smoothly

Membrane rack device:

Use fixed specification 250mm wrapping film;

Mechanical resistance stretching film frame, tension is mechanically adjustable;

It can meet all the winding functions of the door sleeve;

Automatic membrane breaking device:

After the winding is completed, the specially designed upper film breaking device automatically cuts off the film and clamps the membrane head

The film is cut off using a pneumatically controlled cutter

Pneumatic components are used: FESTO or SMC

Air consumption: 1000ml Air pressure: 0.4-0.6MPa

2. Winding Roller Conveyor (2 sets)

Conveyor line speed: 5-7 m/min (frequency conversion speed regulation)

Conveyor surface height: 900mm

Conveyor length: 3000mm×2

Conveying is carried out using a roller conveyor

Conveyor width: 500mm

The roller is covered with soft rubber, and the roller specification is subject to the actual design

Conveyor geared motor: Tongyu transmission

The conveyor conveyor conveying speed is adjustable in frequency conversion

3. Conveyor side rollers (2 sets)

The side rollers are coated with soft rubber

The side rollers protrude from the gap between the conveyor rollers to assist in tightening the door sleeves during winding and conveying

Side rollers are installed between conveyor roller gaps

Pneumatic adjustment, automatic sensing of incoming and outgoing goods and action

Pneumatic components: FESTO or SMC

4 .Control system and equipment performance

PLC programmable control; The PLC input port is reserved for 8 points

The equipment has two functions: manual and automatic start, free switching, manual start using foot switch to start;

Touch screen operation, simple and clear operation, digital parameter setting, with automatic fault diagnosis function;

Drive motor frequency conversion speed regulation;

The photoelectric switch automatically senses the position of the cargo in operation;

Unique program control, capable of fully enclosed horizontal winding of cylindrical goods of different specifications;

5. Electrical control system details
