Fully Automatic IKEA Home Paper Pallet Logistics Conveying Wrapping Packaging System

1.2、Packaging materials:

1. LLDPE stretch film;

2. Thickness: 20-35μm Maximum outer diameter: 240mm Paper core inner hole: Ø76mm Paper core .

1.3、Other instructions:

The direction of loading must ensure that it is convenient for forklifts to unload;

Palletizing of goods into cartons onto paper pallets (IKEA systems);

The top film and corner protection are manually processed by the demander to add and fix, and the type of pallet is shown in the annex ;

The dimensions of the entire cargo are shown in Annex 2;

The maximum weight of a single pallet cargo is 400kg.

1.4、Implementation function:

 The goods are manually pushed to the automatic conveyor for loading. When loading, the operator should control the speed of the goods in order to protect the bottom corner of the paper tray from damage due to excessive speed difference.

Please refer to the technical scheme diagram for the direction of loading;

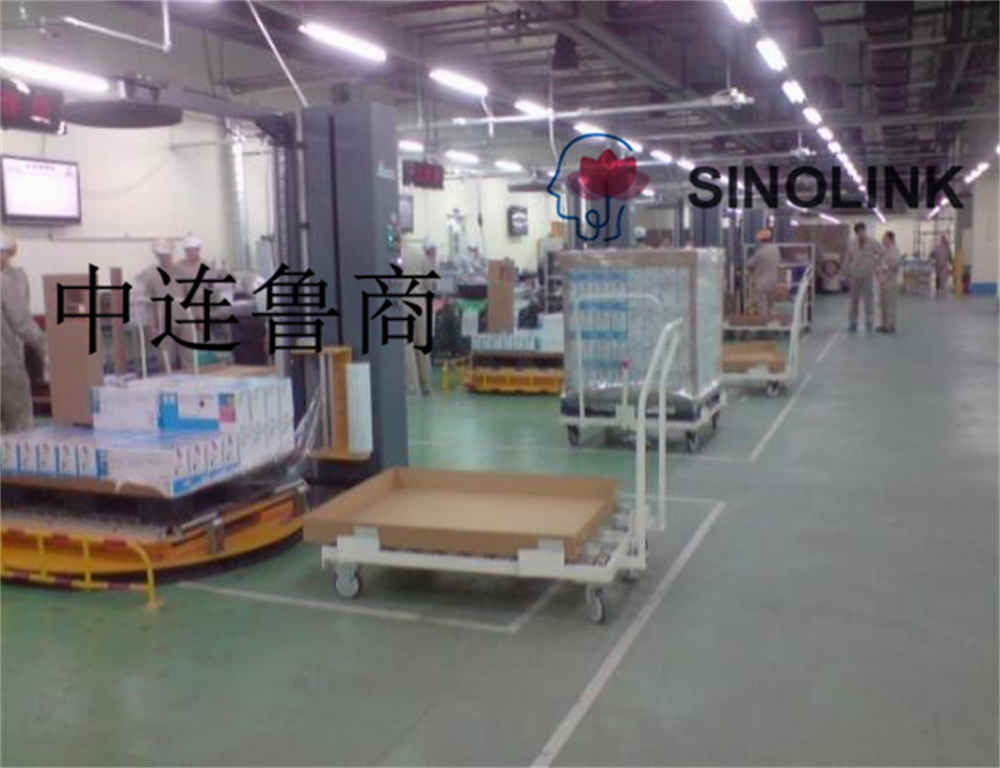

The manual loading trolley is prepared by the demander, and the design plan needs to be negotiated with the supplier so that the supplier's equipment can be perfectly docked with the demander's trolley;

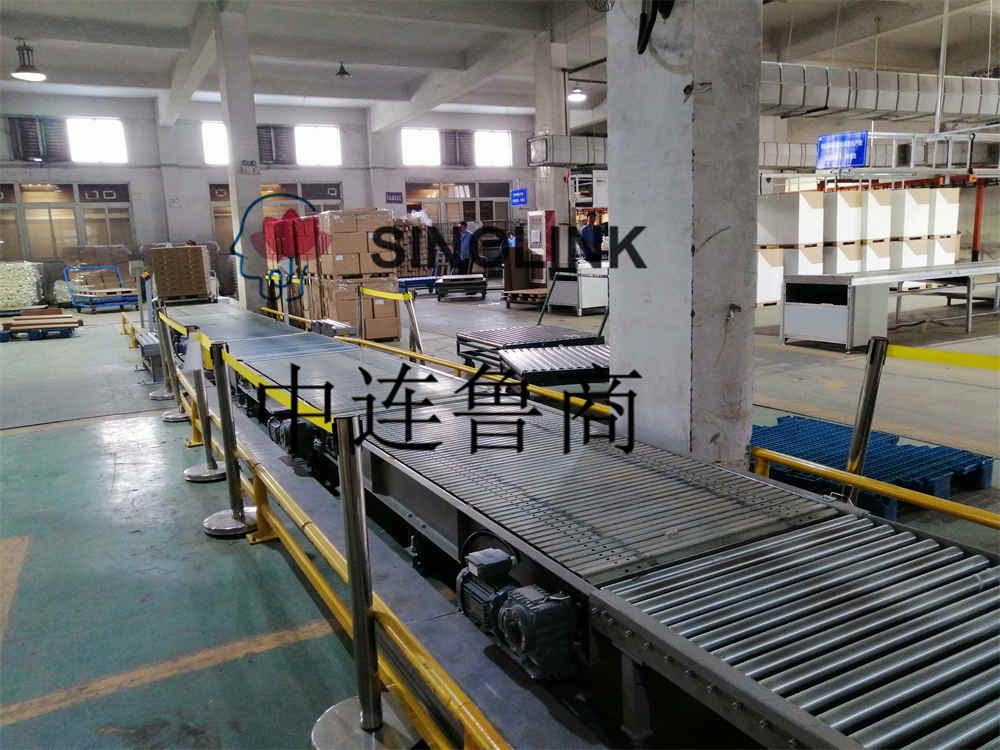

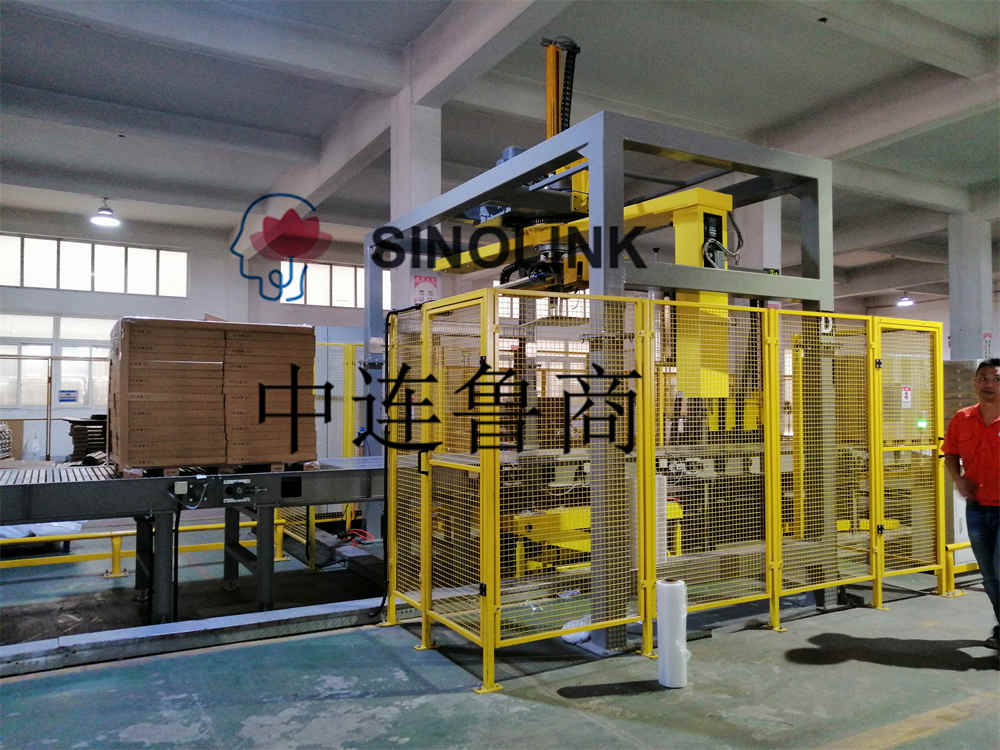

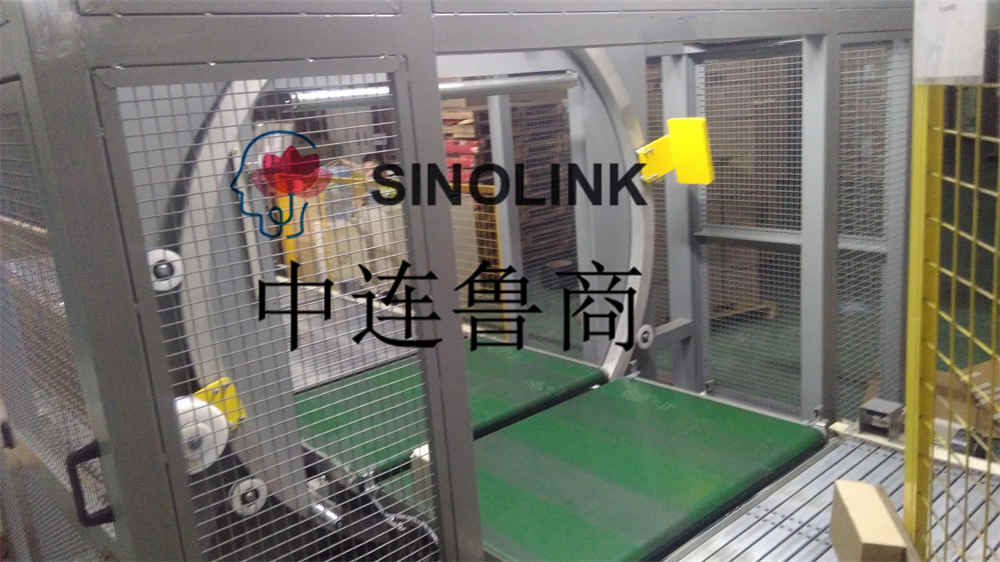

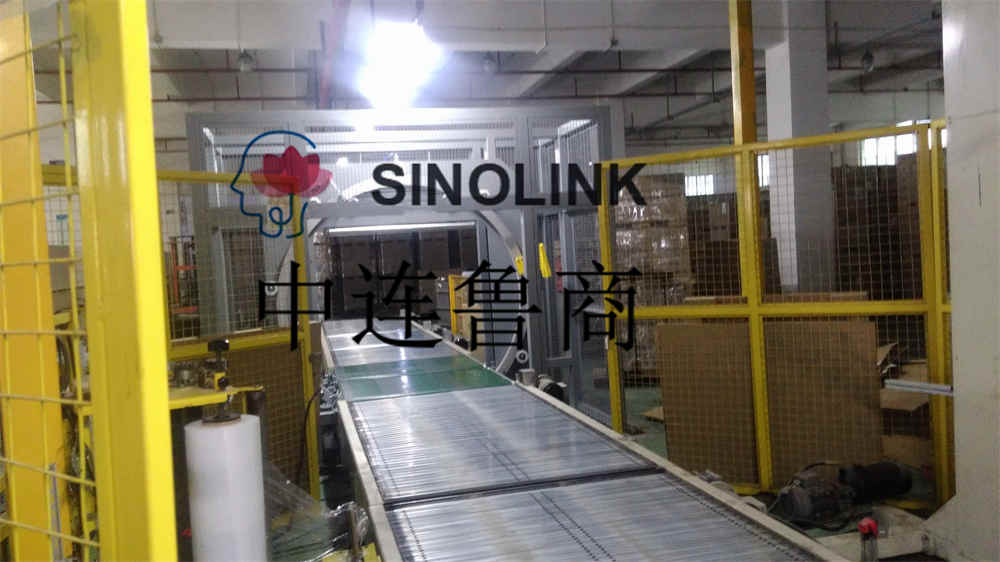

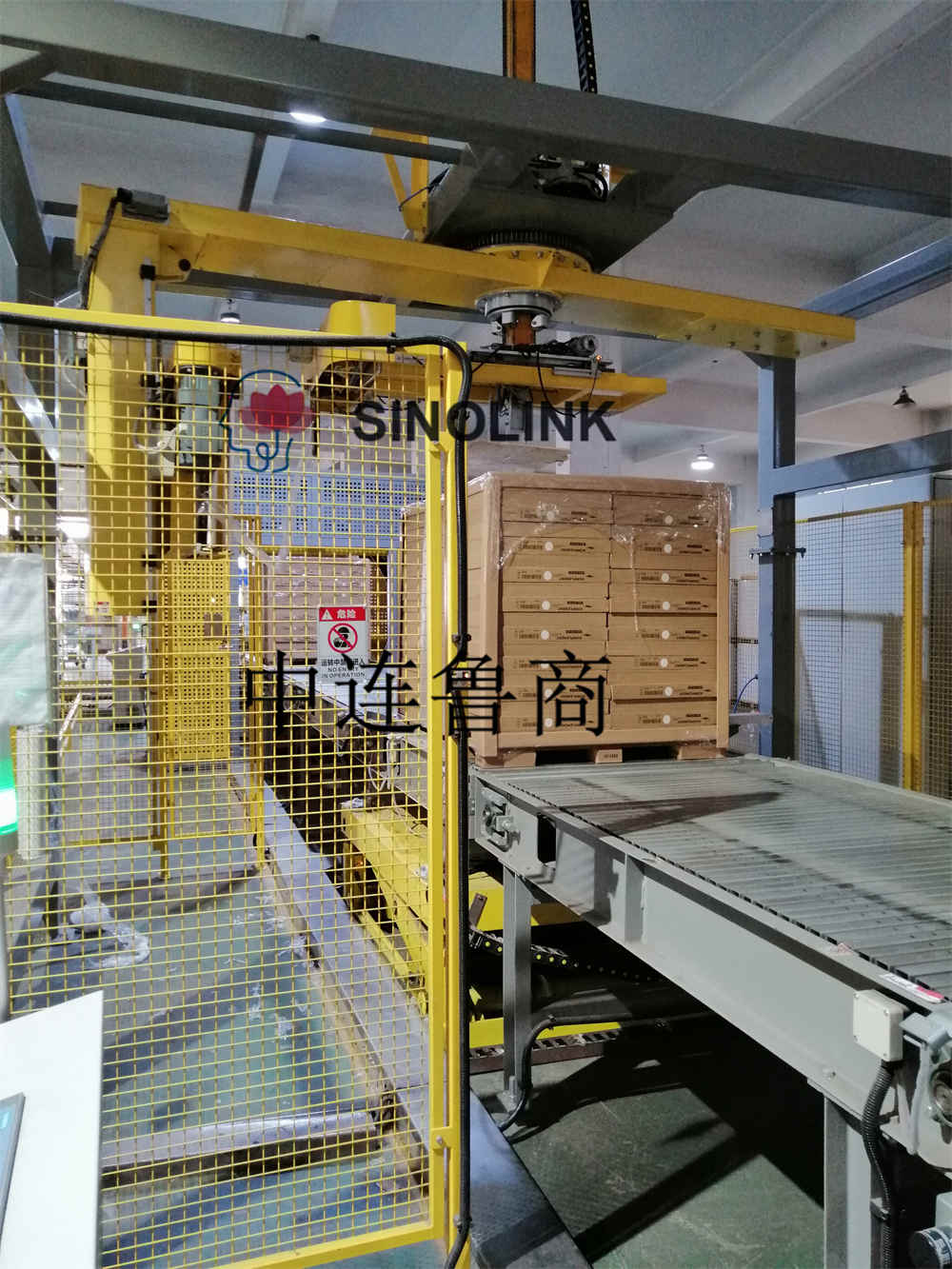

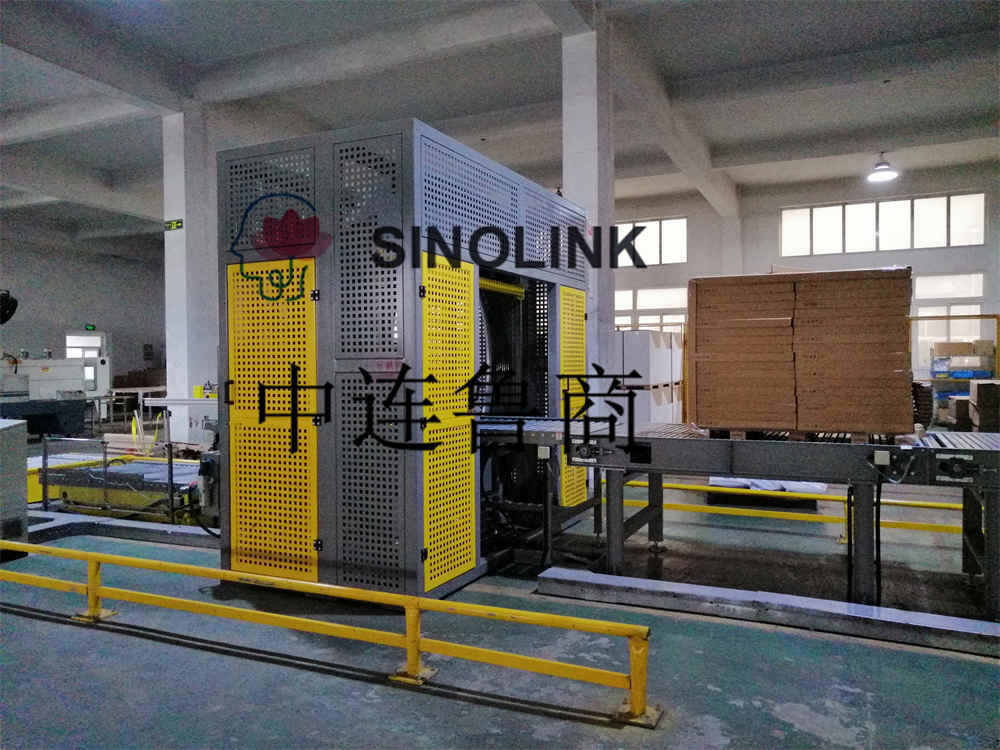

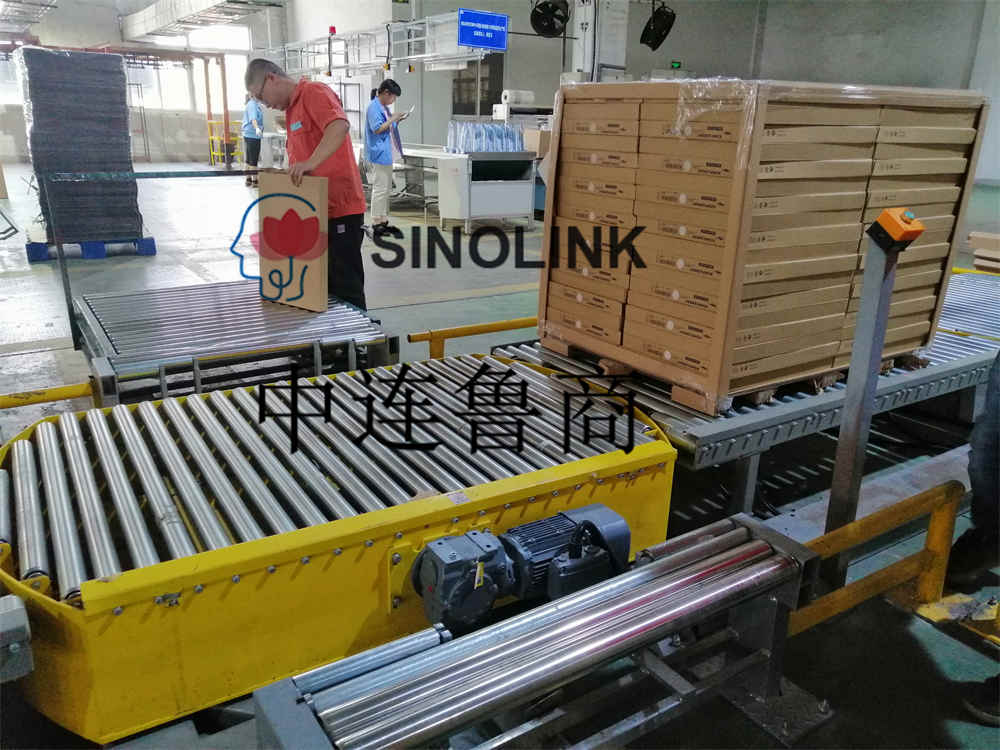

Demand-side front end 6 lines incoming material (each line of goods is different) ——— turntable conveyor (manually pushed to the automatic conveyor by manual non-powered loading trolley) ——— chain conveying ——— small roller electric lift (raised from 400mm to 950mm height by the goods) ——— horizontal winding (when strapping) ——— top top broken film automatic winding packaging machine (with hydraulic jacking) ——— automatic stacker (each product needs manual control of loading, in pairs to stack, mixed loading is not in pairs, It will cause non-homogeneous product stacking, or even more serious consequences, so the loading personnel must confirm by themselves);

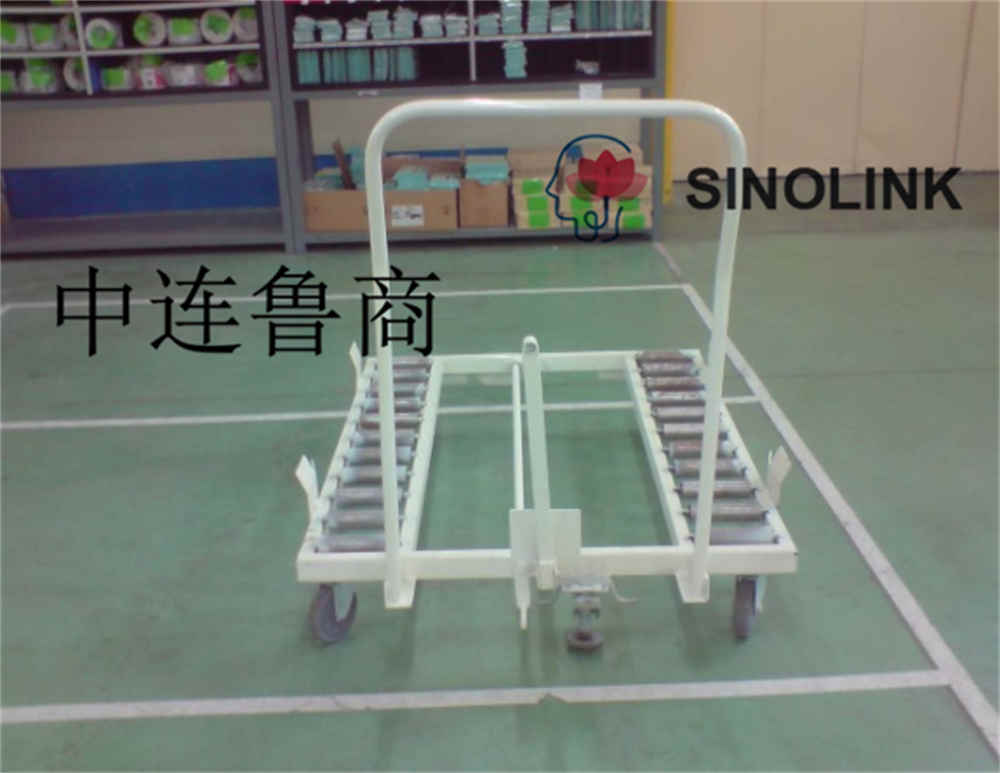

The loading form is a manual cart, as shown in the following reference figure:

1.5. Control system and protection function

The key parts of the equipment are protected by a safety protection net, and a safety door is installed to ensure the smooth entry and exit of maintenance personnel, and a safety door lock is installed on the safety door, and the equipment stops running and issues an alarm when the safety door is opened or not confirmed to lock.

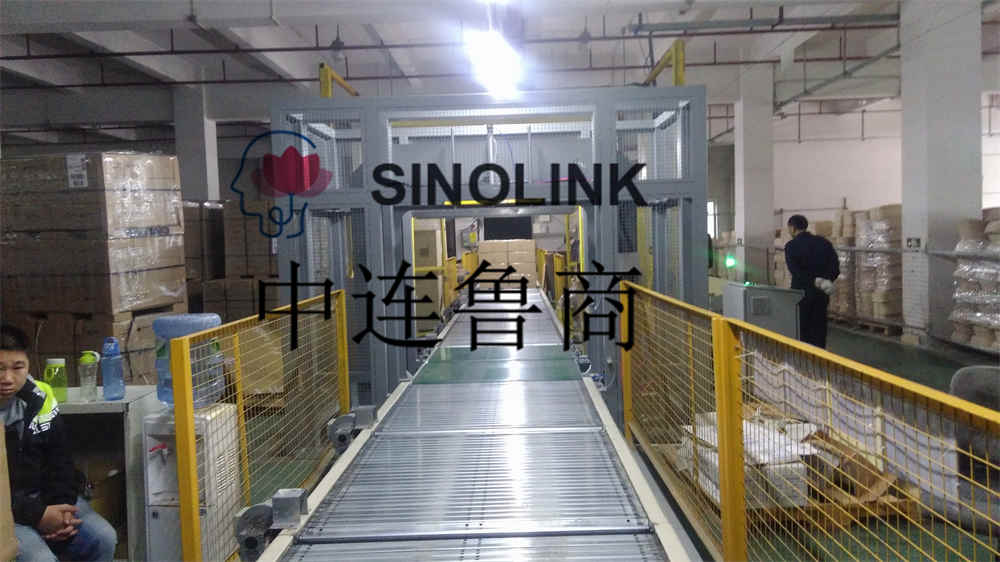

Logistics conveying packaging system scheme

The final layout drawing will be provided within one month after the contract is signed, and the actual layout drawing of our technical department shall prevail to ensure the functional efficiency and basic orientation of the previous discussion.

The direction of conveying, involving the winding and insertion of paper pallets;

The direction of loading must ensure that it is convenient for forklift unloading and stacking of stackers, and the position of forklift unloading and stacking of stackers should be ensured that on the same side of the conveyor, the edge taken by the stacker stacking fork is the winding edge of the horizontal winding machine.

Remarks: Horizontal winding machine, stacker crane, forklift fork to remove the cargo position requires the demander operator to pay attention when loading, in addition to the following three pallets (picture number: 1738086, 1738087, 1738110), all pallets should ensure that the direction of the three feet of the pallet is the winding direction, stacking direction, forklift fork to remove the cargo direction (the direction of the three feet of the pallet is the winding edge is also the stacking edge of the stacker, and the forklift fork takes the edge in the unloading area), The winding or stacking fork of the three special pallets or the fork taking position under the fork are shown in the figure below:
